SPECIFICATIONS

TORQUE CHART

DESCRIPTION

TORQUE

Power Steering Pump

Bracket Bolt-4.0L . . . . . . . . . . 57 N·m (42 ft. lbs.)
Pump Bolts-4.0L . . . . . . . . . . 27 N·m (20 ft. lbs.)
Pump Bolts-4.7L . . . . . . . . . . 40 N·m (30 ft. lbs.)
Flow Control Valve . . . . . . . . 75 N·m (55 ft. lbs.)
Pressure Line . . . . . . . . 20-38 N·m (14-28 ft. lbs.)
Return Line . . . . . . . . . 20-38 N·m (14-28 ft. lbs.)

SPECIAL TOOLS

POWER STEERING PUMP

Analyzer Set, Power Steering Flow/Pressure 6815

Adapters, Power Steering Flow/Pressure Tester

6893

Puller C-4333

Installer, Power Steering Pulley C-4063B

19 - 10

STEERING

WJ

POWER STEERING GEAR

TABLE OF CONTENTS

page

page

DESCRIPTION AND OPERATION

POWER STEERING GEAR . . . . . . . . . . . . . . . . . . 11

DIAGNOSIS AND TESTING

POWER STEERING GEAR LEAKAGE . . . . . . . . . 12

REMOVAL AND INSTALLATION

STEERING GEAR . . . . . . . . . . . . . . . . . . . . . . . . 12

DISASSEMBLY AND ASSEMBLY

STUB SHAFT HOUSING . . . . . . . . . . . . . . . . . . . 13
PITMAN SHAFT/SEALS/BEARINGS . . . . . . . . . . . 14

RACK PISTON/VALVE ASSEMBLY . . . . . . . . . . . . 16

ADJUSTMENTS

STEERING GEAR . . . . . . . . . . . . . . . . . . . . . . . . 20

SPECIFICATIONS

POWER STEERING GEAR. . . . . . . . . . . . . . . . . . 20
TORQUE CHART . . . . . . . . . . . . . . . . . . . . . . . . . 20

SPECIAL TOOLS

POWER STEERING GEAR. . . . . . . . . . . . . . . . . . 21

DESCRIPTION AND OPERATION

POWER STEERING GEAR

DESCRIPTION

The power steering gear is a recirculating ball type

gear (Fig. 1).

The following gear components can be serviced:
• Pitman Shaft and Cover

• Pitman Shaft Bearings

• Pitman Shaft Oil Seal/Dust Seal

• Stud Shaft Housing with Seal

• O-Rings and Teflon Rings

NOTE: If rack piston assembly is damaged the gear
must be replaced.

OPERATION

The gear acts as a rolling thread between the

worm shaft and rack piston. The worm shaft is sup-
ported by a thrust bearing at the lower end and a
bearing assembly at the upper end. When the worm
shaft is turned the rack piston moves. The rack pis-
ton teeth mesh with the pitman shaft. Turning the
worm shaft turns the pitman shaft, which turns the
steering linkage.

WJ

STEERING

19 - 11

DIAGNOSIS AND TESTING

POWER STEERING GEAR LEAKAGE

REMOVAL AND INSTALLATION

STEERING GEAR

REMOVAL

(1) Place the front wheels in the straight ahead

position with the steering wheel centered.

(2) Remove the air cleaner housing, refer to Group

14 Fuel System.

(3) Remove and cap the pressure and return lines

(Fig. 2) from the steering gear.

(4) Remove the column coupler shaft bolt (Fig. 2)

and remove the shaft from the gear.

(5) Remove left front wheel and tire assembly.
(6) Remove pitman arm from gear with Puller

C-4150A.

(7) Remove windshield washer reservoir refer to

Group 8 Electrical.

(8) Remove the steering gear mounting bolts.

Remove the steering gear out of the engine compart-
ment (Fig. 3).

INSTALLATION

(1) Position the steering gear on the frame rail and

install the bolts. Tighten the bolts to 108 N·m (80 ft.
lbs.) torque.

(2) Install the pitman arm and tighten nut to 251

N·m (185 ft. lbs.).

(3) Install windshield washer reservoir refer to

Group 8 Electrical.

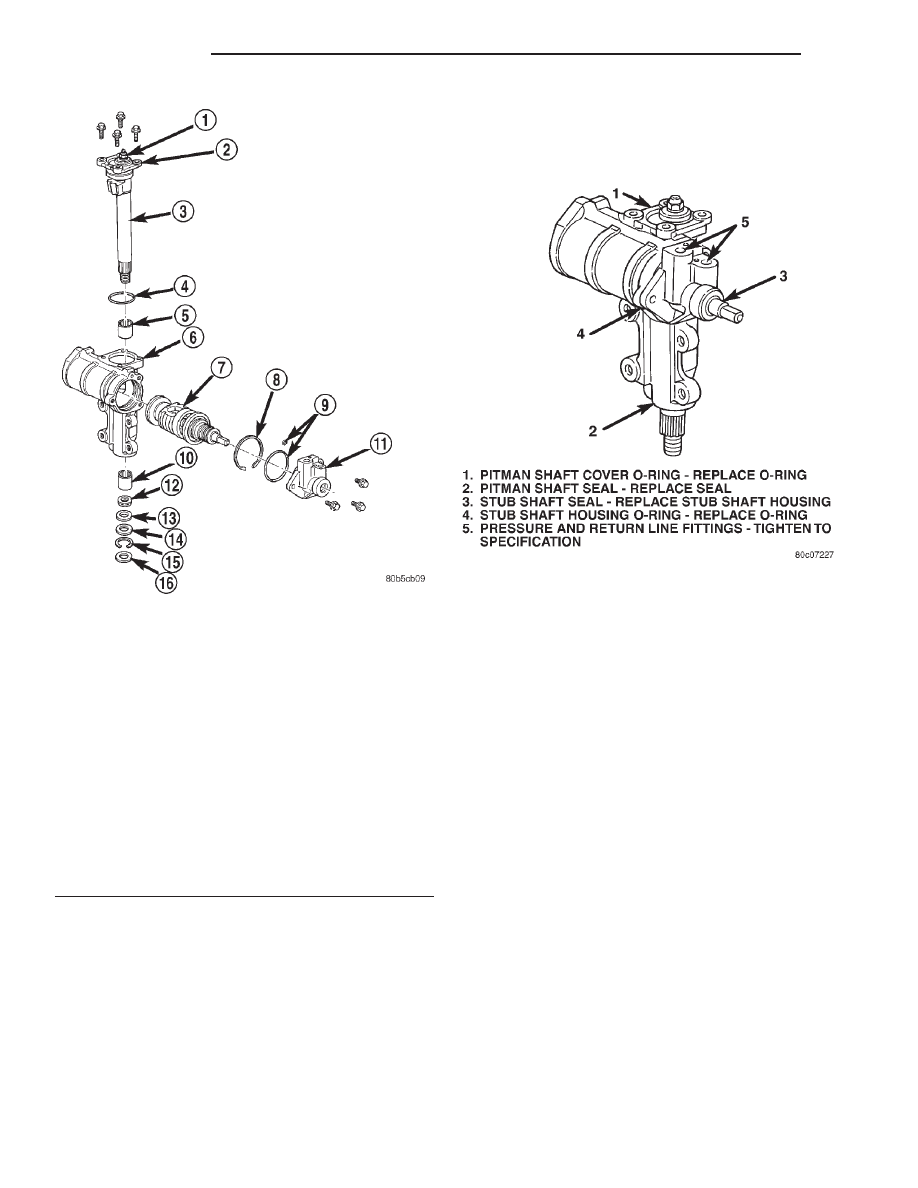

Fig. 1 Recirculating Ball Type Gear

1 – ADJUSTER NUT
2 – COVER
3 – PITMAN SHAFT
4 – O-RING
5 – BEARING
6 – GEAR HOUSING
7 – RACK PISTON
8 – RETAINING RING
9 – O-RING
10 – BEARING
11 – STUB SHAFT HOUSING
12 – PITMAN SHAFT SEAL
13 – PLASTIC BACKUP WASHER
14 – METAL BACKUP WASHER
15 – RETAINING RING
16 – DUST SEAL

19 - 12

STEERING

WJ

DESCRIPTION AND OPERATION (Continued)

(4) Install the wheel and tire assembly.
(5) Install the pressure and return hoses to the

steering gear and tighten to 20-38 N·m (14-28 ft.
lbs.).

(6) Install the column coupler shaft.
(7) Install the air cleaner housing refer to Group

14 Fuel System.

(8) Fill the power steering pump.

DISASSEMBLY AND ASSEMBLY

STUB SHAFT HOUSING

NOTE: If stub shaft housing, seal or bearing is
damaged the housing must be replaced.

DISASSEMBLY

(1) Remove stub shaft housing bolts (Fig. 4).
(2) Remove housing from the steering gear (Fig. 5).
(3) Remove stub shaft housing o-rings (Fig. 6).

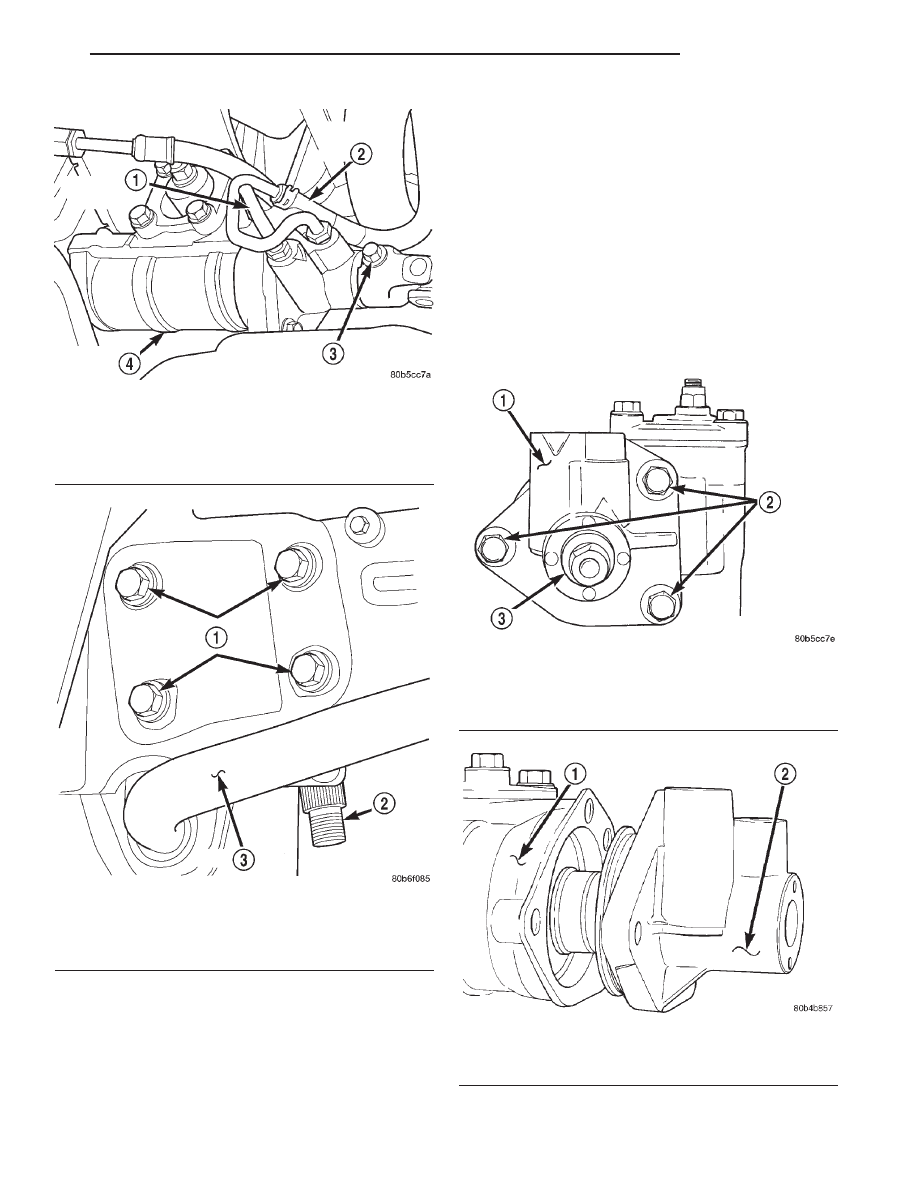

Fig. 2 Pressure And Return Lines

1 – PRESSURE LINE
2 – RETURN LINE
3 – COUPLER BOLT
4 – STEERING GEAR

Fig. 3 Steering Gear Mounting

1 – MOUNTING BOLTS
2 – PITMAN SHAFT
3 – STABILIZER BAR

Fig. 4 Stub Shaft Housing

1 – STUB SHAFT HOUSING
2 – MOUNTING BOLTS
3 – STUB SHAFT SEAL

Fig. 5 Housing Removal

1 – STEERING GEAR
2 – STUB SHAFT HOUSING

WJ

STEERING

19 - 13

REMOVAL AND INSTALLATION (Continued)
