(11) Install the fresh air inlet tube assembly on
the turbocharger. Clip the air filter cover in position
and connect the breather hose (Fig. 25).
(12) Install the intercooler inlet hose on the turbo-
charger (Fig. 25).
(13) Check the transmission fluid level and top off
if necessary.
(14) Connect the negative battery cable.
(15) Start the engine and check for leaks.
ENGINE COOLANT TEMPERATURE SENSOR
The sensors are located on the side of cylinder
head near the rear of fuel injection pump.
REMOVAL
WARNING: HOT,
PRESSURIZED
COOLANT
CAN
CAUSE INJURY BY SCALDING. COOLING SYSTEM
MUST BE PARTIALLY DRAINED BEFORE REMOV-
ING
THE
COOLANT
TEMPERATURE
SENSOR.
REFER TO GROUP 7, COOLING.
(1) Partially drain the cooling system. Refer to
Group 7, Cooling System for the procedure.
(2) Disconnect electrical connector from sensor.
(3) Remove sensor from cylinder head.

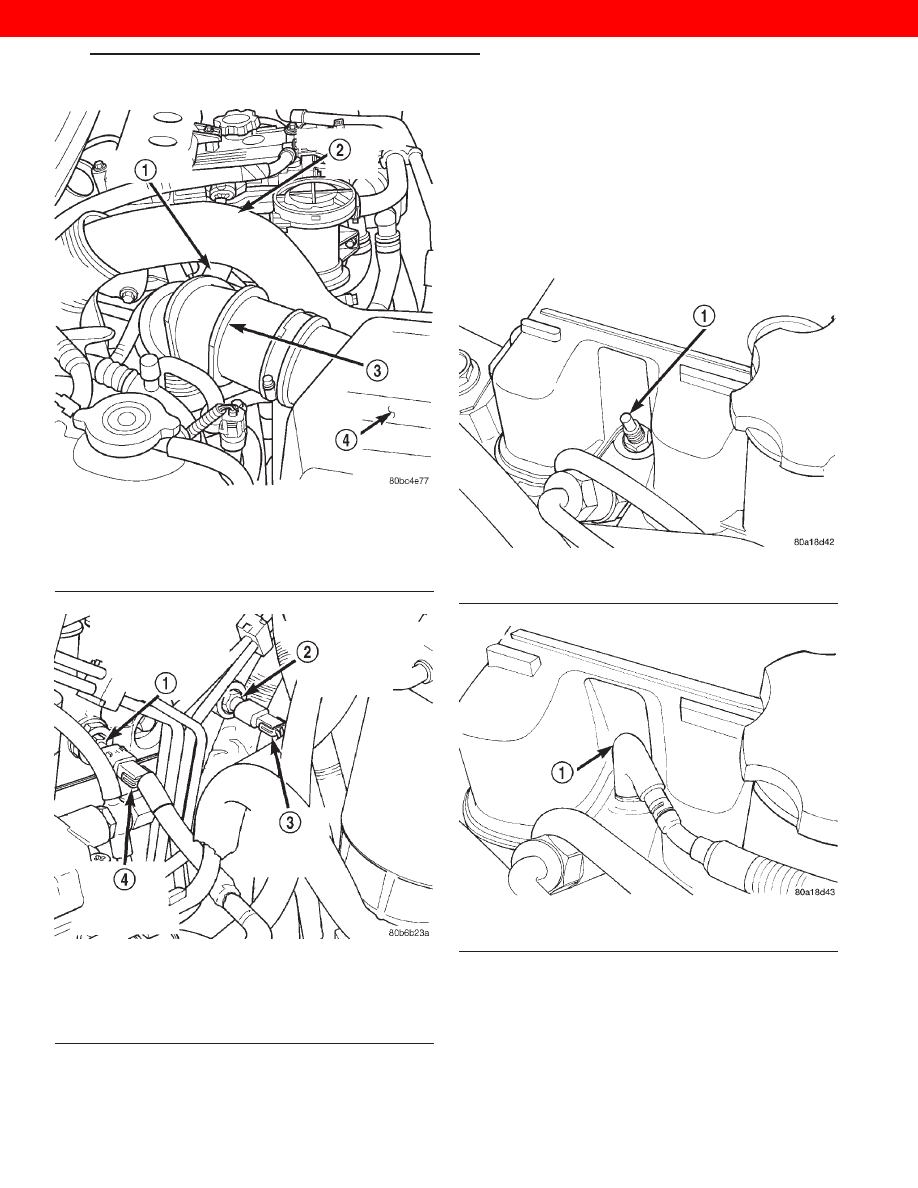

Fig. 22 Engine Speed Sensor
1 – ENGINE SPEED SENSOR RETAINING BOLTS
2 – RUBBER GASKET
3 – ENGINE SPEED SENSOR
Fig. 23 Transmission Dipstick Tube Support Bracket
1 – TRANSMISSION DIPSTICK TUBE
2 – TURBOCHARGER EXHAUST MANIFOLD HEATSHIELD
3 – TRANSMISSION DIPSTICK TUBE SUPPORT BRACKET
RETAINING NUT
Fig. 24 3.1L Diesel Engine
1 – HEATER CORE COOLANT SUPPLY HOSES
2 – EGR VALVE/COOLANT SUPPLY LINE BRACKET RETAINING
BOLTS
3 – EGR VALVE VACUUM SUPPLY LINE
4 – WIRE HARNESS RETAINING CLIPS
14 - 36
FUEL SYSTEM—3.1L DIESEL ENGINE
WJ
REMOVAL AND INSTALLATION (Continued)
