HEAT SHIELDS

DESCRIPTION

Heat shields are needed to protect both the vehicle

and the environment from the high temperatures
developed by the catalytic converter. The catalytic
converter releases additional heat into the exhaust
system. Under severe operating conditions, the tem-
perature increases in the area of the converter. Such
conditions can exist when the engine misfires or oth-
erwise does not operate at peak efficiency (Fig. 6).

DIAGNOSIS AND TESTING

EXHAUST SYSTEM DIAGNOSIS

EXHAUST SYSTEM DIAGNOSIS

CONDITION

POSSIBLE CAUSE

CORRECTION

EXCESSIVE EXHAUST NOISE

1. Leaks at pipe joints.

1. Tighten clamps at leaking joints.

2. Burned or blown out muffler.

2. Replace muffler assembly. Check
exhaust system.

3. Burned or rusted-out exhaust
pipe.

3. Replace exhaust pipe.

4. Exhaust pipe leaking at manifold
flange.

4. Tighten connection attaching
nuts.

5. Exhaust manifold cracked or
broken.

5. Replace exhaust manifold.

6. Leak between exhaust manifold
and cylinder head.

6. Tighten exhaust manifold to
cylinder head stud nuts or bolts.

7. Restriction in muffler or tailpipe.

7. Remove restriction, if possible.
Replace muffler or tailpipe, as
necessary.

8. Exhaust system contacting body
or chassis.

8. Re-align exhaust system to clear
surrounding components.

LEAKING EXHAUST GASES

1. Leaks at pipe joints.

1. Tighten/replace clamps at leaking
joints.

2. Damaged or improperly installed
gaskets (4.0L only).

2. Replace gaskets as necessary
(4.0L only).

Fig. 6 Front and Rear Floor Pan Heat Shields

1 – REAR FLOOR PAN HEAT SHIELD
2 – HEAT SHIELD RETAINING NUTS (QTY 8) TIGHTEN TO 2 N·m

(20 IN. LBS.)

3 – FRONT FLOOR PAN HEAT SHIELD

11 - 6

EXHAUST SYSTEM

WJ

DESCRIPTION AND OPERATION (Continued)

REMOVAL AND INSTALLATION

EXHAUST PIPE

REMOVAL

WARNING: IF TORCHES ARE USED WHEN WORK-
ING ON THE EXHAUST SYSTEM, DO NOT ALLOW
THE FLAME NEAR THE FUEL LINES.

WARNING: THE NORMAL OPERATING TEMPERA-
TURE OF THE EXHAUST SYSTEM IS VERY HIGH.
THEREFORE, NEVER WORK AROUND OR ATTEMPT
TO SERVICE ANY PART OF THE EXHAUST SYSTEM
UNTIL IT IS COOLED. SPECIAL CARE SHOULD BE
TAKEN WHEN WORKING NEAR THE CATALYTIC
CONVERTER. THE TEMPERATURE OF THE CON-
VERTER RISES TO A HIGH LEVEL AFTER A SHORT
PERIOD OF ENGINE OPERATION TIME.

(1) Raise and support the vehicle.
(2) Saturate the bolts and nuts with heat valve

lubricant. Allow 5 minutes for penetration.

(3) Remove the oxygen sensor from the exhaust

pipe (Fig. 7) (Fig. 8).

(4) Heat the exhaust pipe and catalytic converter

connection with a torch until the metal becomes
cherry red. While the metal is still cherry red, twist
the catalytic converter back and forth to separate it
from the exhaust pipe (Fig. 9).

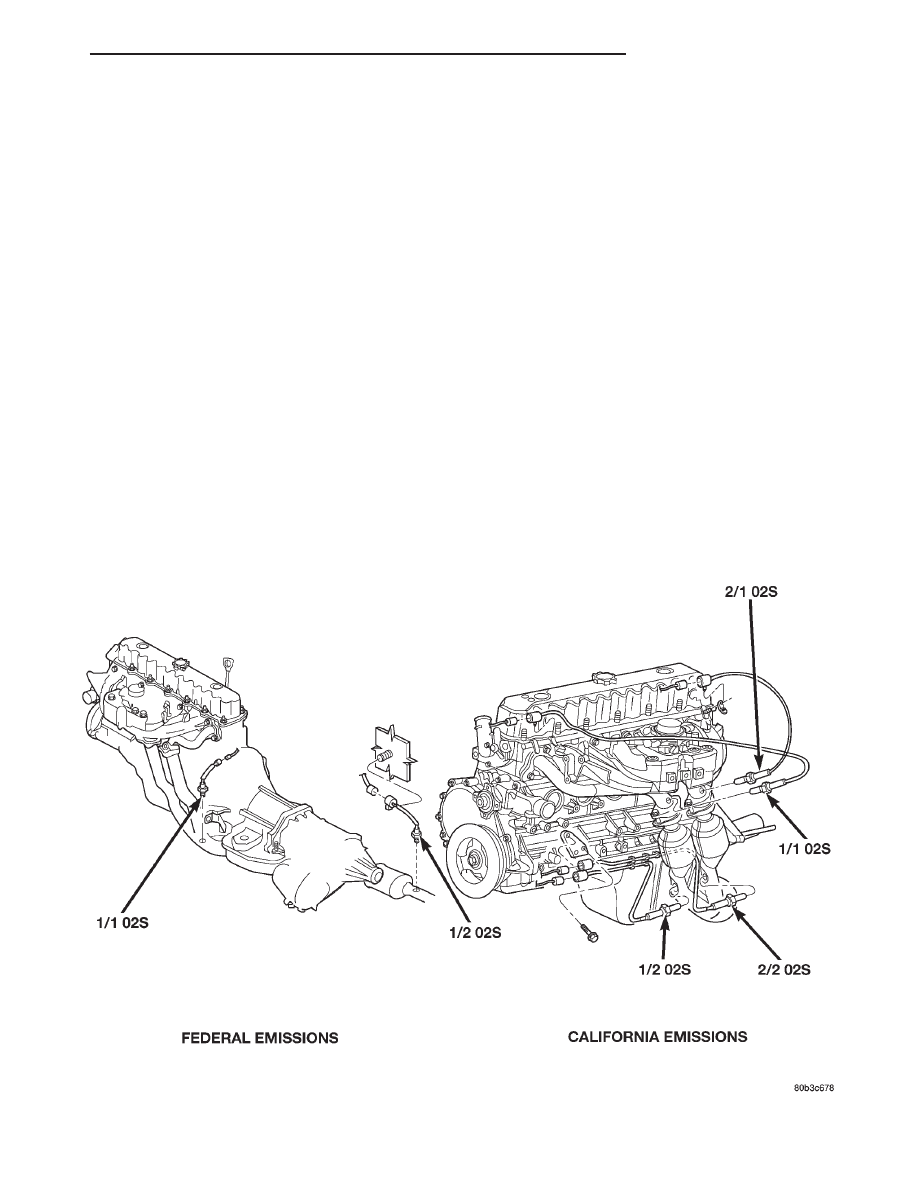

Fig. 7 O2 Sensor Location 4.0L

WJ

EXHAUST SYSTEM

11 - 7

(5) Disconnect the exhaust pipe from the exhaust

manifold. (Fig. 10) (Fig. 11).

(6) Remove the exhaust clamp from the muffler

and catalytic converter connection. Disconnect the
muffler from the catalytic converter. If needed:

(7) Disconnect the tail pipe from the hanger (Fig.

12).

(8) Remove the muffler and tail pipe.

INSTALLATION

NOTE: When servicing the exhaust system, replace
the factory installed uni-clamp with standard u-bolt
clamps.

(1) If the catalytic converter was removed, Install

the catalytic converter onto the exhaust pipe (Fig. 9).

(2) Position the muffler and tail pipe onto the cat-

alytic converter.

(3) Connect the tail pipe hanger to the rear mount

bracket insulator (Fig. 12).

Fig. 8 O2 Sensor Location 4.7L

Fig. 9 Catalytic Converter—Removal

1 – EXHAUST PIPE
2 – CATALYTIC CONVERTER

11 - 8

EXHAUST SYSTEM

WJ

REMOVAL AND INSTALLATION (Continued)

(4) Connect the exhaust pipe to the engine exhaust

manifold. Tighten the nuts to 31 N·m (23 ft. lbs.)
(Fig. 10) (Fig. 11).

NOTE: When servicing the exhaust system, replace
the factory installed uni-clamp with standard u-bolt
clamps.

(5) Position the exhaust clamp over the exhaust

pipe/catalytic converter connection. Tighten clamp
retaining nuts to 61 N·m (45 ft. lbs.). (Fig. 13)

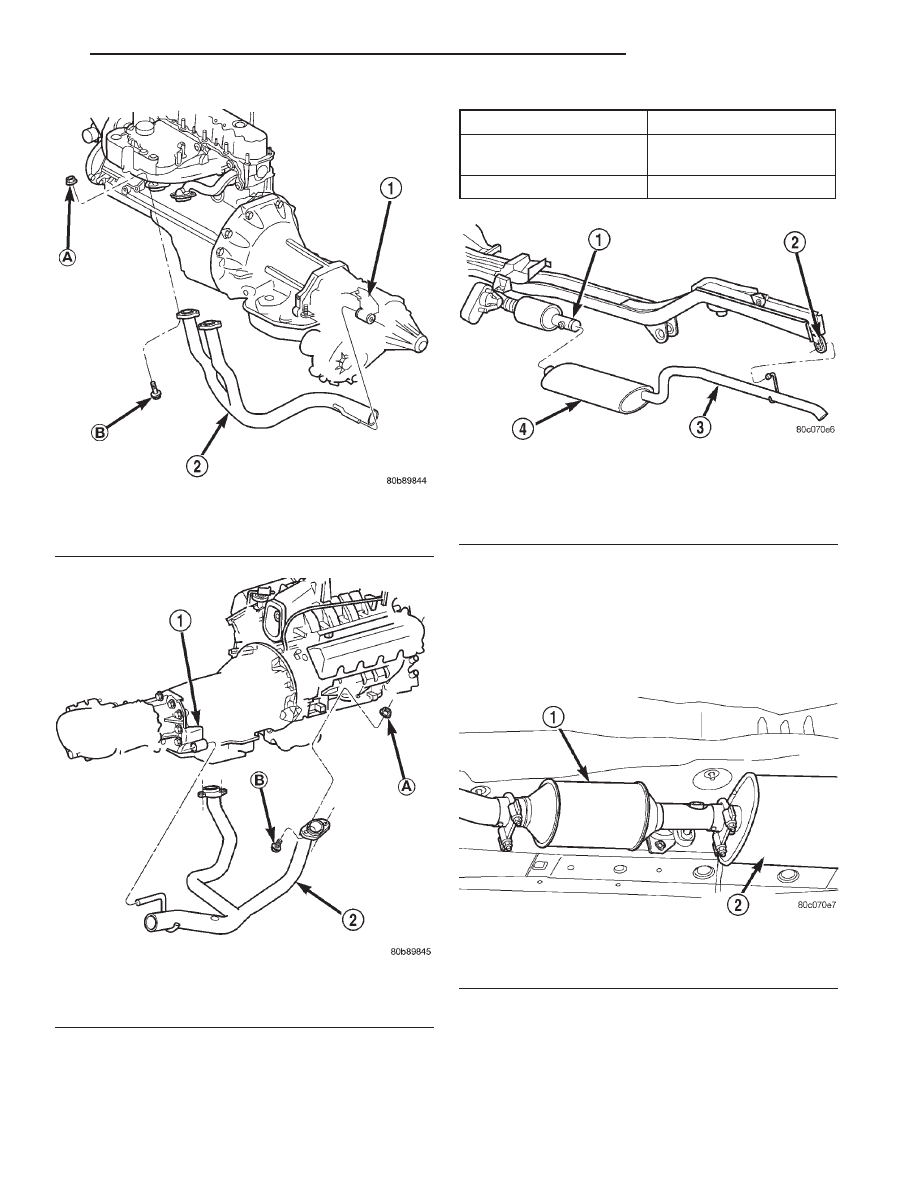

Fig. 10 Exhaust Pipe 4.0L

1 – EXHAUST HANGER
2 – EXHAUST PIPE

Fig. 11 Exhaust Pipe 4.7L

1 – EXHAUST PIPE HANGER
2 – EXHAUST PIPE

ITEM

DESCRIPTION

A

NUT Qty.4 Torque to 31

N·m (23 ft. lbs.)

B

BOLT Qty.4

Fig. 12 Muffler and Tail Pipe

1 – CATALYTIC CONVERTER
2 – TAILPIPE HANGER
3 – TAILPIPE
4 – MUFFLER

Fig. 13 Installing Exhaust Clamps

1 – CATALYTIC CONVERTER
2 – MUFFLER

WJ

EXHAUST SYSTEM

11 - 9

REMOVAL AND INSTALLATION (Continued)
