(12) Remove the EGR valve/heater core supply line

retaining bolts

(13) Remove the heater core supply lines
(14) Remove the exhaust manifold/turbocharger

heat shield (Fig. 56).

(15) Disconnect the oil feed line from turbocharger.

(16) Disconnect the oil return line from turbo-

charger (Fig. 57).

(17) Raise vehicle on hoist.
(18) Disconnect the exhaust pipe at the turbo-

charger.

(19) Remove the Exhaust manifold and turbo-

charger. Refer to Group 11, Exhaust System and Tur-
bocharger.

(20) Disconnect the boost pressure sensor electrical

connector.

(21) Remove the Intake manifold. Refer to intake

manifold removal and installation procedure in this
section.

Fig. 56 Exhaust Manifold/Turbocharger Heat Shield

1 – EXHAUST MANIFOLD/TURBOCHARGER HEATSHIELD
2 – HEATSHIELD RETAINING BOLTS
3 – HEATER CORE SUPPLY/RETURN LINES
4 – OIL FILTER HOUSING
5 – ENGINE OIL COOLER
6 – TURBOCHARGER

Fig. 57 Oil Return Line

1 – ENGINE OIL PAN
2 – TURBOCHARGER ASSEMBLY
3 – TURBOCHARGER OIL RETURN LINE
4 – TURBOCHARGER RETAINING NUT

9 - 34

ENGINE

WJ

REMOVAL AND INSTALLATION (Continued)

2000 JEEP GRAND CHEROKEE

(22) Remove the oil feed line retaining clip at rear

of the cylinder head (Fig. 58).

(23) Remove the oil feed line for rocker arm

assemblies (Fig. 59).

(24) Remove the Crankcase breather hose from

front of the valve cover

(25) Remove the injector sensor wire and the glow

plug hot lead.

(26) Remove the fuel injector supply lines from

injectors.

(27) Remove the fuel injectors with tool VM.1012B

(Fig. 60). Refer to Group 14, Fuel System for proce-
dure.

(28) Remove the cylinder head cover. Refer to cyl-

inder head cover removal and installation procedure
in this section.

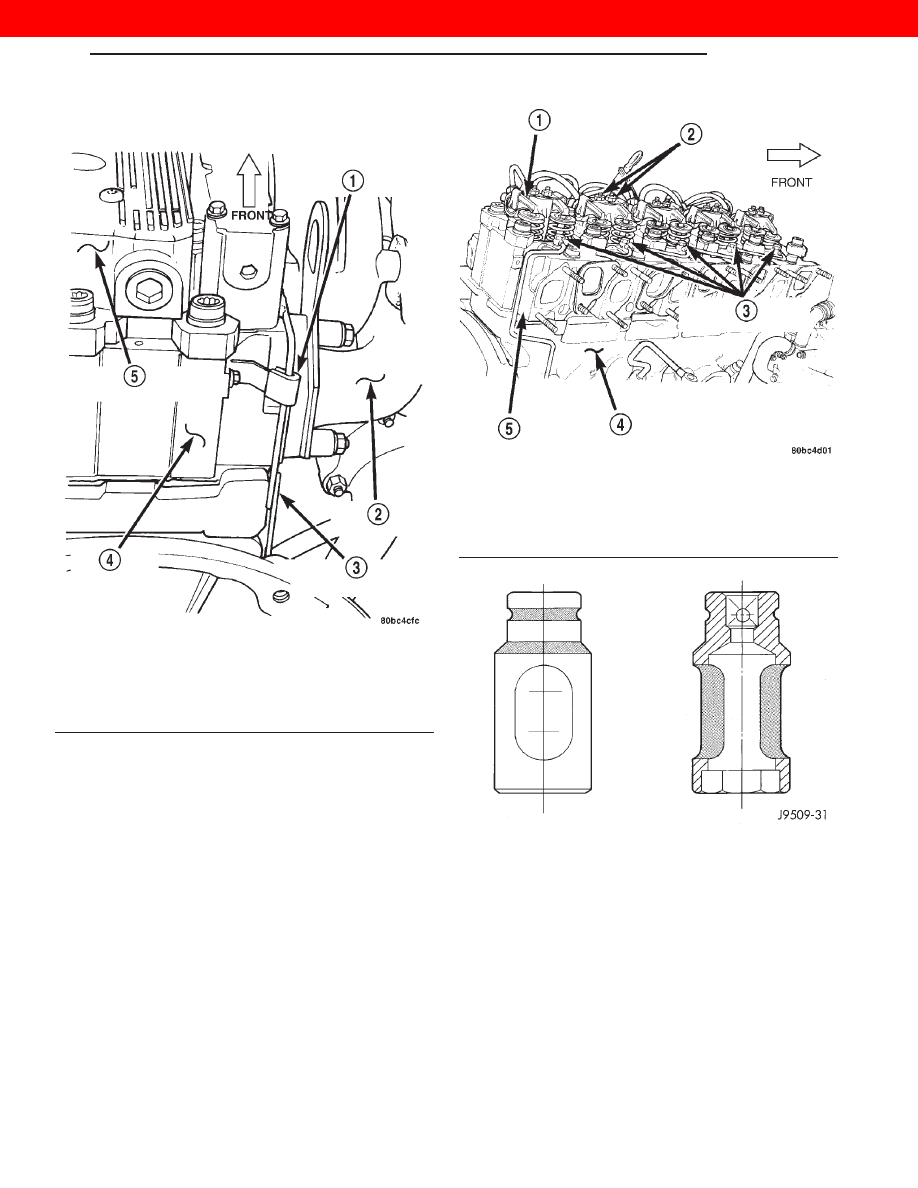

Fig. 58 Cylinder Head Oil Supply Line Retaining Clip

1 – CYLINDER HEAD OIL SUPPLY LINE RETAINING CLIP
2 – EXHAUST MANIFOLD
3 – CYLINDER HEAD OIL SUPPLY LINE
4 – REAR OF CYLINDER HEADS
5 – CYLINDER HEAD COVER

Fig. 59 Rocker Arm Oil Feed Lines

1 – ROCKER ARM ASSEMBLIES
2 – ROCKER ARM NUTS
3 – CYLINDER HEAD OIL SUPPLY LINE
4 – ENGINE BLOCK
5 – CYLINDER HEADS

Fig. 60 Fuel Injector Tool VM.1012B

WJ

ENGINE

9 - 35

REMOVAL AND INSTALLATION (Continued)

2000 JEEP GRAND CHEROKEE

(29) Remove the rocker retaining nuts (Fig. 62)

(Fig. 63).

(30) Remove the rocker arm assemblies. Place

them on a bench in the same order as removed.

(31) Remove the push rods and place them on a

bench in the same order as removed.

(32) Mark the cylinder head positions.

(33) Remove the engine cylinder head bolts with

special tool VM.1018 and VM.1019.

(34) Remove the engine cylinder head and gasket.
(35) Stuff clean lint free shop towels into the cyl-

inder bores.

CYLINDER HEAD GASKETS

A one piece steel cylinder head gasket is used for

all five cylinder heads.

Cylinder head gaskets are available in three thick-

nesses. Identification holes or notches in the right
front corner of the gasket indicate the thickness of
the gasket (Fig. 64).

CAUTION: Piston protrusion must be measured, to
determine cylinder head gasket thickness, if one or
more cylinder wall liners have been replaced.

Fig. 61 Fuel Injector

Fig. 62 Rocker Arm Retaining Nuts

1 – ROCKER ARM ASSEMBLY
2 – ROCKER ARM RETAINING NUTS
3 – ROCKER ARM SPRING PLATE

Fig. 63 Rocker Arm Assemblies

1 – CYLINDER HEADS
2 – ROCKER ARM RETAINING NUTS
3 – ROCKER ARM SPRING PLATE
4 – ROCKER ARM ASSEMBLIES

9 - 36

ENGINE

WJ

REMOVAL AND INSTALLATION (Continued)

2000 JEEP GRAND CHEROKEE

NOTE: If

cylinder

wall

liners

have

not

been

removed; the same thickness head gasket removed,
may be used.

MEASURING PISTON PROTRUSION

(1) Use special tool VM.1010 with dial indicator

special tool VM.1013 (Fig. 65).

(2) Bring the piston of cylinder no. 1 exactly to top

dead center.

(3) Zero the dial indicator on the cylinder block

mating surface.

(4) Setup the dial indicator on the piston crown

(above the center of the piston pin) 5mm (1/8 in.)
from the edge of the piston and note the measure-
ment (Fig. 66).

(5) Repeat the procedure with the rest of the cyl-

inders.

(6) Establish the thickness of the steel gasket for

all four cylinder heads on the basis of the greatest
piston protrusion (Fig. 64).

CAUTION: The

cylinder

head

gasket

is

to

be

installed DRY. DO NOT use a gasket sealing com-
pound on the gasket.

INSTALLATION

(1) Remove the shop towels from the cylinder

bores. Coat the bores with clean engine oil.

(2) Install cylinder head alignment studs VM.1009.
(3) After determining the correct head gasket

thickness, clean the block and head mating surfaces,
place the engine cylinder head gasket over the align-
ment studs.

(4) Place the engine cylinder head over the align-

ment studs.

CAUTION: New cylinder head bolts must be used.

(5) Tighten the engine cylinder head bolts in

sequence according to the following procedure (Fig.
67) :

a. The threads and underside heads of the bolts

should be lubricated. Use the cylinder head align-
ment studs tool number VM-1009. Position the heads
on the block and secure with the twelve large center
bolts and spacers (clamps), finger tight only.

b. Ensure that the various clamps are installed

correctly and the head gasket remains in it’s proper
position, completely covered. Then, lubricate and
install the ten small bolts, also finger tight.

(6) Install the intake and exhaust manifolds with

a new gasket, partially tightening the nuts to a max-
imum of 5 N·m (44 in. lbs.). This will align the heads.

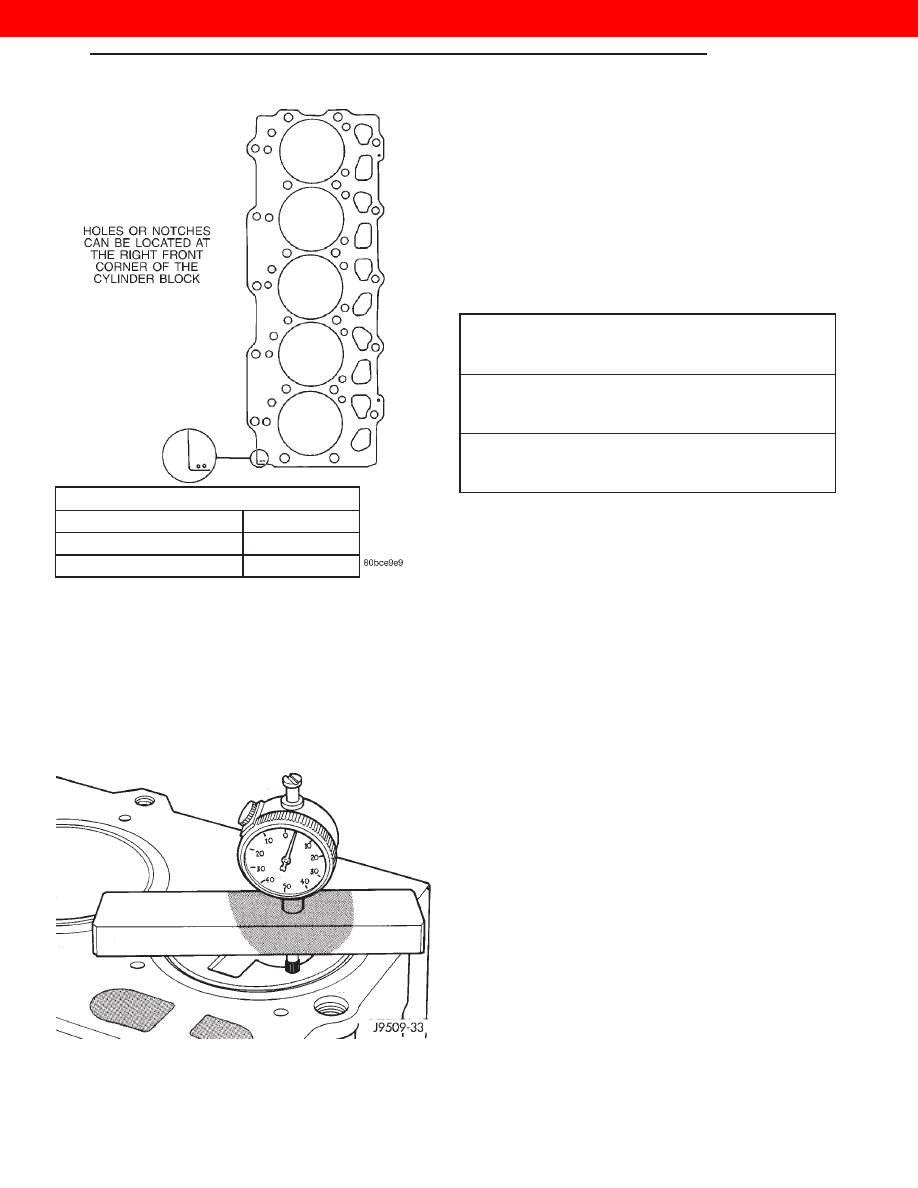

Fig. 64 Steel Type Cylinder Head Gasket—

identification

HOW TO IDENTIFY GASKET THICKNESS

NO HOLES OR NOTCHES

1.41 mm

2 HOLES OR NOTCHES

1.51 mm

1 HOLE OR NOTCHES

1.61 mm

Fig. 65 Measuring Piston Protrusion

Fig. 66 Piston Protrusion Chart

Measured dimension (mm)
Cyl. head gasket thickness (mm)
Piston clearance (mm)

0.53-0.62
1.41
0.80-0.89

Measured dimension (mm)
Cyl. head gasket thickness (mm)
Piston clearance (mm)

0.63-0.72
1.51
0.80-0.89

Measured dimension (mm)
Cyl. head gasket thickness (mm)
Piston clearance (mm)

0.73-0.82
1.61
0.80-0.89

WJ

ENGINE

9 - 37

REMOVAL AND INSTALLATION (Continued)

2000 JEEP GRAND CHEROKEE
