(5) Remove cylinder head cover. Refer to cylinder

head cover removal and installation procedure in this
section.

(6) Remove the rocker assemblies and push rods.

Refer to rocker arms and push rod removal and
installation procedure in this section. Identify push
rods to ensure installation in original location.

(7) Remove cylinder head, intake manifold, and

exhaust manifold. Refer to cylinder head removal
and installation in this section.

(8) Remove the tappet retainers (Fig. 50).
(9) Slide Hydraulic Tappet Remover/Installer Tool

through opening in block and seat tool firmly in the
head of tappet.

(10) Pull the tappet out of the bore with a twisting

motion. If all tappets are to be removed, identify tap-
pets to ensure installation in original location.

CAUTION: The plunger and tappet bodies are not
interchangeable.

The

plunger

and

valve

must

always be fitted to the original body. It is advisable
to work on one tappet at a time to avoid mixing of
parts. Mixed parts are not compatible. DO NOT dis-
assemble a tappet on a dirty work bench.

Fig. 48 Cylinder Head Cover Removal

1 – CYLINDER HEAD COVER GASKET
2 – OIL FEED LINE RETAINING CLIP
3 – PUSH ROD
4 – ROCKER ARM ASSEMBLY
5 – ROCKER ARM OIL FEED LINE
6 – CYLINDER HEAD COVER

Fig. 49 Tappet And Rocker Arm Assembly

Fig. 50 Tappet And Retainer

1 – TAPPET RETAINERS
2 – CYLINDER BLOCK

9 - 30

ENGINE

WJ

REMOVAL AND INSTALLATION (Continued)

2000 JEEP GRAND CHEROKEE

INSTALLATION

(1) Lubricate the tappets.
(2) Install the tappets and retainers in their origi-

nal positions. Ensure that the oil feed hole in the
side of the tappet body faces up (away from the
crankshaft).

(3) Install the cylinder head, intake manifold, and

exhaust manifold. Refer to cylinder head removal
and installation in this section.

(4) Install the push rods.
(5) Install the rocker arms. Refer to rocker arms

and push rod removal and installation in this section.

(6) Install the cylinder head cover. Refer to cylin-

der head cover removal and installation in this sec-
tion.

(7) Connect the negative battery cable.

CAUTION: To prevent damage to valve mechanism,
engine must not be run above fast idle until all
hydraulic tappets have filled with oil and have
become quiet.

(8) Start and operate engine. Warm up to normal

operating temperature.

ROCKER ARMS AND PUSH RODS

REMOVAL

(1) Disconnect the negative battery cable.
(2) Discharge the air conditioning system. Refer to

Group 24, Heating and Air Conditioning for proce-
dure.

(3) Remove the service valves and cap the com-

pressor ports. Refer to Group 24, Heating and Air
Conditioning.

(4) Remove the cylinder head cover. Refer to cylin-

der head cover removal and installation in this sec-
tion.

(5) Remove the rocker arm retaining nut (Fig. 51)

(Fig. 52).

(6) Remove the rocker assembly. Place them on a

bench in the same order as removed.

(7) Remove the push rods and place them on a

bench in the same order as removed.

INSTALLATION

(1) Rotate the crankshaft until the mark lines up

with the TDC mark on the timing cover.

(2) Install the push rods in the same order as

removed.

WARNING: During the installation of the rocker arm
assemblies it is possible to cause valve interfer-
ence between the piston and valve if the piston is
near Top Dead Center (TDC). This is due to the slow
bleed down rate of the tappets when adjusting the

rocker arm assemblies. Follow the procedure below
to ensure that engine damage does not occur.

• Install the rocker arm assemblies in the same

order as removed.

• Bring piston # 1 to Top Dead Center.

• At this point tighten the rocker arm nuts for cyl-

inder # 2–3–4–5. Torque nuts to 27 N·m (20 ft. lbs.).

• Slowly rotate the crankshaft 90° clockwise or

counterclockwise, then tighten the rocker arm nuts
for cylinder # 1. Torque nuts to 27 N·m (20 ft. lbs.).

(4) Install the cylinder head cover. Refer to cylinder

head cover removal and installation in this group.

(5) Evacuate and charge the air conditioning sys-

tem. Refer to Group 24, Heater and Air Conditioning.

(6) Connect the negative battery cable.

VALVE SPRINGS

This procedure can be done with the engine cylin-

der head installed on the block. Each valve spring is
held in place by a retainer and a set of conical valve
locks. The locks can be removed only by compressing
the valve spring.

REMOVAL

(1) Disconnect the negative battery cable.
(2) Remove the cylinder head cover. Refer to cylin-

der head cover removal and installation in this section.

Fig. 51 Rocker Arm Retaining Nut

1 – ROCKER ARM ASSEMBLY
2 – ROCKER ARM RETAINING NUTS
3 – ROCKER ARM SPRING PLATE

WJ

ENGINE

9 - 31

REMOVAL AND INSTALLATION (Continued)

2000 JEEP GRAND CHEROKEE

(3) Remove the rocker arms assemblies and push

rods. Refer to rocker arm and push rod removal and
installation in this section. Retain the push rods, and
rocker arms assemblies in the same order and posi-
tion as removed.

(4) Inspect the springs and retainer for cracks and

possible signs of weakening.

(5) Install an air hose adaptor in the fuel injector

hole.

(6) Connect an air hose to the adapter and apply

air pressure slowly. Maintain at least 621 kPa (90
psi) of air pressure in the cylinder to hold the valves
against their seats.

(7) Tap the retainer or tip with a rawhide hammer

to loosen the lock from the retainer. Use Valve Spring
Compressor Tool to compress the spring and remove
the locks.

(8) Remove the valve spring and retainer.
(9) Inspect the valve stems, especially the grooves.

An Arkansas smooth stone should be used to remove
nicks and high spots.

INSTALLATION

(1) Install the valve spring and retainer.
(2) Compress the valve spring with Valve Spring

Compressor Tool and insert the valve locks. Release
the spring tension and remove the tool. Tap the
spring from side-to-side to ensure that the spring is
seated properly on the engine cylinder head.

(3) Disconnect the air hose. Remove the adaptor

from the fuel injector hole and install the fuel injector.

(4) Repeat the procedures for each remaining valve

spring to be removed.

(5) Install the push rods. Ensure the bottom end of

each rod is centered in the plunger cap seat of the
hydraulic valve tappet.

WARNING: During the installation of the rocker arm
assemblies it is possible to cause valve interfer-
ence between the piston and valve if the piston is
near Top Dead Center (TDC). This is due to the slow
bleed down rate of the tappets when adjusting the
rocker arm assemblies. Follow the procedure below
to ensure that engine damage does not occur.

• Install the rocker arm assemblies in the same

order as removed.

• Bring piston # 1 to Top Dead Center.

• At this point tighten the rocker arm nuts for cyl-

inder # 2–3–4–5. Torque nuts to 27 N·m (20 ft. lbs.).

• Slowly rotate the crankshaft 90° clockwise or

counterclockwise, then tighten the rocker arm nuts
for cylinder # 1. Torque nuts to 27 N·m (20 ft. lbs.).

(7) Install the cylinder head cover. Refer to cylinder

head cover removal and installation in this section.

(8) Connect the negative battery cable.

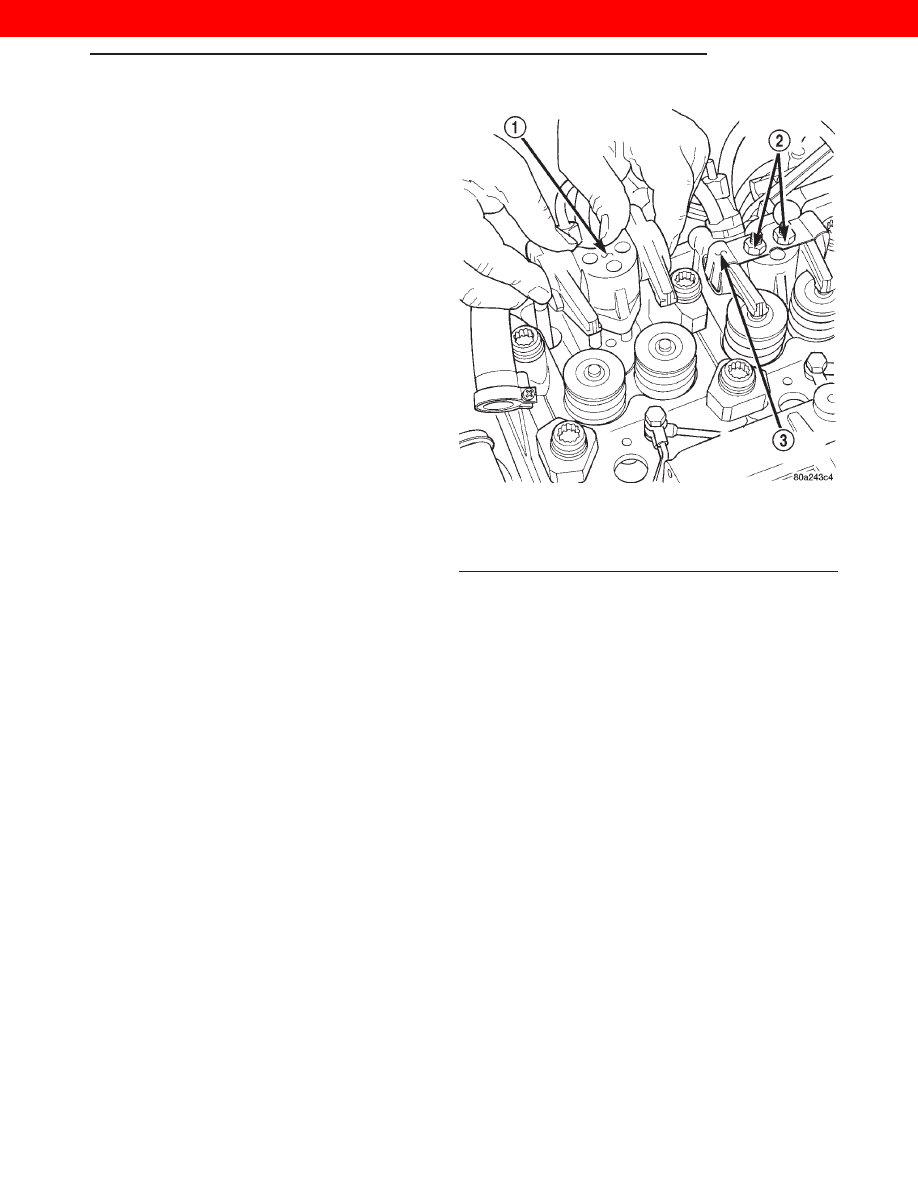

Fig. 52 Rocker Arm Assemblies

1 – CYLINDER HEADS
2 – ROCKER ARM RETAINING NUTS
3 – ROCKER ARM SPRING PLATE
4 – ROCKER ARM ASSEMBLIES

9 - 32

ENGINE

WJ

REMOVAL AND INSTALLATION (Continued)

2000 JEEP GRAND CHEROKEE

ENGINE CYLINDER HEAD

REMOVAL

(1) Disconnect the negative battery cable.

WARNING: DO

NOT

REMOVE

THE

CYLINDER

BLOCK DRAIN PLUGS OR LOOSEN THE RADIATOR
DRAIN COCK WITH THE SYSTEM HOT AND PRES-
SURIZED BECAUSE SERIOUS BURNS FROM THE
COOLANT CAN OCCUR.

(2) Drain the cooling system. Refer to Group 7,

Cooling System for procedure.

(3) Discharge the air conditioning system. Refer to

Group 24, Heating and Air Conditioning for procedure.

(4) Remove the A/C lines at the compressor and

cap. Refer to Group 24, Heating and Air Conditioning.

(5) Remove A/C line bracket attached to cylinder

head cover, and move A/C lines away from cylinder
head.

(6) Remove the intake manifold elbow air inlet

hose (Fig. 53).

(7) Remove the intake manifold elbow (Fig. 53).
(8) Remove the air cleaner hose from turbocharger

and breather hose.

(9) Remove the upper radiator hose and coolant

recovery hose.

(10) Remove the water manifold (Fig. 54).
(11) Disconnect the heater hoses (Fig. 55).

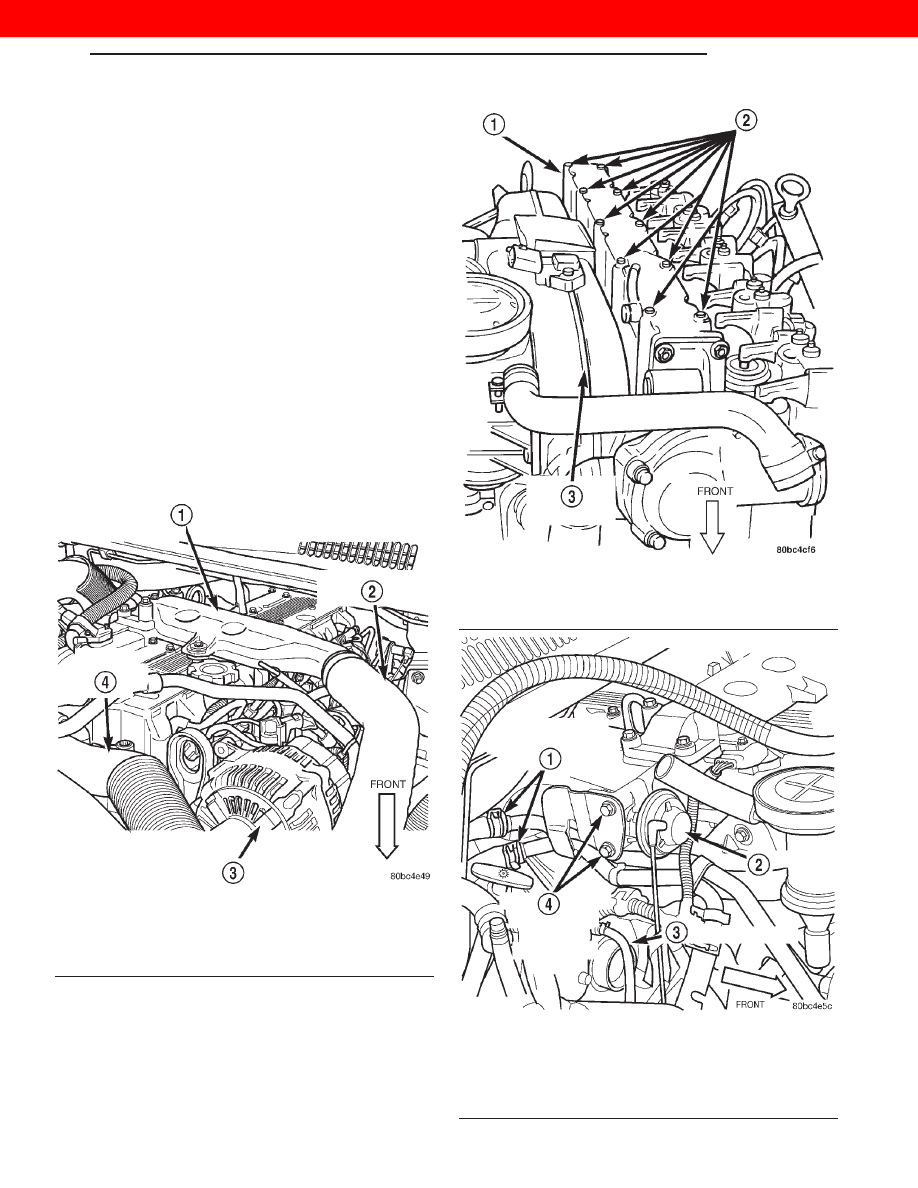

Fig. 54 Water Manifold

1 – WATER MANIFOLD
2 – WATER MANIFOLD RETAINING BOLTS
3 – INTAKE MANIFOLD

Fig. 55 Heater Hoses

1 – HEATER CORE SUPPLY/RETURN HOSES
2 – EGR VALVE
3 – TURBOCHARGER
4 – FRONT
5 – HEATER CORE LINES/EGR VALVE RETAINING BOLTS

Fig. 53 Intake Manifold Elbow

1 – INTAKE MANIFOLD ELBOW
2 – INTERCOOLER OUTLET HOSE
3 – GENERATOR
4 – UPPER RADIATOR HOSE

WJ

ENGINE

9 - 33

REMOVAL AND INSTALLATION (Continued)

2000 JEEP GRAND CHEROKEE
