Jeep Grand Cherokee WJ. Manual - part 348





(21) Remove the manual cooling fan and let set

inside of the fan shroud.

(22) Remove the intercooler inlet and outlet hoses

from the vehicle (Fig. 8).

(23) Disconnect the breather hose and remove the

fresh air inlet tube from the vehicle (Fig. 9).

(24) Remove the radiator overflow hose from the

radiator

(25) Remove the upper radiator hose from the

vehicle.

(26) Disconnect the electric radiator cooling fan

electrical connector.

(27) Recover the refrigerant. Refer to Group 24,

Heating and Air Conditioning for the procedure.

(28) Remove the intake air duct from the vehicle

(Fig. 10).

(29) Remove the power steering cooler retaining

bolts (Fig. 10) and position the cooler aside.

(30) Remove the suction and discharge lines from

the condenser assembly (Fig. 10).

(31) Remove the fan shroud and both cooling fans

as an assembly from the vehicle.

NOTE: The cooling module assembly includes the
radiator, intercooler and A/C condenser.

(32) Remove the cooling module assembly retain-

ing bolts and remove the cooling module from the
vehicle.

(33) Remove the coolant reservoir supply hose

from the engine.

(34) Remove the coolant recovery hose from the

water manifold.

(35) Remove the EGR valve vacuum supply line

from the valve (Fig. 11).

(36) Remove the heater core coolant supply lines

from the engine assembly (Fig. 11).

(37) Remove the refrigerant line from the A/C

accumulator assembly.

(38) Disconnect the oil pressure and boost pressure

sensor electrical connectors and unclip wire harness
from the coolant supply lines.

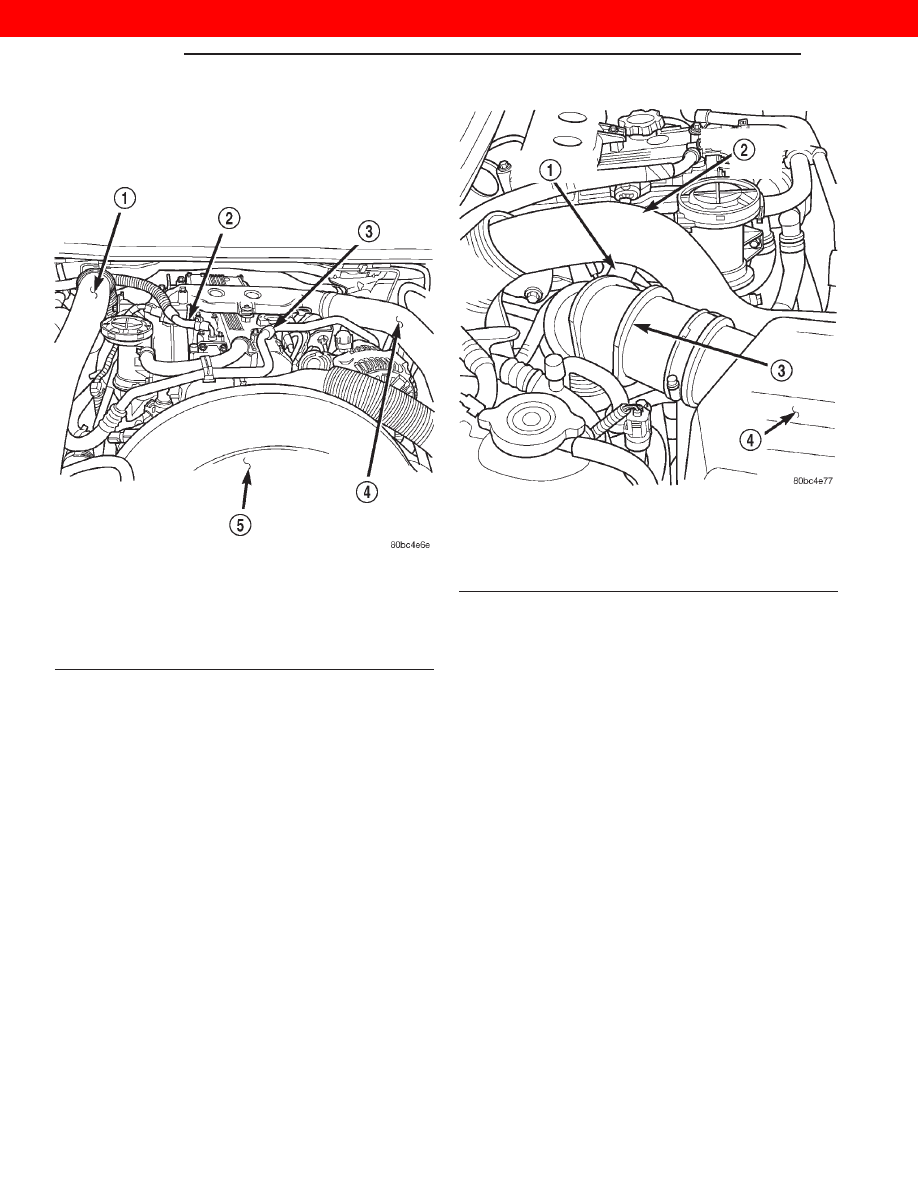

Fig. 8 Intercooler Hoses

1 – INTERCOOLER INLET HOSE
2 – COOLANT RECOVERY HOSE
3 – REFRIGERANT LINE SUPPORT BRACKET
4 – INTERCOOLER OUTLET HOSE
5 – FAN SHROUD

Fig. 9 Air Intake Hoses

1 – BREATHER HOSE
2 – INTERCOOLER INLET HOSE
3 – FRESH AIR INLET TUBE
4 – AIR FILTER COVER

9 - 14

ENGINE

WJ

REMOVAL AND INSTALLATION (Continued)

2000 JEEP GRAND CHEROKEE

(39) Disconnect the engine ground. Located just

behind the oil filter.

(40) Remove the refrigerant line retaining nut

from the bulkhead and remove the refrigerant liquid
line from the vehicle.

(41) Cut the tiestraps retaining the wire harness

to the refrigerant line. Located above the compressor
assembly.

(42) Remove the refrigerant line support bracket

bolt from the cylinder head cover.

(43) Remove both of the refrigerant line retaining

bolts from the compressor and remove the lines from
the vehicle.

(44) Remove the power steering fluid supply hose

from the pump (Fig. 12).

(45) Remove the power steering fluid pressure line

from the pump (Fig. 12).

(46) Remove the vacuum supply hose from the

engine mounted steel vacuum source line.

(47) Disconnect the generator field wire connector

from the rear of the generator.

(48) Unclip the battery feed wire cover and remove

the wire from the top of the generator.

Fig. 10 Cooling Module Assembly

1 – INTAKE AIR DUCT
2 – RADIATOR
3 – COOLING SYSTEM VENT
4 – POWER STEERING FLUID COOLER
5 – POWER STEERING COOLER RETAINING BOLTS
6 – A/C CONDENSER
7 – REFRIGERANT LINE RETAINING NUTS
8 – 10–WAY HEADLAMP MODULE CONNECTOR
9 – INTERCOOLER
10 – A/C CONDENSER RETAINING BOLTS

Fig. 11 Engine Compartment View - Rightside

1 – HEATER CORE COOLANT SUPPLY HOSES
2 – EGR VALVE/COOLANT SUPPLY LINE BRACKET RETAINING

BOLTS

3 – EGR VALVE VACUUM SUPPLY LINE
4 – WIRE HARNESS RETAINING CLIPS

Fig. 12 Power Steering Fluid Lines At Pump

1 – POWER STEERING PUMP
2 – POWER STEERING FLUID SUPPLY HOSE
3 – POWER STEERING FLUID PRESSURE LINE
4 – POWER STEERING PUMP PULLEY
5 – POWER STEERING PUMP PULLEY RETAINING BOLTS

WJ

ENGINE

9 - 15

REMOVAL AND INSTALLATION (Continued)

2000 JEEP GRAND CHEROKEE

(49) Disconnect the speed control servo vacuum

supply hose from the engine mounted steel vacuum
source line.

(50) Disconnect the fuel supply and return hoses

from the engine assembly.

(51) Remove the wire harness mounting bracket

retaining nuts from the left engine mount (Fig. 13).

(52) Disconnect the black and gray 10–way electri-

cal connectors from the engine wire harness.

(53) Disconnect the A/C compressor clutch and

glow plug harness electrical connectors.

(54) Remove the transmission dipstick tube sup-

port bracket retaining nut from the turbocharger
heatshield (Fig. 14).

(55) Raise the vehicle on the hoist.
(56) Disconnect the starter motor electrical.
(57) Remove the starter motor retaining bolts and

remove the starter from the vehicle (Fig. 15).

NOTE: Mark the position of the torque convertor in
relation to the flexplate through the starter motor
access hole. This reference mark will be used to
line up the two components for reassemble.

Fig. 13 Wire Harness Mounting Bracket

1 – FUEL FILTER
2 – WIRE HARNESS MOUNTING BRACKET RETAINING NUTS
3 – GENERATOR

Fig. 14 Transmission Dipstick Tube Support Bracket

1 – TRANSMISSION DIPSTICK TUBE
2 – TURBOCHARGER EXHAUST MANIFOLD HEATSHIELD
3 – TRANSMISSION DIPSTICK TUBE SUPPORT BRACKET

RETAINING NUT

Fig. 15 Starter Motor Position & Orientation

1 – STARTER MOTOR RETAINING BOLTS (2 OF 3)
2 – TRANSMISSION FLUID COOLER LINES
3 – TRANSMISSION
4 – ENGINE OIL PAN
5 – STARTER MOTOR

9 - 16

ENGINE

WJ

REMOVAL AND INSTALLATION (Continued)

2000 JEEP GRAND CHEROKEE

(58) Working through the torque convertor bolt

access hole (Fig. 16), Rotate the engine to access and
remove the (4) torque convertor to flexplate retaining
bolts.

(59) Disconnect the engine ground. Located to the

rear of the left engine mount.

(60) Remove the left engine mount throughbolt

nut. Do not remove the bolt at this time.

(61) Support the rear of the transmission assembly

with a jack.

(62) Remove the (8) transmission support cross-

member retaining bolts (Fig. 17).

(63) Lower the transmission and transfer case

assembly enough to gain access to the upper six
transmission bellhousing bolts.

(64) Remove the upper six bellhousing bolts.
(65) Raise the transmission assembly back into

position and temporarily install four of the eight
transmission crossmember retaining bolts. Install
two bolts on each side.

(66) Remove the remaining four bellhousing bolts.
(67) Partially lower the vehicle.
(68) Remove the engine mount sill plate retaining

bolts in the left wheel well (Fig. 18).

Fig. 16 Torque Convertor Bolt Access Hole

1 – TORQUE CONVERTER BOLT ACCESS HOLE
2 – ENGINE OIL PAN
3 – TOP DEAD CENTER ALIGNMENT TOOL ACCESS HOLE

Fig. 17 Transmission Support Crossmember

1 – TRANSFER CASE
2 – TRANSMISSION MOUNT RETAINING BOLTS (2 OF 4)
3 – EXHAUST SYSTEM SUPPORT BRACKET RETAINING BOLTS
4 – CROSSMEMBER RETAINING BOLTS
5 – TRANSMISSION
6 – CROSSMEMBER RETAINING BOLTS

Fig. 18 Engine Mount Sill Plate Retaining Bolts -

Left Wheel Well

1 – ENGINE MOUNT SILL PLATE RETAINING BOLTS
2 – LEFT FRONT TIRE

WJ

ENGINE

9 - 17

REMOVAL AND INSTALLATION (Continued)

2000 JEEP GRAND CHEROKEE
