REMOVAL

(1) Disconnect and isolate the battery negative

cable.

(2) Remove the fuse cover from the bottom of the

Junction Block (JB). Refer to Instrument Panel
Fuse Cover
in the index of this service manual for
the location of the fuse cover removal procedures.

(3) Remove the steering column opening cover

from the instrument panel. Refer to Steering Col-
umn Opening Cover
in the index of this service
manual for the location of steering column opening
cover removal procedures.

(4) Reach behind the JB to disconnect the two

instrument panel wire harness connectors from the
Body Control Module (BCM) connector receptacles
located near the bottom of the JB (Fig. 8).

(5) Reach behind the JB to remove the screw that

secures the instrument panel wire harness bulkhead
connector to the connector receptacle located near the
top of the JB and disconnect the connector.

(6) Disconnect the fused B(+) and the IOD wire

harness connectors from the connector receptacles
located near the bottom of the JB (Fig. 9).

(7) Remove the screws that secure the right and

left body wire harness bulkhead connectors to the
connector receptacles located near the center of the
JB and disconnect the connectors.

(8) Remove the two screws that secure the JB to

the

instrument

panel

steering

column

support

bracket (Fig. 10).

(9) To disengage the two snap clips that secure the

top of the JB to the instrument panel steering col-
umn support bracket, grasp the bottom of the junc-
tion block firmly with both hands and pull it
downward sharply.

(10) Remove the JB from the instrument panel

steering column support bracket.

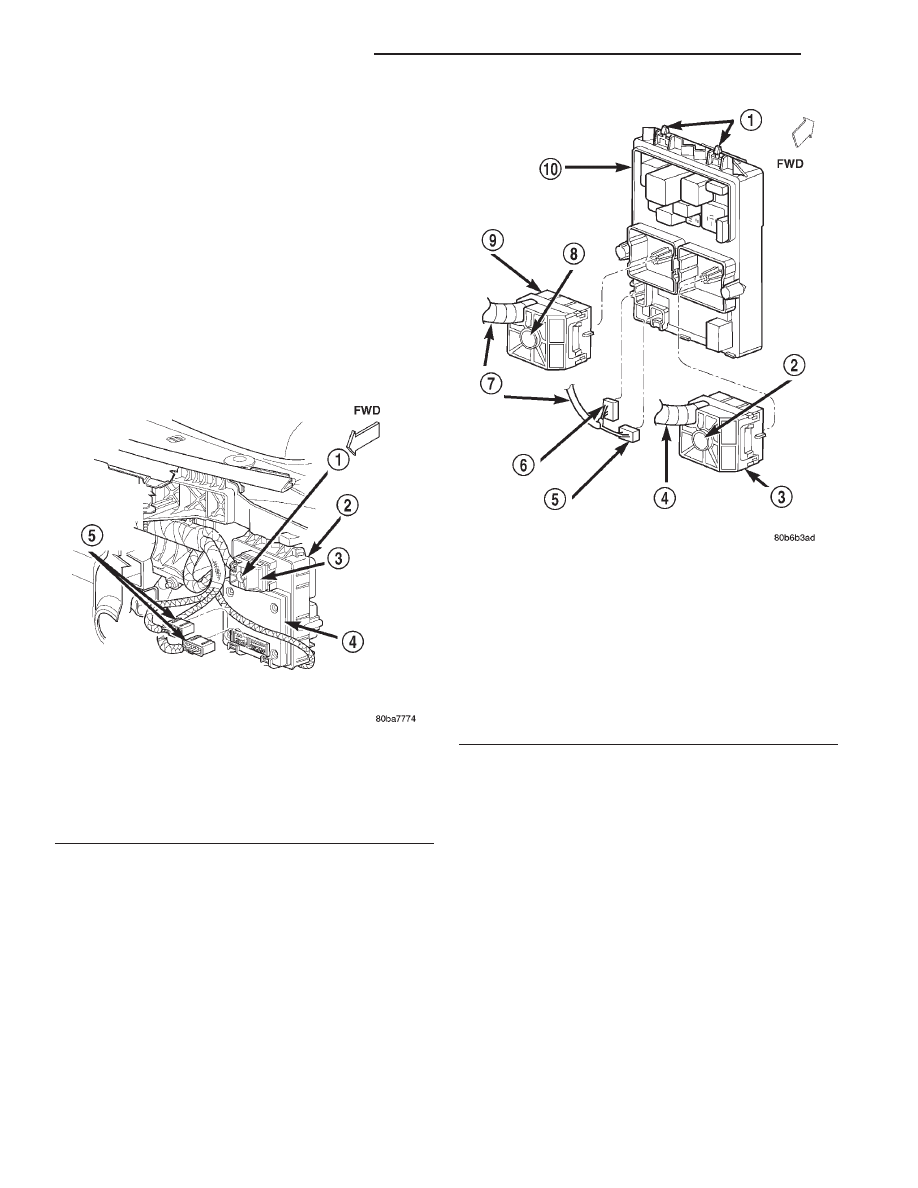

Fig. 8 Junction Block Connections

1 – SCREW
2 – JUNCTION BLOCK
3 – BULKHEAD CONNECTOR
4 – BODY CONTROL MODULE
5 – INSTRUMENT PANEL WIRE HARNESS CONNECTORS

Fig. 9 Junction Block Connections

1 – SNAP CLIPS
2 – SCREW
3 – BULKHEAD CONNECTOR
4 – LEFT BODY WIRE HARNESS
5 – IOD CONNECTOR
6 – FUSED B+ CONNECTOR
7 – RIGHT BODY WIRE HARNESS
8 – SCREW
9 – BULKHEAD CONNECTOR
10 – JUNCTION BLOCK

8O - 8

POWER DISTRIBUTION SYSTEMS

WJ

REMOVAL AND INSTALLATION (Continued)

INSTALLATION

NOTE: If the Junction Block (JB) is being replaced
with a new unit, be certain to transfer each of the
optional fuses, circuit breakers and relays from the
faulty JB to the proper cavities of the replacement
JB. Refer to Junction Block in the index of this ser-
vice manual for the location of complete circuit dia-
grams and cavity assignments for the JB. The Body
Control Module (BCM) must also be transferred to
the new JB. Refer to Body Control Module in the
index of this service manual for the location of the
BCM removal and installation procedures.

(1) Position the JB into its mounting location on

the

instrument

panel

steering

column

support

bracket.

(2) Align the snap clips at the top of the JB with

the mounting holes in the instrument panel steering
column support bracket.

(3) Grasp the bottom of the JB firmly with both

hands and push it upward sharply to engage the two
snap clips that secure the top of the JB to the instru-
ment panel steering column support bracket.

(4) Install and tighten the two screws that secure

the JB to the instrument panel steering column sup-
port bracket. Tighten the screws to 2.2 N·m (20 in.
lbs.).

(5) Reconnect the right and left body wire harness

bulkhead connectors to the connector receptacles
located near the center of the JB.

(6) Install and tighten the screws that secure the

right and left body wire harness bulkhead connectors

to the connector receptacles located near the center
of the JB. Tighten the screws to 2.2 N·m (20 in. lbs.).

(7) Reconnect the fused B(+) and the IOD wire

harness connectors to the connector receptacles
located near the bottom of the JB.

(8) Reach behind the JB to reconnect the instru-

ment panel wire harness bulkhead connector to the
connector receptacle located near the top of the JB.

(9) Install and tighten the screw that secures the

instrument panel wire harness bulkhead connector to
the connector receptacle located near the top of the
JB. Tighten the screw to 2.2 N·m (20 in. lbs.).

(10) Reach behind the JB to reconnect the two

instrument panel wire harness connectors to the
BCM connector receptacles located near the bottom
of the JB.

(11) Install the steering column opening cover onto

the instrument panel. Refer to Steering Column
Opening Cover
in the index of this service manual
for the location of the steering column opening cover
installation procedures.

(12) Install the fuse cover onto the bottom of the

JB. Refer to Instrument Panel Fuse Cover in the
index of this service manual for the location of the
fuse cover installation procedures.

(13) Reconnect the battery negative cable.

REAR POWER OUTLET

WARNING: ON VEHICLES EQUIPPED WITH AIR-
BAGS, DISABLE THE AIRBAG SYSTEM BEFORE
ATTEMPTING ANY STEERING WHEEL, STEERING
COLUMN, OR INSTRUMENT PANEL COMPONENT
DIAGNOSIS OR SERVICE. DISCONNECT AND ISO-
LATE THE BATTERY NEGATIVE (GROUND) CABLE,
THEN WAIT TWO MINUTES FOR THE AIRBAG SYS-
TEM CAPACITOR TO DISCHARGE BEFORE PER-
FORMING FURTHER DIAGNOSIS OR SERVICE. THIS
IS THE ONLY SURE WAY TO DISABLE THE AIRBAG
SYSTEM. FAILURE TO TAKE THE PROPER PRE-
CAUTIONS COULD RESULT IN ACCIDENTAL AIR-
BAG DEPLOYMENT AND POSSIBLE PERSONAL
INJURY.

REMOVAL

(1) Disconnect and isolate the battery negative

cable.

(2) Pull the protective cap out of the rear power

outlet receptacle base (Fig. 11).

(3) Look inside the rear power outlet receptacle

base and note the position of the rectangular retain-
ing bosses of the mount that secures the receptacle
base to the right quarter trim panel (Fig. 12).

Fig. 10 Junction Block Remove/Install

1 – SCREW (2)
2 – DRIVER SIDE COURTESY LAMP
3 – JUNCTION BLOCK
4 – 16 WAY DATA LINK CONNECTOR

WJ

POWER DISTRIBUTION SYSTEMS

8O - 9

REMOVAL AND INSTALLATION (Continued)

(4) Insert a pair of external snap ring pliers into

the rear power outlet receptacle base and engage the
tips of the pliers with the retaining bosses of the
mount.

(5) Squeeze the pliers to disengage the mount

retaining bosses from the receptacle base and, using
a gentle rocking motion, pull the pliers and the
receptacle base out of the mount.

(6) Pull the rear power outlet receptacle base away

from the right quarter trim panel far enough to
access the wire harness connector.

(7) Disconnect the right body wire harness connec-

tor from the rear power outlet receptacle base con-
nector receptacle.

(8) Remove the rear power outlet mount from the

right quarter trim panel.

INSTALLATION

(1) Align the splines on the outside of the rear

power outlet receptacle base connector receptacle
with the grooves on the inside of the mount.

(2) Insert the rear power outlet receptacle base

about half way through the mount.

(3) Reconnect the right body wire harness connec-

tor to the rear power outlet receptacle base connector
receptacle.

(4) Insert the rear power outlet receptacle base

and mount into the right quarter trim panel as a
unit until the mount is seated flush against the trim
panel.

(5) Press firmly on the rear power outlet receptacle

base until the retaining bosses of the mount are fully
engaged in their receptacles.

(6) Install the protective cap into the rear power

outlet receptacle base.

(7) Reconnect the battery negative cable.

DISASSEMBLY AND ASSEMBLY

POWER DISTRIBUTION CENTER

The Power Distribution Center (PDC) cover, the

PDC housing lower cover, the PDC relay wedges, the
PDC relay cassettes and the PDC B(+) terminal stud
module are available for service replacement (Fig.
13). The PDC cover can be simply unlatched and
removed from the PDC housing without the PDC
being removed or disassembled. Service of the
remaining PDC components requires that the PDC
be removed from its mounting and disassembled.
Refer to Wiring Repair in the index of this service
manual for the location of the wiring repair proce-
dures.

Fig. 11 Rear Power Outlet Remove/Install

1 – RIGHT QUARTER TRIM PANEL
2 – RIGHT BODY WIRE HARNESS CONNECTOR
3 – RECEPTACLE BASE
4 – PROTECTIVE CAP
5 – MOUNT

Fig. 12 Power Outlet Remove/Install - Typical

1 – KNOB AND ELEMENT
2 – RETAINING BOSSES-ENGAGE PLIERS HERE
3 – BASE
4 – PARTIALLY REMOVED
5 – EXTERNAL SNAP-RING PLIERS
6 – MOUNT
7 – BASE

8O - 10

POWER DISTRIBUTION SYSTEMS

WJ

REMOVAL AND INSTALLATION (Continued)

DISASSEMBLY

PDC HOUSING LOWER COVER

(1) Remove the battery from the battery support.

Refer to Battery in the index of this service manual
for the location of the battery removal procedures.

(2) Unlatch and remove the cover from the PDC.
(3) Remove the two nuts that secure the two-holed

eyelet of the battery wire harness PDC take out to
the B(+) terminal studs near the front of the PDC.

(4) Remove the battery wire harness PDC take out

eyelet from the two PDC B(+) terminal studs.

(5) Disengage the latches on the PDC housing

mounts from the tabs on the PDC mounting stan-
chions on the battery support, and pull the PDC
housing upward to disengage the mounts from the
stanchions.

(6) Where the right headlamp and dash wire har-

ness exits the PDC, remove the tape that secures the
wire harness to the trough formation on the PDC
housing lower cover.

(7) Using a trim stick or another suitable wide

flat-bladed tool, gently pry the latches on each side
and the front of the PDC housing that secure the
housing lower cover to the PDC and remove the
housing lower cover (Fig. 14).

Fig. 13 Power Distribution Center Components

1 – PIVOT HOOKS
2 – COVER
3 – LATCHES
4 – PDC HOUSING
5 – B(+) TERMINAL STUD MODULE
6 – HOUSING LOWER COVER
7 – WIRE HARNESS
8 – RELAY CASSETTE (TYPICAL)
9 – HINGE PIN
10 – RELAY WEDGE (TYPICAL)

Fig. 14 PDC Housing Lower Cover Remove/Install

1 – TROUGH FORMATION
2 – LATCHES (5)
3 – PDC HOUSING LOWER COVER
4 – WIRE HARNESS

WJ

POWER DISTRIBUTION SYSTEMS

8O - 11

DISASSEMBLY AND ASSEMBLY (Continued)
