Rear Air Mix Door Motor - Rear Heater and Cooling Unit Assembly

Removal and Installation

INFOID:0000000005147621

FRONT AIR MIX DOOR MOTOR (DRIVER)

Removal

1. Remove the front heater and cooling unit assembly. Refer to

VTL-17, "Removal and Installation"

.

2. Remove the steering member from the front heater and cooling unit assembly.
3. Disconnect the air mix door motor electrical connector.
4. Remove the three screws and remove the air mix door motor.

Installation

Installation is in the reverse order of removal.

FRONT AIR MIX DOOR MOTOR (PASSENGER)

Removal

1. Remove the center console lower cover LH. Refer to

IP-12, "Removal and Installation"

.

2. Disconnect the air mix door motor electrical connector.
3. Remove the three screws and remove the air mix door motor.

Installation

Installation is in the reverse order of removal.

REAR AIR MIX DOOR MOTOR

Removal

1. Remove the luggage side lower finisher RH. Refer to

INT-19, "Removal and Installation"

.

ALIIA0066ZZ

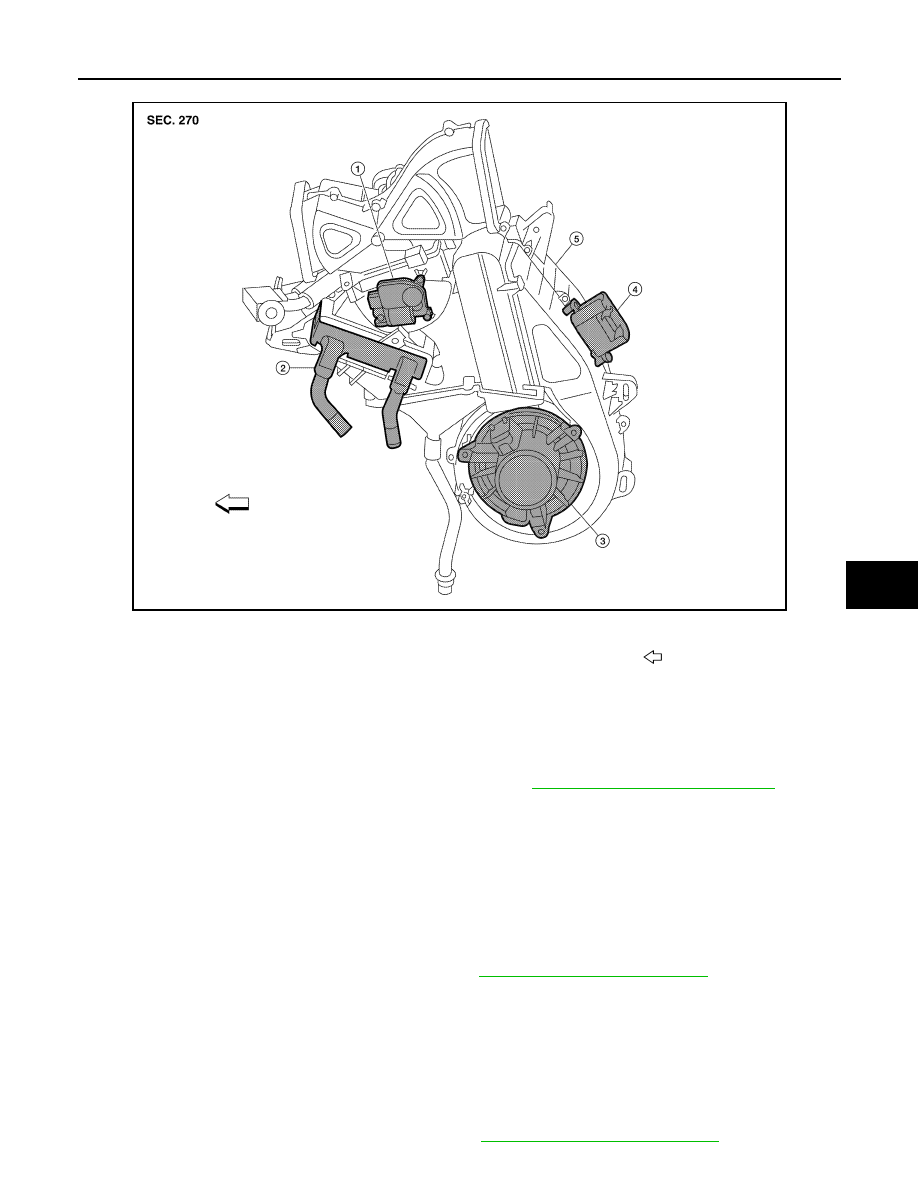

1.

Air mix door motor

2.

Heater core

3.

Blower motor

4.

Variable blower control

5.

Rear heater and cooling unit assembly

Front

VTL-32

< ON-VEHICLE REPAIR >

AIR MIX DOOR MOTOR

2. Disconnect the rear air mix door motor electrical connector.
3. Remove the three screws and remove the rear air mix door motor.

Installation

Installation is in the reverse order of removal.

DUCTS AND GRILLES

VTL-33

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

DUCTS AND GRILLES

Component

INFOID:0000000005147624

Ducts - Front Heater and Cooling Unit Assembly

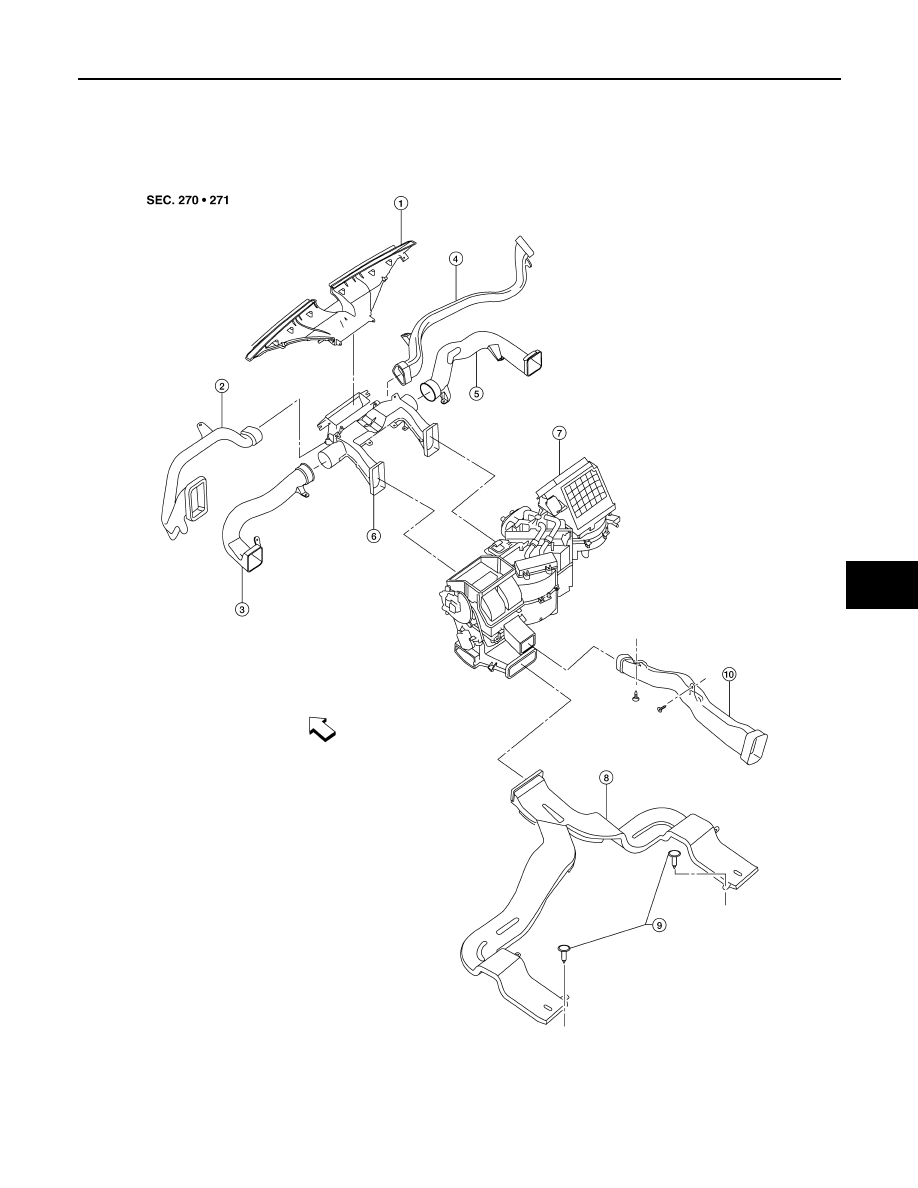

AWIIA0090ZZ

1.

Defroster nozzle

2.

LH side demister duct

3.

LH ventilator duct

4.

RH side demister duct

5.

RH ventilator duct

6.

Center ventilator duct

VTL-34

< ON-VEHICLE REPAIR >

DUCTS AND GRILLES

Ducts - Rear Heater and Cooling Unit Assembly

7.

Front heater and cooling unit assembly

8.

Floor duct

9.

Clips

10. Heat duct

Front

AWIIA0091GB

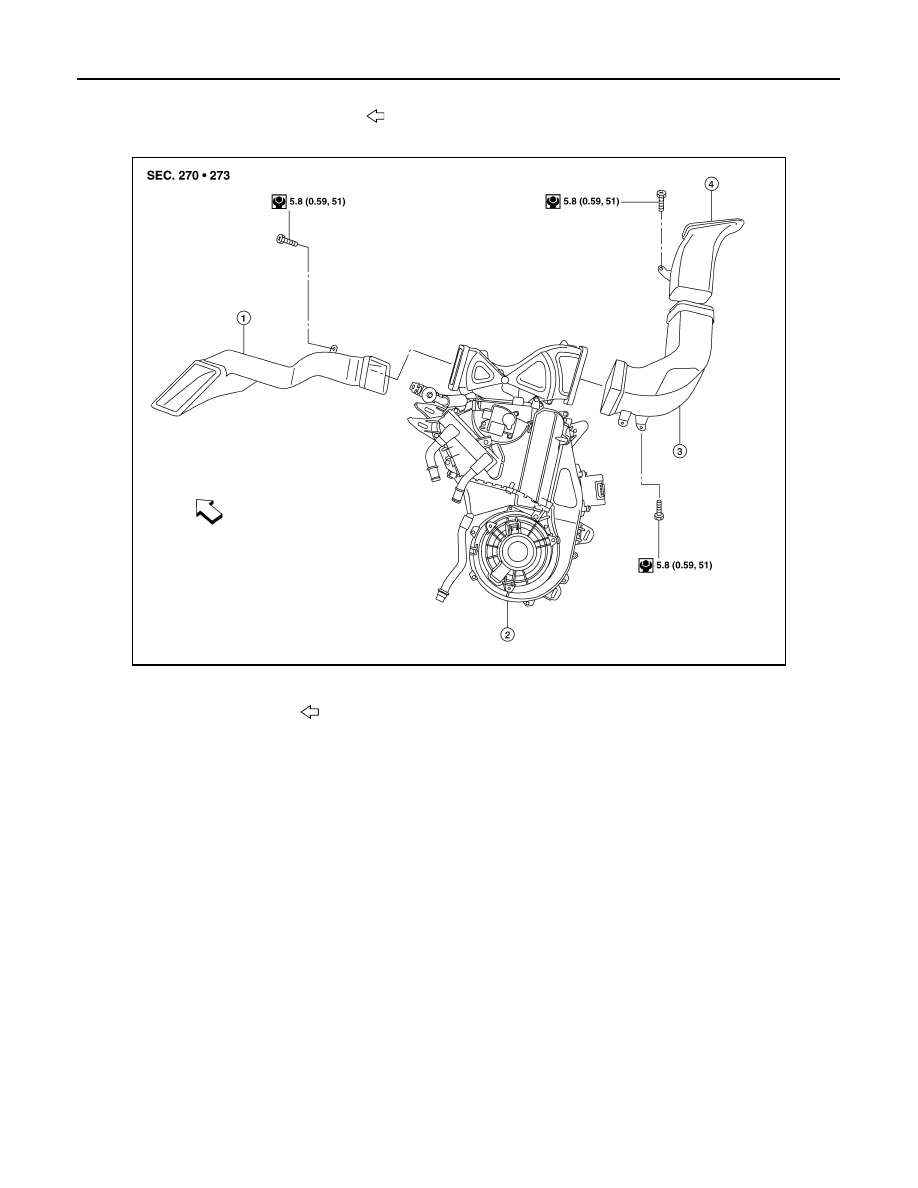

1.

Rear floor duct

2.

Rear heater and cooling unit assembly

3.

Rear lower overhead duct

4.

Rear upper overhead duct

Front
