Infiniti QX56 (JA60). Manual - part 981





TM-226

< DISASSEMBLY AND ASSEMBLY >

REPAIR FOR COMPONENT PARTS

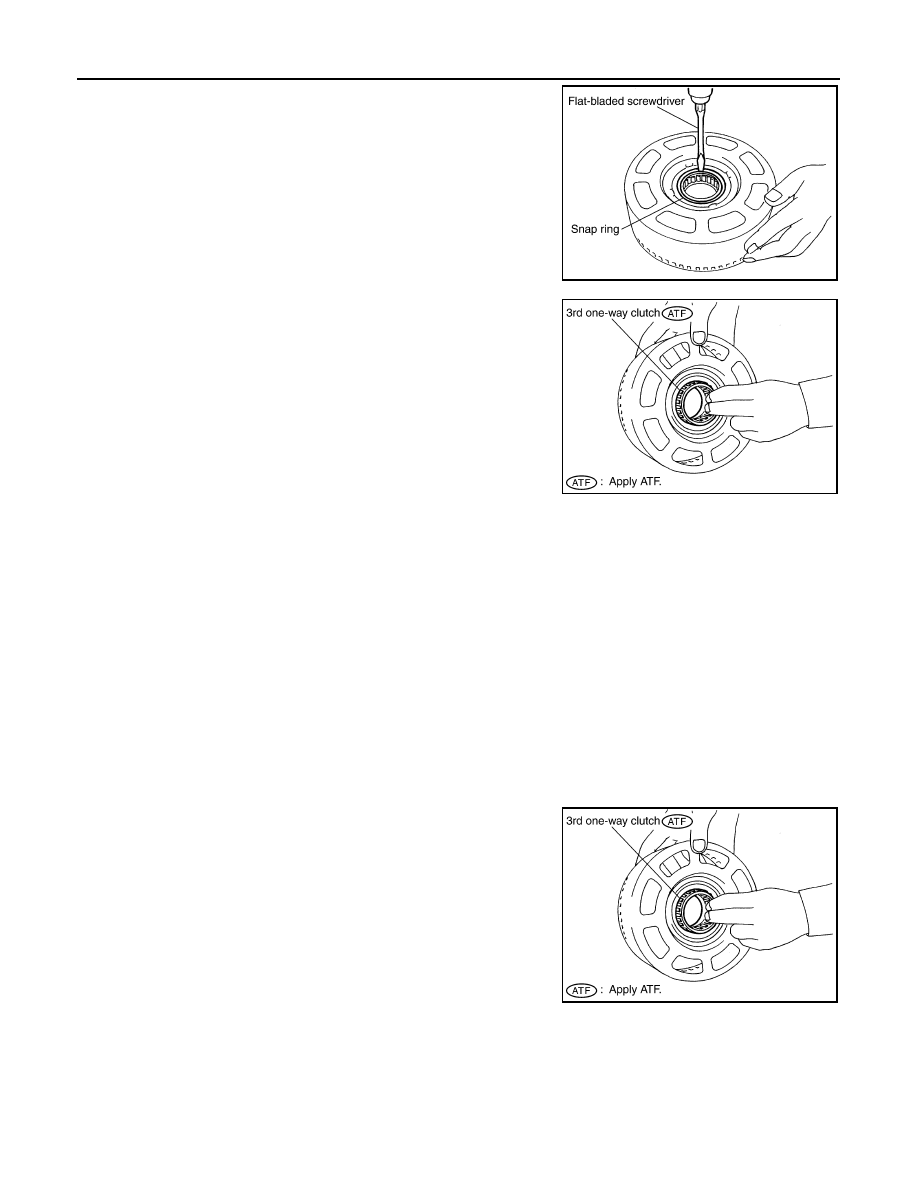

1. Remove snap ring from front sun gear using suitable tool.

2. Remove 3rd one-way clutch from front sun gear.

INSPECTION

3rd One-way Clutch

• Check frictional surface for wear or damage.

CAUTION:

If necessary, replace the 3rd one-way clutch.

Front Sun Gear Snap Ring

• Check for deformation, fatigue or damage.

CAUTION:

If necessary, replace the snap ring.

Front Sun Gear

• Check for deformation, fatigue or damage.

CAUTION:

If necessary, replace the front sun gear.

ASSEMBLY

1. Install 3rd one-way clutch in front sun gear.

CAUTION:

Apply ATF to 3rd one-way clutch.

SCIA3110E

SCIA3111E

SCIA3111E

REPAIR FOR COMPONENT PARTS

TM-227

< DISASSEMBLY AND ASSEMBLY >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

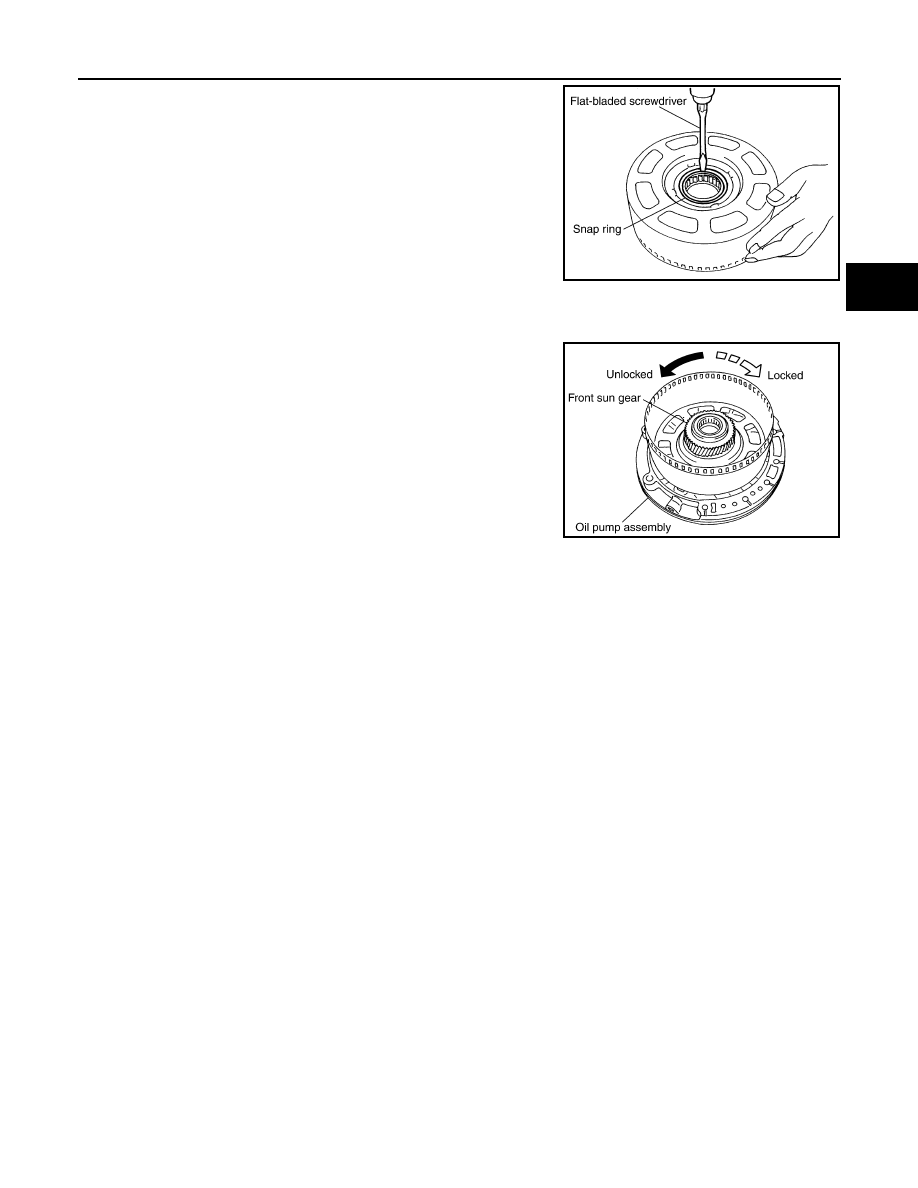

2. Install snap ring in front sun gear using suitable tool.

3. Check operation of 3rd one-way clutch.
a. Hold oil pump assembly and turn front sun gear.
b. Check 3rd one-way clutch for correct locking and unlocking

directions.

CAUTION:

If not as shown, check installation direction of 3rd one-way

clutch.

Front Carrier, Input Clutch, Rear Internal Gear

INFOID:0000000005148751

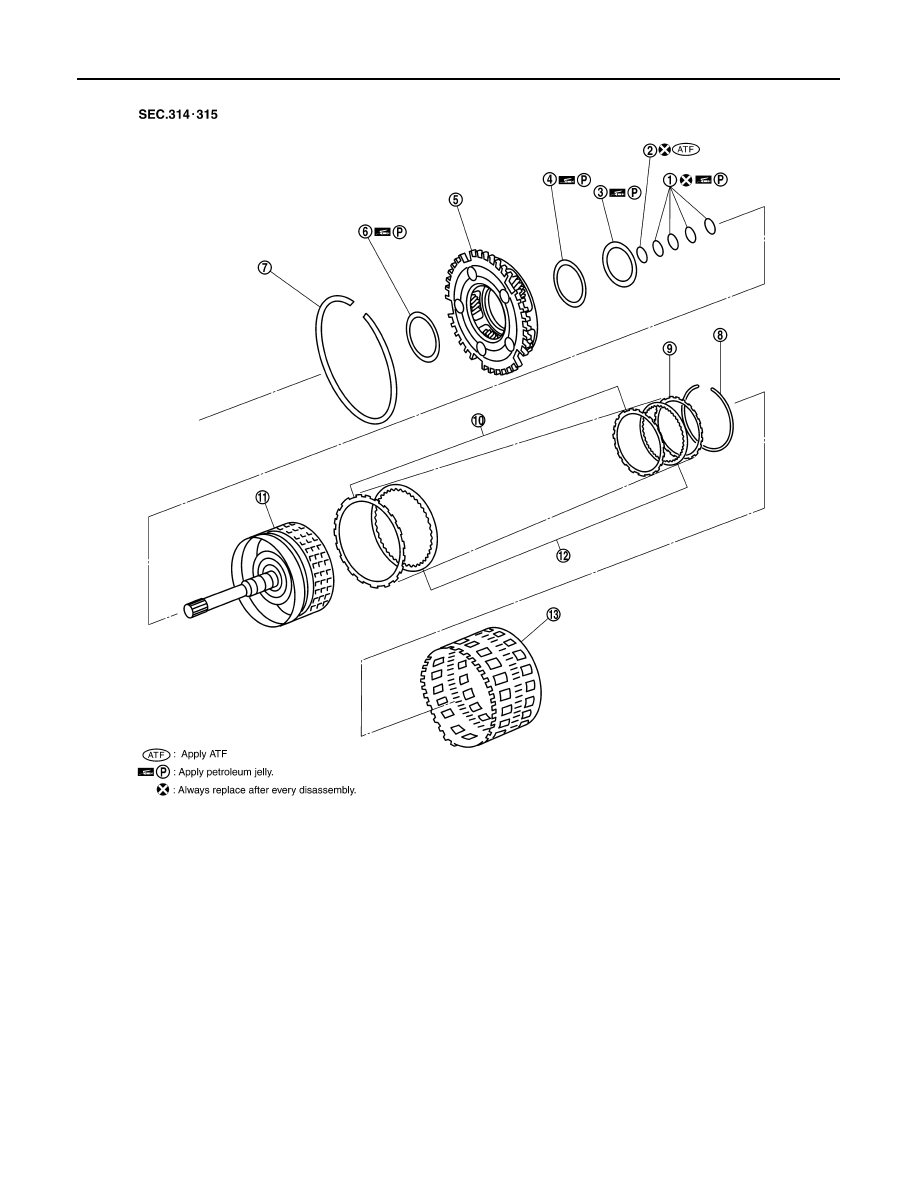

COMPONENTS

SCIA3110E

SCIA3131E

TM-228

< DISASSEMBLY AND ASSEMBLY >

REPAIR FOR COMPONENT PARTS

DISASSEMBLY

1.

Seal ring

2.

O-ring

3.

Needle bearing

4.

Bearing race

5.

Front carrier assembly

6.

Needle bearing

7.

Snap ring

8.

Snap ring

9.

Retaining plate

10. Driven plate

11. Input clutch drum

12. Drive plate

13. Rear internal gear

SCIA5244E

REPAIR FOR COMPONENT PARTS

TM-229

< DISASSEMBLY AND ASSEMBLY >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

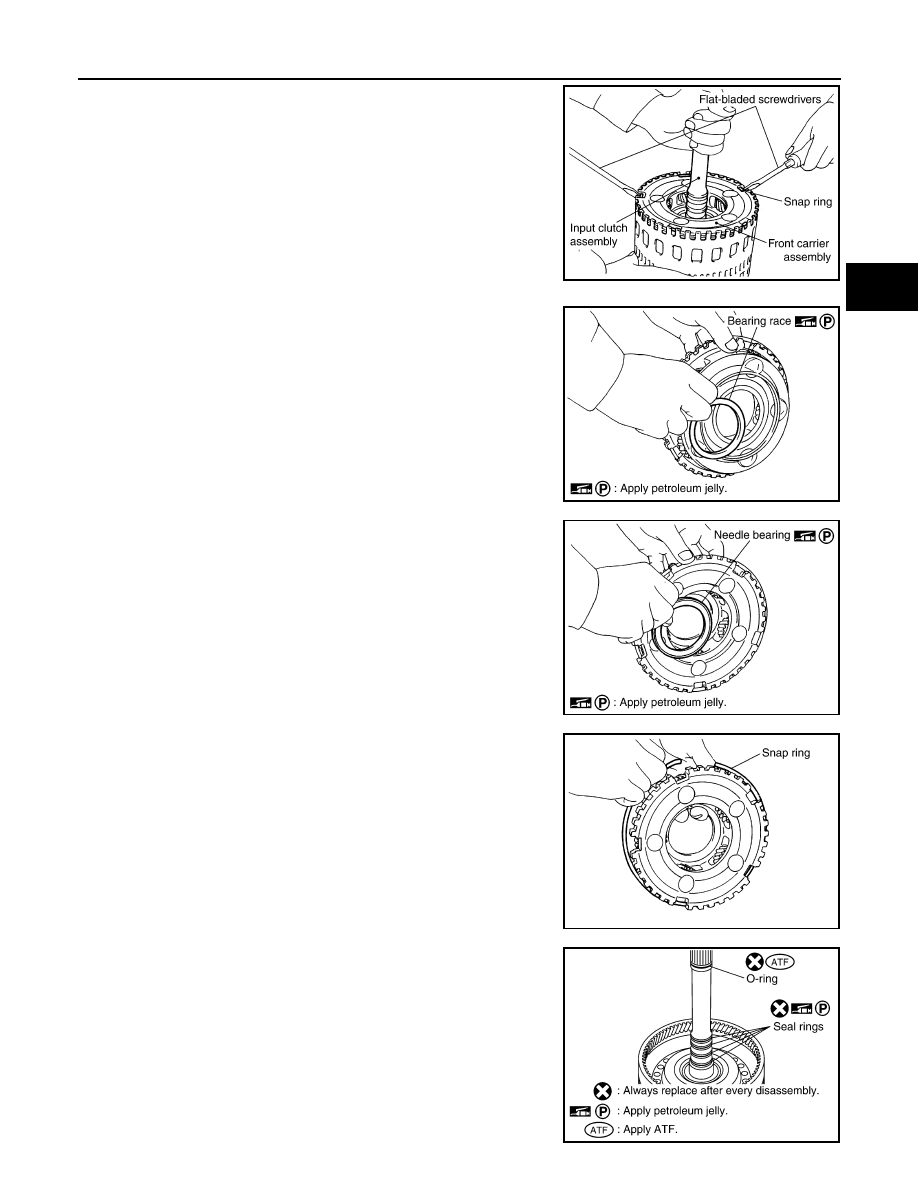

1. Compress snap ring using suitable tool.
2. Remove front carrier assembly and input clutch assembly from

rear internal gear.

3. Remove front carrier assembly from input clutch assembly.

a. Remove bearing race from front carrier assembly.

b. Remove needle bearing from front carrier assembly.

c. Remove snap ring from front carrier assembly.

CAUTION:

Do not expand snap ring excessively.

4. Disassemble input clutch assembly.
a. Remove O-ring and seal rings from input clutch assembly.

SCIA5661E

SCIA5232E

SCIA5233E

SCIA5234E

SCIA5235E
