A/T FLUID

Changing the A/T Fluid (ATF)

INFOID:0000000005148723

CAUTION:

If using the vehicle for towing, the A/T fluid must be replaced as specified. Refer to

MA-9, "Introduc-

tion of Periodic Maintenance"

.

1. Drive the vehicle to warm up the A/T fluid to approximately 80

° C (176° F).

2. Stop the engine.
3. Remove the A/T fluid level gauge.
4. Drain the A/T fluid from the drain plug hole, then install the drain

plug with a new gasket. Refill the transmission with new A/T

fluid. Always refill with the same volume as the drained A/T fluid.

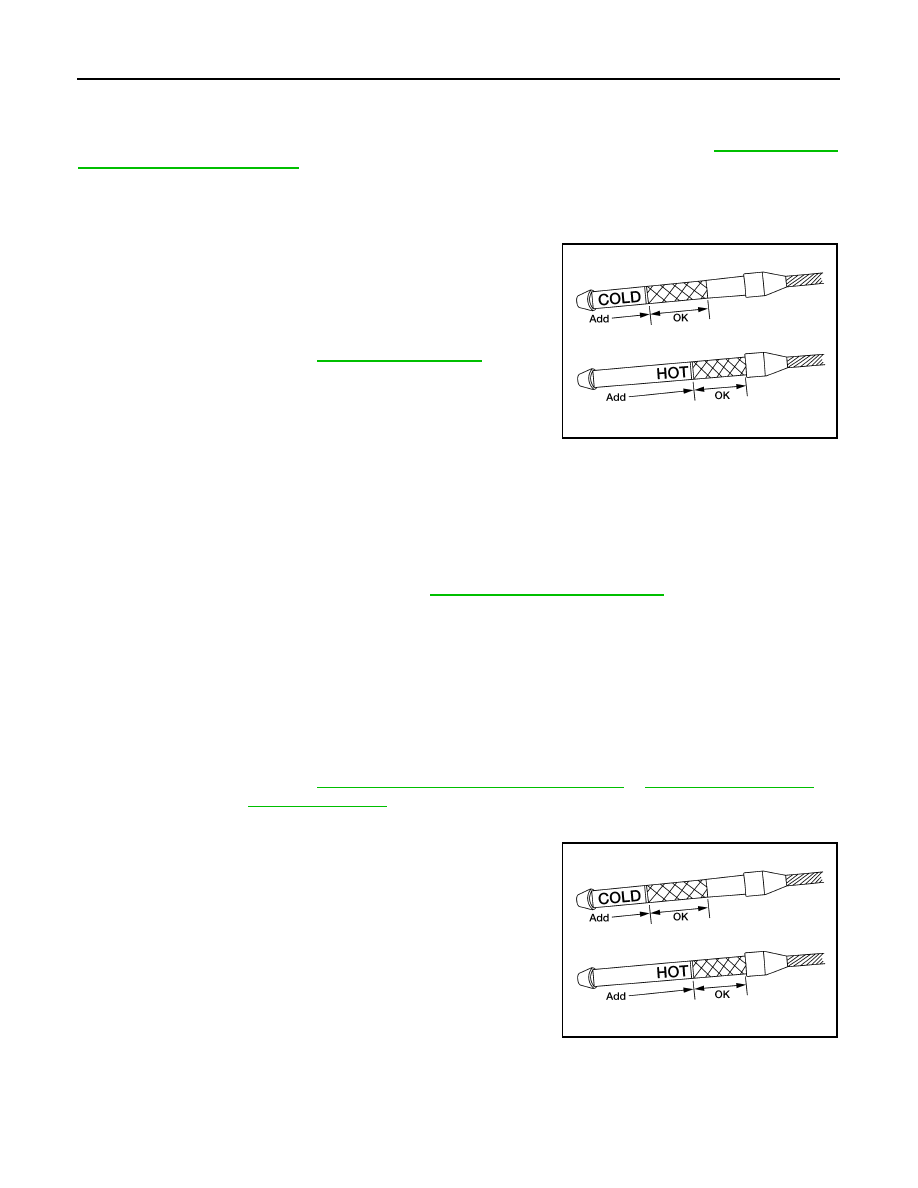

Use the A/T fluid level gauge to check the A/T fluid level as

shown. Add A/T fluid as necessary.

• To flush out the old A/T fluid from the transmission oil coolers, pour new A/T fluid into the A/T fluid charg-

ing pipe with the engine idling and at the same time drain the old A/T fluid from the auxiliary transmis-

sion oil cooler hose return line.

• When the color of the A/T fluid coming out of the auxiliary transmission oil cooler hose return line is

about the same as the color of the new A/T fluid, flushing out the old A/T fluid is complete. The amount

of new A/T fluid used for flushing should be 30% to 50% increase of the specified capacity.

CAUTION:

• If Genuine NISSAN Matic S ATF is not available, Genuine NISSAN Matic J ATF may also be used.

• Using ATF fluid other than Genuine NISSAN Matic S ATF or Matic J ATF will cause deterioration

in driveability and A/T durability, and may damage the A/T, which is not covered by the warranty.

• When filling the transmission with A/T fluid, do not spill the A/T fluid on any heat generating

parts such as the exhaust parts.

• Do not reuse the drain plug gasket.

5. Install the A/T fluid level gauge and tighten the A/T fluid level gauge bolt to specification.

6. Drive the vehicle to warm up the A/T fluid to approximately 80

° C (176° F).

7. Check the fluid level and condition. If the A/T fluid is still dirty,

repeat steps 2 through 6.

8. Install the A/T fluid level gauge in the A/T fluid charging pipe and install the A/T fluid level gauge bolt.
9. Tighten the A/T fluid level gauge bolt to specification.

Drain plug

: Refer to

TM-192, "Component"

.

LLIA0071E

A/T fluid grade and capacity

: Refer to

MA-13, "Fluids and Lubricants"

.

A/T fluid level
gauge bolt

: Refer to

TM-186, "Removal and Installation (2WD)"

 or

TM-188, "Removal and

Installation (4WD)"

.

LLIA0071E

A/T FLUID

TM-151

< ON-VEHICLE MAINTENANCE >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

A/T fluid level
gauge bolt

: Refer to

TM-186, "Removal and Installation (2WD)"

 or

TM-188, "Removal and

Installation (4WD)"

.

TM-152

< ON-VEHICLE MAINTENANCE >

A/T FLUID COOLER

A/T FLUID COOLER

A/T Fluid Cooler Cleaning

INFOID:0000000005148724

Whenever an A/T is repaired, overhauled, or replaced, the A/T fluid cooler mounted in the radiator must be

inspected and cleaned.

Metal debris and friction material, if present, can become trapped in the A/T fluid cooler. This debris can con-

taminate the newly serviced A/T or, in severe cases, can block or restrict the flow of A/T fluid. In either case,

malfunction of the newly serviced A/T may result.

Debris, if present, may build up as A/T fluid enters the cooler inlet. It will be necessary to back flush the cooler

through the cooler outlet in order to flush out any built up debris.

A/T FLUID COOLER CLEANING PROCEDURE

1. Position a drain pan under the A/T inlet and outlet fluid cooler tube to cooler hose connection.
2. Put a different color matching mark on each cooler tube to cooler hose connection to aid in assembly.

CAUTION:

Use paint to make the matching mark. Do not damage the tubes or hose.

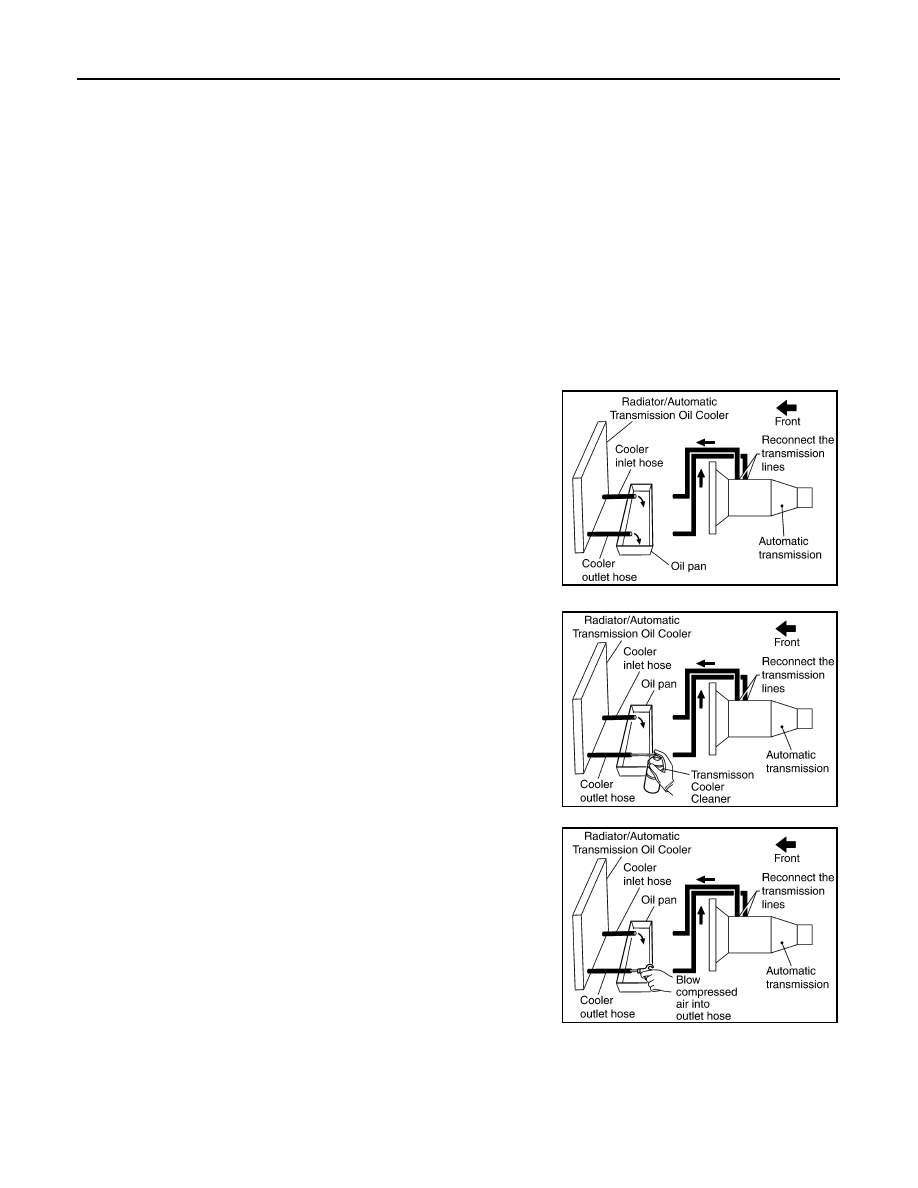

3. Disconnect the fluid cooler inlet and outlet rubber hoses from the

steel cooler tubes.

NOTE:

Replace the cooler hoses if rubber material from the hose

remains on the tube fitting.

4. Drain any A/T fluid from the cooler hose.

5. Insert the extension adapter hose of a can of Transmission

Cooler Cleaner (Nissan P/N 999MP-AM006) into the cooler out-

let hose.

CAUTION:

• Wear safety glasses and rubber gloves when spraying the

Transmission Cooler Cleaner.

• Spray cooler cleaner only with adequate ventilation.

• Avoid contact with eyes and skin.

• Do not breath vapors or spray mist.

6. Hold the hose and can as high as possible and spray Transmis-

sion Cooler Cleaner in a continuous stream into the cooler outlet

hose until fluid flows out of the cooler inlet hose for 5 seconds.

7. Insert the tip of an air gun into the end of the cooler outlet hose.
8. Wrap a shop rag around the tip of the air gun and the cooler out-

let hose.

9. Blow compressed air regulated to 490 - 883 kPa (5 - 9 kg/cm

2

, 71 - 128 psi) through the cooler outlet hose

for 10 seconds to force out any remaining fluid.

10. Repeat steps 5 through 9 three additional times.
11. Position an oil pan under the banjo bolts that connect the fluid cooler tubes to the A/T.
12. Remove the banjo bolts.

SCIA3830E

SCIA3831E

SCIA3832E

A/T FLUID COOLER

TM-153

< ON-VEHICLE MAINTENANCE >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

13. Flush each steel line from the cooler side back toward the A/T by spraying Transmission Cooler Cleaner

in a continuous stream for 5 seconds.

14. Blow compressed air regulated to 490 - 883 kPa (5 - 9 kg/cm

2

, 71 - 128 psi) through each steel line from

the cooler side back toward the A/T for 10 seconds to force out any remaining fluid.

15. Ensure all debris is removed from the steel cooler lines.
16. Ensure all debris is removed from the banjo bolts and fittings.
17. Perform A/T fluid cooler diagnosis procedure.

A/T FLUID COOLER DIAGNOSIS PROCEDURE

NOTE:

Insufficient cleaning of the cooler inlet hose exterior may lead to inaccurate debris identification.
1. Position a drain pan under the A/T inlet and outlet fluid cooler tube to cooler hose connection.
2. Clean the exterior and tip of the cooler inlet hose.
3. Put a different color matching mark on each cooler tube to cooler hose connection to aid in assembly.

CAUTION:

Use paint to make the matching mark. Do not damage the tubes or hose.

4. Disconnect the fluid cooler inlet and outlet rubber hoses from the

steel cooler tubes.

NOTE:

Replace the cooler hoses if rubber material from the hose

remains on the tube fitting.

5. Insert the extension adapter hose of a can of Transmission

Cooler Cleaner (Nissan P/N 999MP-AM006) into the cooler out-

let hose.

CAUTION:

• Wear safety glasses and rubber gloves when spraying the

Transmission Cooler Cleaner.

• Spray cooler cleaner only with adequate ventilation.

• Avoid contact with eyes and skin.

• Do not breath vapors or spray mist.

6. Hold the hose and can as high as possible and spray Transmis-

sion Cooler Cleaner in a continuous stream into the cooler outlet

hose until fluid flows out of the cooler inlet hose for 5 seconds.

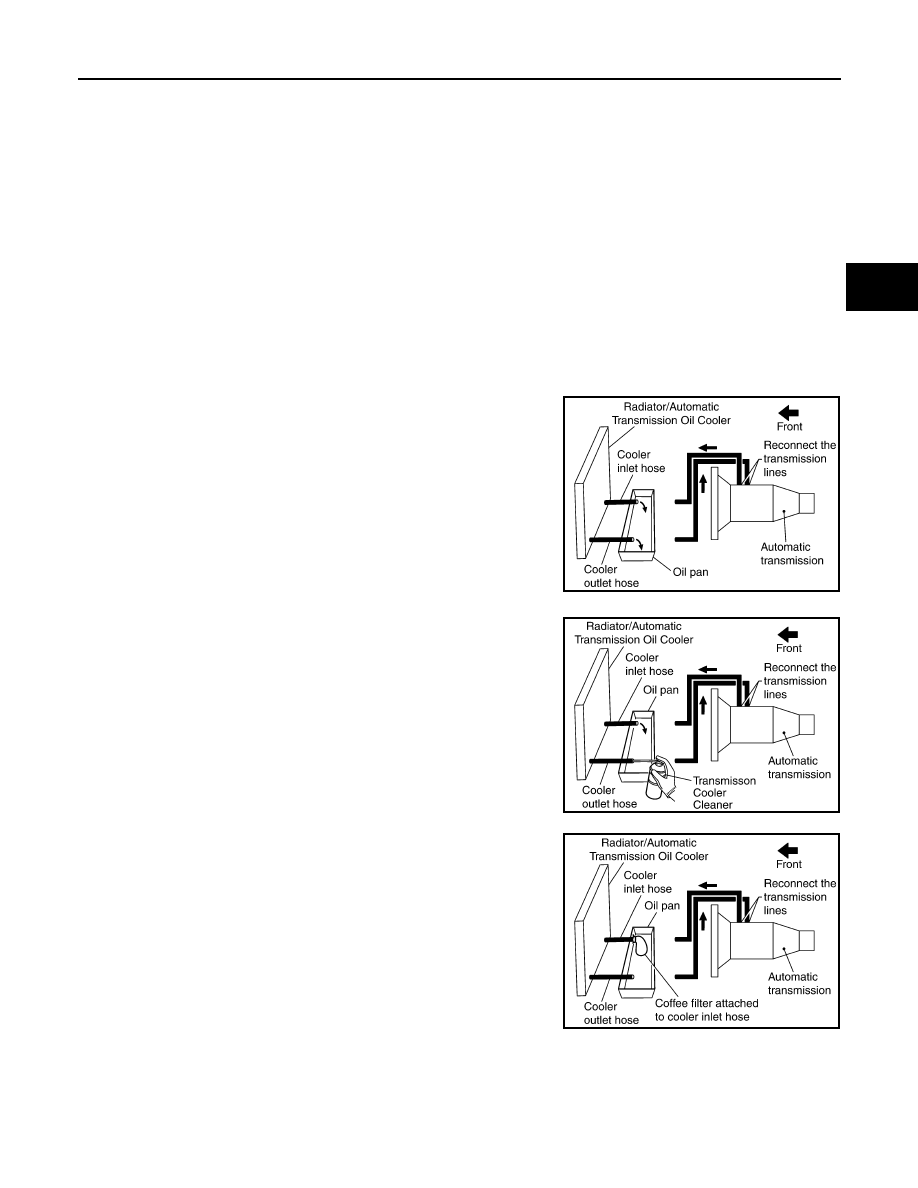

7. Tie a common white, basket-type coffee filter to the end of the

cooler inlet hose.

SCIA3830E

SCIA3831E

SCIA3833E
