Infiniti QX56 (JA60). Manual - part 950





TM-102

< COMPONENT DIAGNOSIS >

A/T SHIFT LOCK SYSTEM

AADIA0121GB

A/T SHIFT LOCK SYSTEM

TM-103

< COMPONENT DIAGNOSIS >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

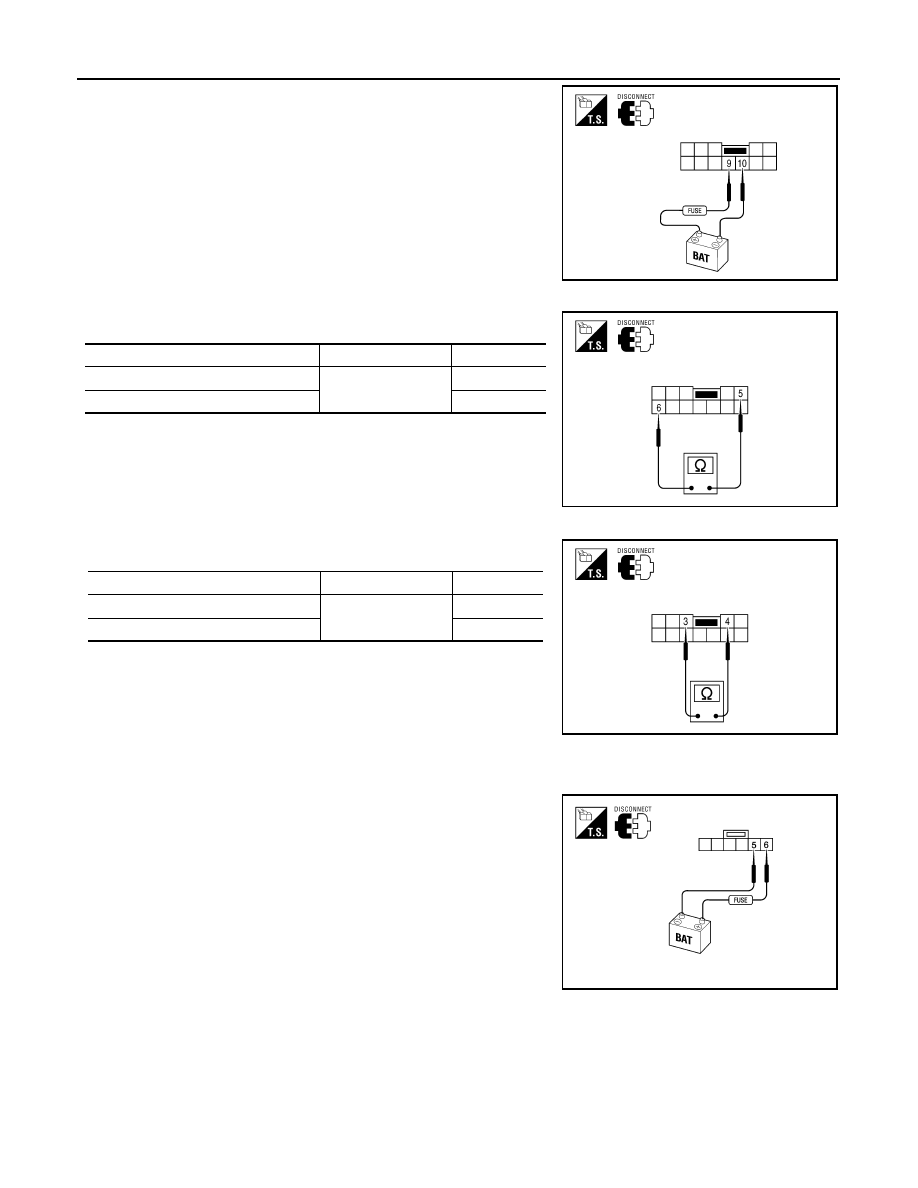

Component Inspection

INFOID:0000000005148687

SHIFT LOCK SOLENOID

ABDIA0045GB

TM-104

< COMPONENT DIAGNOSIS >

A/T SHIFT LOCK SYSTEM

• Check operation by applying battery voltage to A/T shift selector

terminal 9 and ground to terminal 10.

CAUTION:

Be sure to apply the voltage of the correct polarity to the

respective terminals. Otherwise, the part may be damaged.

PARK POSITION SWITCH (INTELLIGENT KEY SYSTEM)

• Check continuity between terminals of the A/T shift selector.

PARK POSITION SWITCH (SHIFT SELECTOR)

• Check continuity between terminals of the A/T shift selector.

KEY LOCK SOLENOID

Key lock

• Check operation by applying battery voltage to key switch and igni-

tion knob switch terminal 6 and ground to terminal 5.

CAUTION:

Be careful not to cause burnout of the harness.

Key unlock

AWDIA0700ZZ

Condition

Terminal No.

Continuity

When selector lever is “P” position.

5 - 6

No

When selector lever is not “P” position.

Yes

AWDIA0567ZZ

Condition

Terminal No.

Continuity

When selector lever is “P” position.

3 - 4

No

When selector lever is not “P” position.

Yes

AWDIA0568ZZ

AWDIA0544ZZ

A/T SHIFT LOCK SYSTEM

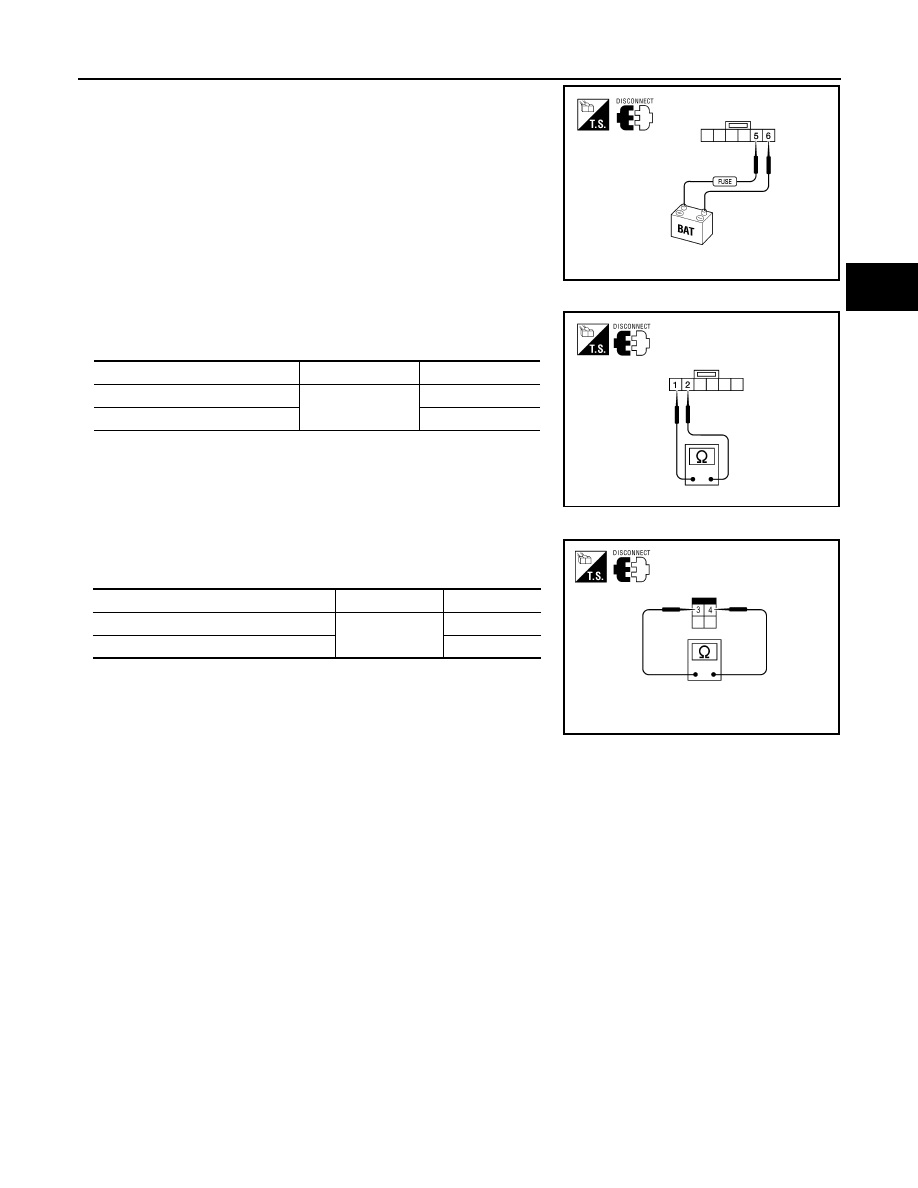

TM-105

< COMPONENT DIAGNOSIS >

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

• Check operation by applying battery voltage to key switch and igni-

tion knob switch terminal 5 and ground to terminal 6.

CAUTION:

Be careful not to cause burnout of the harness.

IGNITION KNOB SWITCH

• Check continuity between terminals of the key switch and ignition

knob switch.

STOP LAMP SWITCH

• Check continuity between terminals of the stop lamp switch har-

ness connector.

Check stop lamp switch after adjusting brake pedal.

AWDIA0545ZZ

Condition

Terminal No.

Continuity

Switch pushed

1 - 2

Yes

Switch released

No

AWDIA0546ZZ

Condition

Terminal No.

Continuity

When brake pedal is applied

3 -4

Yes

When brake pedal is released

No

AWDIA0419ZZ
