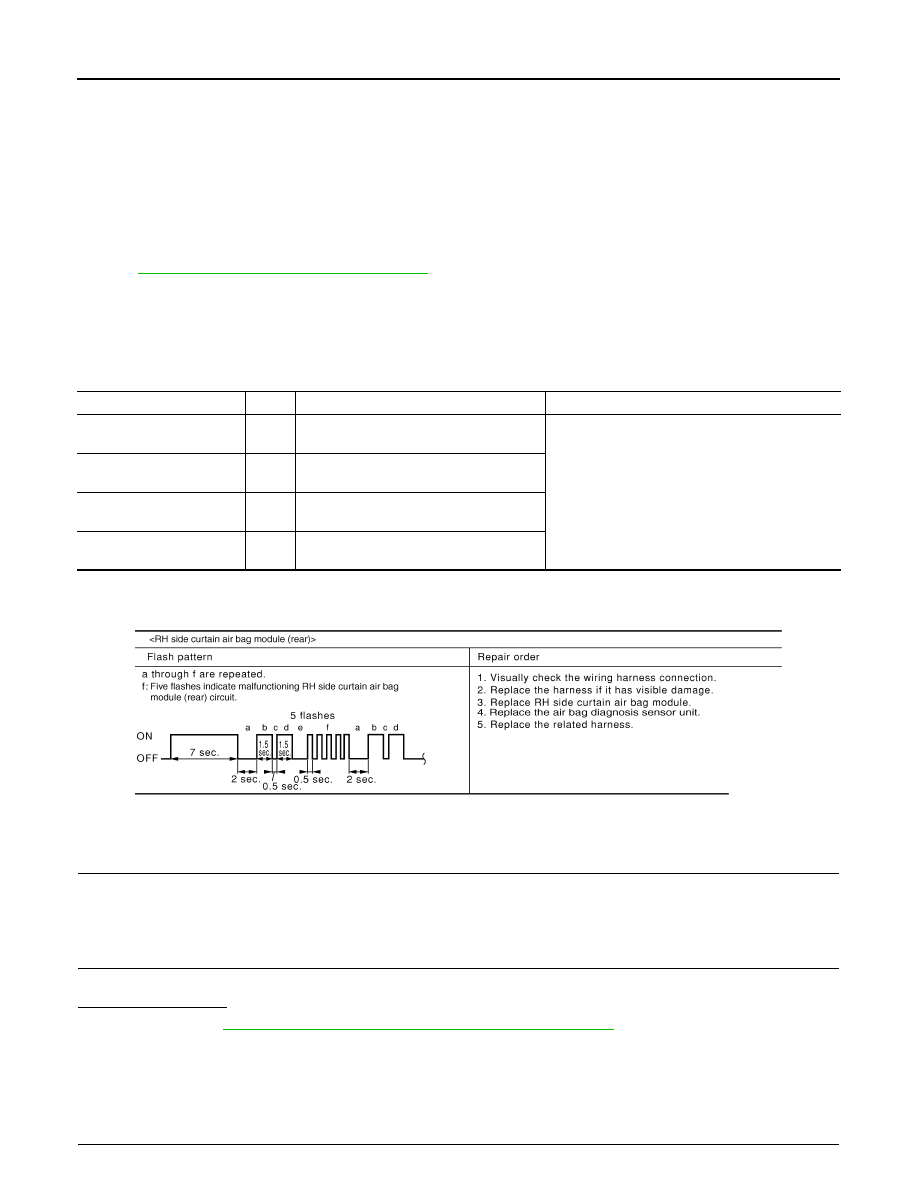

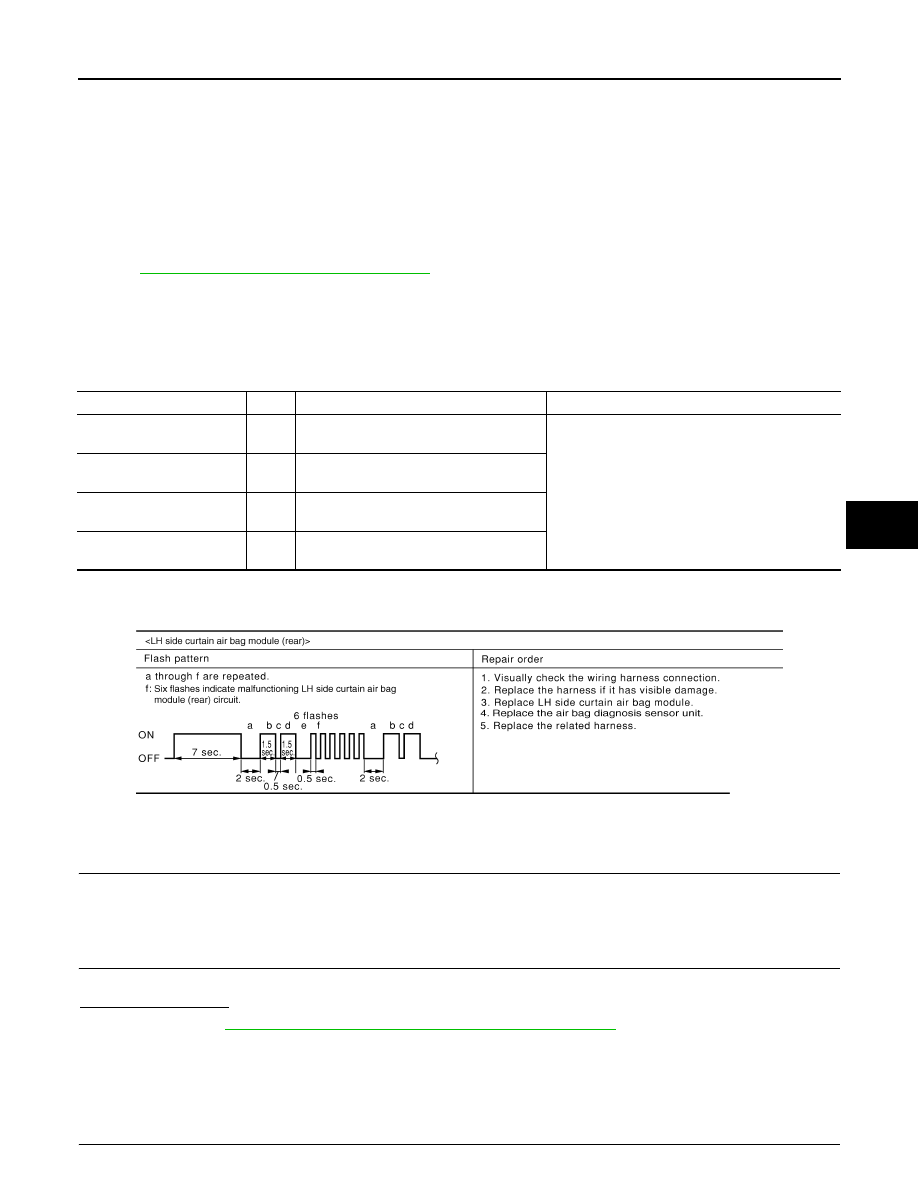

B1150 – B1153 SIDE CURTAIN AIR BAG MODULE LH (REAR) SRC-35 < COMPONENT DIAGNOSIS > C D E F G I J K L M A B SRC N O P B1150 – B1153 SIDE CURTAIN AIR BAG MODULE LH (REAR) Description INFOID:0000000005147807 DTC B1150 – B1153 LH SIDE CURTAIN AIR BAG MODULE (REAR) The LH side curtain air bag module (rear) is wired to the air bag diagnosis sensor unit. The air bag diagnosis sensor unit will monitor for opens and shorts in detected lines to the LH side curtain air bag module (rear). PART LOCATION SRC-7, "SRS Component Parts Location" DTC Logic INFOID:0000000005147808 DTC DETECTION LOGIC With CONSULT-lll Without CONSULT-lll DTC CONFIRMATION PROCEDURE (With CONSULT-lll) 1. INSPECTION START Turn ignition switch ON. >> GO TO 2. 2. CHECK SELF-DIAG RESULT Check for the DTC on CONSULT-lll. YES >> Refer to SRC-36, "Diagnosis Procedure (Component Diagnosis)" . NO >> Inspection End. DTC CONFIRMATION PROCEDURE (Without CONSULT-lll) NOTE: SRS will not enter diagnosis mode if no malfunction is detected in user mode. 1. IGNITION SWITCH CONSULT-III name DTC DTC detecting condition Repair order CURTAIN MODULE LH [OPEN] B1150 LH side curtain air bag module (rear) circuit 1. Visually check the wiring harness connection. 2. Replace the harness if it has visible damage. 3. Replace the LH side curtain air bag module. 4. Replace the air bag diagnosis sensor unit. 5. Replace the related harness. CURTAIN MODULE LH [VB-SHORT] B1151 LH side curtain air bag module (rear) circuit CURTAIN MODULE LH [GND-SHORT] B1152 LH side curtain air bag module (rear) circuit CURTAIN MODULE LH [SHORT] B1153 LH side curtain air bag module (rear) cir- WHIA0254E |
