OCCUPANT CLASSIFICATION SYSTEM

SRC-11

< FUNCTION DIAGNOSIS >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

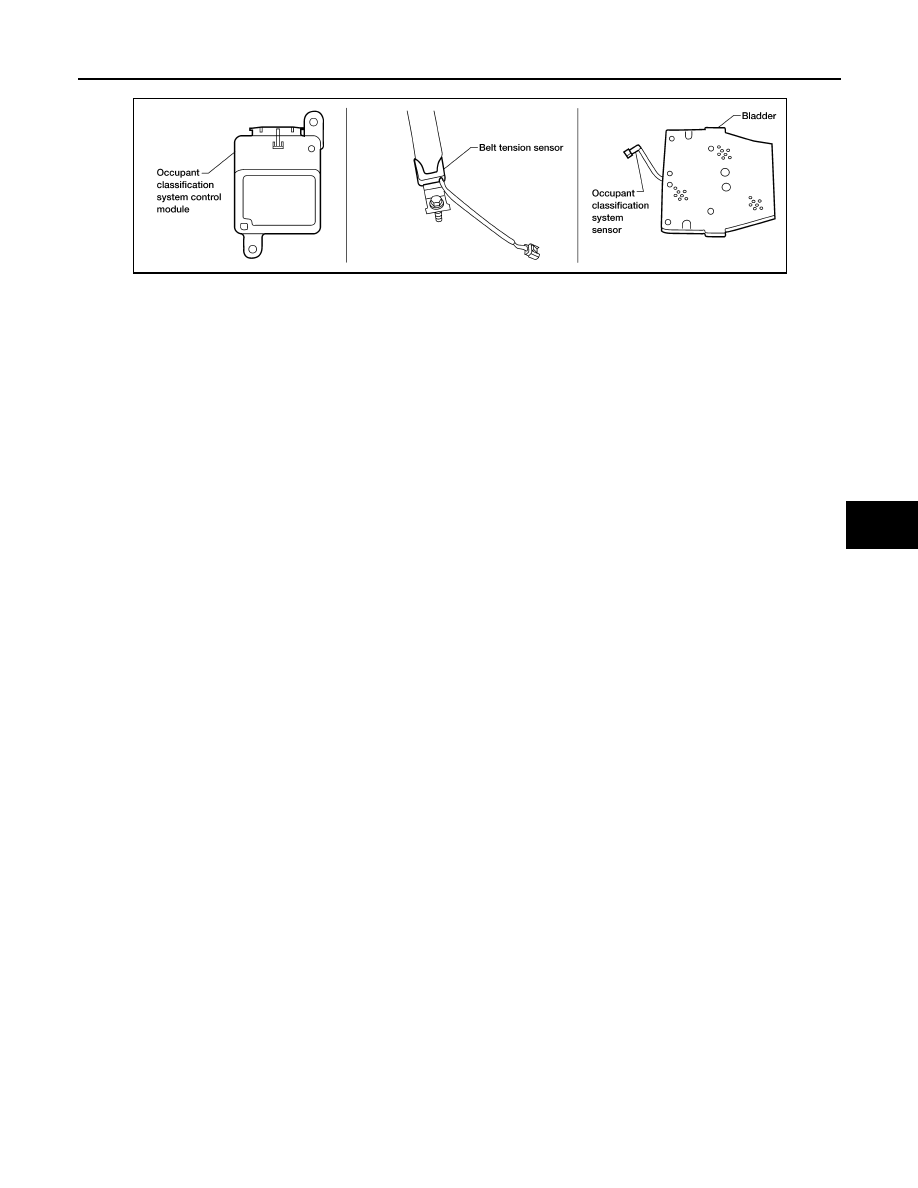

Passenger does not meet Occupant Classification System specifications for passenger air bag activation.

WHIA0187E

SRC-12

< FUNCTION DIAGNOSIS >

PASSENGER SEAT BELT WARNING SYSTEM

PASSENGER SEAT BELT WARNING SYSTEM

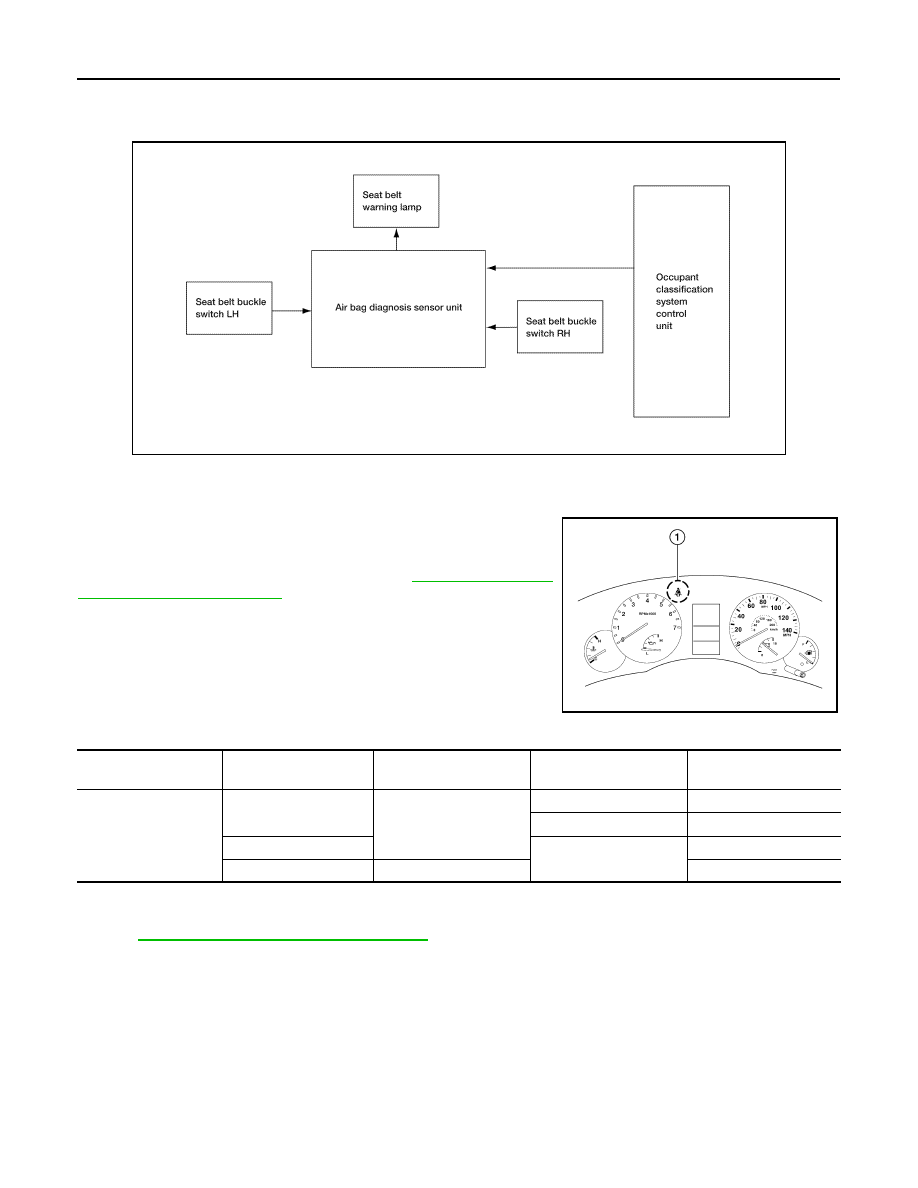

System Diagram

INFOID:0000000005147781

System Description

INFOID:0000000005147782

The passenger seat belt warning system will remind the driver if the

driver or front passenger seat belt should be buckled by turning on

the seat belt warning light (1).  The system works in conjunction with

the occupant classification system.  Refer to

SRC-10, "Occupant

Classification System (OCS)"

.

Passenger Seat Belt Warning System Operation

Component Parts Location

INFOID:0000000005147783

Refer to

SRC-7, "SRS Component Parts Location"

.

ALHIA0028GB

AWHIA0032ZZ

Driver seat status
(Ignition switch ON)

Passenger seat status

Seat belt buckle switch
LH status

Seat belt buckle switch
RH status

Seat belt warning lamp

Seat occupied

Seat occupied

Buckled

Buckled

Off

Unbuckled

On

Seat unoccupied

—

Off

—

Unbuckled

On

ON BOARD DIAGNOSTIC (OBD) SYSTEM

SRC-13

< FUNCTION DIAGNOSIS >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

ON BOARD DIAGNOSTIC (OBD) SYSTEM

Trouble Diagnosis Introduction

INFOID:0000000005147784

CAUTION:

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to do so in

this Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harness con-

nectors.

• Do not attempt to repair, splice or modify SRS wiring harnesses. If a harness is damaged, replace it

with a new one.

• Keep ground connections clean.

DIAGNOSIS FUNCTION

The SRS self-diagnosis results can be read by using “AIR BAG” warning lamp and/or CONSULT-III.

The User mode is exclusively prepared for the customer (driver). This mode warns the driver of a system mal-

function through the operation of the “AIR BAG” warning lamp.

The Diagnosis mode allows the technician to locate and inspect the malfunctioning part.

The mode applications for the “AIR BAG” warning lamp and CONSULT-III are as follows:

HOW TO PERFORM TROUBLE DIAGNOSES FOR QUICK AND ACCURATE REPAIR

A good understanding of the malfunction conditions can make troubleshooting faster and more accurate.

In general, each customer feels differently about a malfunction. It is important to fully understand the symp-

toms or conditions for a customer complaint.

Information From Customer

WHAT - Vehicle model

WHEN - Date, Frequencies

WHERE - Road conditions

HOW - Operating conditions, Symptoms

Preliminary Check

Check that the following parts are in good order.

• Battery

• Fuse

• System component-to-harness connections

SRS Operation Check

INFOID:0000000005147785

DIAGNOSTIC PROCEDURE 1

Checking SRS Operation Using “AIR BAG” Warning Lamp—User Mode

1. Turn the ignition switch from OFF to ON, and check that the air bag warning lamp blinks.
2. Compare the SRS air bag warning lamp blinking pattern with the

examples.

User mode

Diagnosis mode

Display type

“AIR BAG” warning lamp

X

X

ON-OFF operation

CONSULT-III

—

X

Monitoring

BF-1845D

SRC-14

< FUNCTION DIAGNOSIS >

ON BOARD DIAGNOSTIC (OBD) SYSTEM

SRS Air bag warning lamp examples

DIAGNOSTIC PROCEDURE 2

1. Connect CONSULT-III.
2. Diagnostic code is displayed on "SELF-DIAG [CURRENT]".

If no malfunction is detected on "SELF-DIAG [CURRENT]", but malfunction is detected in "SRS Operation

Check" using the "AIR BAG" warning lamp, the following cases may exist:

• "SELF-DIAG [PAST]" memory might not be erased.

• The SRS system malfunctions intermittently.

Perform DIAGNOSTIC PROCEDURE 4.  Refer to

SRC-15, "Self-Diagnosis Function (Without CONSULT-

III)"

.

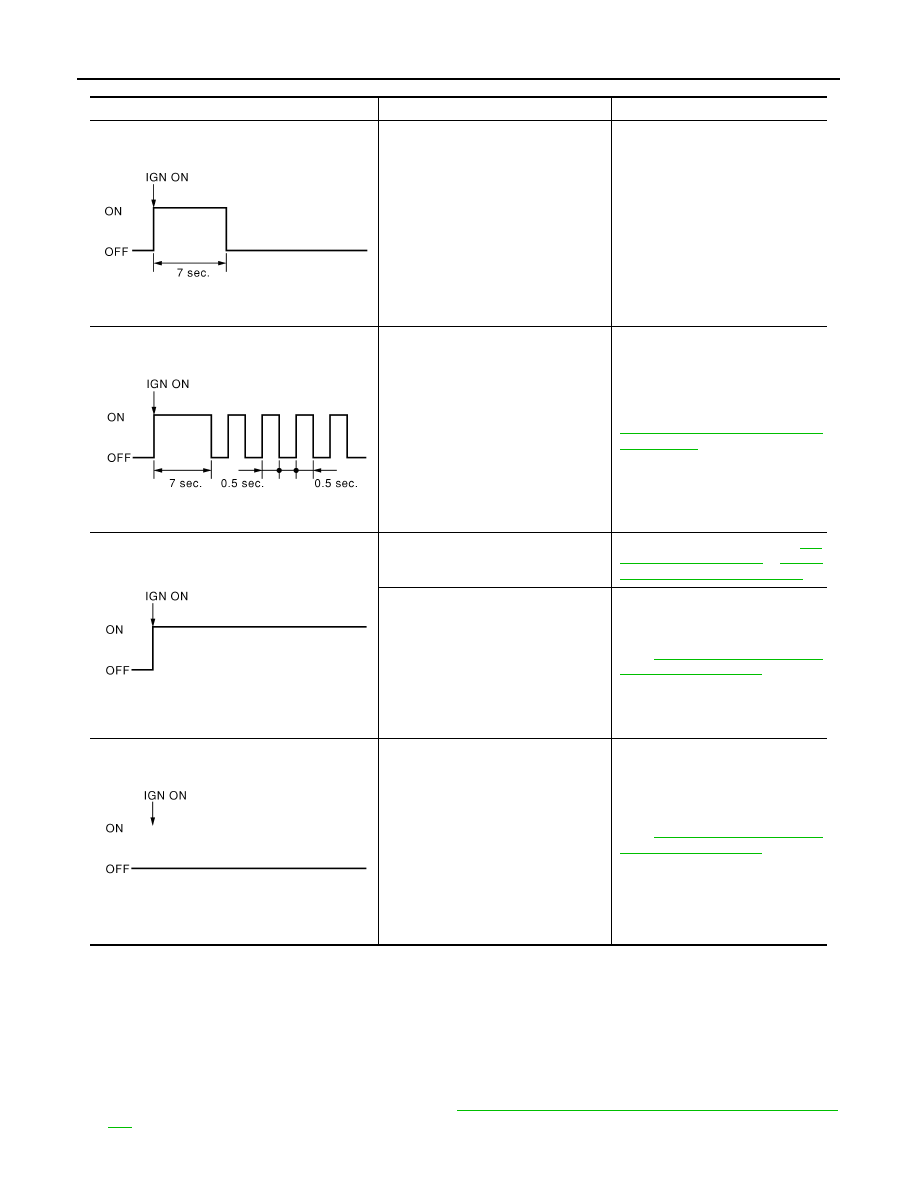

“AIR BAG” warning lamp (User mode)

SRS condition

Reference item

• No malfunction is detected.
• No further action is necessary.

—

The system is malfunctioning and
needs to be repaired as indicated.

Go to DIAGNOSTIC PROCEDURE
2 that follows (with CONSULT-III) or

SRC-15, "Trouble Diagnosis without
CONSULT-III"

 (without CONSULT-

III).

• Air bag is deployed.
• Seat belt pre-tensioner is deployed.

Go to COLLISION DIAGNOSIS

SR-

20, "For Frontal Collision"

 or

SR-21,

"For Side and Rollover Collision"

.

• Air bag diagnosis sensor unit is mal-

functioning.

• Air bag power supply circuit is mal-

functioning.

• SRS air bag warning lamp circuit is

malfunctioning.

Go to

SRC-89, ""AIR BAG" Warning

Lamp Does Not Turn Off"

.

• Air bag diagnosis sensor unit is mal-

functioning.

• Air bag warning lamp circuit is mal-

functioning.

Go to

SRC-89, ""AIR BAG" Warning

Lamp Does Not Turn On"

.

SHIA0011E

SHIA0012E

SHIA0013E

SHIA0014E
