Infiniti QX56 (JA60). Manual - part 881

SN

SONAR SENSOR

SN-49

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

REMOVAL AND INSTALLATION

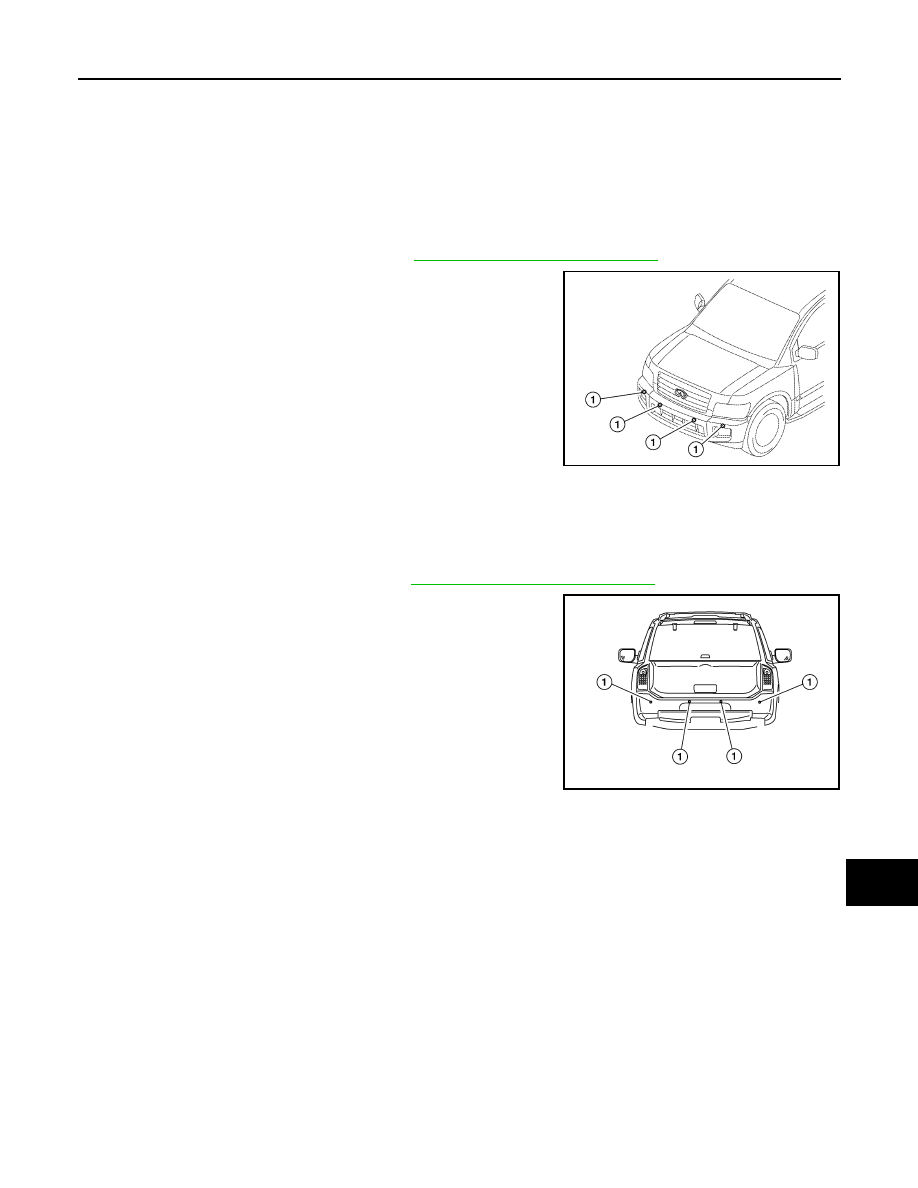

SONAR SENSOR

Removal and Installation

INFOID:0000000005146216

FRONT SONAR SENSOR

Removal

1. Remove the front fascia assembly. Refer to

EXT-13, "Removal and Installation"

.

2. Remove the front sonar sensor (1) from the front fascia assem-

bly.

3. Disconnect the front sonar sensor connector.
4. Remove the front sonar sensor retainer from the front fascia

assembly.

Installation

Installation is in the reverse order of removal.

REAR SONAR SENSOR

Removal

1. Remove the rear fascia assembly. Refer to

EXT-15, "Removal and Installation"

.

2. Remove the rear sonar sensor (1) from the rear fascia assem-

bly.

3. Disconnect the rear sonar sensor connector.
4. Remove the rear sonar sensor retainer from the rear fascia

assembly.

Installation

Installation is in the reverse order of removal.

AWNIA1410ZZ

AWNIA1411ZZ

SN-50

< REMOVAL AND INSTALLATION >

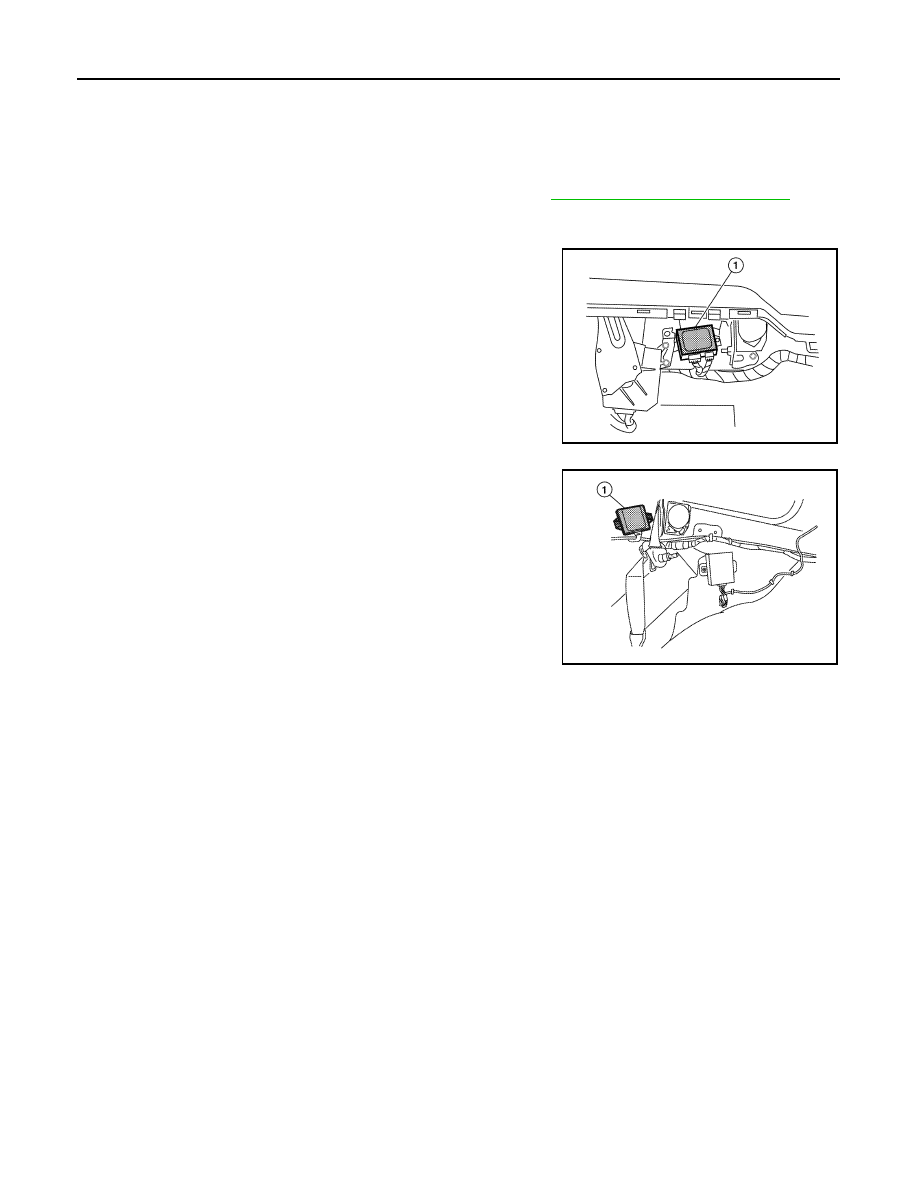

SONAR CONTROL UNIT

SONAR CONTROL UNIT

Removal and Installation

INFOID:0000000005146217

Removal

1. Remove the luggage side finisher lower and upper LH. Refer to

INT-19, "Removal and Installation"

.

2. Disconnect the sonar control unit electrical connectors.
3. Remove the bolt, then remove the sonar control unit.

• Front and rear sonar control unit (1)

• Rear sonar control unit (1)

INSTALLATION

Installation is in the reverse order of removal.

AWNIA1412ZZ

AWNIA1901ZZ

SN

BUZZER

SN-51

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

BUZZER

Removal and Installation

INFOID:0000000005146218

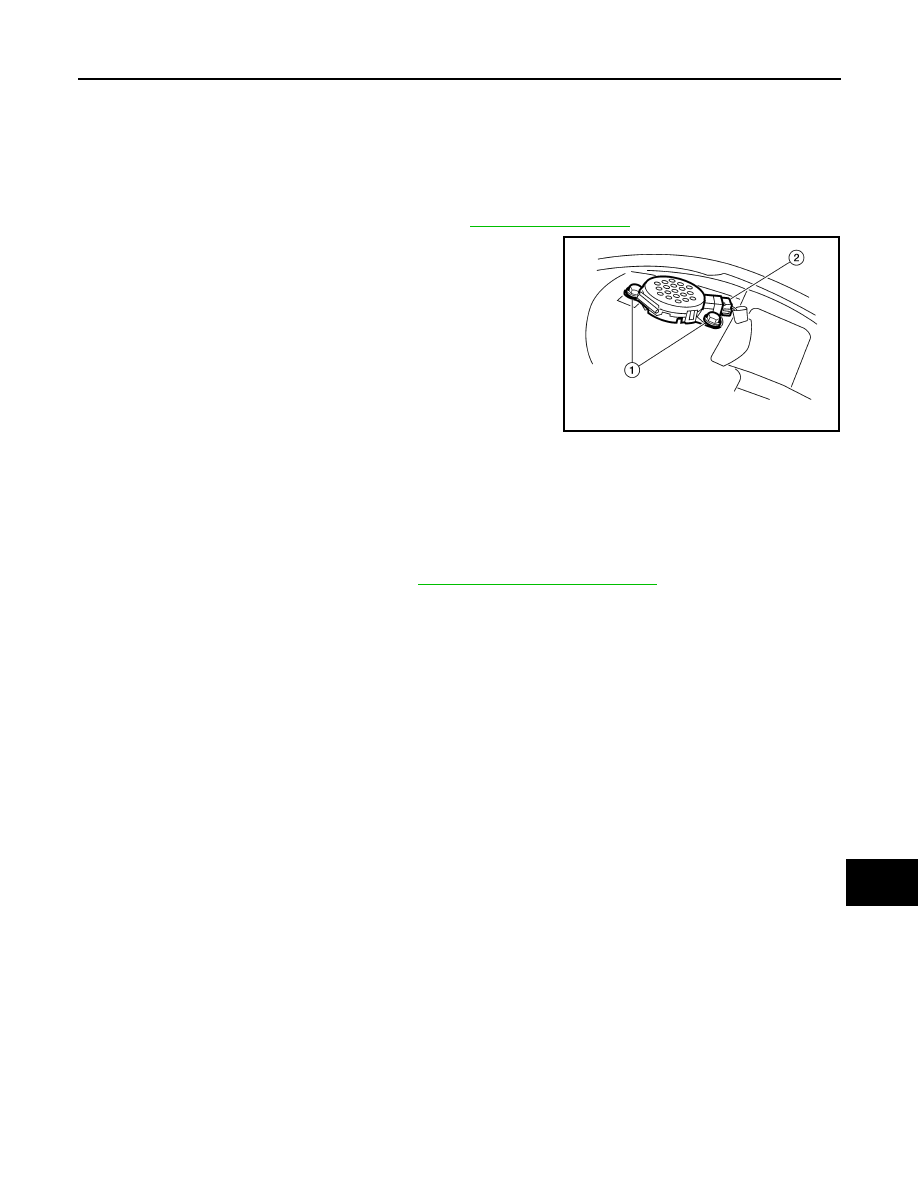

FRONT BUZZER

Removal

1. Remove the instrument panel upper cover. Refer to

IP-11, "Exploded View"

.

2. Remove the two bolts (1), disconnect the connector (2) and

remove the front buzzer.

Installation

Installation is in the reverse order of removal.

REAR BUZZER

NOTE:

Rear buzzer location used only for vehicles equipped with both front and rear sonar systems.

Removal

1. Partially remove the rear headliner. Refer to

INT-17, "Removal and Installation"

.

2. Release the buzzer from the bracket, disconnect the connector and remove the buzzer.

Installation

Installation is in the reverse order of removal.

ALNIA0425ZZ

SR-1

RESTRAINTS

C

D

E

F

G

I

J

K

L

M

SECTION

SR

A

B

SR

N

O

P

CONTENTS

SRS AIRBAG

PRECAUTION ...............................................

2

PRECAUTIONS ...................................................

2

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................

2

Precaution for SRS "AIR BAG" and "SEAT BELT
PRE-TENSIONER" Service  ......................................

2

Precaution Necessary for Steering Wheel Rota-
tion After Battery Disconnect .....................................

2

Occupant Classification System Precaution  .............

3

PREPARATION ............................................

4

PREPARATION ...................................................

4

Special Service Tool  .................................................

4

ON-VEHICLE REPAIR ..................................

5

DRIVER AIR BAG MODULE ...............................

5

Removal and Installation ...........................................

5

SPIRAL CABLE  ..................................................

7

Removal and Installation ...........................................

7

FRONT PASSENGER AIR BAG MODULE  ......

10

Removal and Installation  .........................................

10

SIDE CURTAIN AIR BAG MODULE  ................

13

Removal and Installation  .........................................

13

CRASH ZONE SENSOR ...................................

14

Removal and Installation  .........................................

14

SIDE AIR BAG (SATELLITE) SENSOR  ...........

15

Removal and Installation  .........................................

15

FRONT SEAT BELT PRE-TENSIONER ...........

16

Removal and Installation  .........................................

16

DIAGNOSIS SENSOR UNIT  .............................

17

Removal and Installation  .........................................

17

OCCUPANT CLASSIFICATION SYSTEM
CONTROL UNIT ................................................

19

Removal and Installation  .........................................

19

COLLISION DIAGNOSIS  ..................................

20

For Frontal Collision  ................................................

20

For Side and Rollover Collision ...............................

21
