SEC-106
< ECU DIAGNOSIS >
[WITH INTELLIGENT KEY SYSTEM]

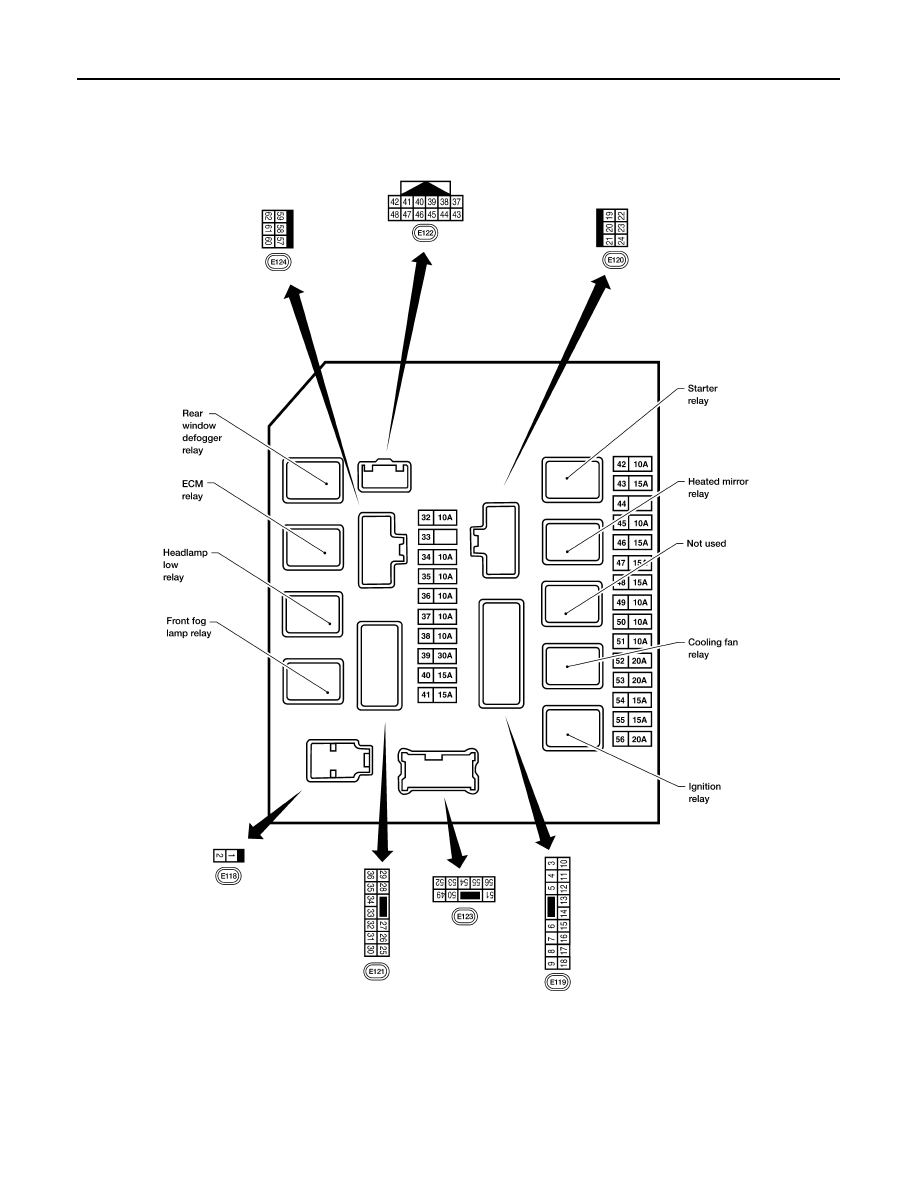

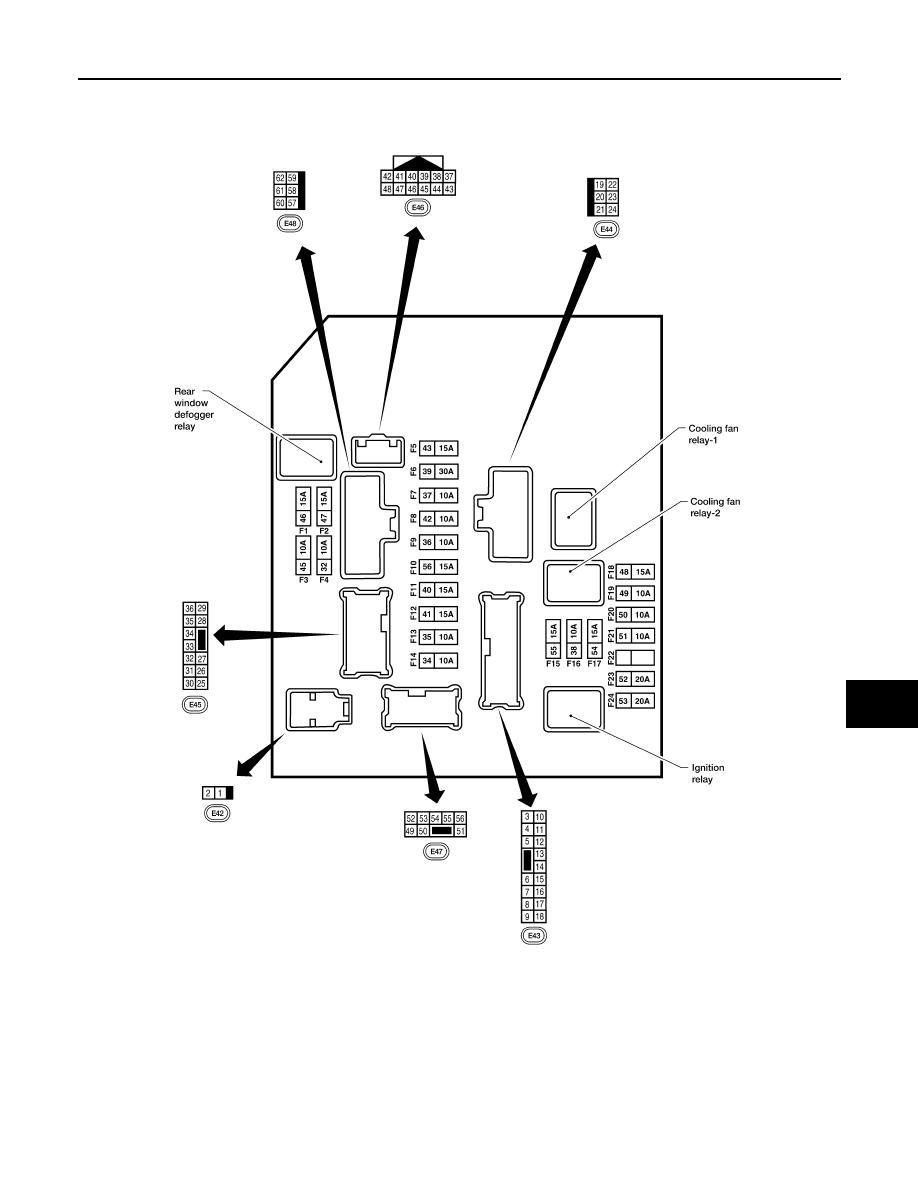

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)
IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE
ROOM)
Reference Value
INFOID:0000000005282717
VALUES ON THE DIAGNOSIS TOOL
Monitor Item
Condition
Value/Status
MOTOR FAN REQ
Engine idle speed
Changes depending on engine
coolant temperature, air conditioner
operation status, vehicle speed,
etc.
0 - 100 %
A/C COMP REQ
A/C switch OFF
OFF
A/C switch ON
ON
TAIL&CLR REQ
Lighting switch OFF
OFF
Lighting switch 1ST, 2ND, HI or AUTO (Light is illuminated)
ON
HL LO REQ
Lighting switch OFF
OFF
Lighting switch 2ND HI or AUTO (Light is illuminated)
ON
HL HI REQ
Lighting switch OFF
OFF
Lighting switch HI
ON
FR FOG REQ
Lighting switch 2ND or AUTO (Light
is illuminated)
Front fog lamp switch OFF
OFF
• Front fog lamp switch ON
• Daytime light activated (Canada
only)
ON
FR WIP REQ
Ignition switch ON
Front wiper switch OFF
STOP
Front wiper switch INT
1LOW
Front wiper switch LO
LOW
Front wiper switch HI
HI
WIP AUTO STOP
Ignition switch ON
Front wiper stop position
STOP P
Any position other than front wiper
stop position
ACT P
WIP PROT
Ignition switch ON
Front wiper operates normally
OFF
Front wiper stops at fail-safe opera-
tion
BLOCK
ST RLY REQ
Ignition switch OFF or ACC
OFF
Ignition switch START
ON
IGN RLY
Ignition switch OFF or ACC
OFF
Ignition switch ON
ON
RR DEF REQ
Rear defogger switch OFF
OFF
Rear defogger switch ON
ON
OIL P SW
Ignition switch OFF, ACC or engine running
OPEN
Ignition switch ON
CLOSE
DTRL REQ
Daytime light system requested OFF with CONSULT-III.
OFF
Daytime light system requested ON with CONSULT-III.
ON
HOOD SW
Hood closed.
OFF
Hood open.
ON
