SEC-102

< ECU DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

INTELLIGENT KEY UNIT

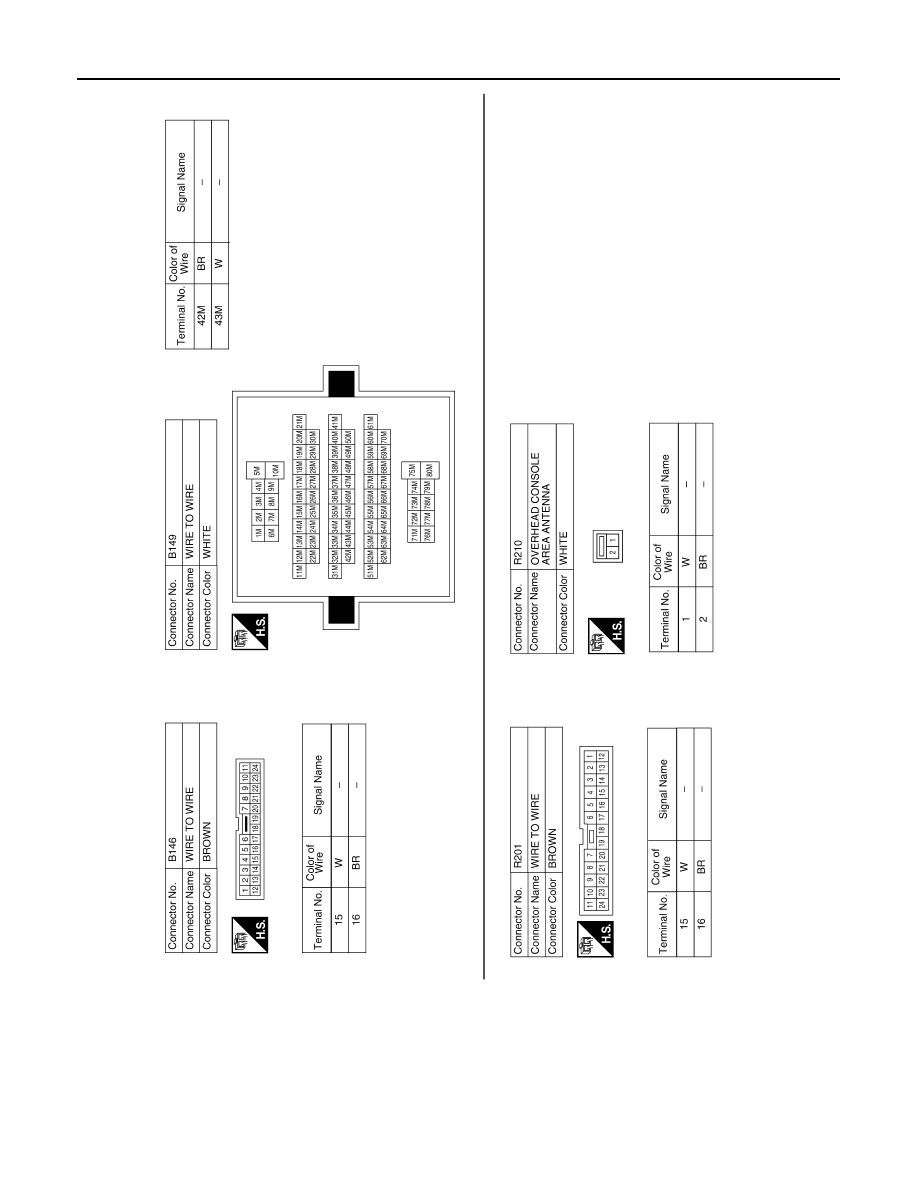

ABKIA1427GB

INTELLIGENT KEY UNIT

SEC-103

< ECU DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

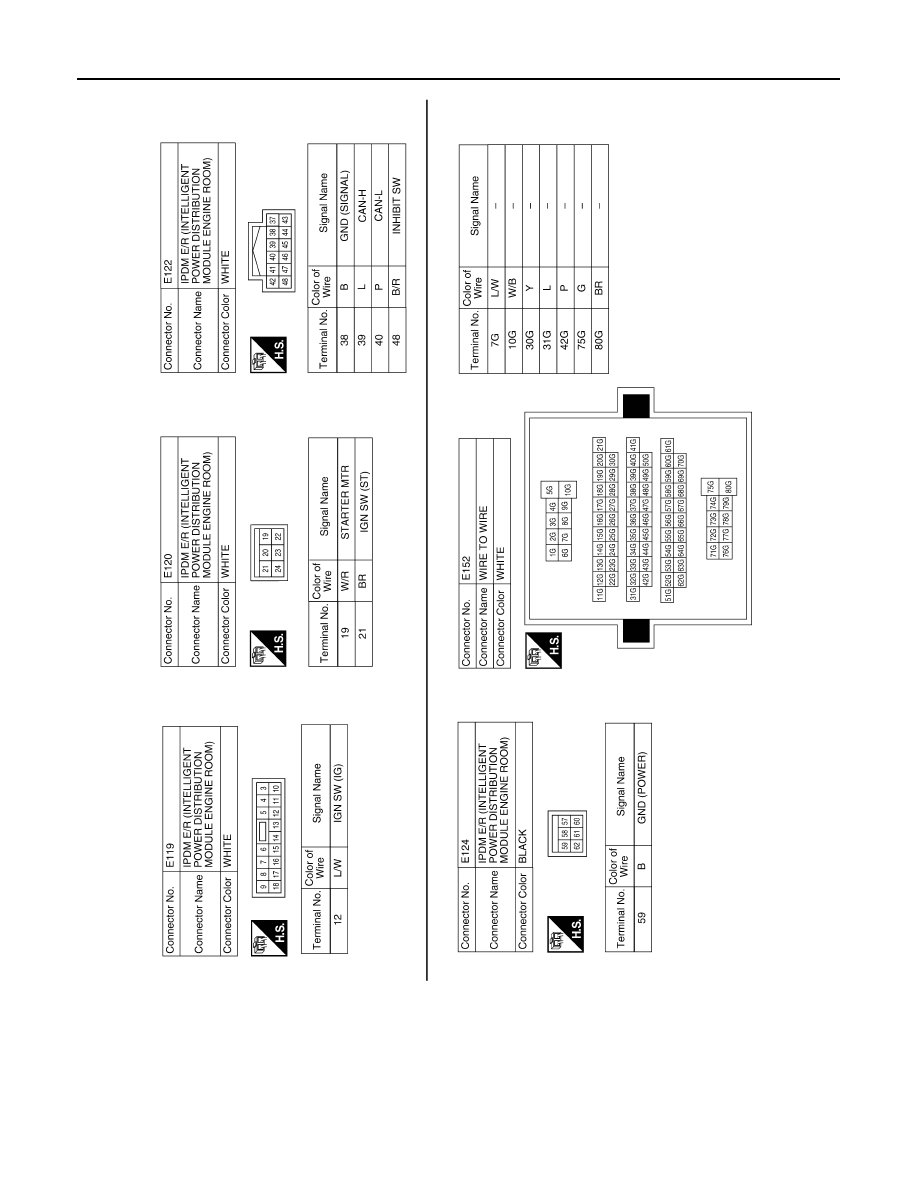

ABKIA1428GB

SEC-104

< ECU DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

INTELLIGENT KEY UNIT

Fail Safe

INFOID:0000000005282716

Fail-safe operation

The Intelligent Key system operation will be interrupted if the Intelligent Key unit loses power or communica-

tion with the BCM.

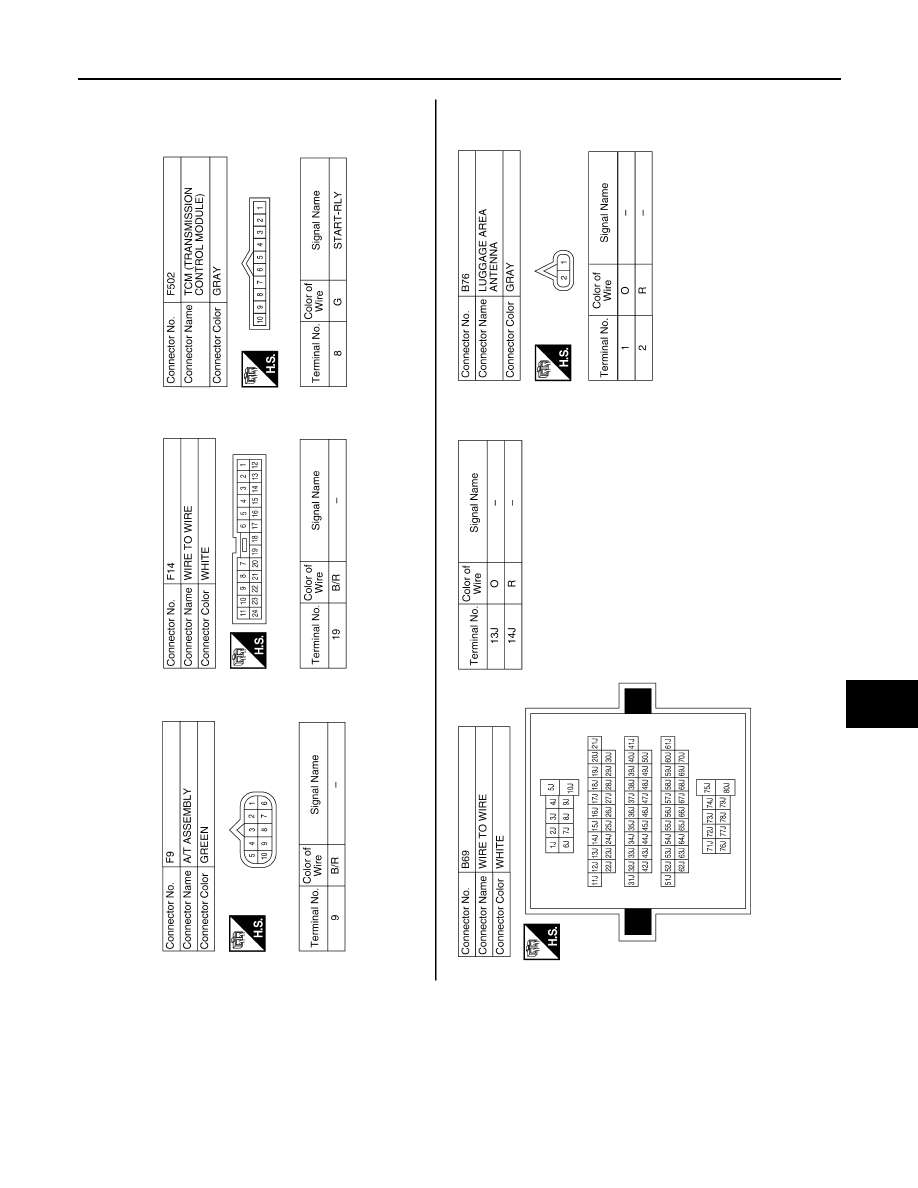

ABKIA1429GB

INTELLIGENT KEY UNIT

SEC-105

< ECU DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

DTC Inspection Priority Chart

INFOID:0000000005147141

If some DTCs are displayed at the same time, perform inspections one by one based on the following priority

chart.

DTC Index

INFOID:0000000005147142

NOTE:

Details of time display

• CRNT: Displays when there is a malfunction now or after returning to the normal condition until turning igni-

tion switch OFF

→ ON again.

• 1 - 39: Displayed if any previous malfunction is present when current condition is normal. It increases like 1

→ 2 → 3...38 → 39 after returning to the normal condition whenever ignition switch OFF → ON. The counter

remains at 39 even if the number of cycles exceeds it. It is counted from 1 again when turning ignition switch

OFF

→ ON after returning to the normal condition if the malfunction is detected again.

Priority

DTC

1

• U1000: CAN COMM CIRCUIT
• U1010: CONTROL UNIT (CAN)
• B2552: INTELIGENT KEY

2

• B2013: STRG COMM 1
• B2590: NATS MALFUNCTION

CONSULT display

Detection condition

Fail-safe

Diagnosis

No DTC is detected.
further testing
may be required.

—

—

—

U1000: CAN COMM CIRCUIT

Intelligent Key unit cannot receive CAN communi-
cation signal continuously for 2 seconds or more.

—

Check CAN communi-
cation system.
Refer to

SEC-26

U1010: CONTROL UNIT (CAN)

Intelligent Key unit detects internal CAN communi-
cation circuit malfunction.

—

Replace Intelligent Key
unit.

B2013: STRG COMM 1

The ID verification result between Intelligent key
unit and steering lock solenoid are NG. Or Intelligent
Key unit cannot communicate with steering lock so-
lenoid.

×

Perform steering lock
solenoid ID registration
with CONSULT-III

B2552: INTELLIGENT KEY

Intelligent Key unit internal malfunction.

×

Replace Intelligent Key
unit.

B2590: NATS MALFUNCTION

The ID verification result between Intelligent key
unit and BCM are NG. Or Intelligent Key unit cannot
communicate with BCM.

×

Check NATS
Refer to

SEC-40
