THIRD SEAT

SE-65

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

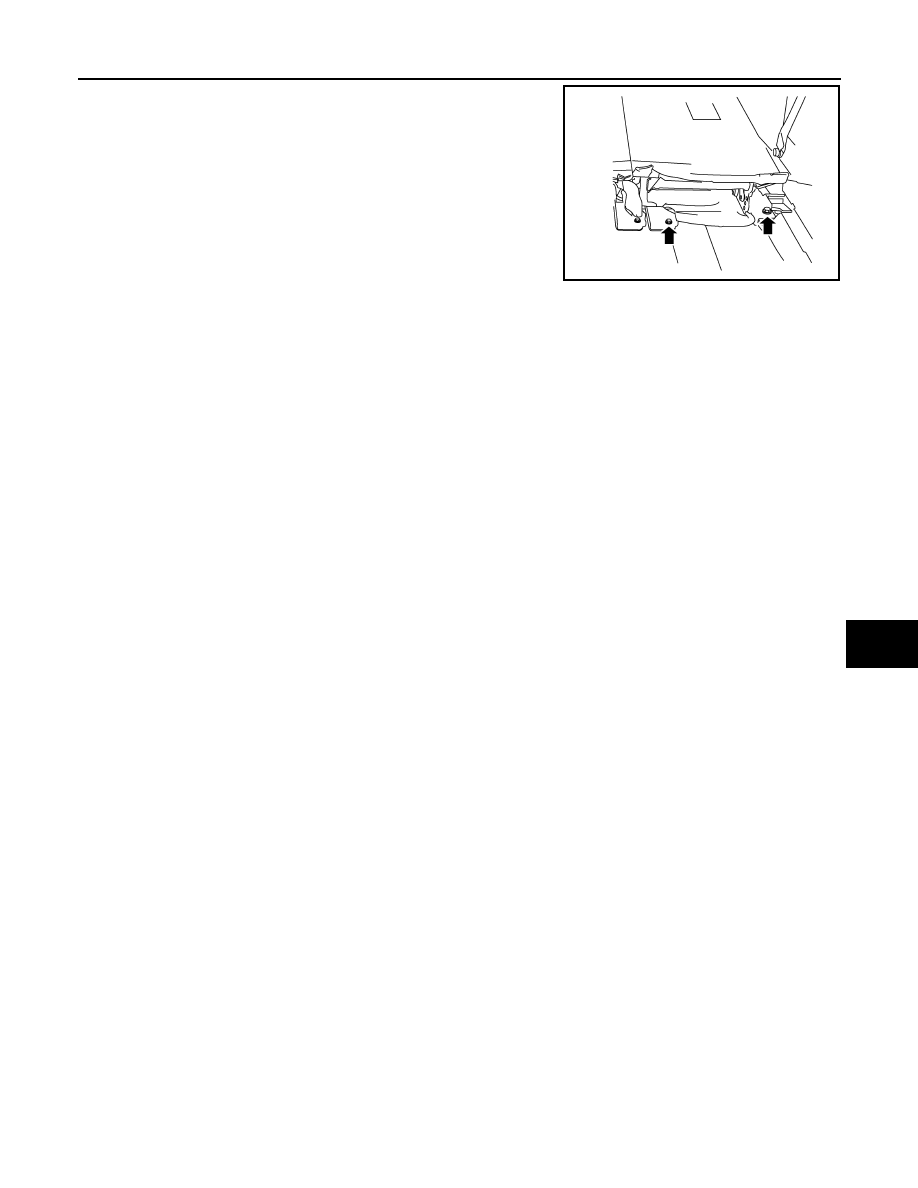

7. Remove the rear bolts from the seat assembly.
8. Disconnect the seat harness.
9. Remove the seat assembly.

INSTALLATION

Installation is in the reverse order of removal.

LIIA2327E

SE-66

< DISASSEMBLY AND ASSEMBLY >

FRONT SEAT

DISASSEMBLY AND ASSEMBLY

FRONT SEAT

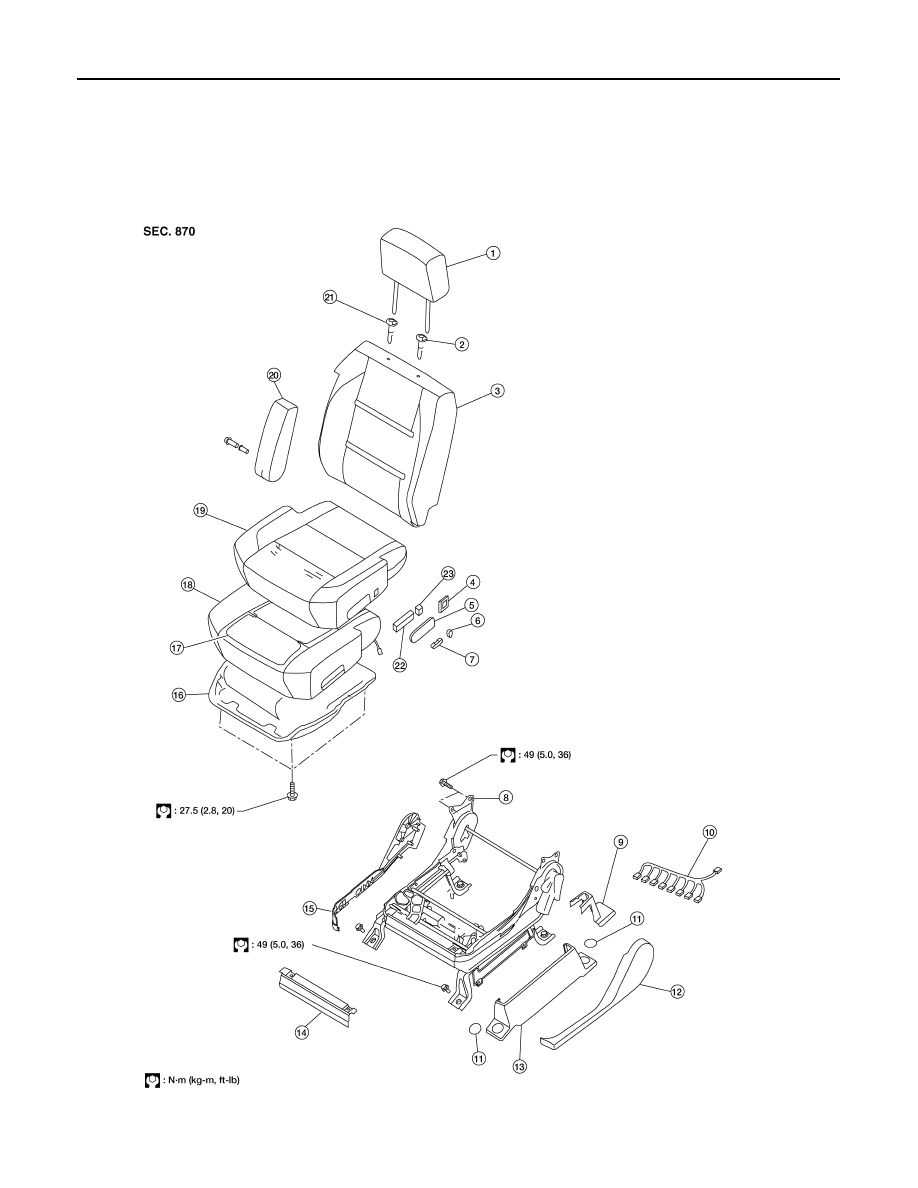

Exploded View

INFOID:0000000005147417

Driver Seat

LIIA1578E

FRONT SEAT

SE-67

< DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

1.

Headrest

2.

Headrest holder with multi-position
lock

3.

Seatback assembly

4.

Lumbar switch bezel

5.

Power seat switch escutcheon

6.

Recliner switch knob

7.

Slide switch knob

8.

Driver power seat frame assembly

9.

Inner leg cover

10. Driver seat wiring harness

11. Bolt cover

12. Seat cushion outer finisher

13. Outer pedestal finisher

14. Seat cushion front finisher

15. Seat cushion inner finisher

16. Seat cushion frame

17. Seat cushion heating element

18. Seat cushion pad

19. Seat cushion trim cover

20. Armrest assembly

21. Headrest holder

22. Seat slide/ recline switch

23. Power lumbar switch

SE-68

< DISASSEMBLY AND ASSEMBLY >

FRONT SEAT

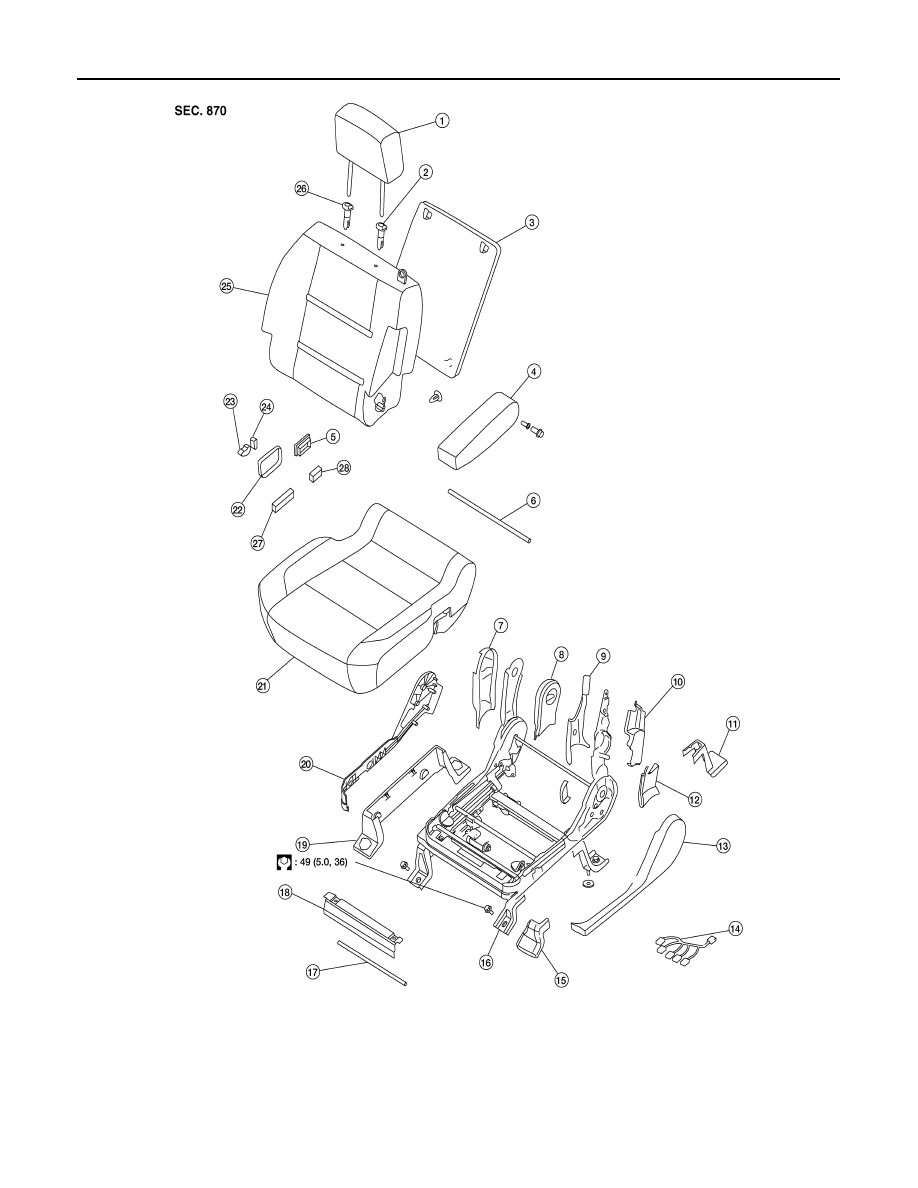

Passenger Seat

WIIA0476E

1.

Headrest

2.

Headrest holder with multi-position
lock

3.

Seatback board

4.

Armrest assembly

5.

Lumbar switch bezel

6.

Fold flat link bar

7.

Outboard reclining arm outer cover

8.

Outboard reclining arm inner cover

9.

Inboard reclining arm inner cover

10. Latch cover

11. Inner leg cover

12. Outboard reclining arm inner cover

13. Seat cushion inner cover

14. Passenger seat wiring harness

15. Inner front leg cover

16. Power seat frame assembly

17. NVH assembly

18. Seat cushion front finisher
