THIRD SEAT

SE-61

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

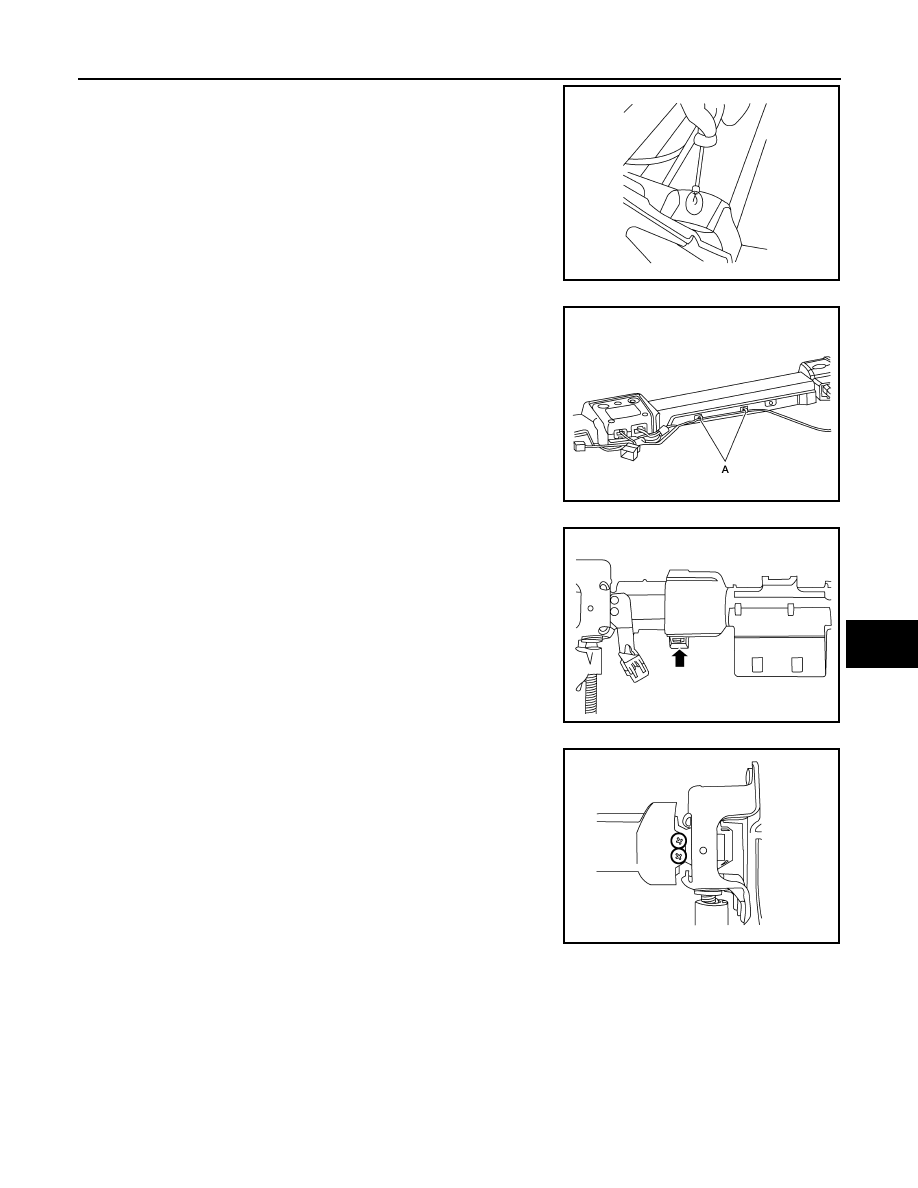

5. Remove the two screws from the power seat motor cover

assembly.

6. Disconnect the wiring harness from the power seat motor cover

clips (A).

7. Remove the power seat motor cover.

8. Release the power motor cross-beam clip and open the hinged

strap.

9. Remove the power motor cross-beam screws.

ALIIA0099ZZ

ALIIA0100ZZ

ALIIA0101ZZ

ALIIA0103ZZ

SE-62

< ON-VEHICLE REPAIR >

THIRD SEAT

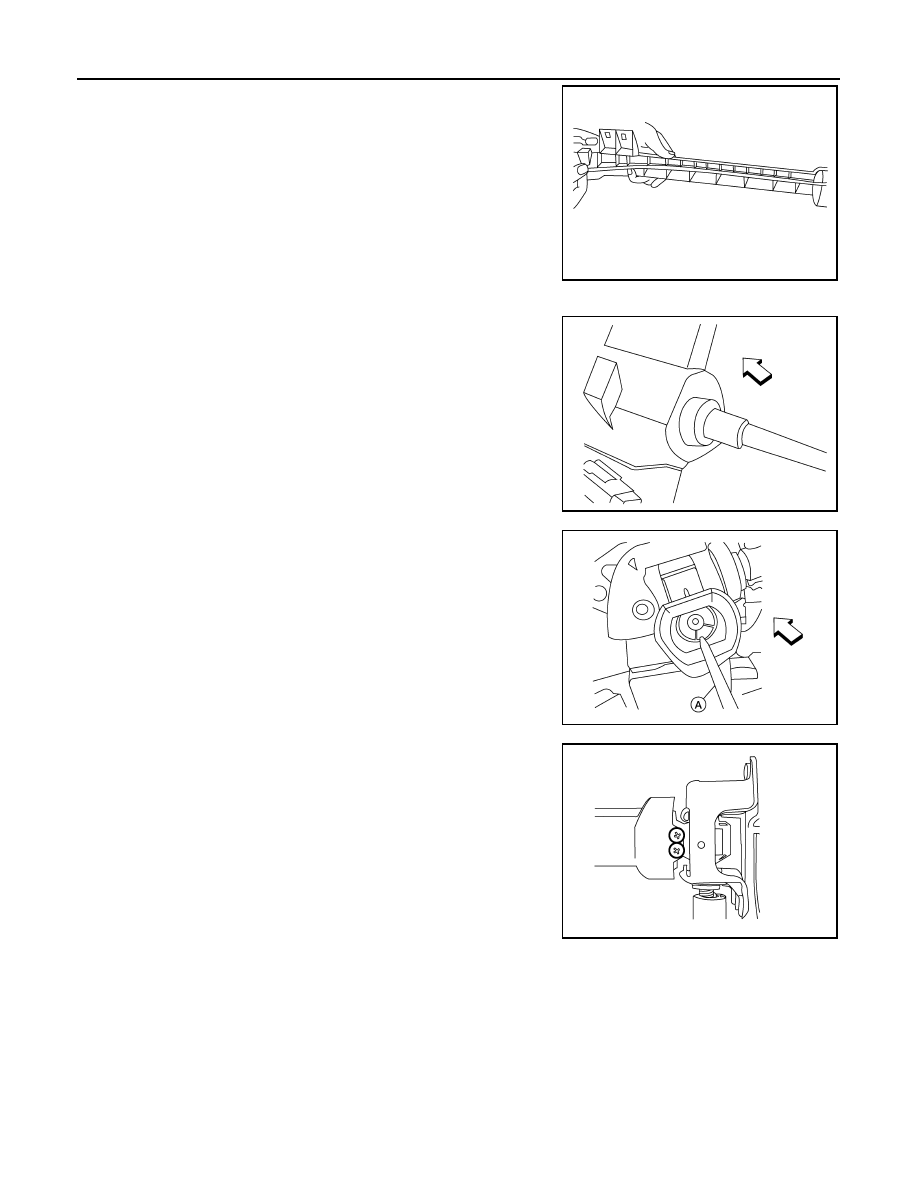

10. Remove the power motor cross-beam.

NOTE:

The cable and conduit will be removed with the cross-beam.

11. Remove the cable and conduit from the cross-beam retainers.

Installation

1. Install the cable into the drive motor and slide the conduit on the

motor ferrule.

•

⇐: Vehicle front

2. Install the cable (A) into the RH seat motor.

•

⇐: Vehicle front

3. Install the power motor cross-beam right side screws

ALIIA0102ZZ

ALIIA0104ZZ

ALIIA0105ZZ

ALIIA0103ZZ

THIRD SEAT

SE-63

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

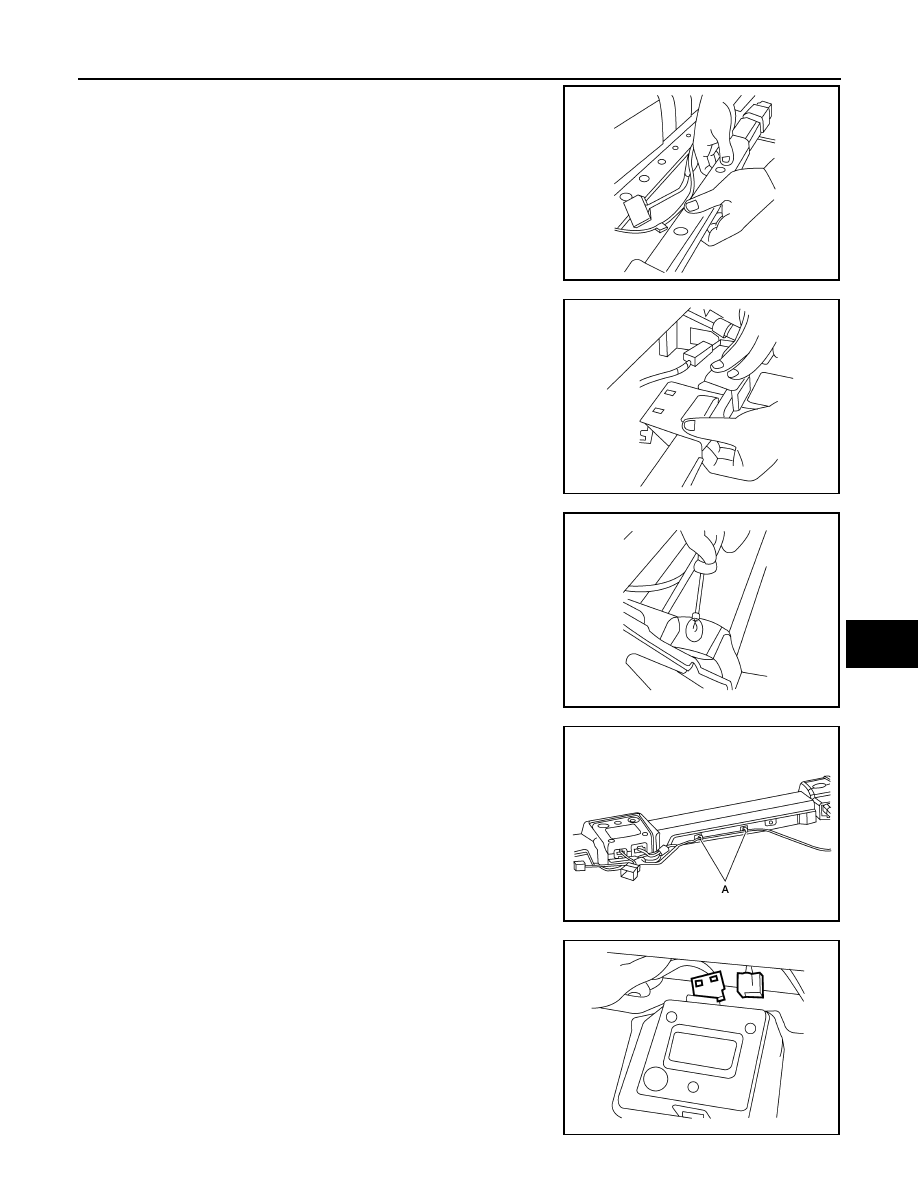

4. Starting at the right side, snap the cable and conduit into the

power seat cross-beam retainers.

5. Snap the hinged strap retainer around the motor assembly.

6. Replace the power seat motor cover.

7. Install the seat harness to the power seat motor cover clips (A).

8. Install the seat control unit and connect the seat control unit har-

ness connectors.

ALIIA0106ZZ

ALIIA0107ZZ

ALIIA0099ZZ

ALIIA0100ZZ

ALIIA0097ZZ

SE-64

< ON-VEHICLE REPAIR >

THIRD SEAT

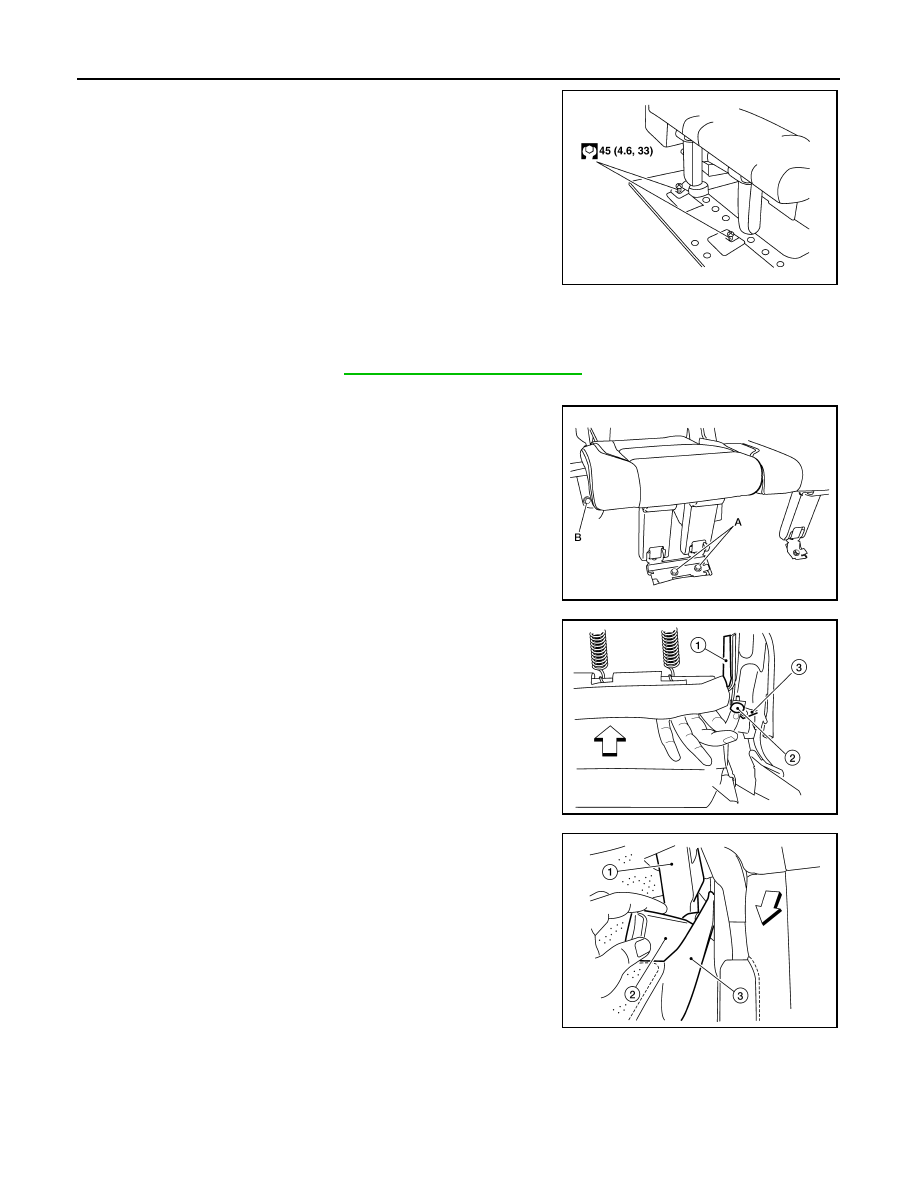

9. Install the lower seat mount bolts.

RH Side Seat

INFOID:0000000005147416

REMOVAL

1. Remove the storage bin. Refer to

INT-19, "Removal and Installation"

.

2. Remove the lower base trim covers.
3. Remove front link nuts (A) and RH hinge front bolt (B).

4. Remove push pin (2) and release elastic band (3) from seat

frame (1).

•

⇐: Vehicle front

5. Partially lift seatback upright, then remove seat belt buckle (2)

from between hinge cover (1) and seat cushion side facing (3).

•

⇐: Vehicle front

6. Retract the seat into the cargo floor position.

ALIIA0096GB

LIIA2326E

LHIA0105E

LHIA0106E
