FRONT SEAT

SE-49

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

1.

Headrest

2.

Headrest holder with multi-position
lock

3.

Seatback assembly

4.

Lumbar switch bezel

5.

Power seat switch escutcheon

6.

Recliner switch knob

7.

Slide switch knob

8.

Driver power seat frame assembly

9.

Inner leg cover

10. Driver seat wiring harness

11. Bolt cover

12. Seat cushion outer finisher

13. Outer pedestal finisher

14. Seat cushion front finisher

15. Seat cushion inner finisher

16. Seat cushion frame

17. Seat cushion heating element

18. Seat cushion pad

19. Seat cushion trim cover

20. Armrest assembly

21. Headrest holder

22. Seat slide/ recline switch

23. Power lumbar switch

SE-50

< ON-VEHICLE REPAIR >

FRONT SEAT

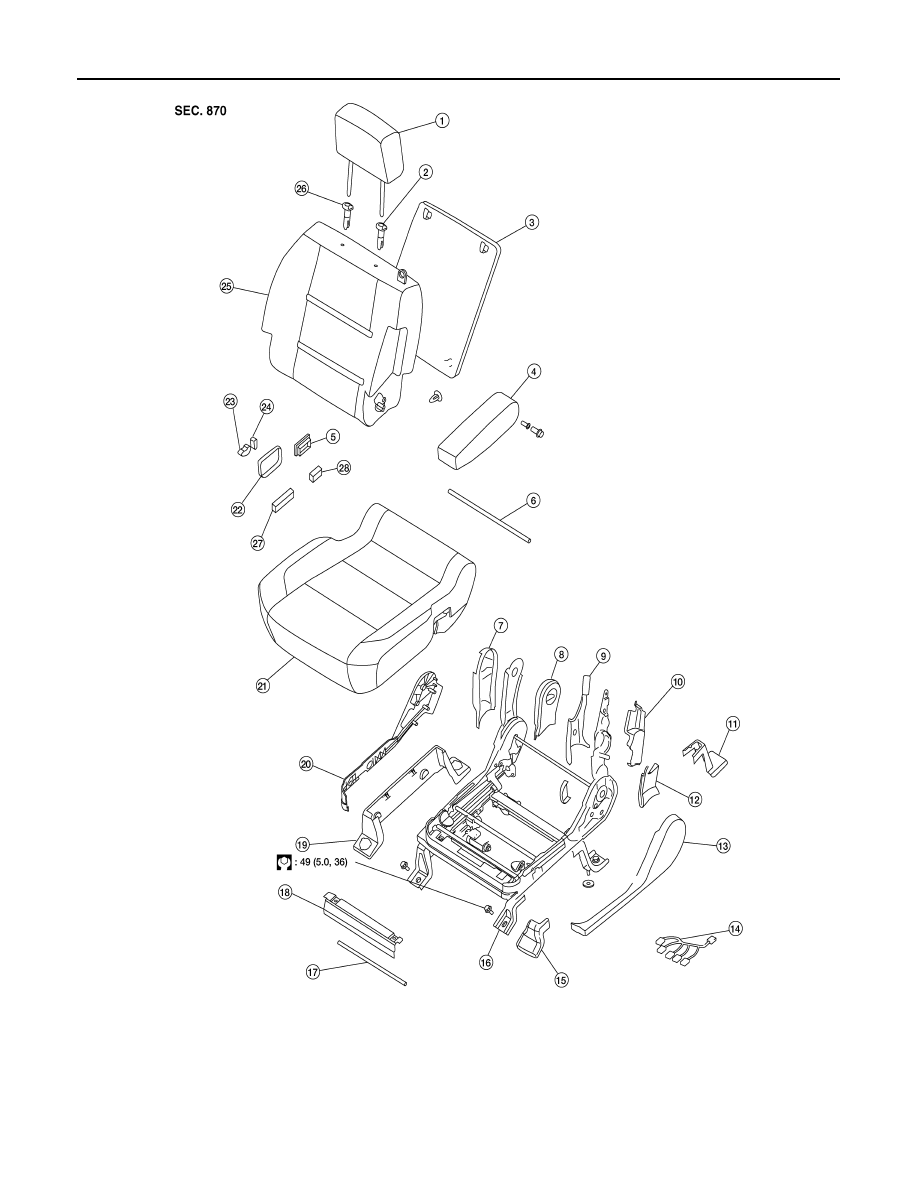

Passenger Seat

WIIA0476E

1.

Headrest

2.

Headrest holder with multi-position
lock

3.

Seatback board

4.

Armrest assembly

5.

Lumbar switch bezel

6.

Fold flat link bar

7.

Outboard reclining arm outer cover

8.

Outboard reclining arm inner cover

9.

Inboard reclining arm inner cover

10. Latch cover

11. Inner leg cover

12. Outboard reclining arm inner cover

13. Seat cushion inner cover

14. Passenger seat wiring harness

15. Inner front leg cover

16. Power seat frame assembly

17. NVH assembly

18. Seat cushion front finisher

FRONT SEAT

SE-51

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

Removal and Installation

INFOID:0000000005147410

REMOVAL

CAUTION:

• When removing or installing the seat trim, handle it carefully to keep dirt out and avoid damage.

• Before removing the front seat, turn the ignition switch off, disconnect both battery cables and wait

at least 3 minutes.

• When checking the power seat circuit for continuity using a circuit tester, do not confuse its connec-

tor with the side air bag module connector. Such an error may cause the air bag to deploy.

• Do not drop, tilt, or bump the side air bag module while installing the seat. Always handle it with

care.

• After front side air bag module inflates, front seatback assembly must be replaced.

• Front passenger seat is equipped with an Occupant Classification System sensor and control mod-

ule. Do not disassemble front passenger seat cushion assembly or remove the trim as this will affect

the Occupant Classification System calibration.

• Always replace passenger seat cushion as an assembly.
1. Slide the seat until the four body mounting bolts are visible and a tool can be inserted.

NOTE:

• If disassembling the seat after removal, set the front/rear cushion lifters to the top position.

2. Disconnect both battery cables and wait at least 3 minutes.
3. Remove the outer pedestal finisher.
4. Disconnect the side air bag module harness connector.
5. Remove the four body mounting bolts.
6. Disconnect the power seat harness connectors and remove the seat from the vehicle.

CAUTION:

When removing and installing the seat, use shop cloths to protect the vehicle from damage.

INSTALLATION

Installation is in the reverse order of removal.

19. Outer pedestal finisher

20. Seat cushion outer finisher

21. Seat cushion assembly

22. Power seat switch escutcheon

23. Slide switch knob

24. Recliner switch knob

25. Seatback assembly

26. Headrest holder

27. Seat slide/ recline switch

28. Power lumbar switch

SE-52

< ON-VEHICLE REPAIR >

SECOND SEAT

SECOND SEAT

Exploded View

INFOID:0000000005147411

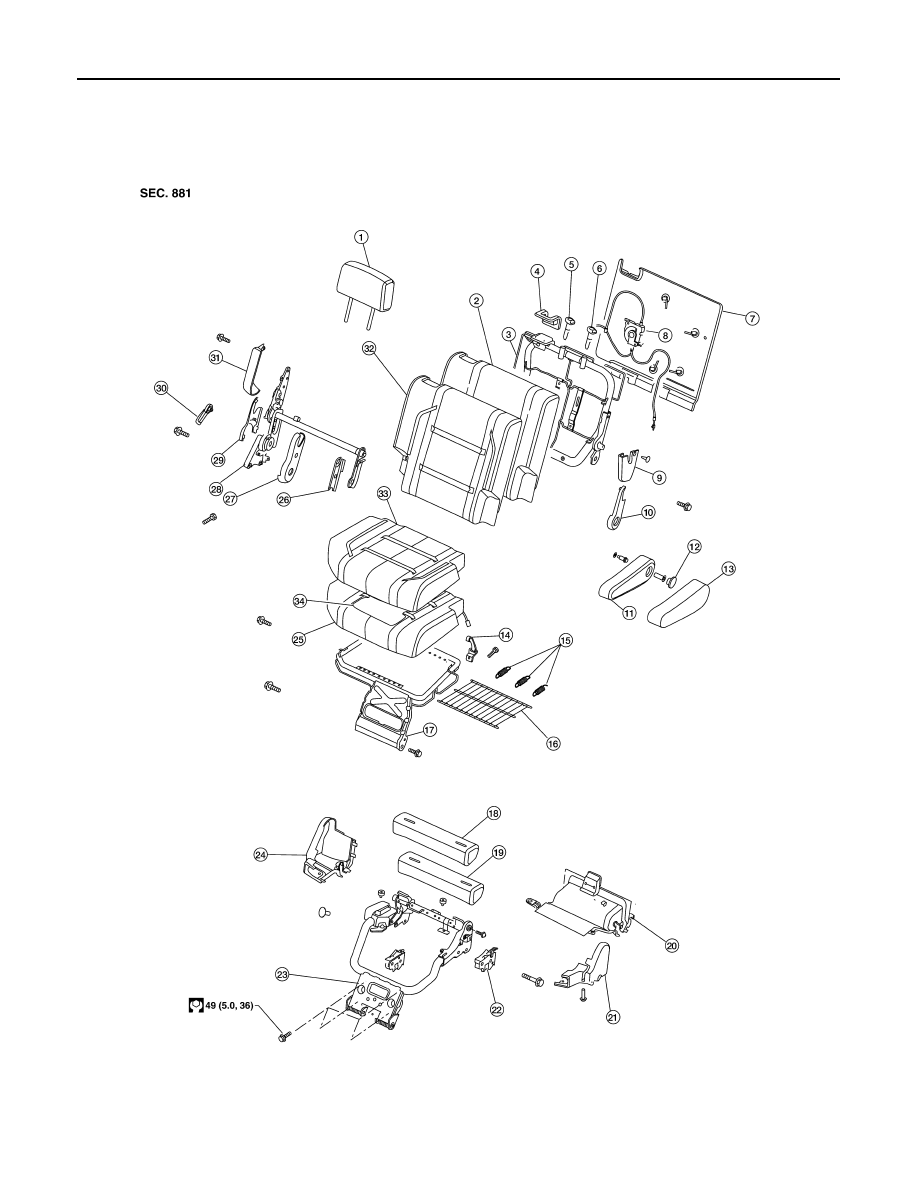

Second Row RH

WIIA1013E

1.

Headrest

2.

Seatback pad

3.

Seatback frame

4.

Rear seat bezel

5.

RH Headrest guide (free)

6.

LH Headrest guide (locking)

7.

Seat back panel

8.

Seat actuator assembly

9.

Reclining device inner cover
