THIRD ROW POWER FOLDING SEAT CONTROL UNIT

SE-29

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

DTC Index

INFOID:0000000005147392

NOTE:

To initiate a chime code sequence cycle, turn the ignition switch ON and OFF 3 times within 5 seconds.  The

first digit will chime, then a pause, followed by the second digit.  For example, a code 13 will have 1 chime, fol-

lowed by a pause, and then 3 chimes.  The third row power folding seat control unit will clear all codes that

have been corrected after 255 ignition cycles.

ABJIA0309GB

SE-30

< ECU DIAGNOSIS >

THIRD ROW POWER FOLDING SEAT CONTROL UNIT

Fail Safe

INFOID:0000000005147393

The third row power folding seat will not operate under the following conditions:

• Power supply to the third row power folding seat control unit falls below 9.0V

• One of the third row power folding seat switches is stuck closed

• The A/T selector lever is not in PARK position and the ignition switch is ON

DTC

Malfunction

Service Procedure

11

LH seat has traveled past normal fold
down position

1.

Perform Preliminary Check.  Refer to

SE-5, "Preliminary

Check"

.

2.

Check third row power folding seat motor LH Hall signal
and ground circuits.  Refer to

SE-37, "Third Row Power

Folding Seat Stops Short of it's Fully Up or Down Posi-
tion"

.

3.

Replace third row power folding seat motor LH.  Refer to

SE-57, "Exploded View"

.

12

LH seat has traveled past normal fold up
position

13

LH seat actuation cycle has taken too
long and timed out

1.

Perform Preliminary Check.  Refer to

SE-5, "Preliminary

Check"

.

2.

Check third row power folding seat motor LH motor cir-
cuits.  Refer to

SE-33, "Only One Third Row Power Fold-

ing Seat Will Operate"

.

3.

Replace third row power folding seat motor LH.  Refer to

SE-57, "Exploded View"

.

14

Third row power folding seat control unit
NVRAM data for LH seat position has
been corrupted

Replace third row power folding seat control unit.  Refer to

SE-

60, "Power seat cross beam"

.

15

Power supply to third row power folding
seat control unit has been interrupted
during LH seat fold up/down cycle

1.

Perform Preliminary Check.  Refer to

SE-5, "Preliminary

Check"

.

2.

Replace third row power folding seat control unit.  Refer
to

SE-60, "Power seat cross beam"

.

21

RH seat has traveled past normal fold
down position

1.

Perform Preliminary Check.  Refer to

SE-5, "Preliminary

Check"

.

2.

Check third row power folding seat motor RH Hall signal
and ground circuits.  Refer to

SE-37, "Third Row Power

Folding Seat Stops Short of it's Fully Up or Down Posi-
tion"

.

3.

Replace third row power folding seat motor RH.  Refer to

SE-57, "Exploded View"

.

22

RH seat has traveled past normal fold up
position

23

RH seat actuation cycle has taken too
long and timed out

1.

Perform Preliminary Check.  Refer to

SE-5, "Preliminary

Check"

.

2.

Check third row power folding seat motor RH motor cir-
cuits.  Refer to

SE-33, "Only One Third Row Power Fold-

ing Seat Will Operate"

.

3.

Replace third row power folding seat motor RH.  Refer to

SE-57, "Exploded View"

.

24

Third row power folding seat control unit
NVRAM data for RH seat position has
been corrupted

Replace third row power folding seat control unit.  Refer to

SE-

60, "Power seat cross beam"

.

25

Power supply to third row power folding
seat control unit has been interrupted
during RH seat fold up/down cycle

1.

Perform Preliminary Check.  Refer to

SE-5, "Preliminary

Check"

.

2.

Replace third row power folding seat control unit.  Refer
to

SE-60, "Power seat cross beam"

.

33

System normal or END of chime codes

THIRD ROW POWER FOLDING SEAT

SE-31

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

SYMPTOM DIAGNOSIS

THIRD ROW POWER FOLDING SEAT

Symptom Table

INFOID:0000000005147394

Symptom

Reference

None of the third row power folding seats will operate with any switch.

Refer to

SE-32, "None of the Third Row Power Folding

Seats Will Operate With Any Third Row Power Folding
Seat Switch"

.

Only one third row power folding seat will operate.

Refer to

SE-33, "Only One Third Row Power Folding Seat

Will Operate"

.

Third row power folding seat will operate in only one direction.

Refer to

SE-35, "Third Row Power Folding Seat Will Oper-

ate in Only One Direction"

.

Third row power folding seat will stop short of its fully up or down position.

Refer to

SE-37, "Third Row Power Folding Seat Stops

Short of it's Fully Up or Down Position"

.

Third row power folding seat makes excessive noise while moving.

Refer to

SE-38, "Third Row Power Folding Seat Makes Ex-

cessive Noise While Moving"

.

Seats make squeak or rattle noise.

Refer to

SE-39, "Work Flow"

.

SE-32

< SYMPTOM DIAGNOSIS >

NONE OF THE THIRD ROW POWER FOLDING SEATS WILL OPERATE WITH

ANY SWITCH.

NONE OF THE THIRD ROW POWER FOLDING SEATS WILL OPERATE
WITH ANY SWITCH.

None of the Third Row Power Folding Seats Will Operate With Any Third Row Power
Folding Seat Switch

INFOID:0000000005147395

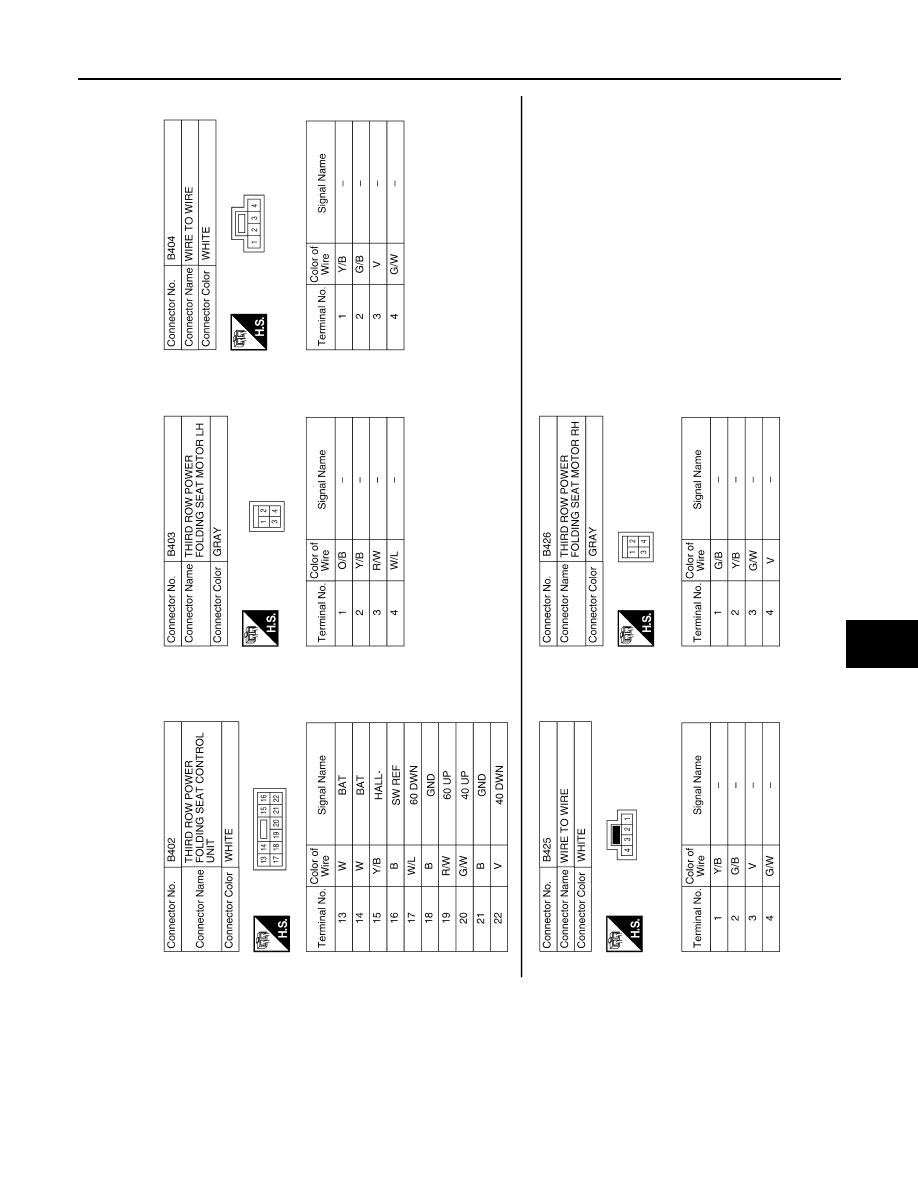

Regarding Wiring Diagram information, refer to

SE-24, "Wiring Diagram"

.

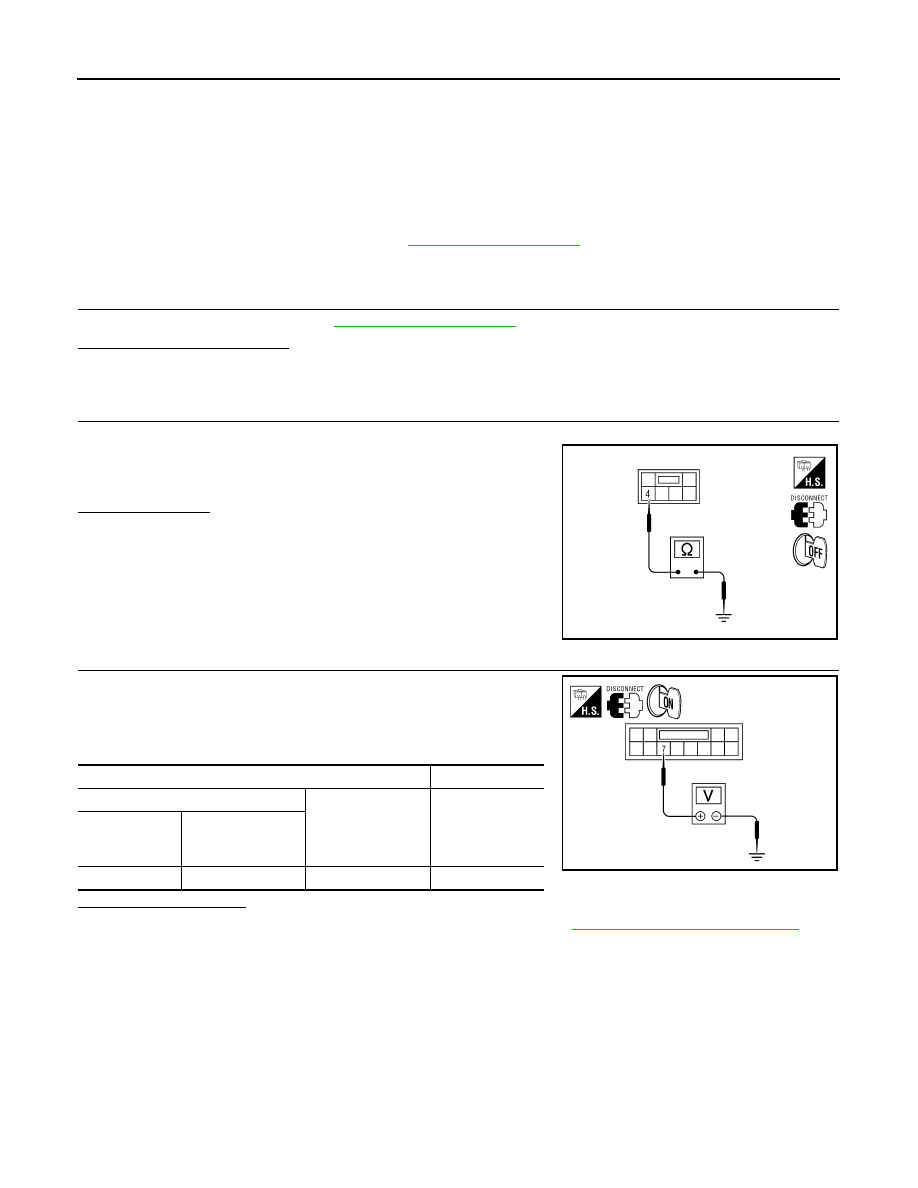

1.

PRELIMINARY CHECK

Perform preliminary check.  Refer to

SE-5, "Preliminary Check"

.

Are inspection results normal?

YES

>> GO TO 2.

NO

>> Perform repairs as necessary.

2.

THIRD ROW POWER FOLDING SEAT SWITCH GROUND

1. Turn ignition switch OFF.

2. Disconnect any third row power folding seat switch connector.

3. Check continuity between third row power folding seat switch

harness connector terminal 4 and ground.

Is there continuity?

YES

>> GO TO 3.

NO

>> Repair ground circuit.

3.

TRANSMISSION RANGE SWITCH SIGNAL

1. Confirm A/T selector lever is in PARK position.

2. Turn ignition switch ON.

3. Check voltage between third row power folding seat control unit

harness connector B401 terminal 7 and ground.

Is there battery voltage?

YES

>> Replace third row power folding seat control unit.  Refer to

SE-60, "Power seat cross beam"

.

NO

>> Repair circuit as necessary.

ALJIA0116ZZ

Terminals

Ignition switch

(+)

(-)

ON

Third row power

folding seat

control unit

Terminal No.

B401

7

Ground

Battery voltage

ALJIA0278ZZ
