Infiniti QX56 (JA60). Manual - part 808





SB-12

< ON-VEHICLE REPAIR >

SEAT BELTS

4. Check the shoulder seat belt guide and shoulder belt height adjuster for front seats. Ensure guide swivels

freely and that belt lays flat and does not bind in guide. Ensure height adjuster operates properly and

holds securely.

5. Check retractor operation:
a. Fully extend the seat belt webbing and check for twists, tears or other damage.
b. Allow the seat belt to retract. Ensure that belt returns smoothly and completely into the retractor. If the

seat belt does not return smoothly, wipe the inside of the loops with a clean paper cloth, because dirt built

up in the loops of the upper anchors can cause the seat belts to retract slowly.

c.

Fasten the seat belt. Check the seat belt returns smoothly and completely to the retractor. If the belt does

not return smoothly, the cause may be an accumulation of dust or dirt. Use the “SEAT BELT TAPE SET”

and perform the following steps.

Inspect the front seat belt through-anchor:

1. Pull the seat belt out to a length of 500 mm (19.69 in) or more.

2. Use a clip or other device to hold the seat belt at the center pillar belt opening.

3. Pass a thin wire through the through-anchor belt opening. Hold both ends of the wire and pull taut

while moving it up and down several times along the belt opening surface to remove dirt.

4. Any dirt that cannot be removed with the wire can be removed by cleaning the opening with a clean

cloth.

5. Apply tape at the point where the belt contacts the through-anchor belt opening.

NOTE:

Apply the tape so that there is no looseness or wrinkling.

6. Remove the clip holding the seat belt and check that the belt returns smoothly.

7. Repeat steps above as necessary to check the other seat belts.

SEAT BELT RETRACTOR ON-VEHICLE CHECK

Emergency Locking Retractors (ELR) and Automatic Locking Retractors (ALR)

NOTE:

All seat belt retractors are of the Emergency Locking Retractors (ELR) type. In an emergency (sudden stop)

the retractor will lock and prevent the belt from extending any further. All 3-point type seat belt retractors

except the driver's seat belt also have an Automatic Locking Retractors (ALR) mode. The ALR mode (also

called child restraint mode) is used when installing child seats. The ALR mode is activated when the seat belt

is fully extended. When the belt is then retracted partially, the ALR mode automatically locks the seat belt in a

specific position so the belt cannot be extended any further. To cancel the ALR mode, allow the seat belt to

fully wind back into the retractor.

Check the seat belt retractors using the following test(s) to determine if a retractor assembly is operating prop-

erly.

ELR Function Stationary Check

Grasp the shoulder belt and pull forward quickly. The retractor should lock and prevent the belt from extending

further.

ALR Function Stationary Check

1. Pull out entire length of seat belt from retractor until a click is heard.
2. Retract the belt partially. A clicking noise should be heard as the belt retracts indicating that the retractor is

in the Automatic Locking Retractor (ALR) mode.

3. Grasp the seat belt and try to pull out the retractor. The belt must lock and not extend any further. If neces-

sary replace the retractor assembly.

4. Allow the entire length of the belt to retract to cancel the automatic locking mode.

ELR Function Moving Check

WARNING:

Perform the following test in a safe, open area clear of other vehicles and obstructions (for example, a

large, empty parking lot). Road surface must be paved and dry. DO NOT perform the following test on

wet or gravel roads or on public streets and highways. This could result in an accident and serious

personal injury. The driver and passenger must be prepared to brace themselves in the event the

retractor does not lock.
1. Fasten drivers seat belt. Buckle a passenger into the seat for the belt that is to be tested.

SEAT BELTS

SB-13

< ON-VEHICLE REPAIR >

C

D

E

F

G

I

J

K

L

M

A

B

SB

N

O

P

2. Proceed to the designated safe area.
3. Drive the vehicle at approximately 16 km/h (10 MPH). Notify any passengers of a pending sudden stop.

The driver and passenger must be prepared to brace themselves in the event the retractor does not lock.

Apply brakes firmly and make a very hard stop.

During stop, seat belts should lock and not be extended. If the seat belt retractor assembly does not lock, per-

form the retractor off-vehicle check.

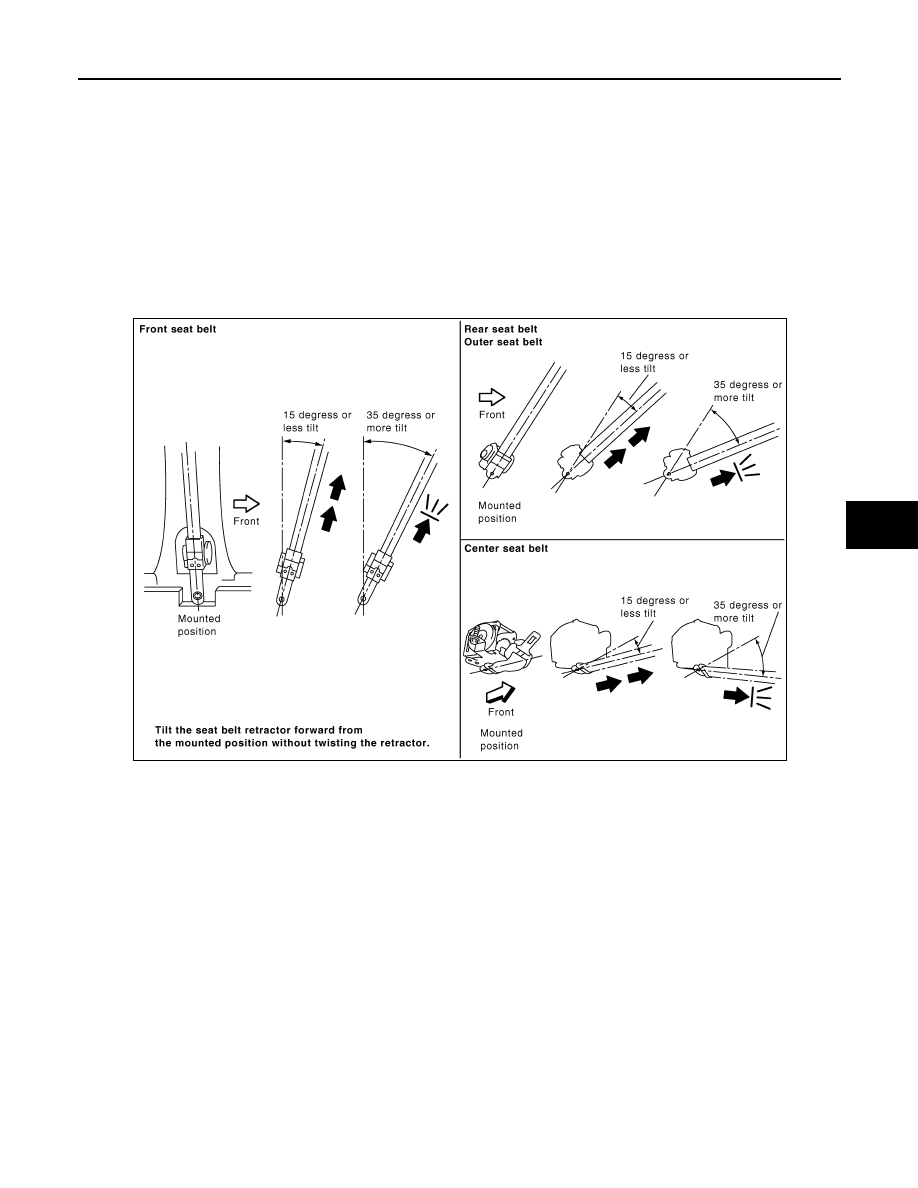

SEAT BELT RETRACTOR OFF-VEHICLE CHECK

1. Remove the seat belt retractor assembly.
2. Slowly pull out belt while tilting the retractor assembly forward from the mounted position without twisting

the retractor assembly as shown in the illustration.

If retractor does not operate within specifications, replace the retractor assembly.

15 degrees or less tilt

: Belt can be pulled out.

35 degrees or more tilt

: Belt locks and cannot be pulled out.

PHIA0257E

SB-14

< ON-VEHICLE REPAIR >

LATCH (LOWER ANCHORS AND TETHER FOR CHILDREN) SYSTEM

LATCH (LOWER ANCHORS AND TETHER FOR CHILDREN) SYSTEM

Removal and Installation

INFOID:0000000005266532

NOTE:

The LATCH (Lower Anchors and Tether for Children) system is not serviceable.

TOP TETHER STRAP CHILD RESTRAINT

SB-15

< ON-VEHICLE REPAIR >

C

D

E

F

G

I

J

K

L

M

A

B

SB

N

O

P

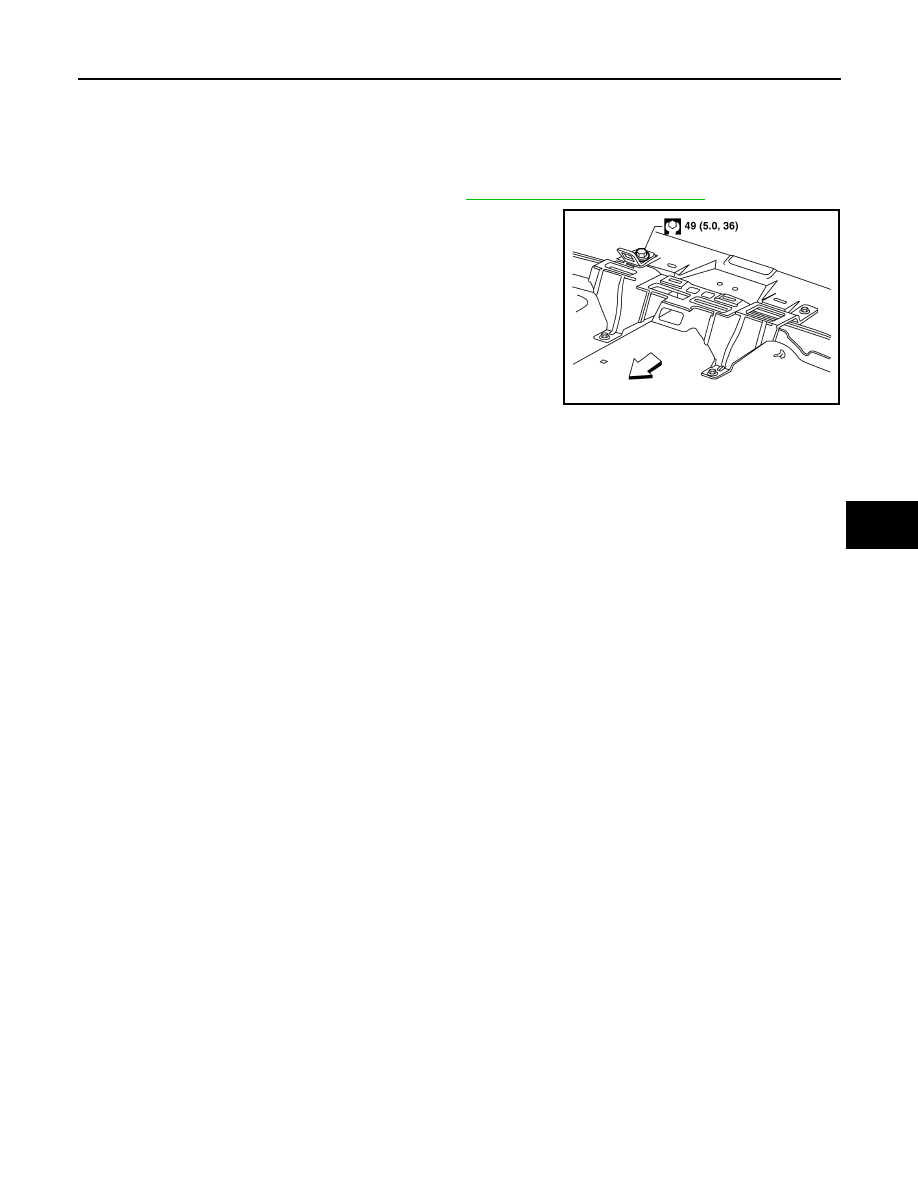

TOP TETHER STRAP CHILD RESTRAINT

Removal and Installation

INFOID:0000000005266533

REMOVAL

1. Remove luggage room rear lower finisher. Refer to

INT-19, "Removal and Installation"

2. Remove bolt and remove tether anchor from the luggage box

bracket.

⇐: Vehicle front

INSTALLATION

Installation is in the reverse order of removal.

WHIA0285E
