Infiniti QX56 (JA60). Manual - part 807

SB-8

< ON-VEHICLE REPAIR >

SEAT BELTS

Installation

Installation is in the reverse order of removal.

NOTE:

Make sure that seat belt height adjuster is locked in the lowest position during installation.

SECOND ROW SEAT BELT RETRACTOR - CENTER

Removal

1. Remove seat belt anchor.
2. Remove seat belt bezel.
3. Remove seat back upholstery and foam. Refer to

SE-72, "Disassembly and Assembly"

.

4. Remove seat belt retractor cover.
5. Remove bolt and remove seat belt retractor and seat belt assembly.

Installation

Installation is in the reverse order of removal.

SECOND ROW SEAT BELT BUCKLE - OUTBOARD

Removal

1. Remove the seat cushion finisher. Refer to

SE-52, "Exploded View"

.

2. Remove the anchor bolt and buckle.

Installation

Installation is in the reverse order of removal.

SECOND ROW SEAT BELT BUCKLE - CENTER

Removal

1. Remove the rear center seat. Refer to

SE-56, "Removal and Installation"

.

2. Remove the screw and seat cushion inner finisher. Refer to

SE-72, "Disassembly and Assembly"

.

3. Remove the anchor bolt and buckle.

Installation

Installation is in the reverse order of removal.

Removal and Installation of Third Row Seat Belt

INFOID:0000000005266530

THIRD ROW SEAT BELT RETRACTOR - OUTBOARD

SEAT BELTS

SB-9

< ON-VEHICLE REPAIR >

C

D

E

F

G

I

J

K

L

M

A

B

SB

N

O

P

Removal

1. Remove the D-ring anchor bolt cover and D-ring anchor bolt.
2. Remove the lower anchor bolt cover and lower anchor bolt.
3. Remove the lower luggage side finisher. Refer to

INT-19, "Removal and Installation"

.

4. Remove the seat belt retractor and belt assembly bolt.

Installation

Installation is in the reverse order of removal.

• Seat belt lower anchor base should be flat to the floor during installation and not on the anti-rotation bead.

THIRD ROW SEAT BELT RETRACTOR - CENTER

1.

D-ring mounting bracket

2.

Seat belt retractor and belt assembly 3.

Retractor mounting bracket

4.

Seat belt lower anchor

5.

Lower anchor bolt cover

6.

Seat belt buckles

7.

D-ring anchor bolt cover

8.

D-ring anchor

WHIA0283E

SB-10

< ON-VEHICLE REPAIR >

SEAT BELTS

Removal

1. Remove the rear roof finisher. Refer to

INT-17, "Removal and Installation"

.

2. Lower the rear portion of the headliner.
3. Remove the seat belt retractor anchor bolts and retractor and belt assembly.

Installation

 Installation is in the reverse order of removal.

THIRD ROW SEAT BELT BUCKLE

Removal

1. Place seatback RH/LH in the folded position.
2. Remove luggage floor board assembly and storage box. Refer to

INT-19, "Removal and Installation"

.

3. Remove seat belt buckle bolt (2) from rear seat hinge (1).

•

⇐: Vehicle front

WHIA0284E

Seat belt buckle bolt

: 49 N·m (5.0 kg-m, 36 ft-lb)

LHIA0107E

SEAT BELTS

SB-11

< ON-VEHICLE REPAIR >

C

D

E

F

G

I

J

K

L

M

A

B

SB

N

O

P

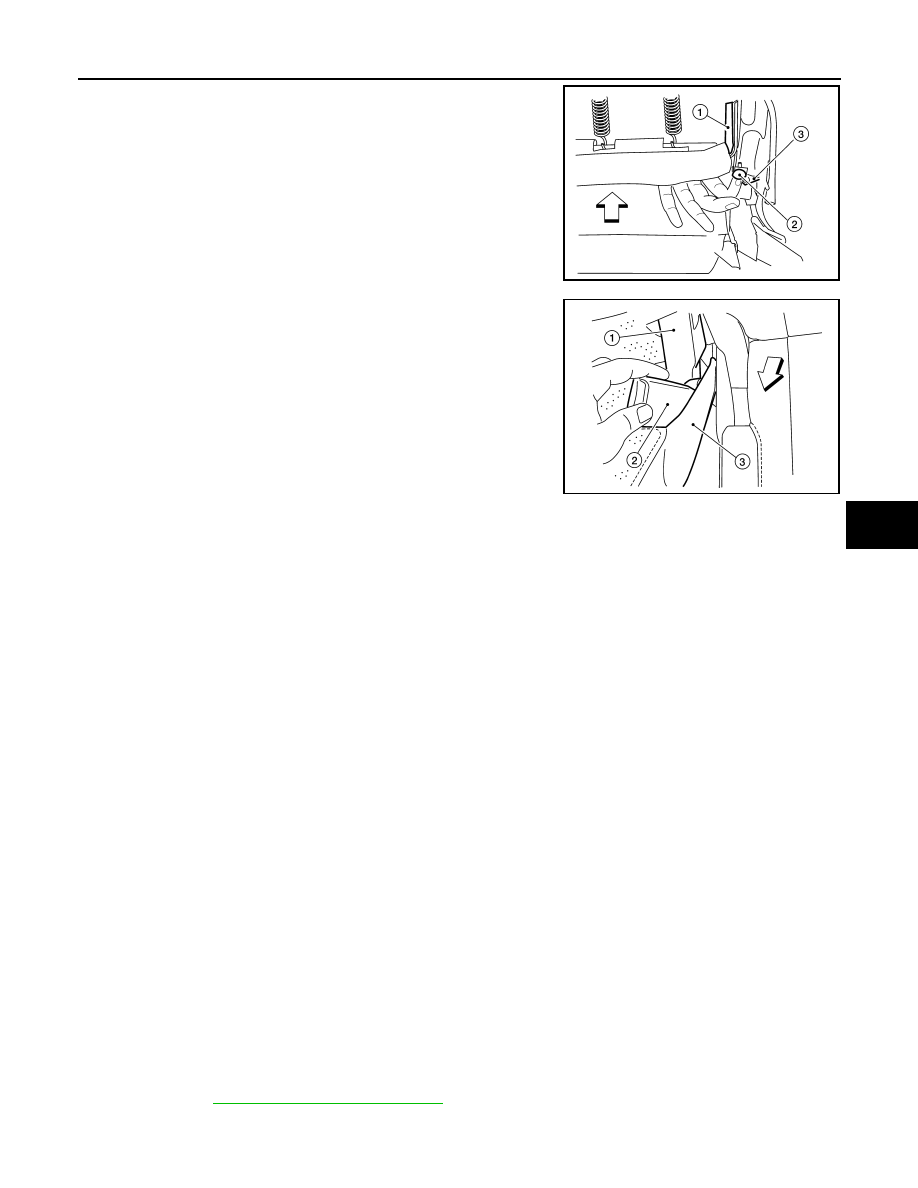

4. Remove push pin (2) and release elastic ban (3) from seat

frame (1). Repeat for opposite seat.

•

⇐: Vehicle front

5. Partially lift seatback upright, then remove seat belt buckle (2)

from between hinge cover (1) and seat cushion side facing (3).

Repeat for LH seat.

•

⇐: Vehicle front

Installation

Installation is in the reverse order of removal.

• Raise and lock both seats in the full upright position to check for abnormal noises or binding.

Seat Belt Inspection

INFOID:0000000005266531

AFTER A COLLISION

WARNING:

Inspect all seat belt assemblies including retractors and attaching hardware after any collision.

NISSAN recommends that all seat belt assemblies in use during a collision be replaced unless the col-

lision was minor and the belts show no damage and continue to operate properly. Failure to do so

could result in serious personal injury in an accident. Seat belt assemblies not in use during a colli-

sion should also be replaced if either damage or improper operation is noted. Seat belt pre-tensioners

should be replaced even if the seat belts are not in use during a frontal collision in which the air bags

are deployed.

Replace any seat belt assembly (including anchor bolts) if:

• The seat belt was in use at the time of a collision (except for minor collisions and the belts, retractors and

buckles show no damage and continue to operate properly).

• The seat belt was damaged in an accident. (i.e. torn webbing, bent retractor or guide).

• The seat belt attaching point was damaged in an accident. Inspect the seat belt attaching area for damage

or distortion and repair as necessary before installing a new seat belt assembly.

• Anchor bolts are deformed or worn out.

• The seat belt pre-tensioner should be replaced even if the seat belts are not in use during the collision in

which the air bags are deployed.

PRELIMINARY CHECKS

1. Check the seat belt warning lamp/chime for proper operation as follows:
a. Switch ignition ON. The seat belt warning lamp should illuminate. Also, the seat belt warning chime should

sound for about seven seconds.

b. Fasten drivers seat belt. The seat belt warning lamp should go out and the chime (if sounding) should

stop.

2. If the air bag warning lamp is blinking, conduct self-diagnosis using CONSULT-III, and air bag warning

lamp. Refer to

SRC-13, "SRS Operation Check"

.

3. Check that the seat belt retractor, seat belt anchor and buckle bolts are securely attached.

LHIA0105E

LHIA0106E
