Infiniti QX56 (JA60). Manual - part 796





SUNROOF SYSTEM

RF-53

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

ON-VEHICLE REPAIR

SUNROOF SYSTEM

Inspection

INFOID:0000000005147307

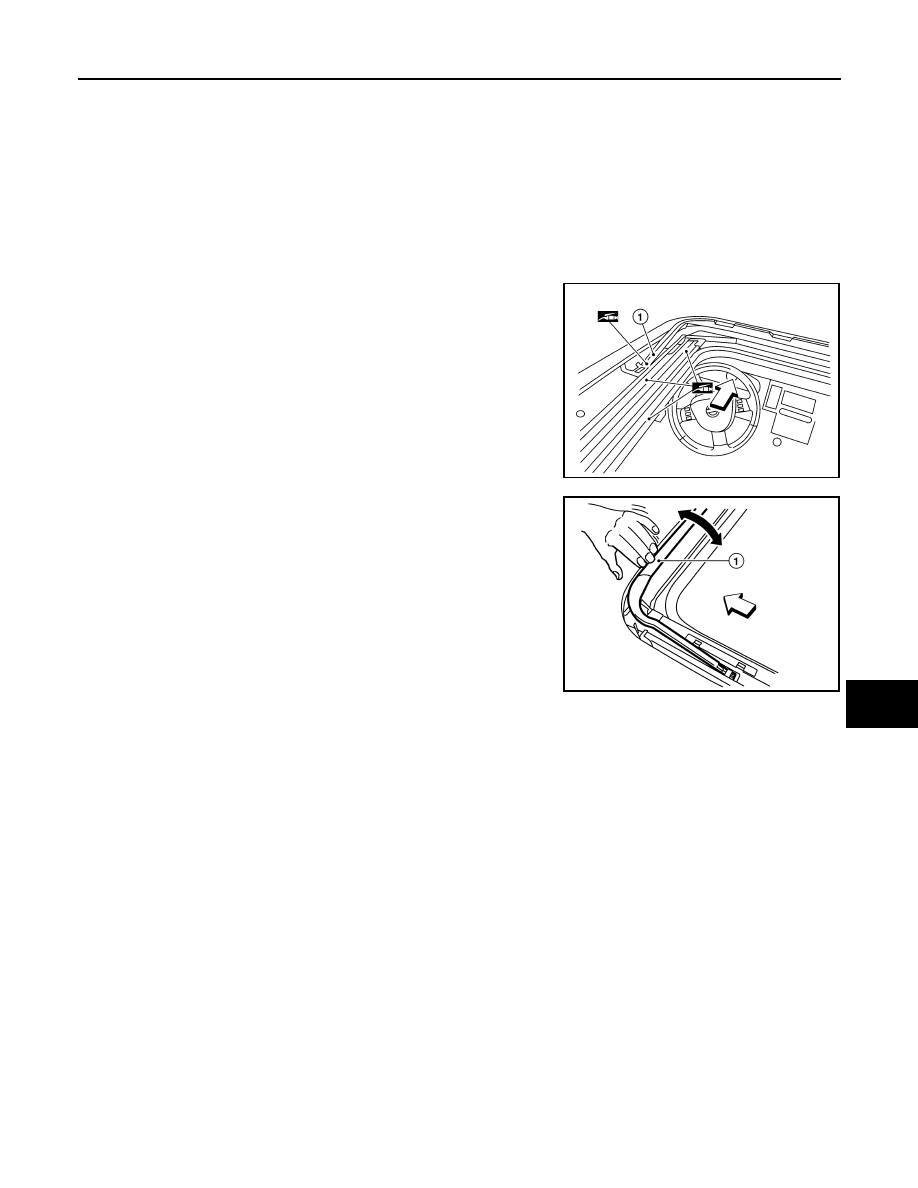

WIND DEFLECTOR

1. Open glass lid assembly fully.
2. Visually check for proper installation, damaged/deteriorated components, or foreign objects within mecha-

nism. Correct as required for smooth operation.

3. Check for grease at the wind deflector arm (1) and pivot areas. If

necessary, apply a sufficient amount of grease for non-binding

operation.

⇐:Vehicle front

4. Check that the wind deflector (1) moves freely within the sunroof

unit assembly while manually pressing down and releasing. If a

malfunction is detected, remove the sunroof unit assembly and

visually inspect. If damage is found, replace either wind deflec-

tor (1) or sunroof unit assembly as required.

⇐:Vehicle front

WEATHERSTRIP

Visually check weatherstrip for any damage, deterioration, or flattening.

• In the case of leakage around glass lid, close glass lid and pour water around it to find the damaged or

gaped portion, remove glass lid assembly.

• If any damage is found, replace glass lid assembly.

CAUTION:

Do not remove the weatherstrip.

LINK AND WIRE ASSEMBLY

NOTE:

Before replacing any suspect part, carefully ensure it is the source of the noise being experienced.
1. Visually check to determine if a sufficient amount of petroleum jelly has been applied to the wire or rail

groove. If not, add petroleum jelly as required.

2. Check wire for any damage or deterioration. If any damage is found, remove rear guide, then replace

wire.

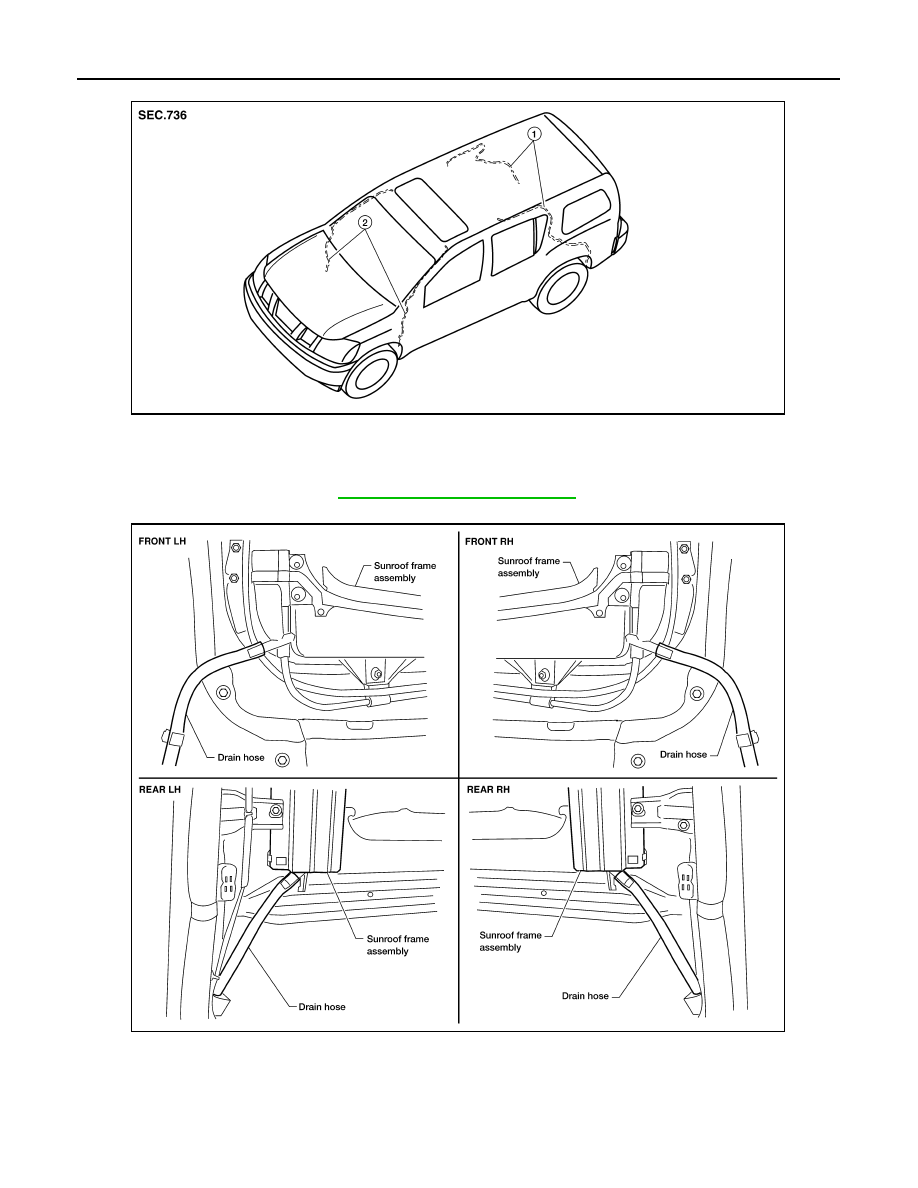

DRAIN HOSES

LIIA2336E

WIIA0849E

RF-54

< ON-VEHICLE REPAIR >

SUNROOF SYSTEM

Removal

1. Remove the headlining. Refer to

INT-17, "Removal and Installation"

.

2. Visually check the drain hoses for proper connections, damage or deterioration.

3. Remove each drain hose and check visually for damage, cracks or deterioration.

• Pour water through the drain hose to check for damage.

If any damage is found, replace the drain hose.

Installation

Installation is in the reverse order of removal.

1.

Rear drain hoses

2.

Front drain hoses

WIIA0853E

LIIA0272E

SUNROOF SYSTEM

RF-55

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

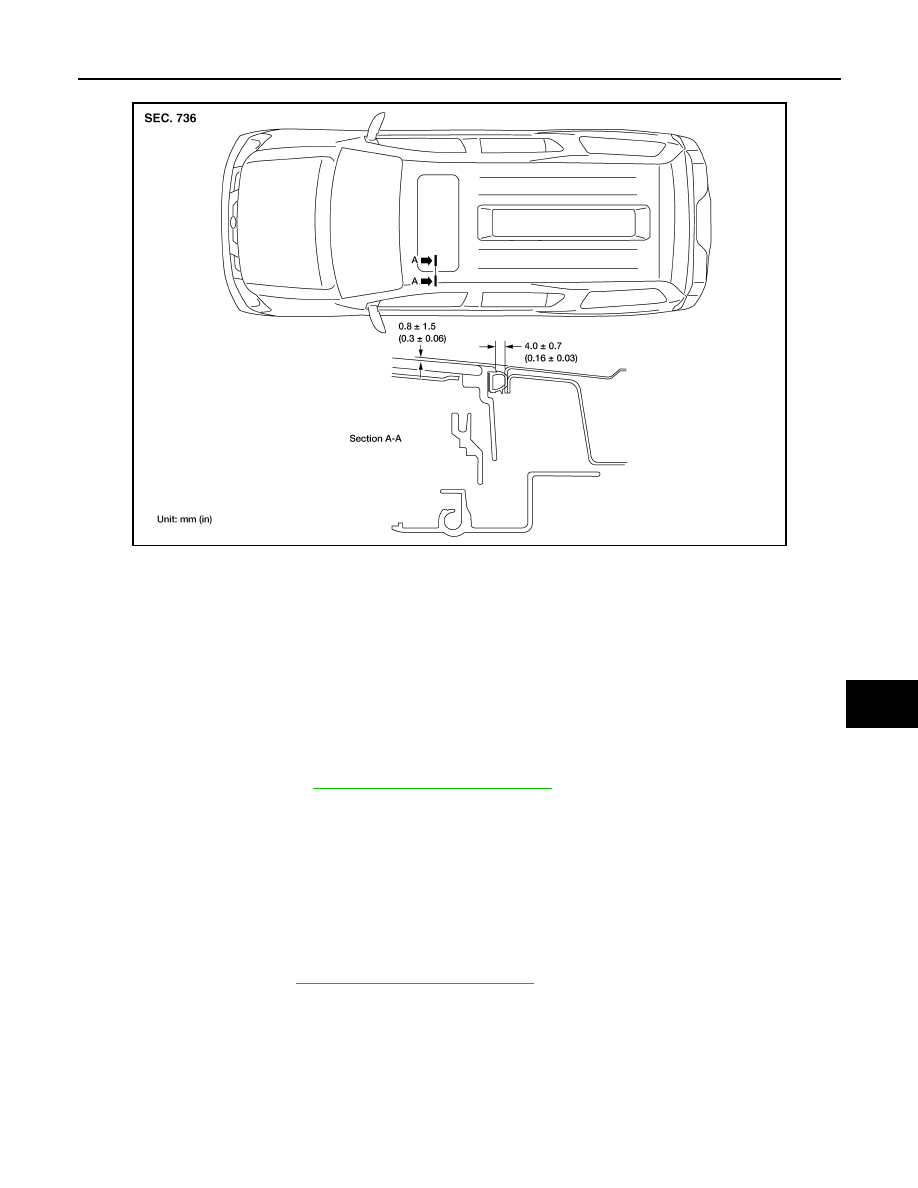

GAP ADJUSTMENT

NOTE:

If any gap or height difference between glass lid and roof panel is found, check glass lid fit and adjust as fol-

lows:
1. Open sunshade assembly.
2. Loosen glass lid securing screws (two each on left and right sides), then tilt glass lid down.
3. Manually adjust glass lid from outside of vehicle so it resembles "A - A" as shown.
4. After adjusting glass lid tilt glass lid up and tighten screws.
5. Tilt glass lid up and down several times to check that it moves smoothly.

HEIGHT DIFFERENCE ADJUSTMENT

If an excessive height difference between glass lid assembly and roof panel is found, adjust in the following

manner:
1. Remove headlining. Refer to

INT-17, "Removal and Installation"

.

2. Loosen sunroof frame assembly nuts and sunroof bracket bolts.
3. Add shims until gap is within specification "A-A".

NOTE:

Temporarily snug nuts and bolts to prevent movement between each adjustment.

4. Tilt glass lid assembly up and down several times to check that it moves and seals properly.
5. Tighten sunroof frame assembly nuts and sunroof bracket bolts.

NOTE:

First tighten left front then right rear sunroof frame assembly to prevent uneven torque while tightening

remaining sunroof bracket bolts.

6. Install headlining. Refer to

INT-17, "Removal and Installation"

.

WIIA0304E

RF-56

< ON-VEHICLE REPAIR >

SUNROOF SYSTEM

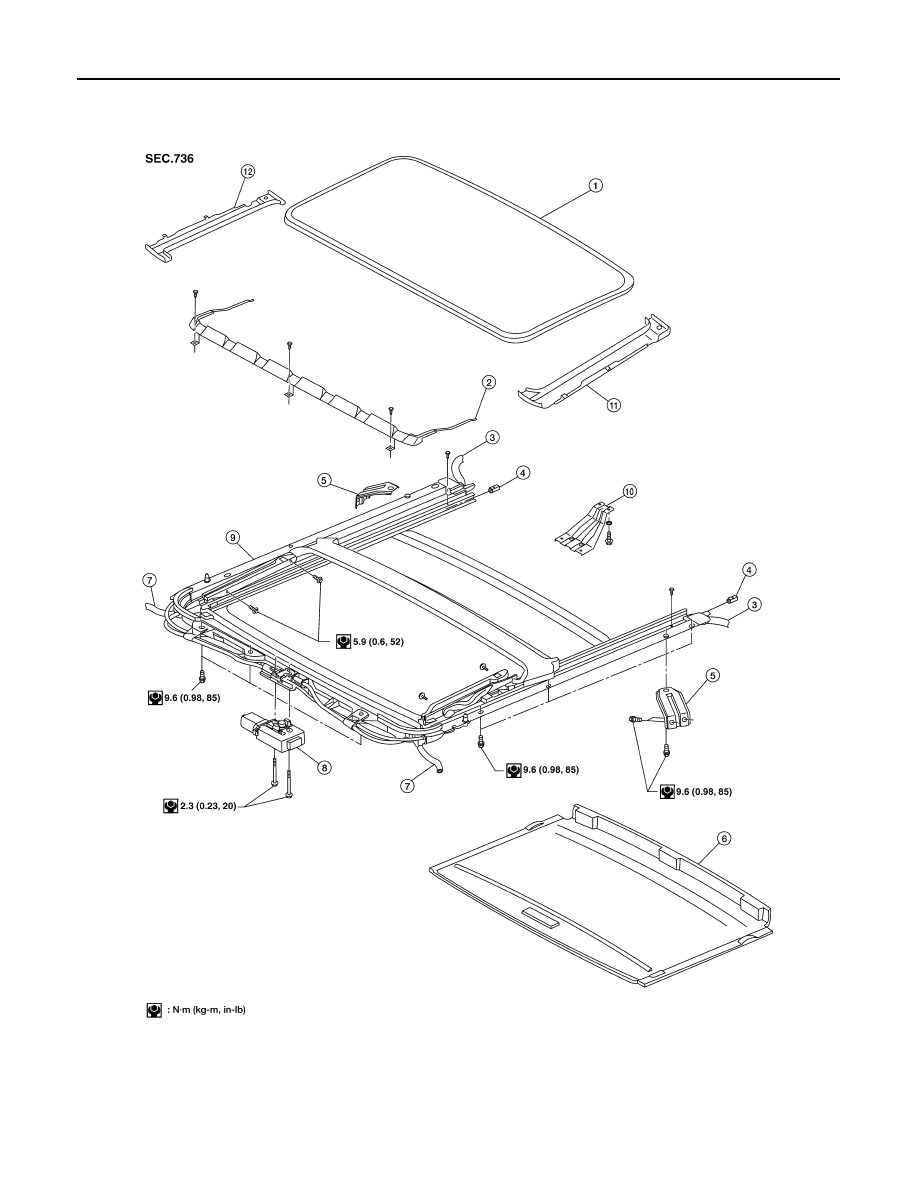

Exploded View

INFOID:0000000005147308

1. Glass lid assembly

2.

Wind deflector

3. Rear drain hoses

4. Shade stoppers

5.

Sunroof bracket

6. Sunshade assembly

7. Front drain hoses

8.

Sunroof motor assembly

9. Sunroof frame assembly

10. Overhead console bracket

11.

Side cover LH

12. Side cover RH

WIIA0657E
