REAR POWER VENT WINDOW RELAY (OPEN) CHECK

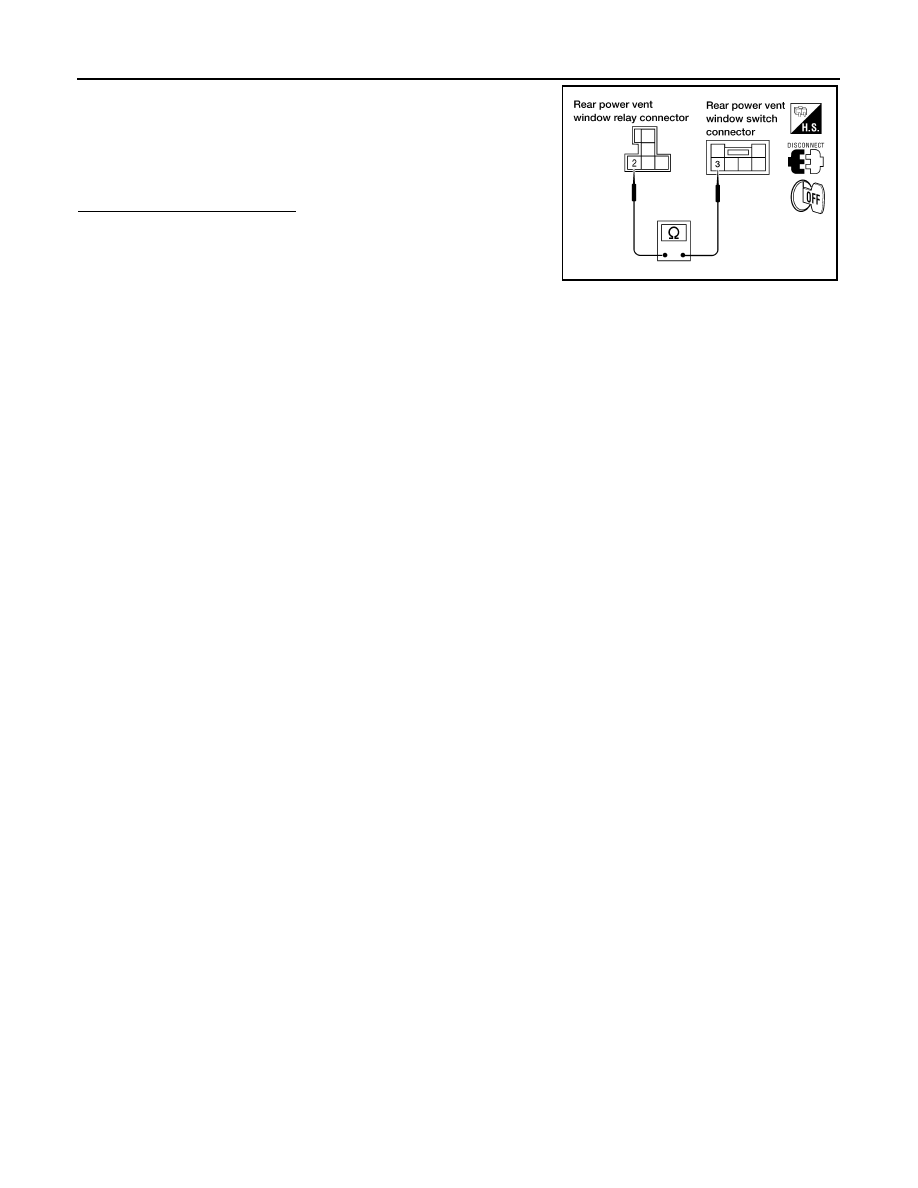

1. Disconnect rear power vent window switch.

2. Check continuity between rear power vent window relay (OPEN)

connector M87 terminal 2 and rear power vent window switch

connector M95 terminal 3.

Is the inspection result normal?

YES

>> Replace rear power vent window switch.

NO

>> Repair or replace harness.

2 - 3

: Continuity should exist.

LIIA1568E

REAR POWER VENT WINDOW RELAY (CLOSE) CHECK

PWC-49

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

REAR POWER VENT WINDOW RELAY (CLOSE) CHECK

Description

INFOID:0000000005147234

Rear power vent windows OPEN/CLOSE by receiving the signal from rear power vent window switch.

Diagnosis Procedure

INFOID:0000000005147235

Regarding Wiring Diagram information, refer to

PWC-53, "Wiring Diagram"

.

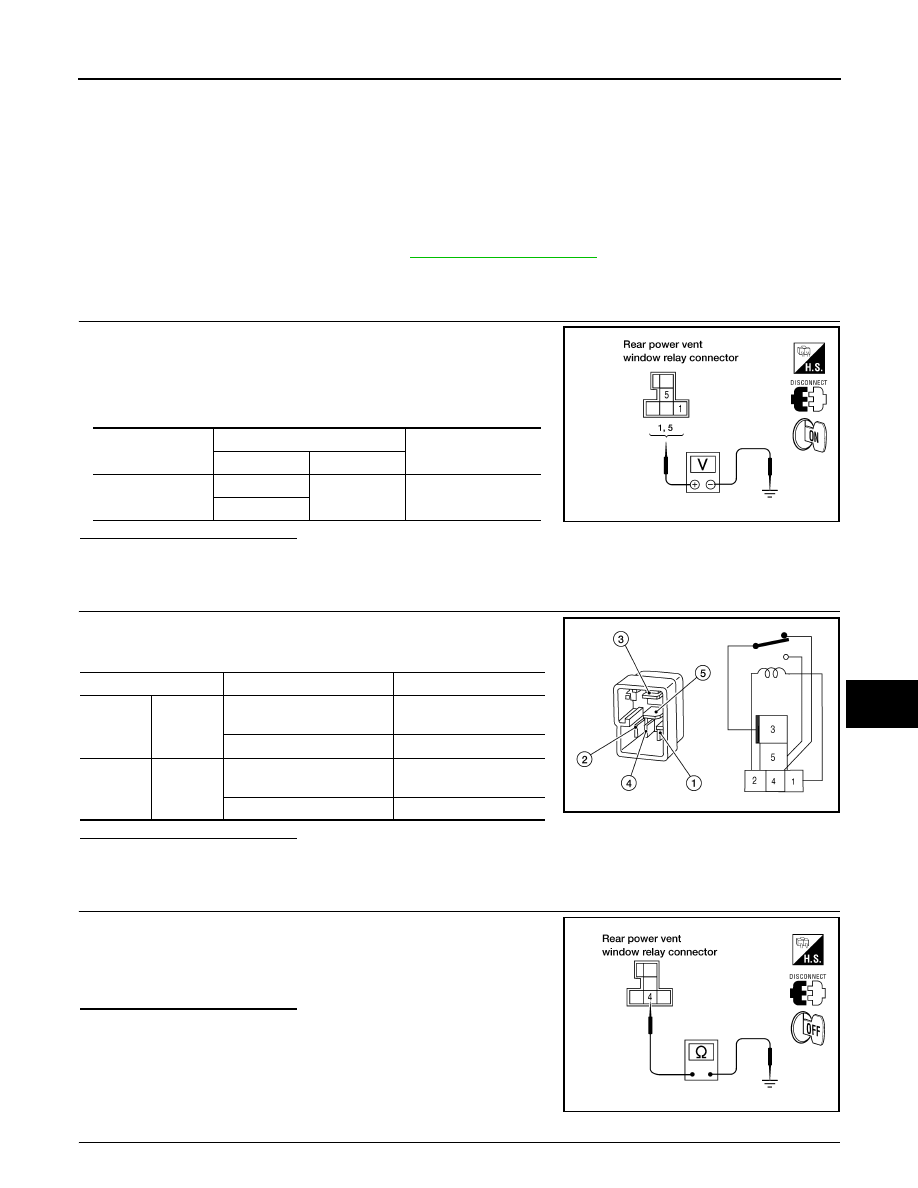

1.

CHECK REAR POWER VENT WINDOW RELAY (CLOSE) POWER SUPPLY CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect rear power vent window relay (CLOSE).

3. Turn ignition switch ON.

4. Check voltage between rear power vent window relay (CLOSE)

connector and ground.

Is the inspection result normal?

YES

>> GO TO 2

NO

>> Repair or replace harness.

2.

CHECK REAR POWER VENT WINDOW RELAY (CLOSE)

Check continuity between rear power vent window relay (CLOSE)

terminals 3 and 4, 3 and 5.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Replace rear power vent window relay (CLOSE).

3.

CHECK REAR POWER VENT WINDOW RELAY (CLOSE) GROUND CIRCUIT

Check continuity between rear power vent window relay (CLOSE)

connector M89 terminal 4 and ground.

Is the inspection result normal?

YES

>> GO TO 4

NO

>> Repair or replace harness.

4.

CHECK REAR POWER VENT WINDOW RELAY (CLOSE) CIRCUIT

Connector

Terminals

Voltage (V)

(Approx.)

(+)

(-)

M89

1

Ground

Battery voltage

5

LIIA1565E

Terminals

Condition

Continuity

3

4

12V direct current supply
between terminals 1 and 2

No

No current supply

Yes

3

5

12V direct current supply
between terminals 1 and 2

Yes

No current supply

No

WIIA0291E

4 - Ground

: Continuity should exist.

LIIA1567E

PWC-50

< COMPONENT DIAGNOSIS >

REAR POWER VENT WINDOW RELAY (CLOSE) CHECK

1. Disconnect rear power vent window switch.

2. Check continuity between rear power vent window relay

(CLOSE) connector M89 terminal 2 and rear power vent window

switch M95 terminal 4.

Is the inspection result normal?

YES

>> Replace rear power vent window switch.

NO

>> Repair or replace harness.

2 - 4

: Continuity should exist.

LIIA1569E

POWER WINDOW MAIN SWITCH

PWC-51

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

ECU DIAGNOSIS

POWER WINDOW MAIN SWITCH

Reference Value

INFOID:0000000005147240

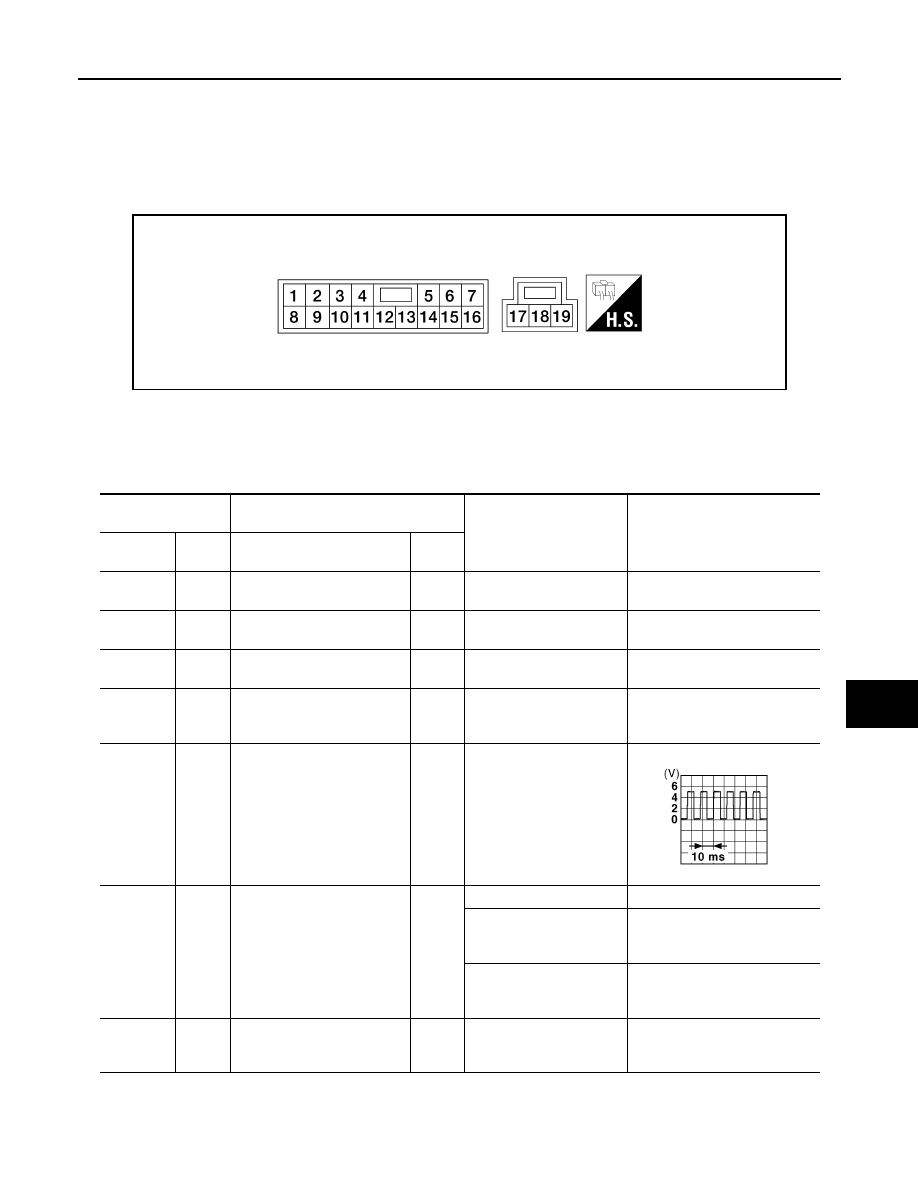

TERMINAL LAYOUT
