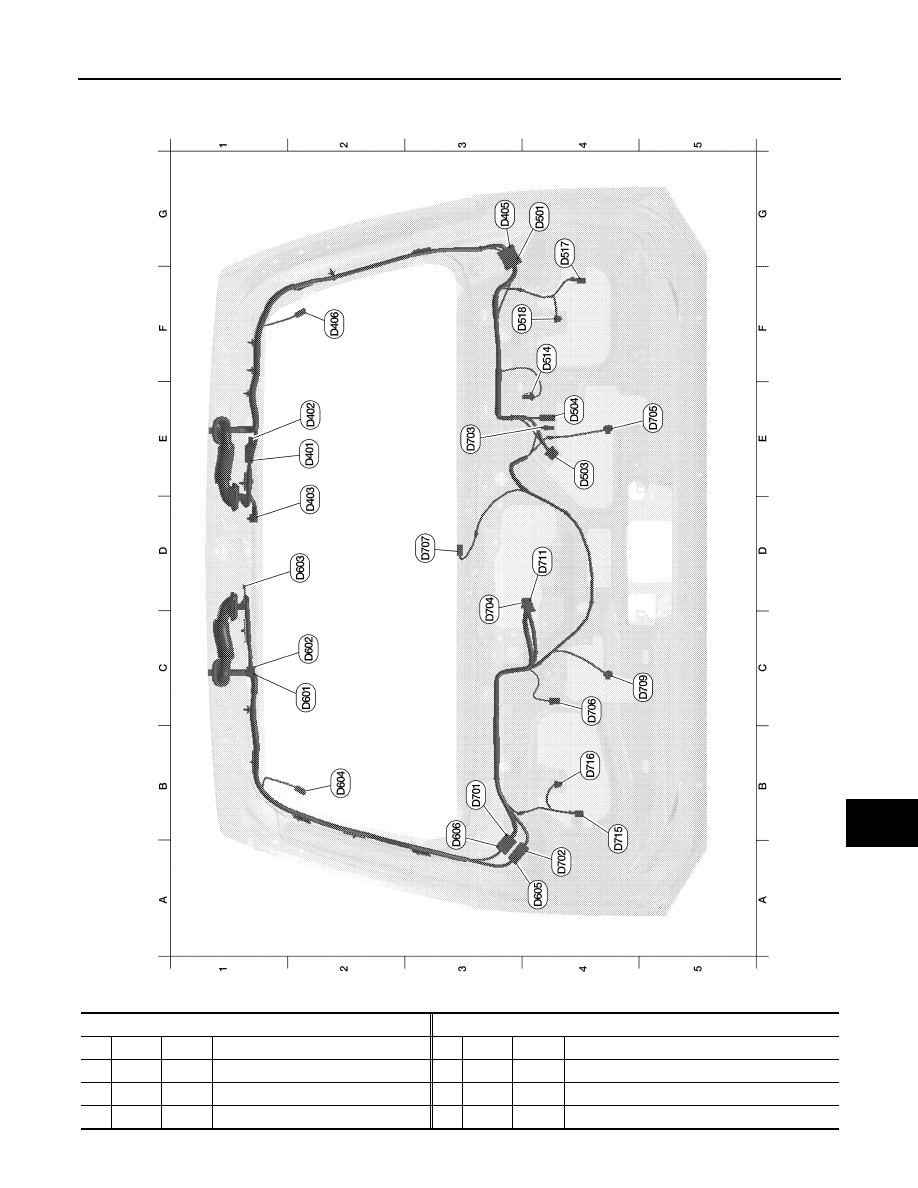

BACK DOOR HARNESS

ABMIA1204GB

Back door No. 2 LH harness

Back door RH harness

E2

D401

W/18

: To B48

B3

D701

W/16

: To D606

E2

D402

W/2

: To B49

A4

D702

W/6

: To D605

D2 D403

GR/2

: High mounted stop lamp

E3

D703

W/2

: License plate lamps

G3 D405

W/18

: To D501

D3 D704

W/6

: Rear wiper motor

PG-60

< COMPONENT DIAGNOSIS >

HARNESS

F2

D406

B/1

: Rear window defogger

D2 D705

GR/2

: Back-up lamp LH

Back door LH harness

C4 D706

W/4

: Back door and glass hatch switch assembly

G3 D501

W/18

: To D405

D2 D707

B/1

: Glass hatch ajar switch

E4

D503

W/8

: Back door latch

B4

D709

GR/2

: Back-up lamp RH

E4

D504

W/4

: Rear view camera

B4

D711

W/4

: Glass hatch lock actuator

F4

D514

BR/2

: Back door warning chime

B4

D715

BR/2

: Pinch strip RH

F4

D517

BR/2

: Pinch strip LH

B4

D716

BR/2

: Back door speaker RH

F4

D518

BR/2

: Back door speaker LH

Back door No. 2 RH harness

C2 D601

W/6

: To B140

C2 D602

W/16

: To B139

D2 D603

—

: Body ground

B2

D604

B/1

: Rear window defogger

A3

D605

W/6

: To D702

B3

D606

W/16

: To D701

PG

ELECTRICAL UNITS LOCATION

PG-61

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

ELECTRICAL UNITS LOCATION

Electrical Units Location

INFOID:0000000005146583

ENGINE COMPARTMENT

ABMIA1205GB

PG-62

< COMPONENT DIAGNOSIS >

ELECTRICAL UNITS LOCATION

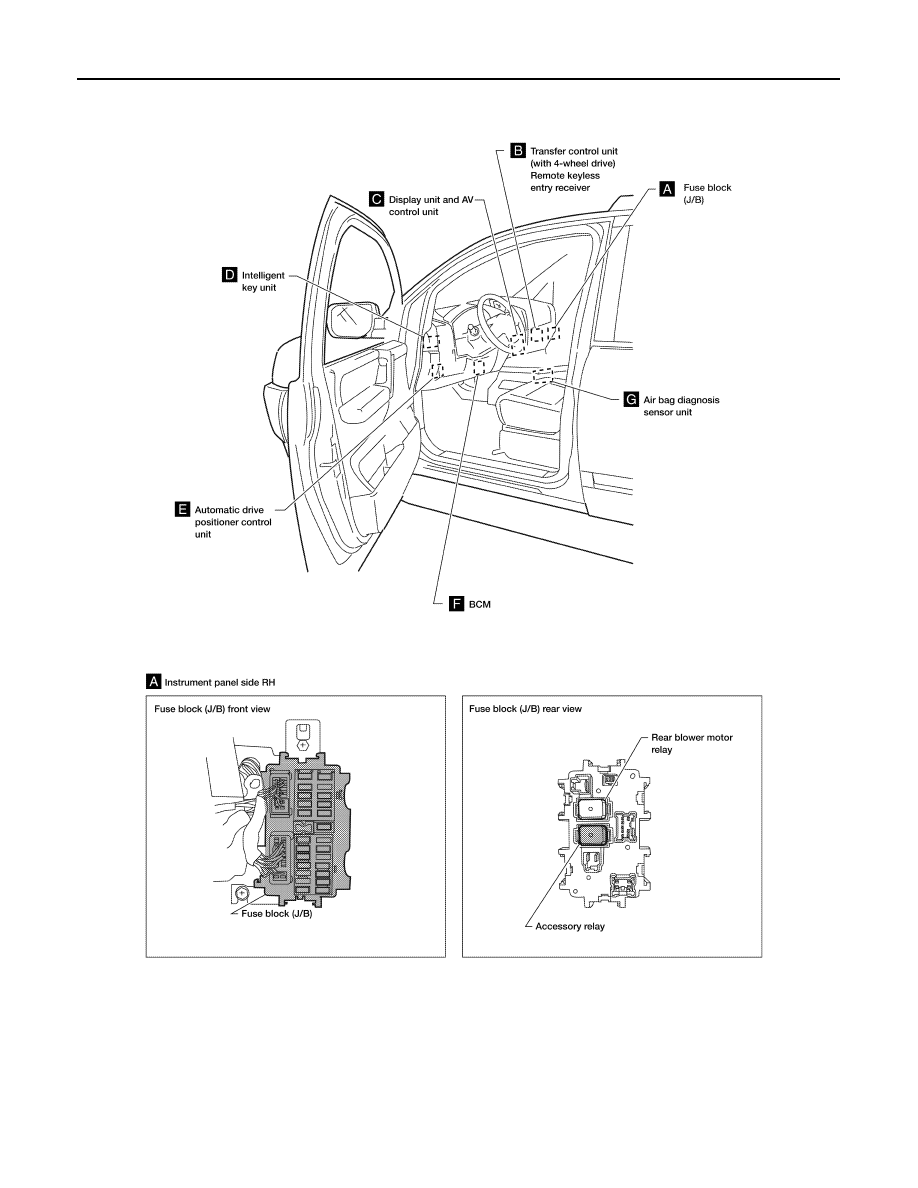

PASSENGER COMPARTMENT

ABMIA1206GB
