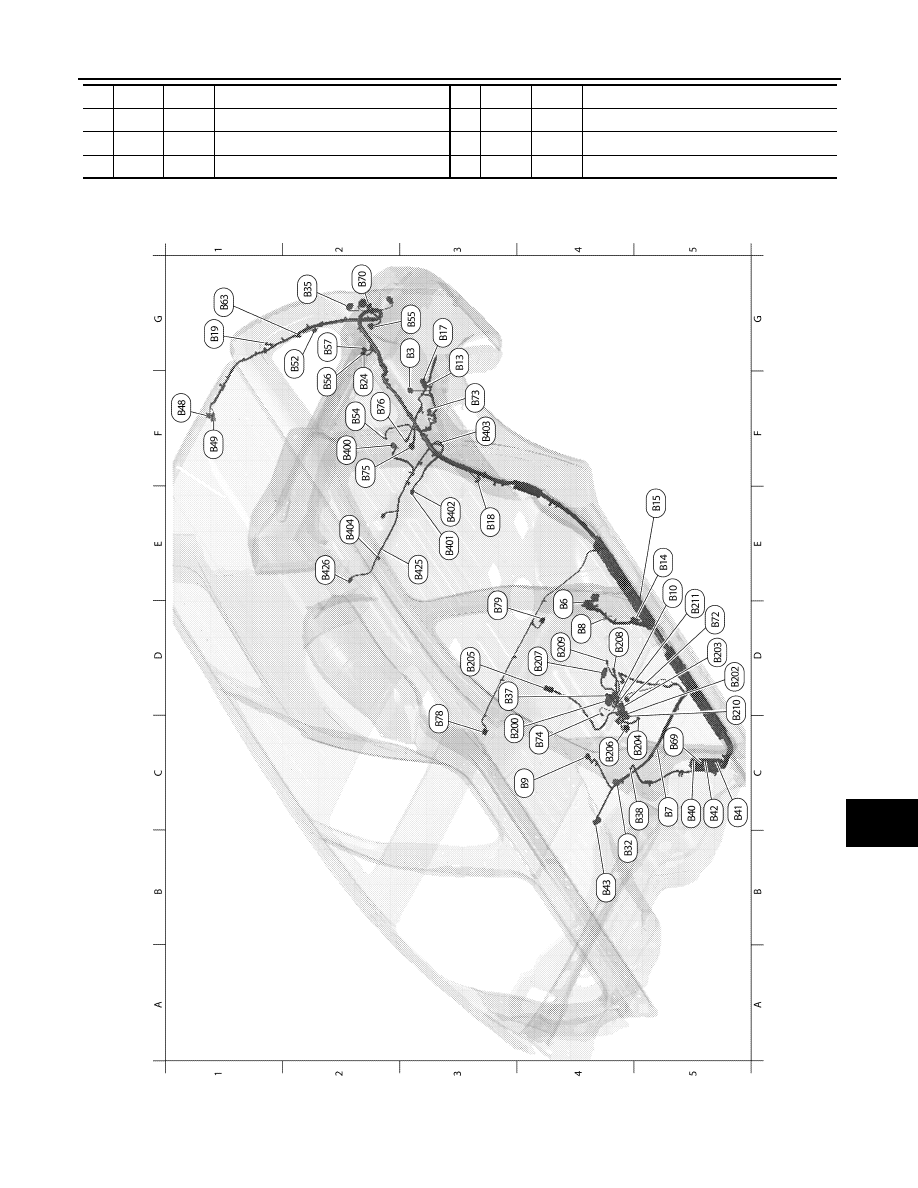

BODY HARNESS

C3 C6

B/2

: Evap canister vent control valve

B4

C103

B/3

: Rear sonar sensor LH inner

B4

C7

GR/2

: Rear bumper antenna

B4

C104

B/3

: Rear sonar sensor RH inner

C4 C8

B/3

: Height sensor

C5 C105

B/3

: Rear sonar sensor RH outer

B4

C9

B/4

: Suspension air compressor

ABMIA0158GB

PG-52

< COMPONENT DIAGNOSIS >

HARNESS

G3 B3

W/16

: Suspension control unit

C5 B69

SMJ

: To M40

E4

B6

W/18

: To D201

G2 B70

GR/3

: Rear combination lamp LH

C5 B7

—

: Body ground

D5 B72

BR/6

: Subwoofer

D4 B8

W/3

: Front door switch LH

F3

B73

W/16

: Rear view camera control unit

C4 B9

Y/12

: Air bag diagnosis sensor unit

C4 B74

Y/4

: Seat belt buckle pre-tensioner assembly LH

E5

B10

Y/2

: Front LH side air bag module

F2

B75

W/10

: To B400

F3

B13

W/24

: ICC unit

F2

B76

GR/2

: Luggage area antenna

E5

B14

Y/2

: Front LH seat belt pre-tensioner

C3 B78

W/3

: Rear seat heater RH

E5

B15

Y/2

: LH side air bag (satellite) sensor

E3

B79

W/3

: Rear seat heater LH

G3 B17

GR/24 : ICC unit

Front seat LH harness

E3

B18

W/3

: Rear door switch LH

D3 B200

W/16

: To B37

G1 B19

—

: Body ground

D5 B202

W/32

: Driver seat control unit

G2 B24

W/16

: Sonar control unit

D5 B203

W/16

: Driver seat control unit

B4

B32

W/6

: To B124

C5 B204

GR/5

: Sliding motor LH

G2 B35

B/3

: Rear combination lamp LH

D3 B205

W/4

: Reclining motor LH

D3 B37

W/16

: To B200

C4 B206

GR/5

: Lifting motor (front)

C5 B38

Y/2

: LH side front curtain air bag module

D4 B207

GR/5

: Lifting motor (rear)

C5 B40

W/24

: To E34

D4 B208

W/10

: Power seat switch LH

C5 B41

W/12

: To E35

D4 B209

W/3

: Front seat heater LH

C5 B42

W/2

: To E36

D5 B210

W/4

: Lumbar support switch

B4

B43

W/16

: To B111

E5

B211

B/2

: Lumbar support motor

F1

B48

W/18

: To D401

Third row power folding seat sub-harness

F1

B49

W/2

: To D402

F2

B400

W/10

: To B75

F2

B52

W/2

: Rear power vent window motor LH

E3

B401

GR/12

: Third row power folding seat control unit

F2

B54

Y/2

: LH side rear curtain air bag module

E3

B402

W/10

: Third row power folding seat control unit

G3 B55

W/26

: Back door control unit

F3

B403

GR/4

: Third row power folding seat motor LH

F2

B56

GR/16

: Sonar control unit (with front and rear
  sonar system)

E2

B404

W/4

: To B425

G2 B57

GR/10

: Sonar control unit (with front and rear
  sonar system)

E3

B425

W/4

: To B404

G1 B63

W/6

: Back door close switch

E2

B426

GR/4

: Third row power folding seat motor RH

PG

HARNESS

PG-53

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

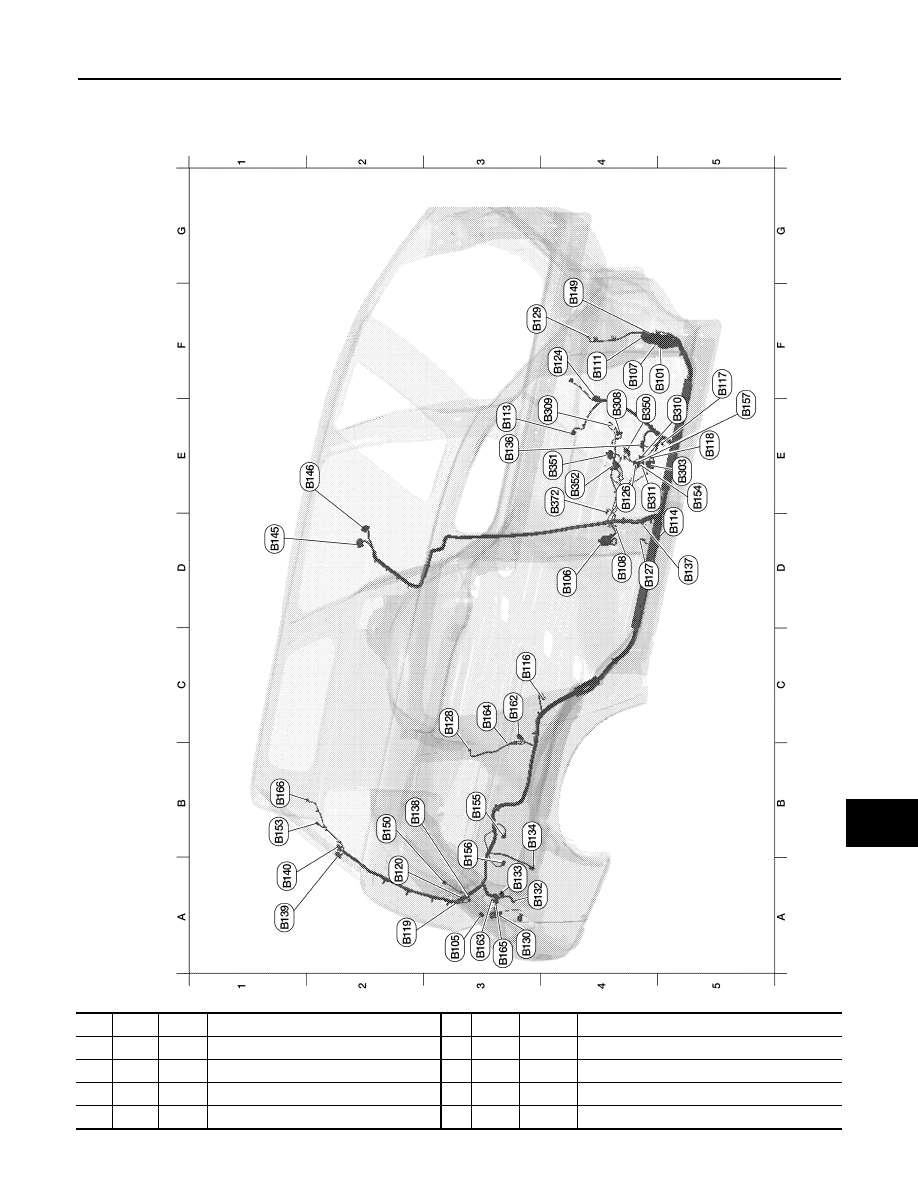

BODY NO. 2 HARNESS

ABMIA0159GB

F4

B101

W/16

: To M84

A1 B140

W/6

: To D601

A3

B105

B/3

: Rear combination lamp RH

D1 B145

W/16

: To R200

D4

B106

W/18

: To D301

E2 B146

BR/24

: To R201

F4

B107

W/8

: To E139

F4

B149

SMJ

: To M36

D4

B108

W/3

: Front door switch RH

B2 B150

W/2

: Rear power vent window motor RH

PG-54

< COMPONENT DIAGNOSIS >

HARNESS

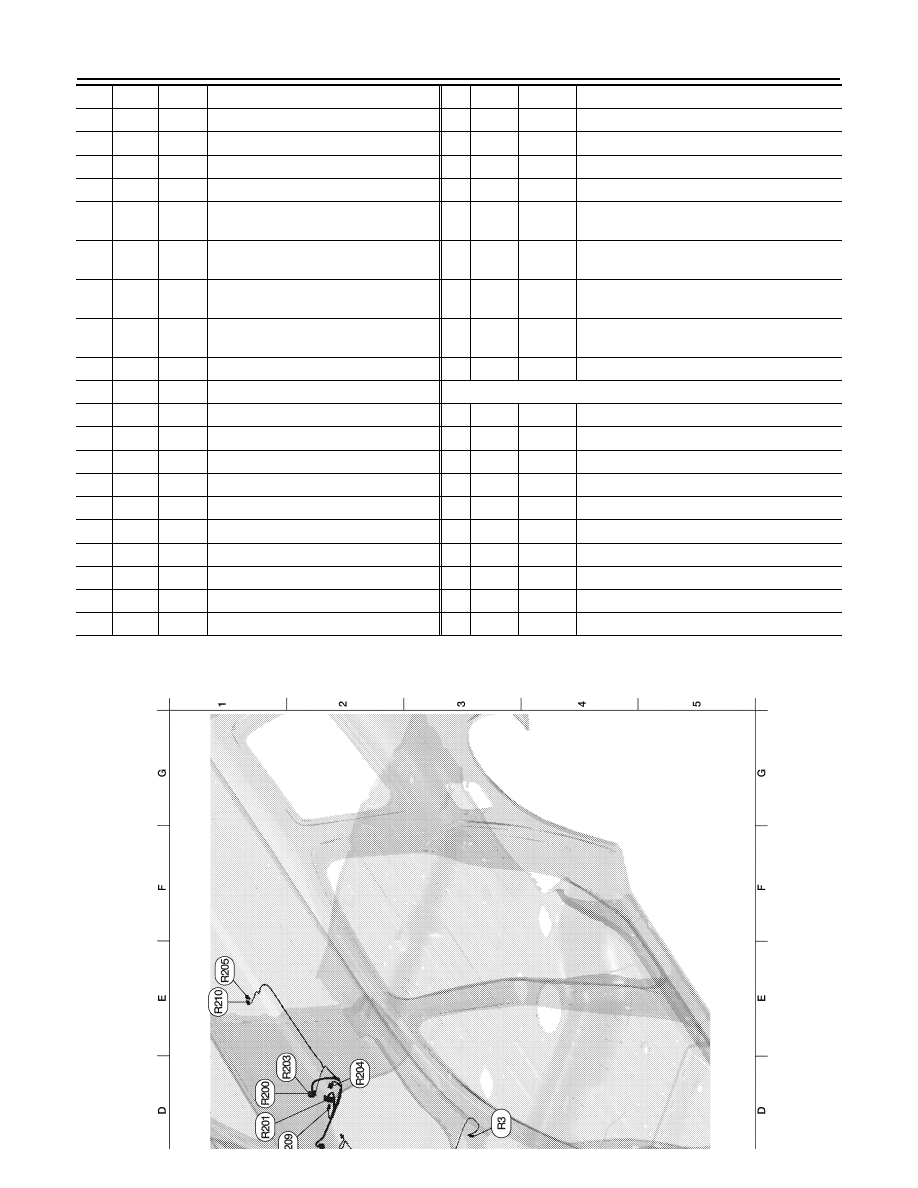

ROOM LAMP HARNESS

F4

B111

W/16

: To B43

B2 B153

W/2

: Cargo lamp

E3

B113

Y/12

: Air bag diagnosis sensor unit

E5 B154

W/2

: To B303

D5

B114

Y/2

: RH side air bag (satellite) sensor

B3 B155

B/6

: Air mix door motor (rear)

C3

B116

W/3

: Rear door switch RH

B3 B156

B/6

: Mode door motor (rear)

F5

B117

—

: Body ground

E5 B157

Y/4

: Seat belt buckle pre-tensioner assembly RH

E5

B118

W/3

: Front seat heater RH

C3 B162

BR/6

: Third row power folding seat switch
   passenger side (front)

A2

B119

W/2

: Condenser-3

A3 B163

W/6

: Third row power folding seat switch
  passenger side (rear)

A2

B120

W/2

: Condenser-4

C3 B164

W/6

: Third row power folding seat switch
  driver side (front)

F4

B124

W/6

: To B32

A3 B165

BR/6

: Third row power folding seat switch
  driver side (rear)

E4

B126

Y/2

: Front RH side air bag module

B2 B166

B/2

: Rear sonar buzzer

D4

B127

Y/2

: Front RH seat belt pre-tensioner

Front seat RH harness

C3

B128

Y/2

: RH side rear curtain air bag module

E5 B303

W/2

: To B154

F3

B129

Y/2

: RH side front curtain air bag module

E4 B308

W/10

: Power seat switch RH

A3

B130

GR/3

: Rear combination lamp RH

E4 B309

GR/2

: Sliding motor RH

A3

B132

—

: Body ground

E5 B310

GR/2

: Lifting motor RH (rear)

A3

B133

W/4

: Variable blower control (rear)

E4 B311

GR/2

: Lifting motor RH (front)

B3

B134

W/2

: Rear blower motor

E4 B350

W/8

: To B136

E3

B136

W/8

: To B350

E4 B351

B/18

: Occupant classification system control unit

D5

B137

W/3

: Belt tension sensor

E4 B352

B/3

: Occupant classification system sensor

B2

B138

B/3

: Rear cargo power socket

E4 B372

W/2

: Reclining motor RH

A1

B139

W/16

: To D602
