POWER SUPPLY ROUTING CIRCUIT

PG-19

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

ABMIA1181GB

PG-20

< COMPONENT DIAGNOSIS >

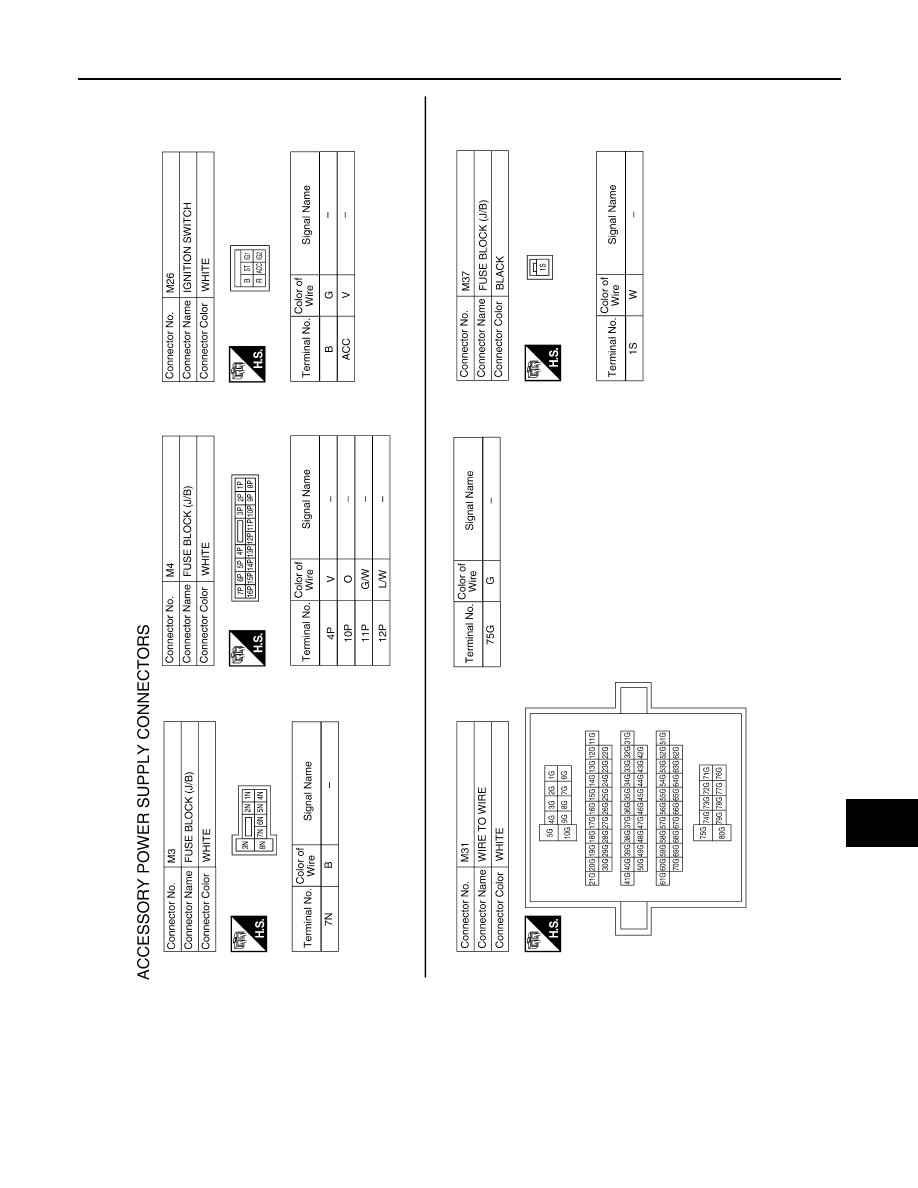

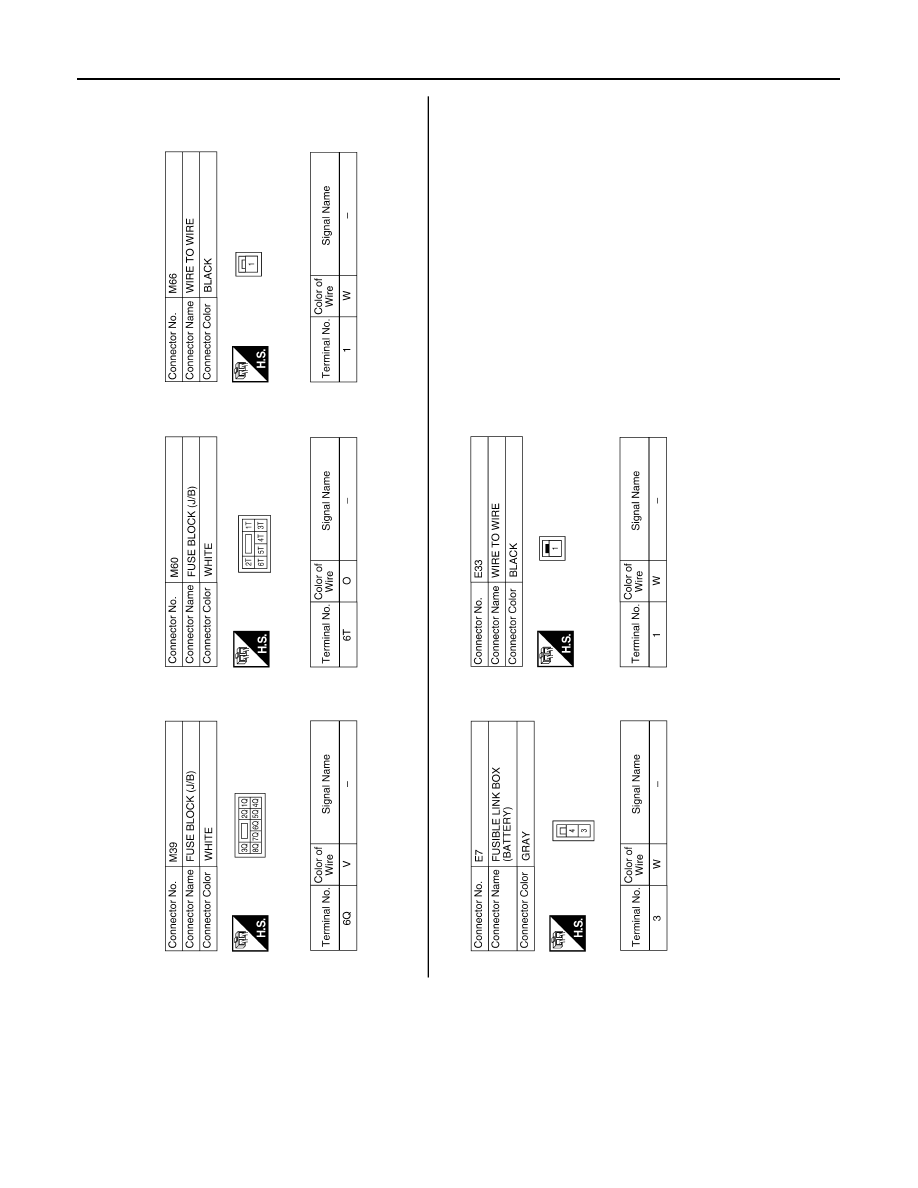

POWER SUPPLY ROUTING CIRCUIT

ABMIA1182GB

PG

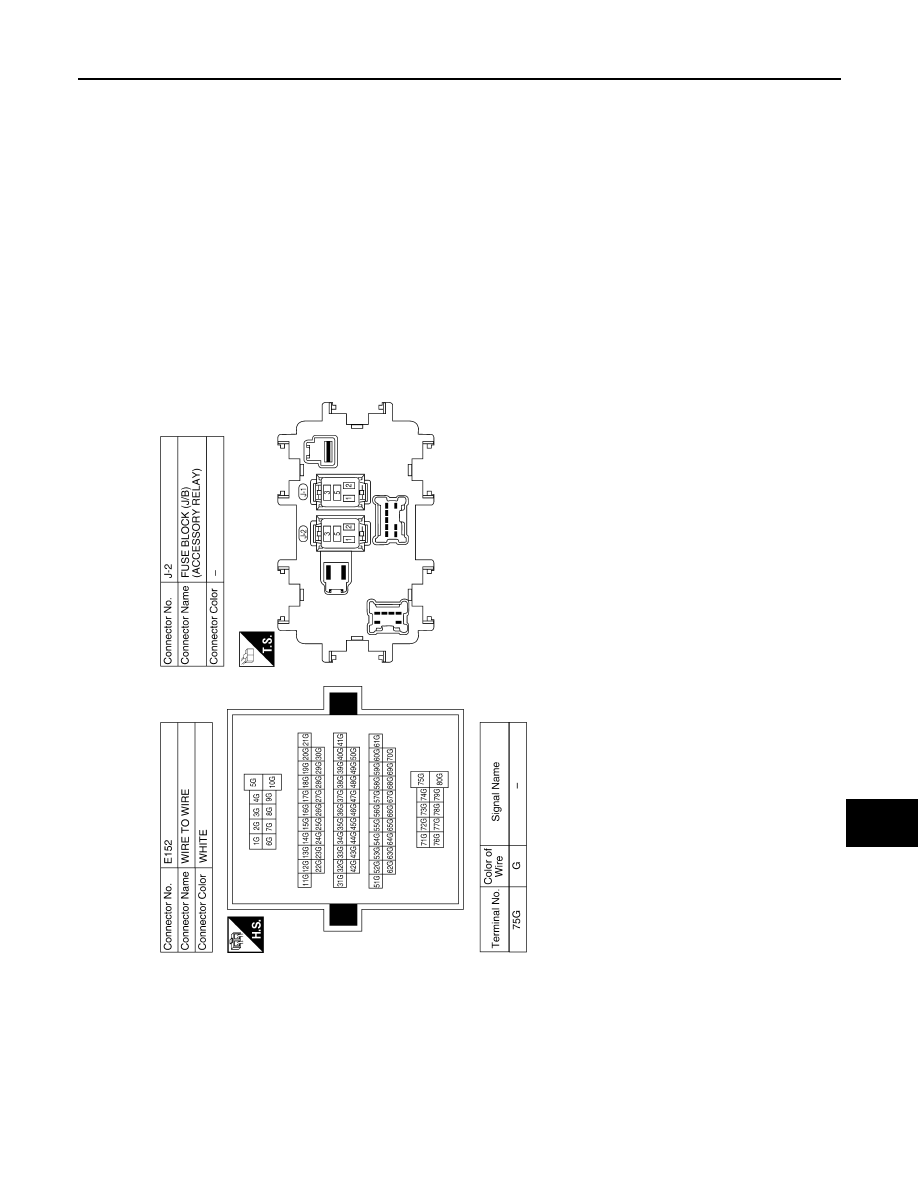

POWER SUPPLY ROUTING CIRCUIT

PG-21

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

ABMIA1183GB

PG-22

< COMPONENT DIAGNOSIS >

POWER SUPPLY ROUTING CIRCUIT

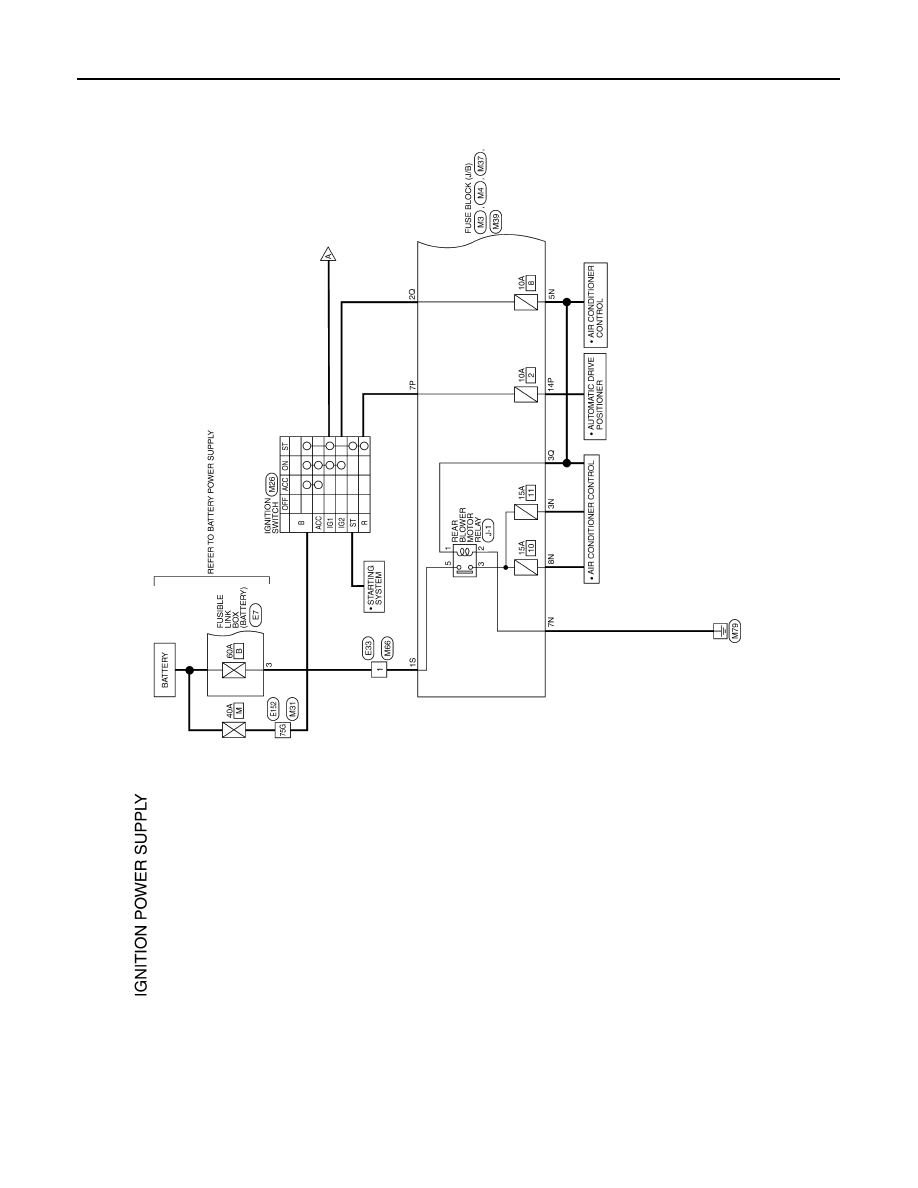

Wiring Diagram —Ignition Power Supply —

INFOID:0000000005146578

ABMWA0066GB
