12. Install the lower instrument panel LH. Refer to

IP-14, "Exploded View"

.

PARKING BRAKE CONTROL

PB-7

< ON-VEHICLE REPAIR >

C

D

E

G

H

I

J

K

L

M

A

B

PB

N

O

P

ON-VEHICLE REPAIR

PARKING BRAKE CONTROL

Component

INFOID:0000000005147933

Removal and Installation

INFOID:0000000005147934

REMOVAL

1. Remove lower instrument panel LH. Refer to

IP-17, "Removal and Installation"

.

2. Remove center console. Refer to

IP-20, "Removal and Installation"

.

3. Remove floor trim. Refer to

INT-16, "Removal and Installation"

.

4. Remove adjusting nut and discard.

CAUTION:

Do not reuse adjusting nut after removing it.

5. Remove the lock plate from the front cable.
6. Remove front cable retaining bolts and nut.
7. Disconnect return spring from equalizer.
8. Disconnect right and left rear cables from equalizer.
9. Remove rear disc rotors. Refer to

BR-36, "Removal and Installa-

tion of Brake Caliper and Disc Rotor"

.

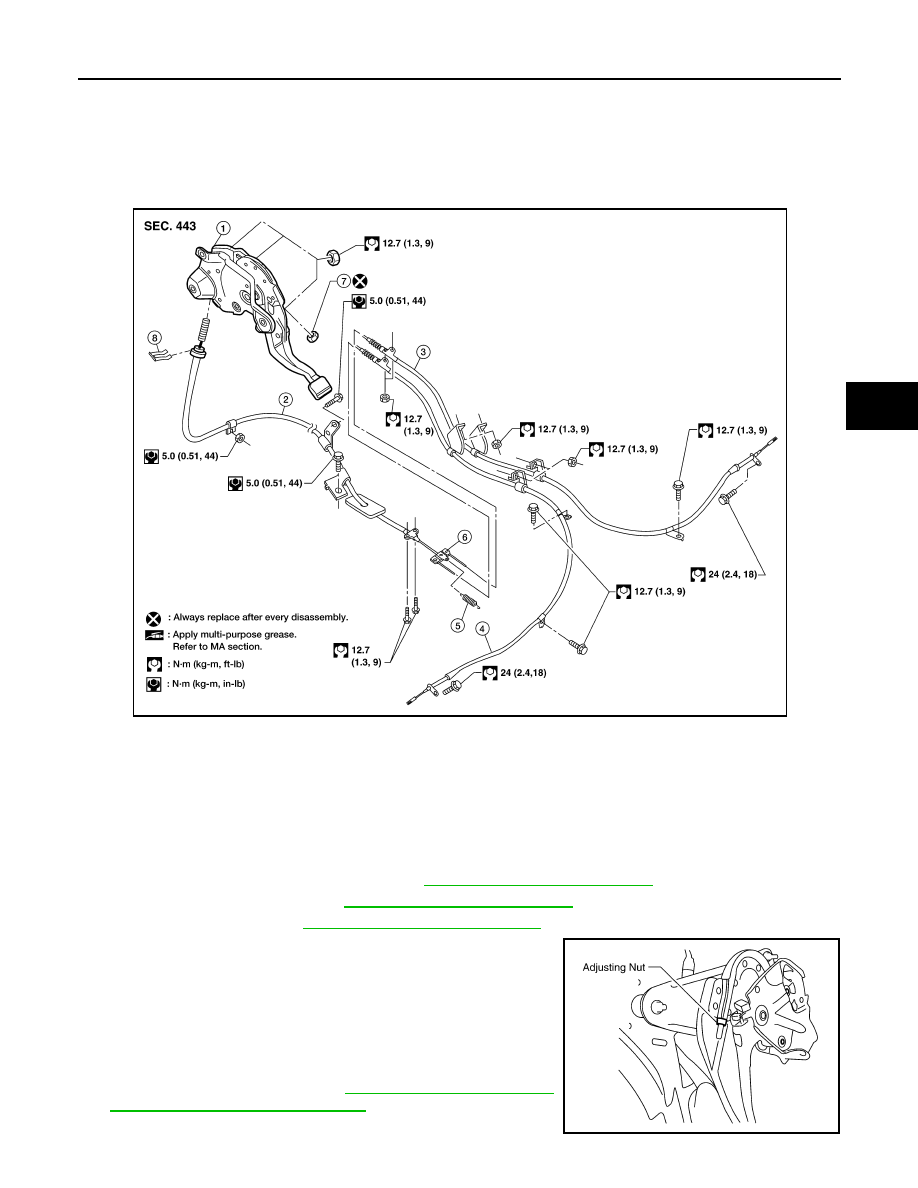

1.

Pedal assembly

2.

Front cable

3.

Right rear cable

4.

Left rear cable

5.

Return spring

6.

Equalizer

7.

Adjusting nut

8.

Lock plate

WFIA0218E

WFIA0165E

PB-8

< ON-VEHICLE REPAIR >

PARKING BRAKE CONTROL

10. Remove parking brake shoe, and remove rear cable from toggle lever. Refer to

PB-9, "Removal and

Installation"

.

11. Remove right and left rear cables retaining bolts and nuts, then remove right and left rear cables.

INSTALLATION

Installation is in the reverse order of removal.

• Adjust the parking brake. Refer to

PB-5, "On-Vehicle Service"

.

CAUTION:

Do not reuse adjusting nut after removing it.

PARKING BRAKE SHOE

PB-9

< ON-VEHICLE REPAIR >

C

D

E

G

H

I

J

K

L

M

A

B

PB

N

O

P

PARKING BRAKE SHOE

Removal and Installation

INFOID:0000000005147935

COMPONENTS

REMOVAL

WARNING:

Clean the brakes with a vacuum dust collector to minimize the hazard of airborne particles or other

materials.

NOTE:

Remove the disc rotor only with the parking brake pedal completely in the released position.
1. Remove the rear disc rotor. Refer to

BR-36, "Removal and Installation of Brake Caliper and Disc Rotor"

.

2. Remove the return springs.
3. Remove the adjuster.
4. Disconnect the rear cable from the toggle lever, if necessary.

• Remove pin retainer and withdraw cable end from toggle lever.

5. Remove the retainers, anti-rattle pins and shoes.

INSPECTION AFTER REMOVAL

Lining Thickness Inspection

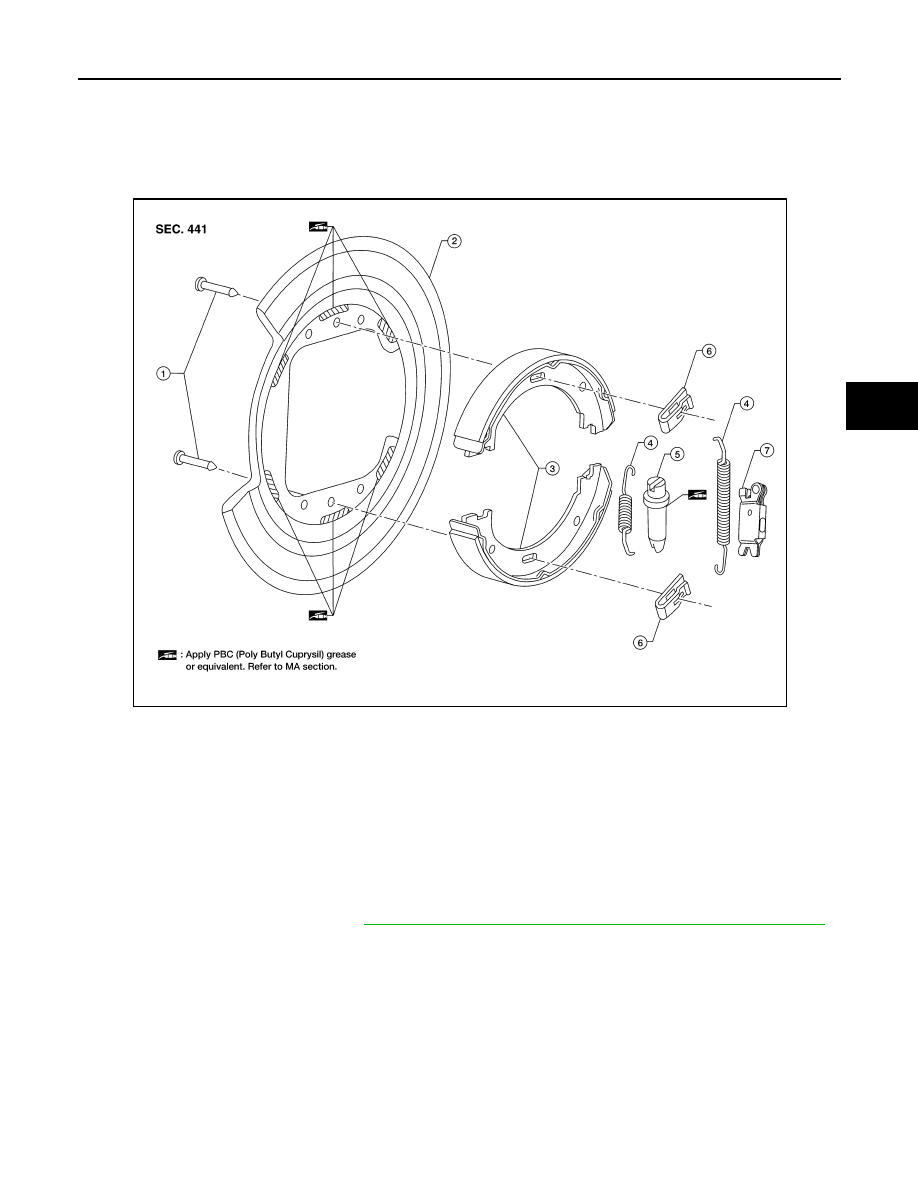

1.

Anti-rattle pins

2.

Back plate

3.

Shoes

4.

Return springs

5.

Adjuster

6.

Retainers

7.

Toggle lever

LFIA0222E
