Infiniti QX56 (JA60). Manual - part 694

MWI

METER SYSTEM

MWI-11

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

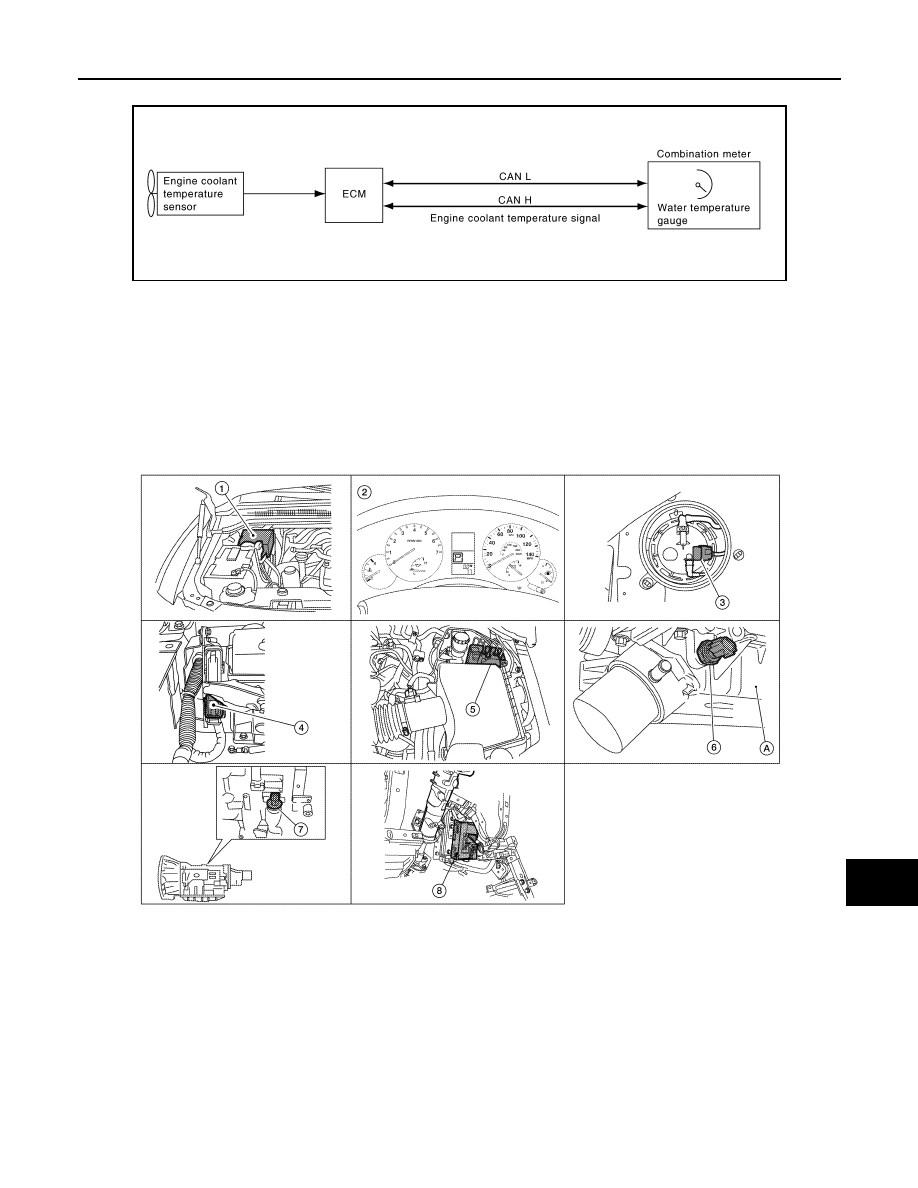

ENGINE COOLANT TEMPERATURE GAUGE : System Diagram

INFOID:0000000005146038

ENGINE COOLANT TEMPERATURE GAUGE : System Description

INFOID:0000000005146039

The engine coolant temperature gauge indicates the engine coolant temperature.

The ECM provides an engine coolant temperature signal to the combination meter via CAN communication

lines.

ENGINE COOLANT TEMPERATURE GAUGE : Component Parts Location

INFOID:0000000005146040

SKIB6905E

1.

IPDM E/R E122, E124

2.

Combination meter M23, M24

3.

Fuel level sensor unit and fuel pump
C5 (view with inspection hole cover re-
moved)

4.

ECM E16 (view with battery removed) 5.

ABS actuator and electric unit (control
unit) E125

6.

Oil pressure switch F4
A: Oil pan (upper)

7.

A/T assembly F9

8.

BCM M18, M19 (view with instrument
lower panel LH removed)

AWNIA0201ZZ

MWI-12

< FUNCTION DIAGNOSIS >

METER SYSTEM

ENGINE COOLANT TEMPERATURE GAUGE : Component Description

INFOID:0000000005146041

FUEL GAUGE

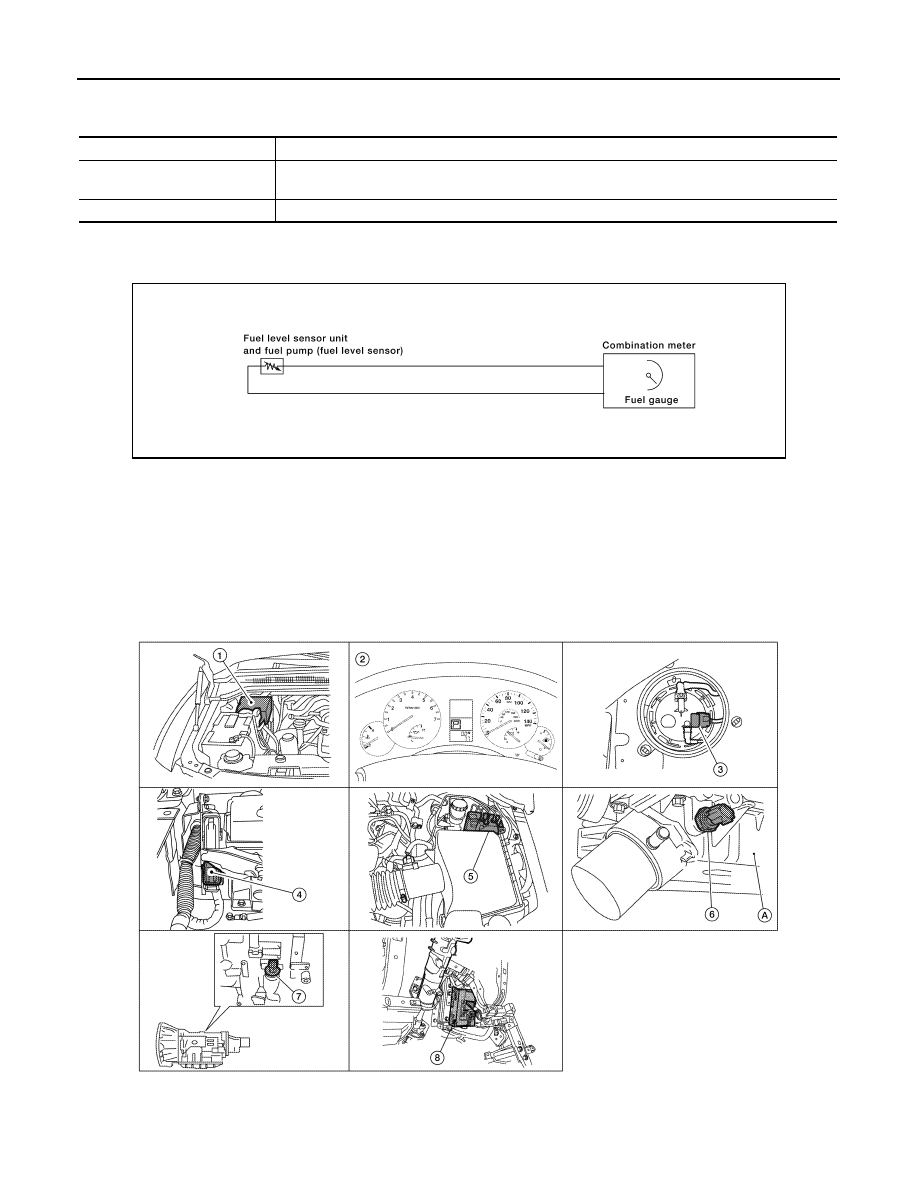

FUEL GAUGE : System Diagram

INFOID:0000000005146042

FUEL GAUGE : System Description

INFOID:0000000005146043

The fuel gauge indicates the approximate fuel level in the fuel tank.

The fuel gauge is regulated by the unified meter control unit and a variable resistor signal supplied by the fuel

level sensor unit.

FUEL GAUGE : Component Parts Location

INFOID:0000000005146044

Unit

Description

Combination meter

Indicates the engine coolant temperature according to the engine coolant temperature signal re-
ceived from ECM via CAN communication.

ECM

Transmits the engine coolant temperature signal to the combination meter via CAN communication.

AWNIA0004GB

AWNIA0201ZZ

MWI

METER SYSTEM

MWI-13

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

FUEL GAUGE : Component Description

INFOID:0000000005146045

ENGINE OIL PRESSURE GAUGE

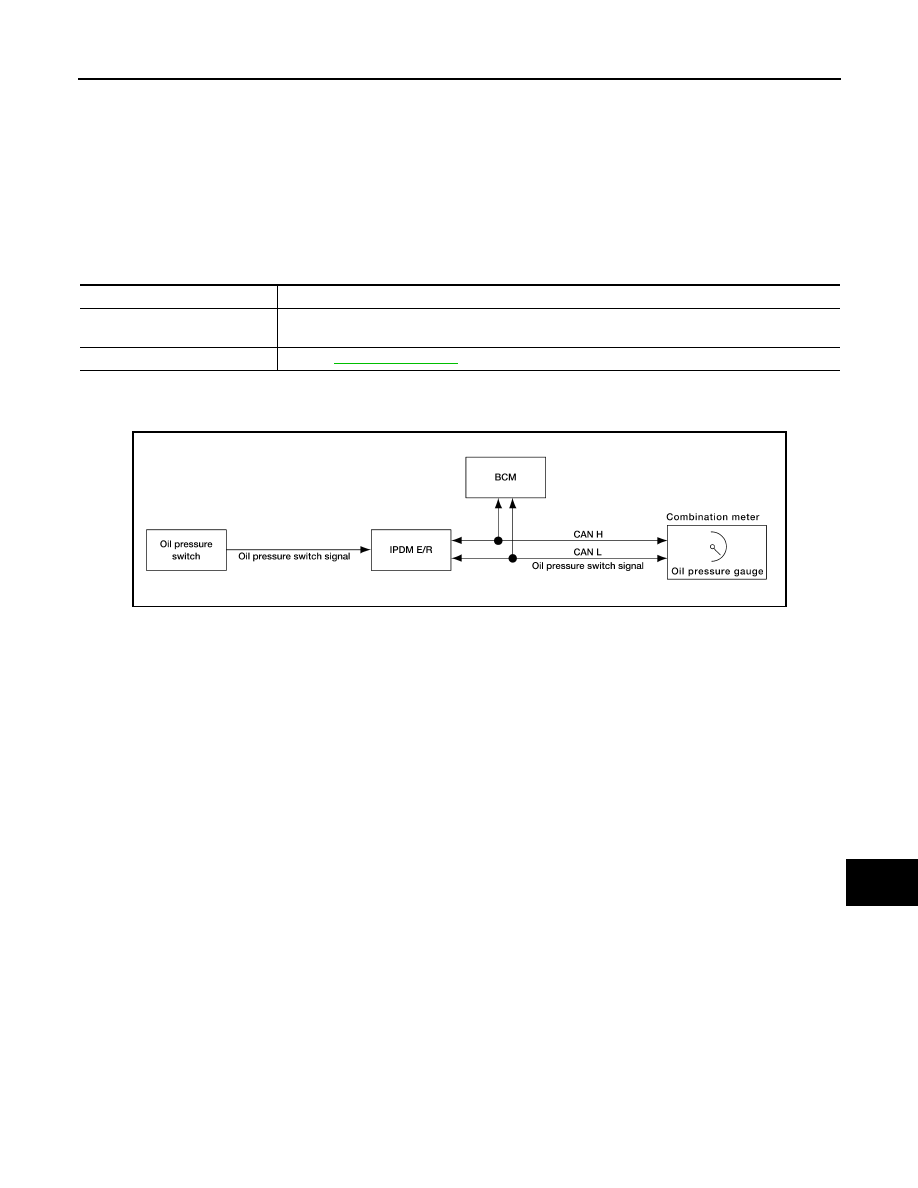

ENGINE OIL PRESSURE GAUGE : System Diagram

INFOID:0000000005146046

ENGINE OIL PRESSURE GAUGE : System Description

INFOID:0000000005146047

The engine oil pressure gauge indicates whether the engine oil pressure is low or normal.

The oil pressure gauge is controlled by the IPDM E/R. The IPDM E/R reads the ON/OFF signals from the oil

pressure switch and transmits the oil pressure switch signal to the combination meter via BCM with the CAN

communication line. The oil pressure gauge displays a low or normal indication according to the oil pressure

switch signal received via CAN communication.

1.

IPDM E/R E122, E124

2.

Combination meter M23, M24

3.

Fuel level sensor unit and fuel pump
C5 (view with inspection hole cover re-
moved)

4.

ECM E16 (view with battery removed) 5.

ABS actuator and electric unit (control
unit) E125

6.

Oil pressure switch F4
A: Oil pan (upper)

7.

A/T assembly F9

8.

BCM M18, M19 (view with instrument
lower panel LH removed)

Unit

Description

Combination meter

Indicates the fuel level according to the fuel level sensor signal received from the fuel level sensor
unit.

Fuel level sensor unit

Refer to

MWI-32, "Description"

.

AWNIA0174GB

MWI-14

< FUNCTION DIAGNOSIS >

METER SYSTEM

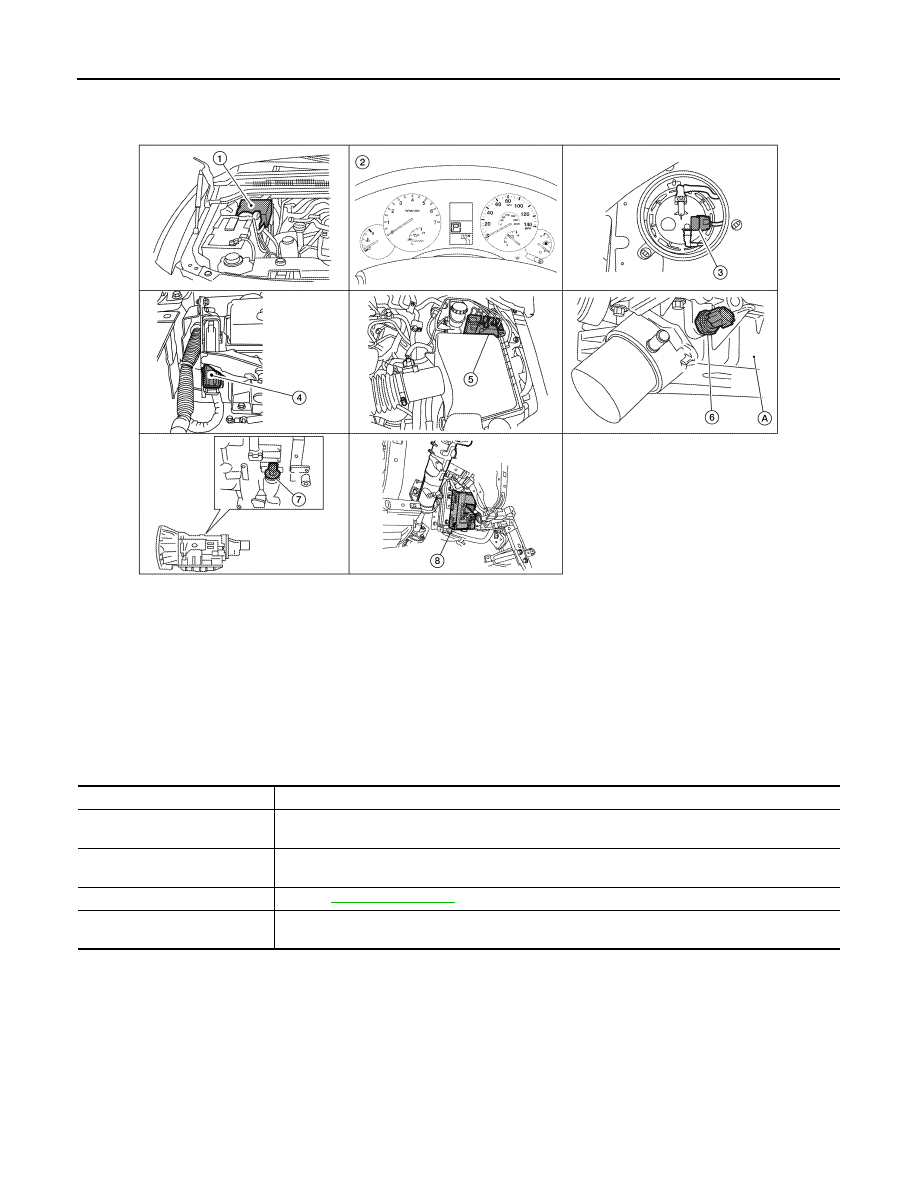

ENGINE OIL PRESSURE GAUGE : Component Parts Location

INFOID:0000000005146048

ENGINE OIL PRESSURE GAUGE : Component Description

INFOID:0000000005146049

VOLTAGE GAUGE

1.

IPDM E/R E122, E124

2.

Combination meter M23, M24

3.

Fuel level sensor unit and fuel pump
C5 (view with inspection hole cover re-
moved)

4.

ECM E16 (view with battery removed) 5.

ABS actuator and electric unit (control
unit) E125

6.

Oil pressure switch F4
A: Oil pan (upper)

7.

A/T assembly F9

8.

BCM M18, M19 (view with instrument
lower panel LH removed)

AWNIA0201ZZ

Unit

Description

Combination meter

Indicates the engine oil pressure (low/normal) according to the oil pressure switch signal received
from BCM with CAN communication line.

IPDM E/R

Reads the ON/OFF signals from the oil pressure switch and transmits the oil pressure switch signal
to the combination meter via BCM with the CAN communication line.

Oil pressure switch

Refer to

MWI-34, "Description"

.

BCM

Transmits the oil pressure switch signal received from IPDM E/R via CAN communication to the
combination meter via CAN communication.
