MIR-10

< PREPARATION >

PREPARATION

PREPARATION

PREPARATION

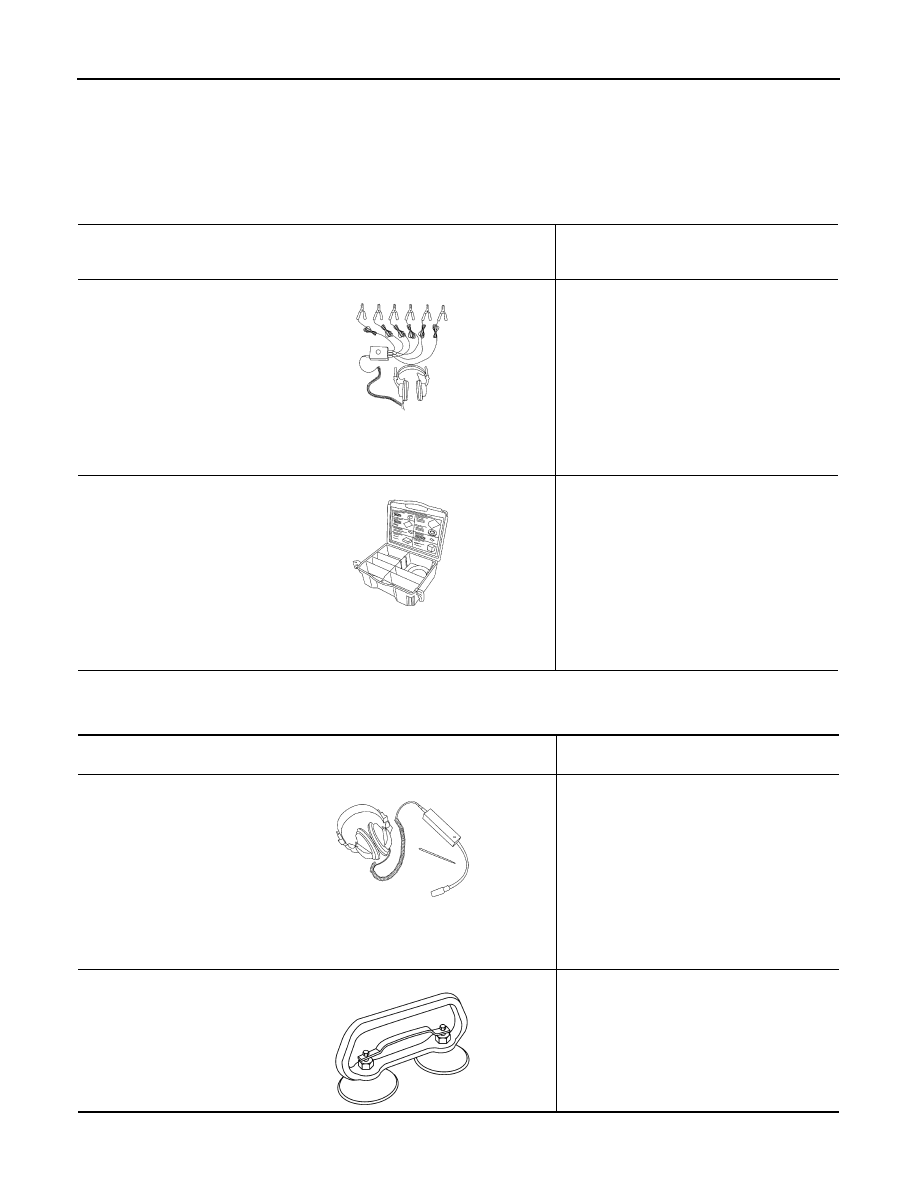

Special Service Tool

INFOID:0000000005146594

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Commercial Service Tool

INFOID:0000000005146595

Tool number
(Kent-Moore No.)
Tool name

Description

—

(J-39570)
Chassis ear

Locating the noise

—

(J-43980)
NISSAN Squeak and Rattle
Kit

Repairing the cause of noise

SIIA0993E

SIIA0994E

(Kent-Moore No.)
Tool name

Description

(J-39565)
Engine ear

Locating the noise

(

—

)

Suction Lifter

Holding door glass

SIIA0995E

LIIA1991E

INSIDE MIRROR

MIR-11

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

REMOVAL AND INSTALLATION

INSIDE MIRROR

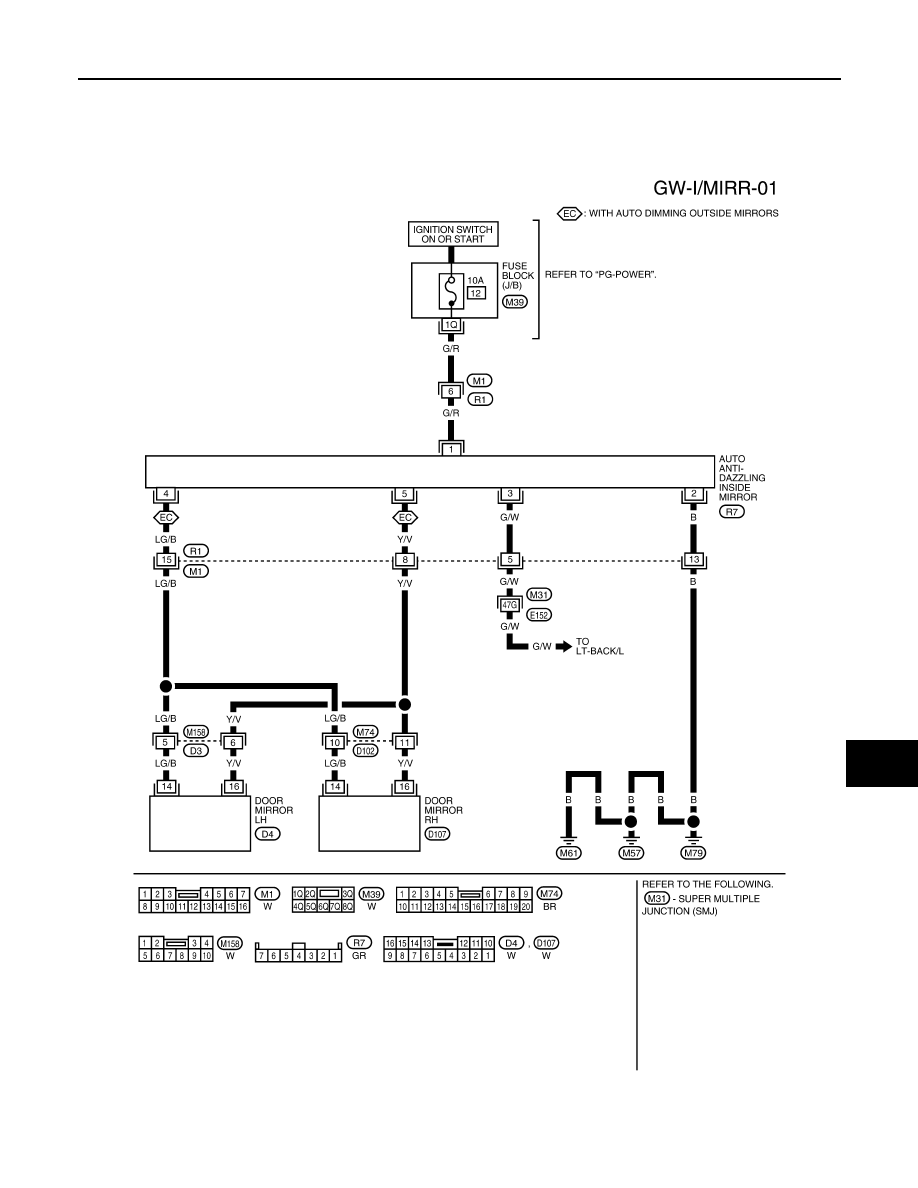

Wiring Diagram - I/MIRR -

INFOID:0000000005146596

WIWA2061E

MIR-12

< REMOVAL AND INSTALLATION >

INSIDE MIRROR

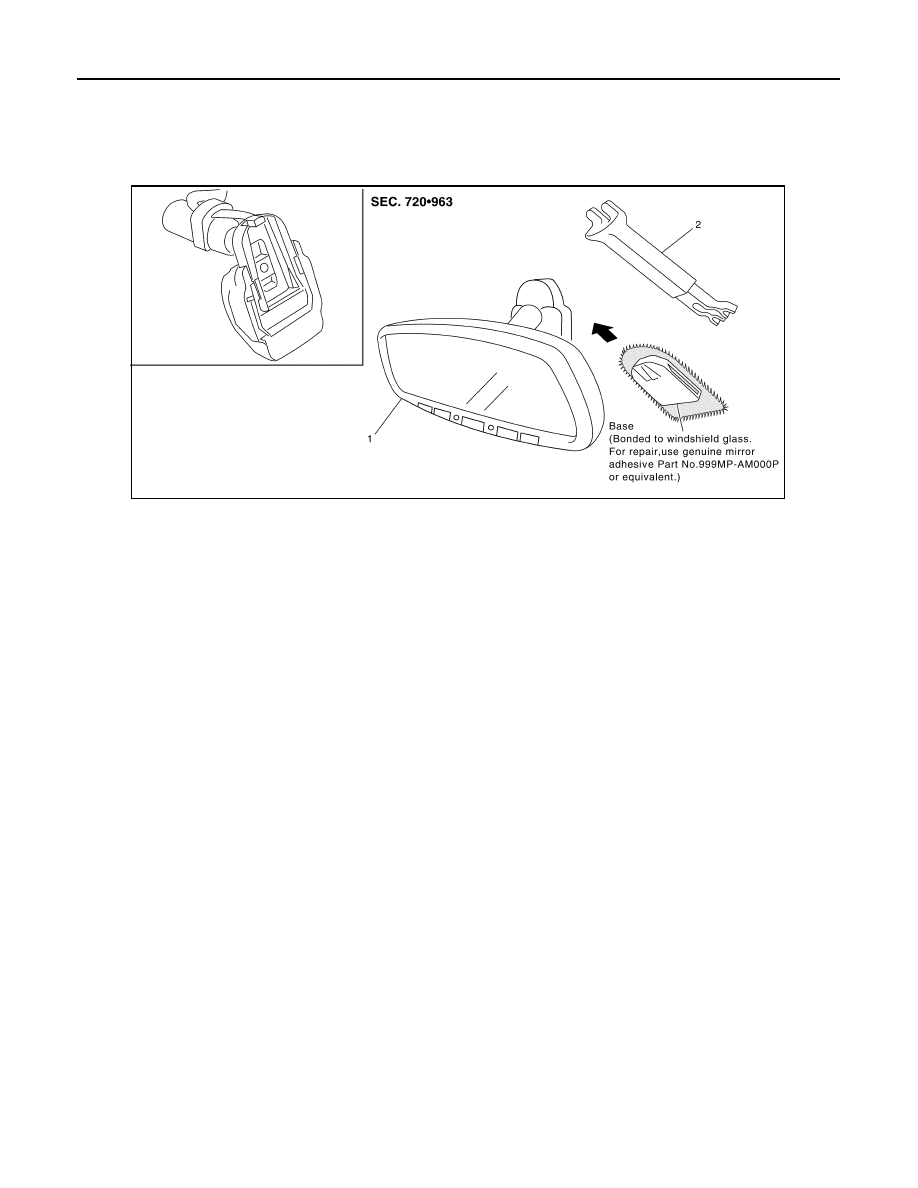

Removal and Installation

INFOID:0000000005146597

1. Remove inside mirror finisher.
2. Slide the mirror upward to remove.
3. Disconnect the connector.

Installation is in the reverse order of removal.

1.

Inside mirror

2.

Inside mirror finisher

LIIA0277E

DOOR MIRROR

MIR-13

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

DOOR MIRROR

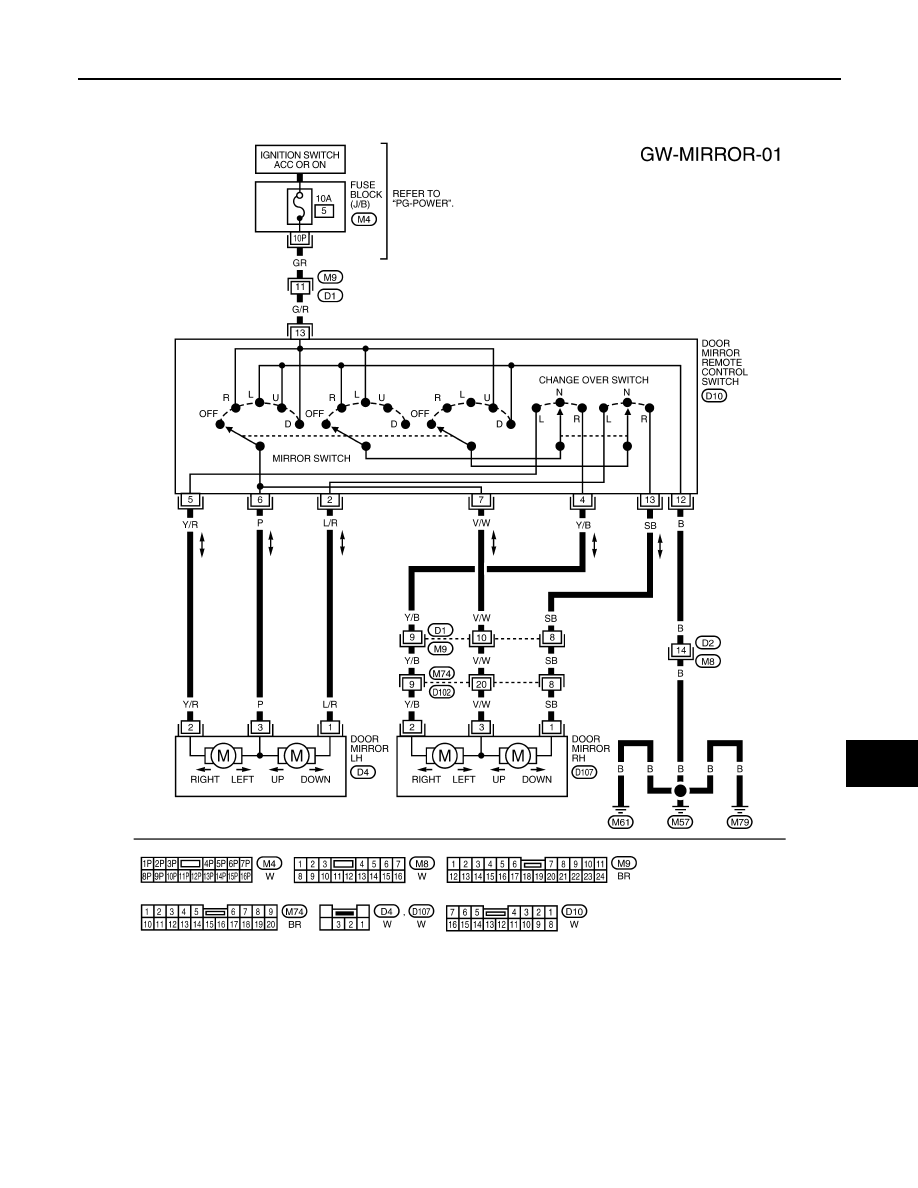

Wiring Diagram - MIRROR -Without Power Folding Mirrors

INFOID:0000000005146598

WIWA2063E
