Infiniti QX56 (JA60). Manual - part 686





CHASSIS AND BODY MAINTENANCE

MA-37

< ON-VEHICLE MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

B

MA

N

O

A

• Check the steering gear housing for looseness, damage and oil

leakage as shown.

• Check the steering column connections for looseness.

STEERING LINKAGE

• Check the ball joint, dust cover and other component parts for looseness, wear, damage, and grease leak-

age.

POWER STEERING FLUID AND LINES
POWER STEERING FLUID AND LINES : Checking Fluid Level

INFOID:0000000005403166

Check power steering fluid level with engine off, referring to the scale

on reservoir tank.

Use HOT range for fluid temperatures of 50

° – 80°C (122° – 176°F).

Use COLD range for fluid temperatures of 0

° – 30°C (32° – 86°F).

CAUTION:

• Do not overfill.

• Do not reuse any used power steering fluid.

• Recommended fluid is Genuine NISSAN PSF or equivalent.

Refer to

MA-13, "Fluids and Lubricants"

.

POWER STEERING FLUID AND LINES : Checking Fluid Leakage

INFOID:0000000005403167

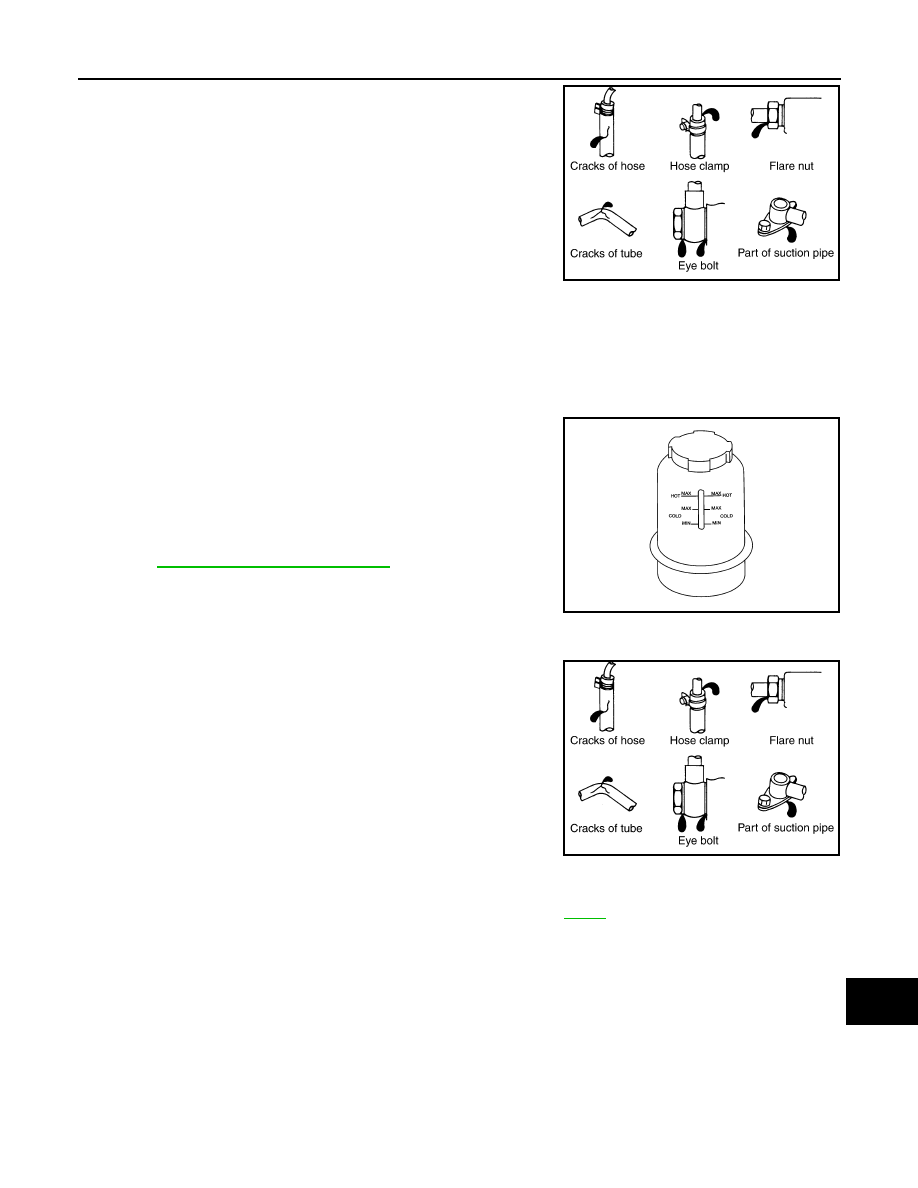

Check the hydraulic piping lines for improper attachment and for

leaks, cracks, damage, loose connections, chafing or deterioration.
1. Run engine until fluid temperature reaches 50

° – 80°C (122° –

176

°F) in reservoir tank. Keep engine speed idle.

2. Turn steering wheel right-to-left several times.
3. Hold steering wheel at each “lock” position for five seconds to

check fluid leakage.

CAUTION:

Do not hold steering wheel in a locked position for more

than 10 seconds. (There is the possibility that oil pump may

be damaged.)

4. If fluid leakage at connections is noticed, then loosen flare nut and then retighten. Do not over tighten con-

nector as this can damage O-ring, washer and connector.

5. If fluid leakage from oil pump is noticed, check oil pump. Refer to

ST-17

.

6. Check steering gear boots for accumulation of fluid indicating a leak from the steering gear.

AXLE AND SUSPENSION PARTS
AXLE AND SUSPENSION PARTS : Checking Axle and Suspension Parts

INFOID:0000000005259684

FRONT AND REAR AXLE AND SUSPENSION PARTS

Check front and rear axle and suspension parts for excessive play, cracks, wear or other damage.

SGIA0506E

LGIA0021E

SGIA0506E

MA-38

< ON-VEHICLE MAINTENANCE >

CHASSIS AND BODY MAINTENANCE

• Shake each wheel to check for excessive play.

• Rotate each wheel to check for abnormal noise.

• Check the axle and suspension nuts and bolts for looseness.

• Check the strut and shock absorber for oil leakage or other damage.

• Check the suspension ball joints for grease leakage and ball joint dust cover for cracks or other damage.

LOCKS AND HINGES
LOCKS AND HINGES : Lubricating Locks, Hinges and Hood Latches

INFOID:0000000005259685

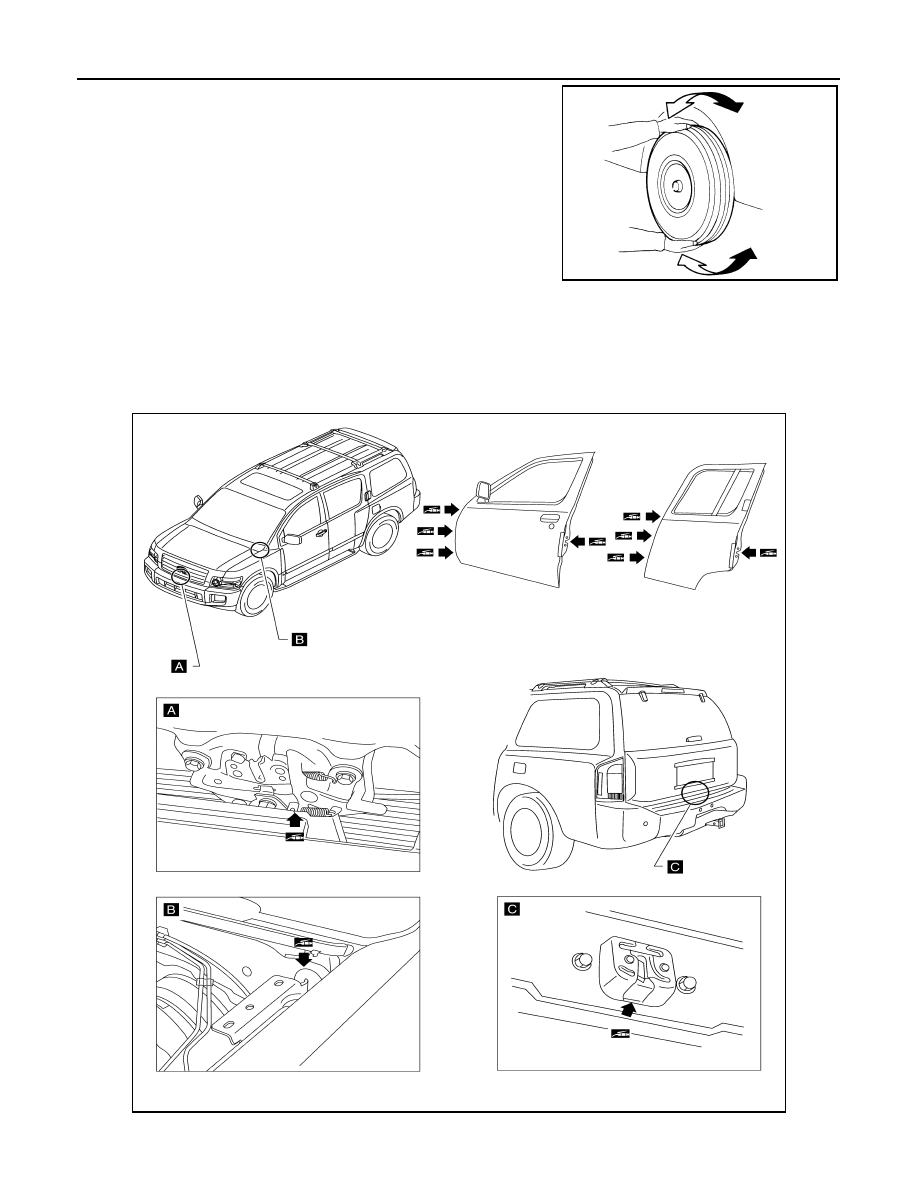

Lubricate the locations shown with a suitable multi-purpose grease.

SMA525A

WLIA0024E

CHASSIS AND BODY MAINTENANCE

MA-39

< ON-VEHICLE MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

B

MA

N

O

A

SEAT BELT, BUCKLES, RETRACTORS, ANCHORS AND ADJUSTERS
SEAT BELT, BUCKLES, RETRACTORS, ANCHORS AND ADJUSTERS : Checking
Seat Belts, Buckles, Retractors, Anchors and Adjusters

INFOID:0000000005259686

Check the seat belt buckles, webbing, retractors, anchors and adjusters. Replace any seat belt assembly as

necessary. Refer to

SB-11, "Seat Belt Inspection"

.

• Check the seat belt anchors for loose mounting bolts, damage, or excessive wear.

• Check the seat belt webbing for any damage, cuts, fraying, or excessive wear.

• Check the retractor for smooth operation.

• Check the function of the buckles by inserting the seat belt tongue and checking for proper engagement of

the buckle and press the button on the buckle to check for proper release of the seat belt tongue.

CAUTION:

• After any collision, inspect all seat belt assemblies, including retractors and other attached compo-

nents, such as the guide rail set. NISSAN recommends replacing all seat belt assemblies in use dur-

ing a collision, unless they are not damaged and are inspected to confirm they are operating

properly after a minor collision.

Also inspect all seat belt assemblies that are not in use during a collision, and replace any compo-

nents if damaged or not operating properly. The seat belt pre-tensioner should be replaced even if

the seat belts are not in use during a frontal collision where the driver and passenger air bags have

been deployed.

• If any component of the seat belt assembly is suspected of being damaged or not operating prop-

erly, do not repair the component. Replace the components as an assembly.

• If the seat belt webbing is cut, frayed, or damaged then replace the seat belt assembly.

• Never lubricate the seat belt buckle or tongue.

• When replacing any seat belt assembly always use a Genuine NISSAN seat belt assembly.
