Infiniti QX56 (JA60). Manual - part 648





IP-16

< ON-VEHICLE REPAIR >

CLUSTER LID C

Installation is in the reverse order of removal.

INSTRUMENT LOWER PANEL RH AND GLOVE BOX

IP-17

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

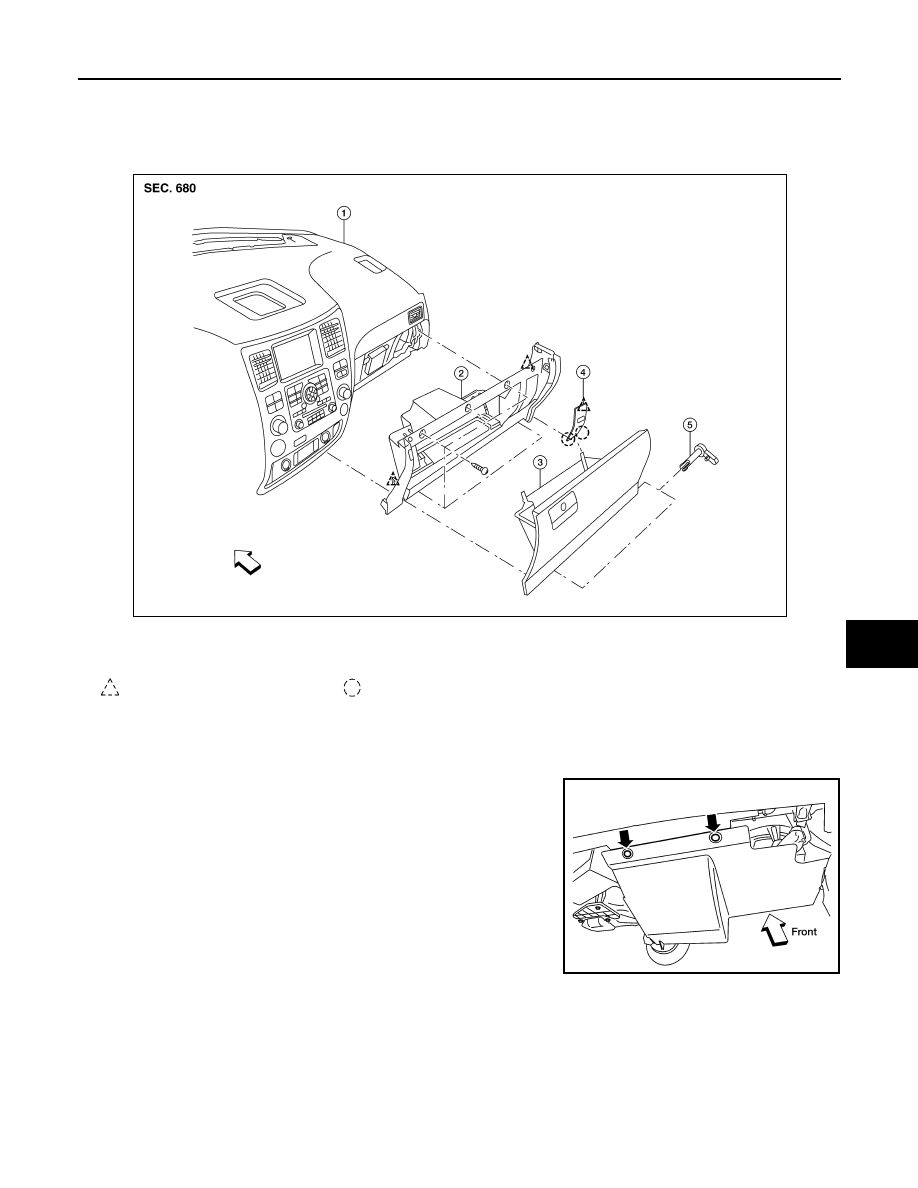

INSTRUMENT LOWER PANEL RH AND GLOVE BOX

Exploded View

INFOID:0000000005147367

Removal and Installation

INFOID:0000000005147368

REMOVAL

1. Remove the instrument lower cover RH.

⇐: Vehicle front

2. Remove the instrument lower panel RH screws.
3. Release the clips and remove instrument lower panel RH and

glove box from instrument panel and pad assembly.

4. Release the clips and remove fuse access cover.
5. Remove glove box pivot pins and damper clip, then remove

glove box from instrument panel RH.

INSTALLATION

Installation is in the reverse order of removal.

1.

Instrument panel and pad assembly 2.

Instrument lower panel RH

3.

Glove box

4.

Fuse access cover

5.

Glove box pivot pin

Vehicle front

Clip

Pawl

ALJIA0079ZZ

LLIA0072E

IP-18

< ON-VEHICLE REPAIR >

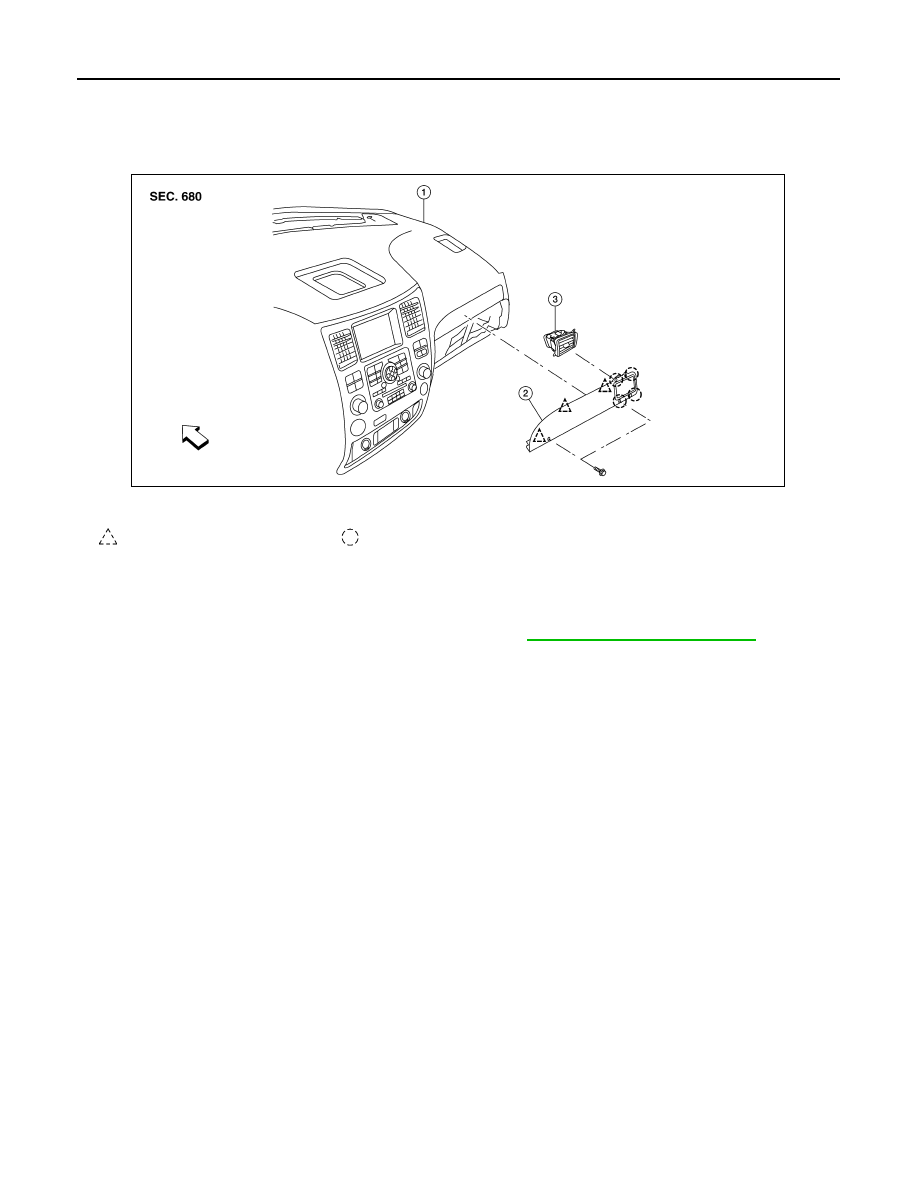

INSTRUMENT UPPER PANEL RH

INSTRUMENT UPPER PANEL RH

Exploded View

INFOID:0000000005147369

Removal and Installation

INFOID:0000000005147370

REMOVAL

1. Remove instrument lower panel RH and glove box. Refer to

IP-17, "Removal and Installation"

.

2. Remove instrument upper panel RH screws, then release the clips and remove from instrument panel and

pad assembly.

INSTALLATION

Installation is in the reverse order of removal.

1.

Instrument panel and pad assembly 2.

Instrument upper panel RH

3.

Side ventilator assembly RH

Clip

Pawl

Vehicle front

ALJIA0080ZZ

A/T FINISHER

IP-19

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

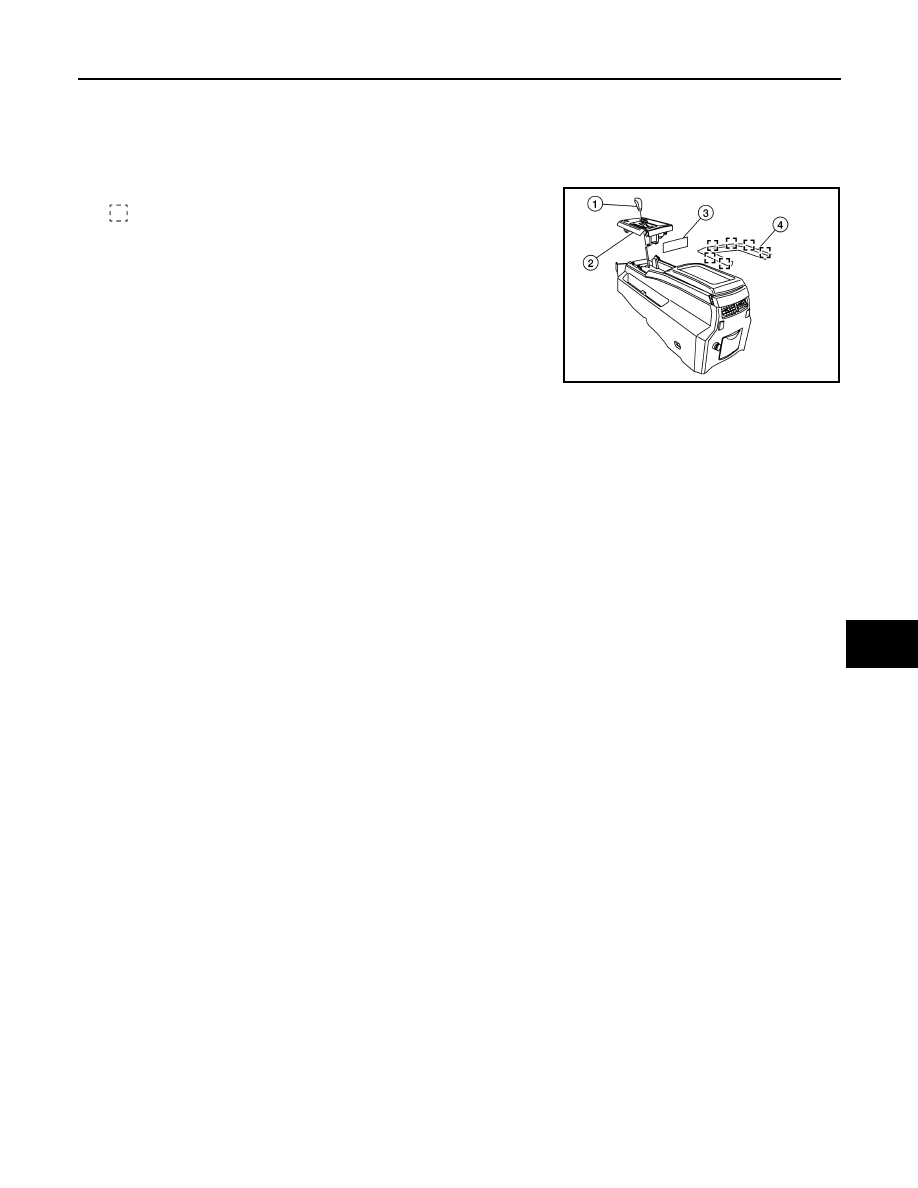

A/T FINISHER

Removal and Installation

INFOID:0000000005147371

REMOVAL

1. Remove the shift knob (1).

: Metal clip

2. Remove the storage compartment mask (3) and front console

upper finisher (4).

3. Pull up on A/T finisher (2) to release clips, then tilt aside.
4. Disconnect A/T finisher electrical connectors and remove from

front center console assembly.

INSTALLATION

Installation is in the reverse order of removal.

AWJIA0004ZZ
