5. When the repair work is completed, return the ignition switch to the

″LOCK″ position before connecting

the battery cables. (At this time, the steering lock mechanism will engage.)

6. Perform a self-diagnosis check of all control units using CONSULT-III.

HRN-4

< COMPONENT DIAGNOSIS >

HORN

COMPONENT DIAGNOSIS

HORN

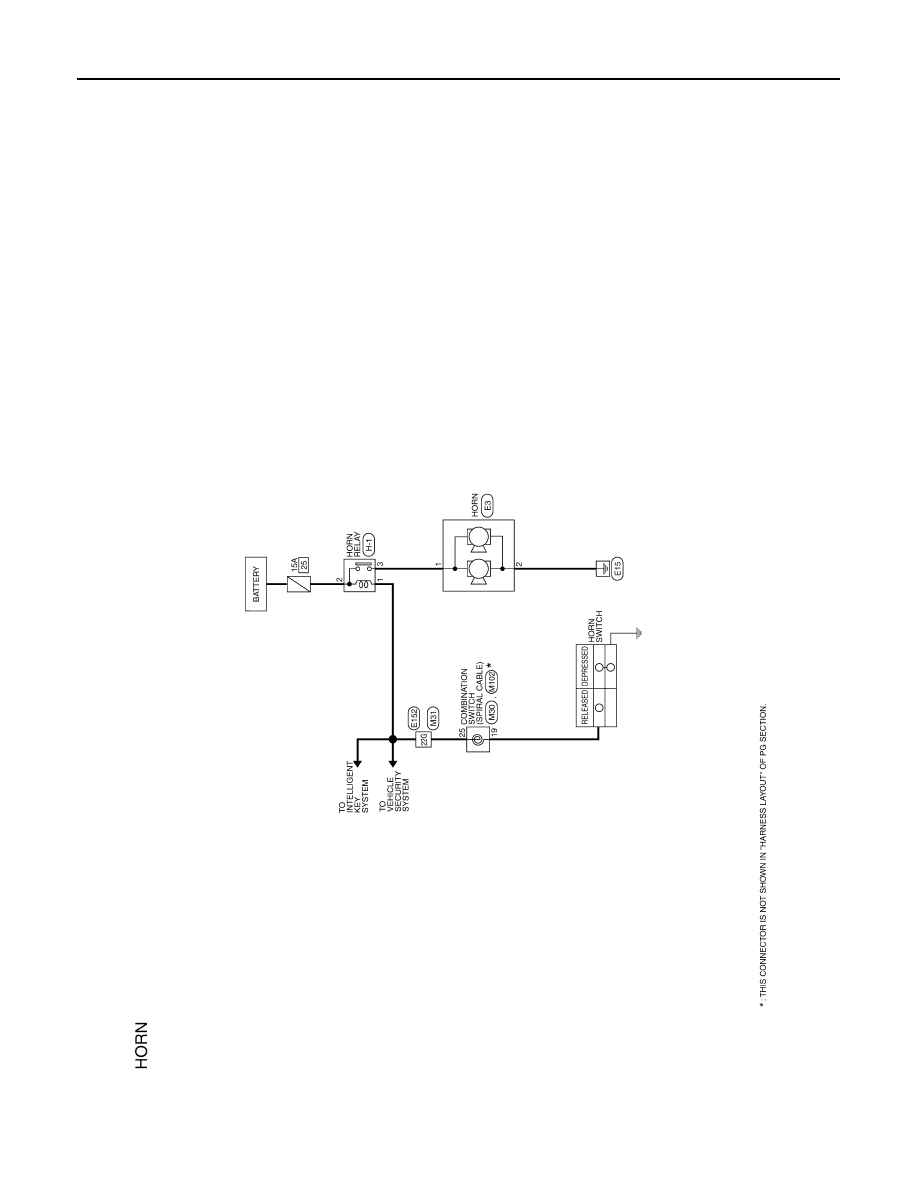

Wiring Diagram

INFOID:0000000005146860

ABLWA0487GB

HORN

HRN-5

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

HRN

N

O

P

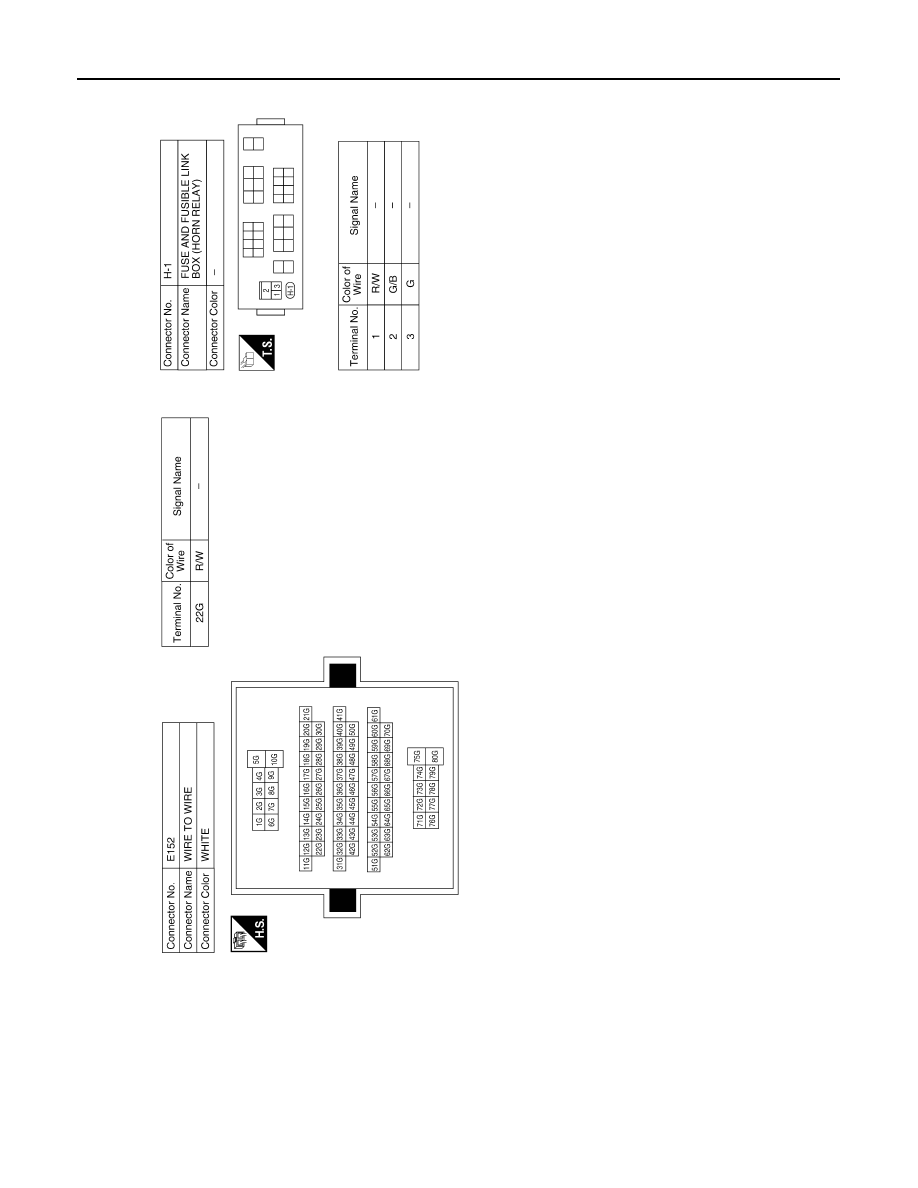

ABLIA1388GB

HRN-6

< COMPONENT DIAGNOSIS >

HORN

ABLIA1319GB
