REAR DOOR GLASS AND REGULATOR

REAR DOOR GLASS AND REGULATOR

Removal and Installation

INFOID:0000000005147162

REAR DOOR GLASS

Removal

1. Remove the rear door finisher. Refer to

INT-11, "Removal and Installation"

.

2. Position aside the vapor shield.
3. Temporarily reconnect the power window switch.
4. Operate the power window switch to raise/lower the door win-

dow until the glass bolts can be seen.

5. Partially remove the inside seal.
6. Remove the glass run from the partition glass.
7. Remove the partition sash bolt (lower) and screw (upper) to

remove the sash.

8. Remove the glass bolts and glass.

Installation

Installation is in the reverse order of removal.

Fitting Inspection

• Check that the glass is securely fit into the glass run groove.

• Lower the glass slightly [approximately 10 to 20 mm (0.39 to 0.79 in)], and check that the clearance to the

sash is parallel. If the clearance between the glass and sash is not parallel, loosen the regulator bolts, guide

rail bolts, and glass and carrier plate bolts to correct the glass position.

REAR DOOR GLASS REGULATOR

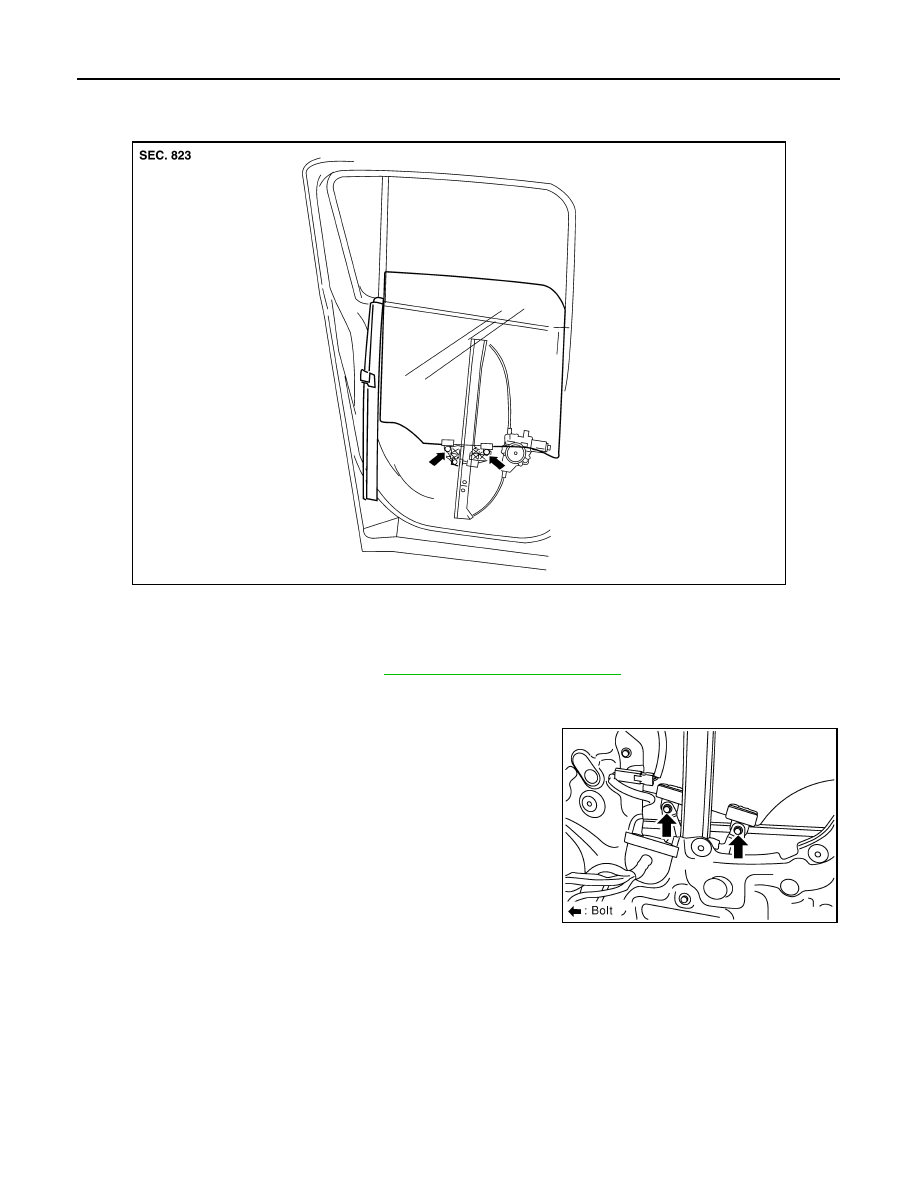

WIIA0942E

SIIA0290E

Glass bolts

: 6.1 N·m (0.62 kg-m, 54 in-lb)

REAR DOOR GLASS AND REGULATOR

GW-19

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

GW

N

O

P

Removal

1. Remove the rear door finisher. Refer to

INT-11, "Removal and Installation"

.

2. Position aside the vapor shield.
3. Temporarily reconnect the power window switch.
4. Operate the power window switch to raise/lower the door win-

dow until the glass bolts can be seen.

5. Remove the inside seal.
6. Remove the glass bolts.
7. Raise the glass and hold in place with suitable tool.

8. Remove the bolts, and the regulator and guide channel.
9. Disconnect the connector from the regulator assembly.

Inspection after removal

Check the regulator assembly for the following items. If a malfunction is detected, replace or grease it.

• Gear wear

• Regulator deformation

• Spring damage

• Grease condition for each sliding part

Installation

1. Connect the harness connector to the regulator assembly and

install the regulator and guide channel.

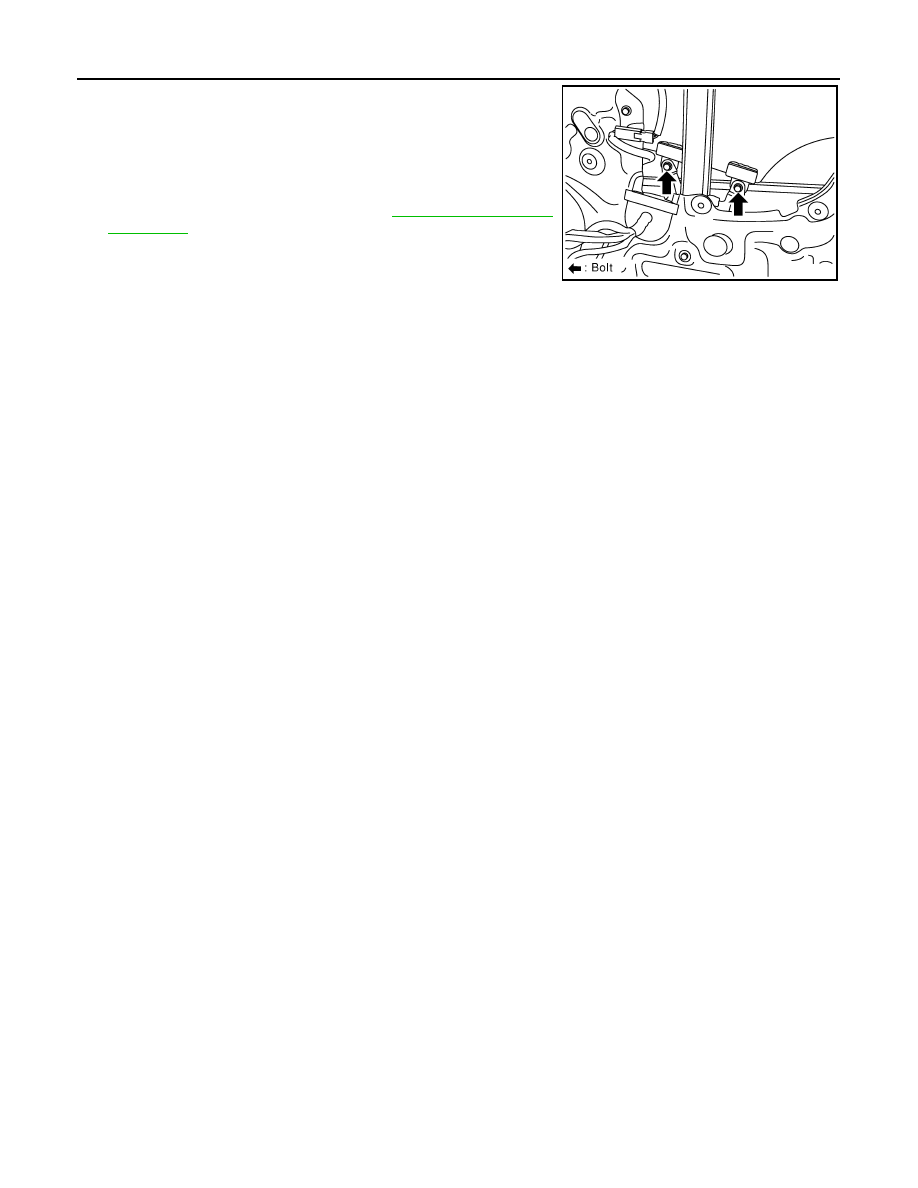

SIIA0290E

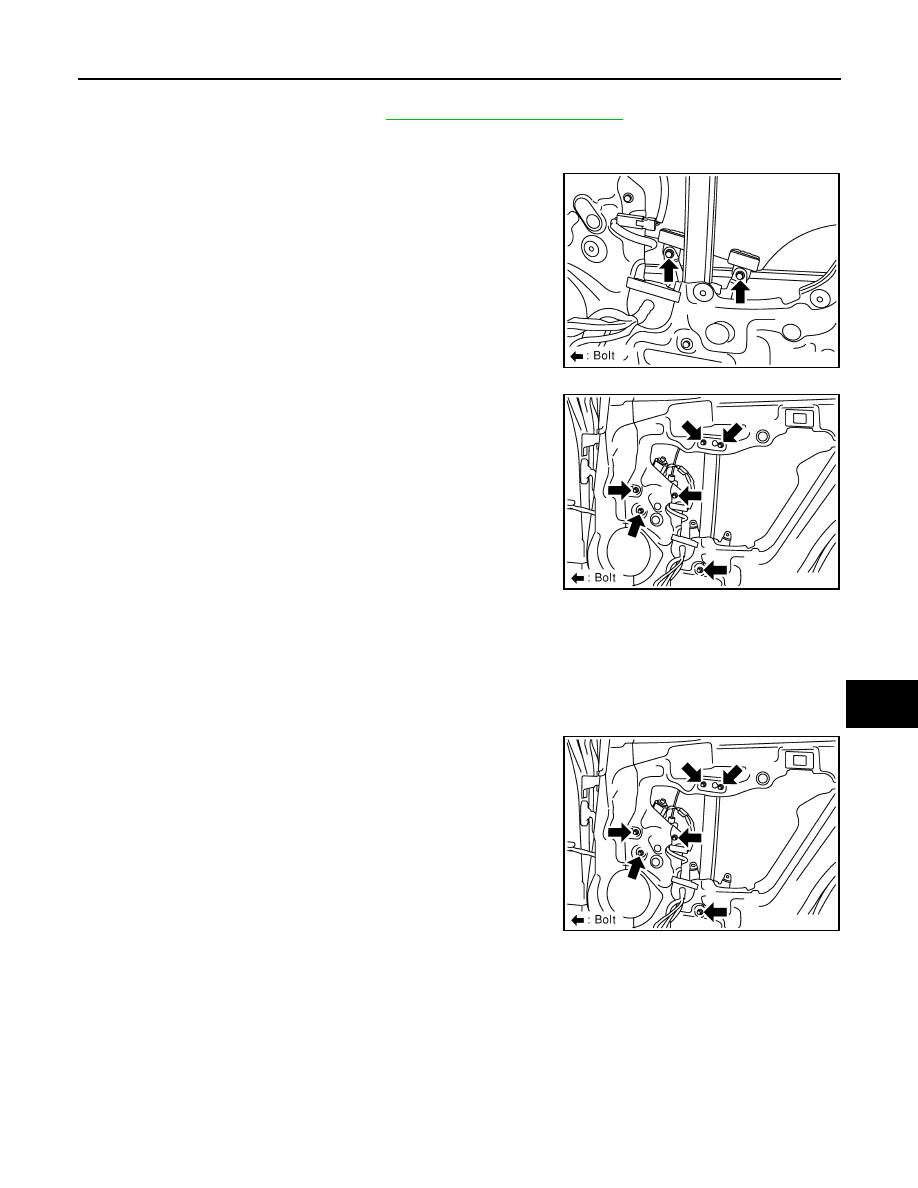

SIIA0291E

SIIA0291E

GW-20

< ON-VEHICLE REPAIR >

REAR DOOR GLASS AND REGULATOR

2. Install the glass from outside to ensure that it is in both the front

and rear glass channels. Tighten glass bolts to the specified

torque.

3. Reposition the vapor shield.
4. Install the rear door finisher. Refer to

INT-11, "Removal and

Installation"

.

Glass bolts

: 6.1 N·m (0.62 kg-m, 54 in-lb)

SIIA0290E

SIDE WINDOW GLASS

GW-21

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

GW

N

O

P

SIDE WINDOW GLASS

Removal and Installation

INFOID:0000000005147163

REMOVAL

1. Remove the luggage side finisher lower and upper. Refer to

INT-19, "Removal and Installation"

.

2. Disconnect the rear side window motor harness.
3. Remove the rear side window motor mounting bolts.
4. Remove the rear side window front mounting nuts.

INSTALLATION

1. Install the glass from outside to insure that it is even with the top and bottom of the opening. Tighten rear

side window front mounting nuts to the specified torque.

2. Install rear side window motor mounting bolts. Tighten rear side window latch mounting bolts to the speci-

fied torque.

3. Connect the rear side window motor harness.
4. Install luggage side finisher upper and lower . Refer to

INT-19, "Removal and Installation"

.

1.

Rear side window glass

2.

Rear side window motor

3.

Weatherstrip

4.

Inner panel

5.

Outer panel

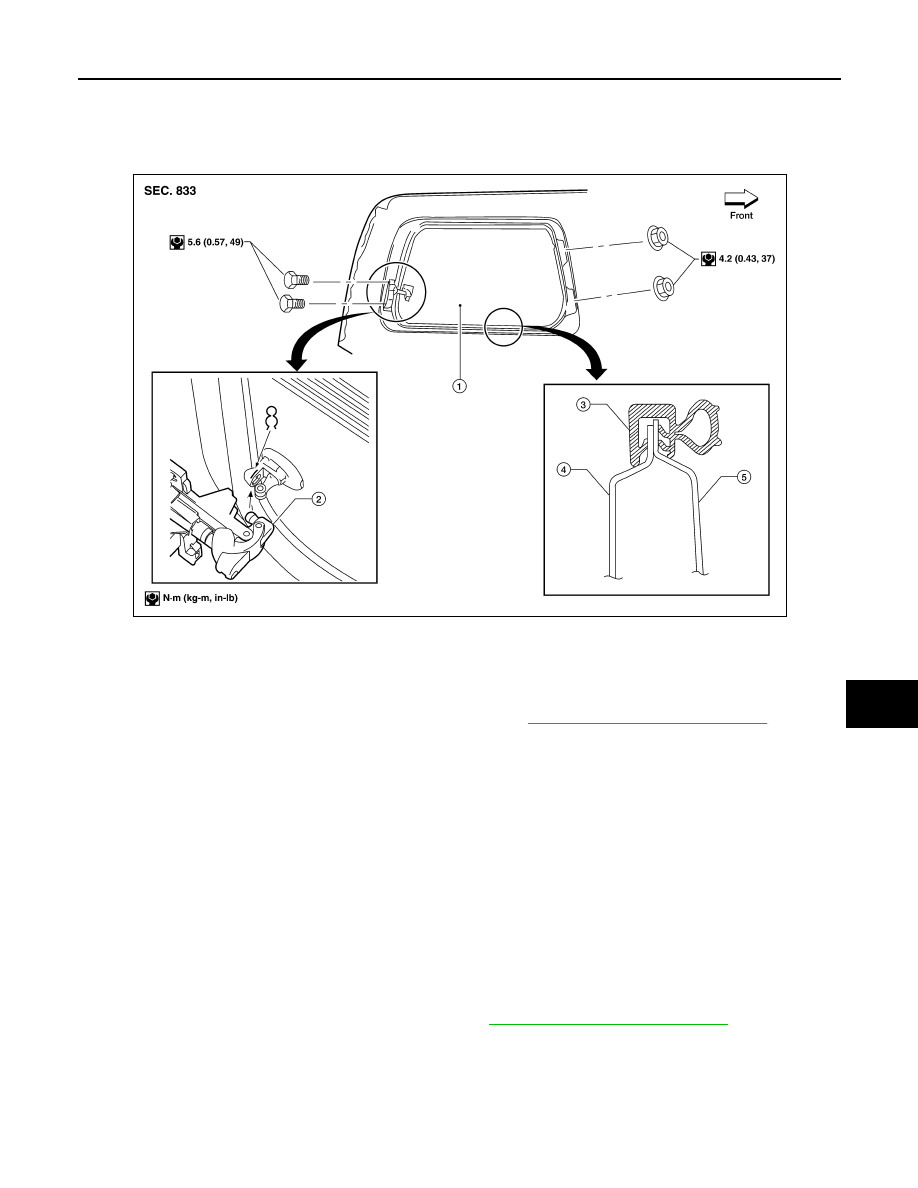

LIIA0965E

Glass mounting nuts

: 4.2 N·m (0.43 kg-m, 37 in-lb)

Motor mounting bolts : 5.6 N·m (0.57 kg-m, 49 in-lb)
