FUEL TANK

FL-15

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

FL

N

P

O

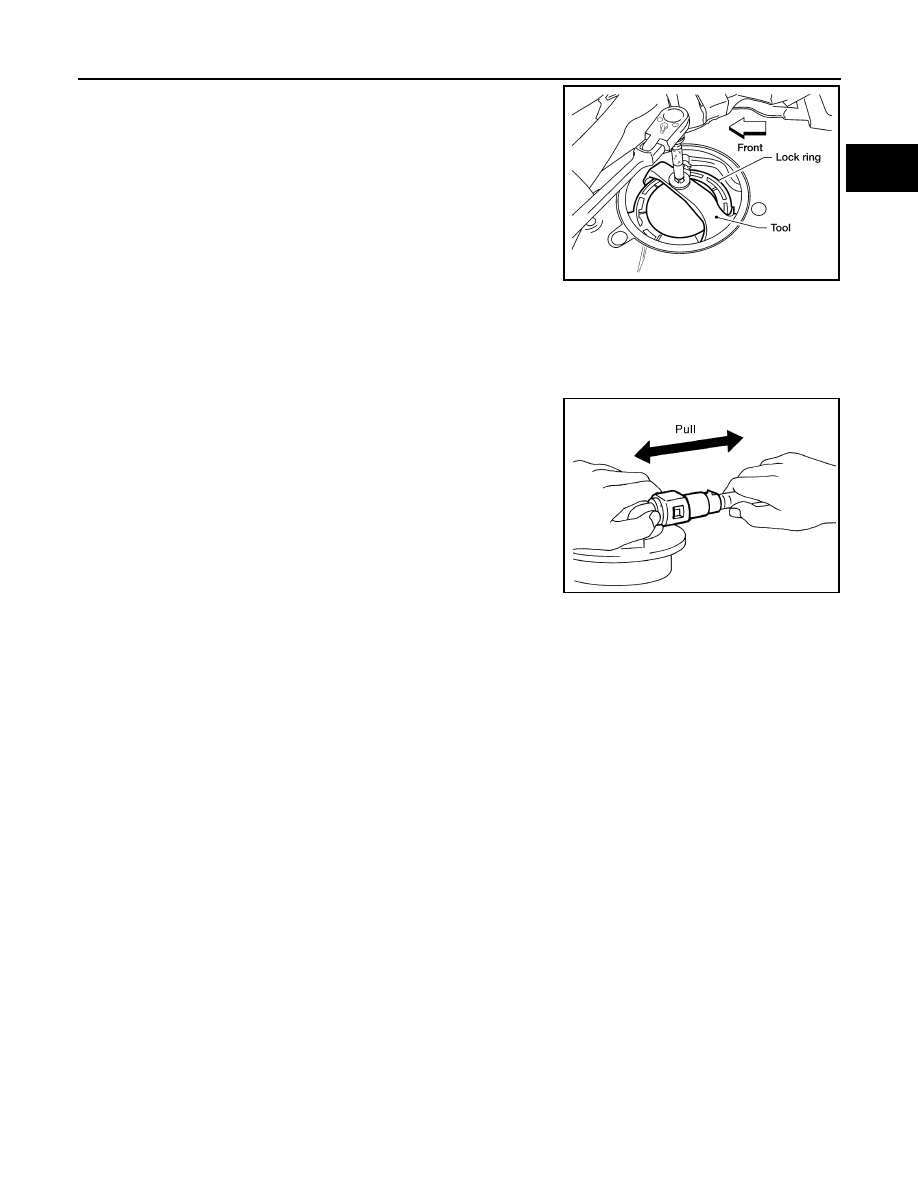

21. If necessary, remove the lock ring using Tool.

22. If necessary, remove the fuel level sensor, fuel filter, and fuel

pump assembly. Discard the fuel level sensor, fuel filter, and fuel

pump assembly O-ring.

CAUTION:

• Do not bend the float arm during removal.

• Avoid impacts such as dropping when handling the com-

ponents.

INSTALLATION

Installation is in the reverse order of removal.

• For installation, use a new fuel level sensor, fuel filter, and fuel pump assembly O-ring.

• Connect the quick connector as follows:

- Check the connection for any damage or foreign materials.

- Align the connector with the pipe, then insert the connector straight into the pipe until a click is heard.

- After connecting the quick connector, make sure that the connec-

tion is secure by checking as follows:

- Pull the tube and the connector to make sure they are securely

connected.

- Visually inspect the connector to make sure the two retainer tabs

are securely connected.

INSPECTION AFTER INSTALLATION

1. Turn the ignition switch ON but do not start engine, then check the fuel pipe and hose connections for

leaks while applying fuel pressure.

2. Start the engine and rev it above idle, then check that there are no fuel leaks at any of the fuel pipe and

hose connections.

Tool number

:  — (J-46536)

LBIA0389E

PBIC1653E

FL-16

< DISASSEMBLY AND ASSEMBLY >

FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY

DISASSEMBLY AND ASSEMBLY

FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY

Disassembly and Assembly

INFOID:0000000005149536

Fuel Level Sender Unit

Disassembly

1. Disconnect the harness connectors and the wire connector.
2. Remove the fuel sensor from the pump assembly.
3. Depress the tabs and remove the floater arm assembly.

Assembly

Assembly is in the reverse order of disassembly.

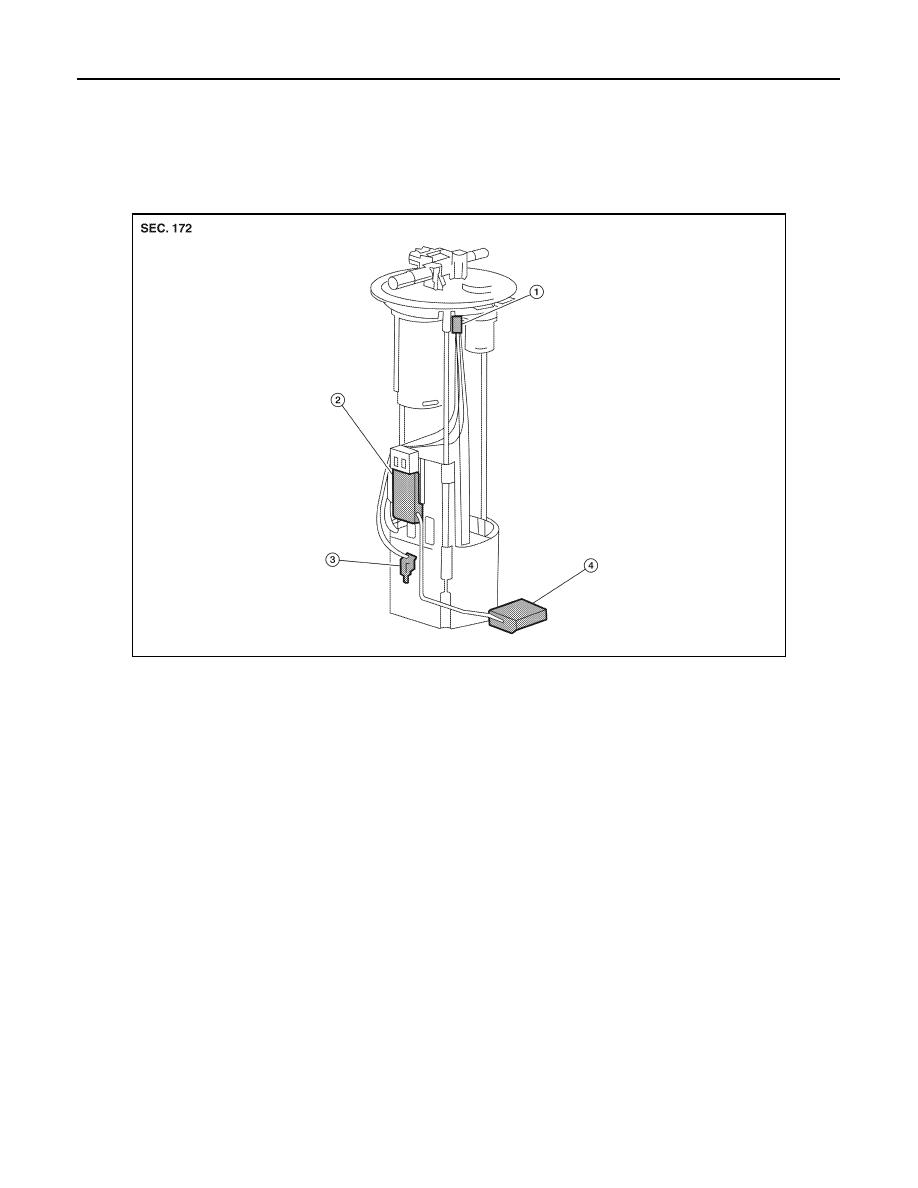

AWBIA0680ZZ

1.

Harness connector

2.

Sending unit module

3.

Fuel sensor

4.

Floater arm assembly

SERVICE DATA AND SPECIFICATIONS (SDS)

FL-17

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

G

H

I

J

K

L

M

A

FL

N

P

O

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Standard and Limit

INFOID:0000000005149537

Unit:   (US gal, Imp gal)

Fuel tank capacity

105.8 (28, 23 1/4)

FSU-1

SUSPENSION

C

D

F

G

H

I

J

K

L

M

SECTION

FSU

A

B

FSU

N

O
