EXT-14

< SERVICE INFORMATION >

FRONT BUMPER

REMOVAL

1. Remove the side screws from the front fascia assembly.
2. Remove the screws from the front of fender protector. Refer to

EXT-23

.

3. Remove the fog turn/fog lamp finisher and the fog turn/fog lamp.

• Disconnect the harnesses.

4. Disconnect the sonar sensor, if equipped harness connector under the front fascia assembly.
5. Remove the fasteners, release the clips and remove the front fascia assembly.
6. Remove the plastic clips and remove the upper energy absorber.
7. Remove the upper bumper reinforcement.
8. Remove the plastic clips and remove the lower energy absorber.
9. Remove the front bumper stays and the front bumper side brackets, LH and RH.
10. Disconnect the sonar sensors, if equipped from the sonar sensor retainers, if equipped.
11. Remove the sonar sensors, if equipped and harness from the front fascia assembly.

• Disconnect the sonar sensors, if equipped from the harness.

• Remove the sonar sensor retainers, if equipped from the front fascia assembly.

INSTALLATION

Installation is in the reverse order of removal.

7.

Sonar sensor harness (if equipped)

8.

Front fascia assembly

9.

Sonar sensor retainers (if equipped)

10. Engine under cover

11. Front fascia bracket

12. License plate bracket

13. Fog turn/fog lamp finisher LH/RH

14. Fog turn/fog lamp

15. Front bumper stay LH

16. Front bumper side bracket LH

17. Headlamp finisher (RH shown)

A.

Clip C103

B.

Clip CS101

REAR BUMPER

EXT-15

< SERVICE INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

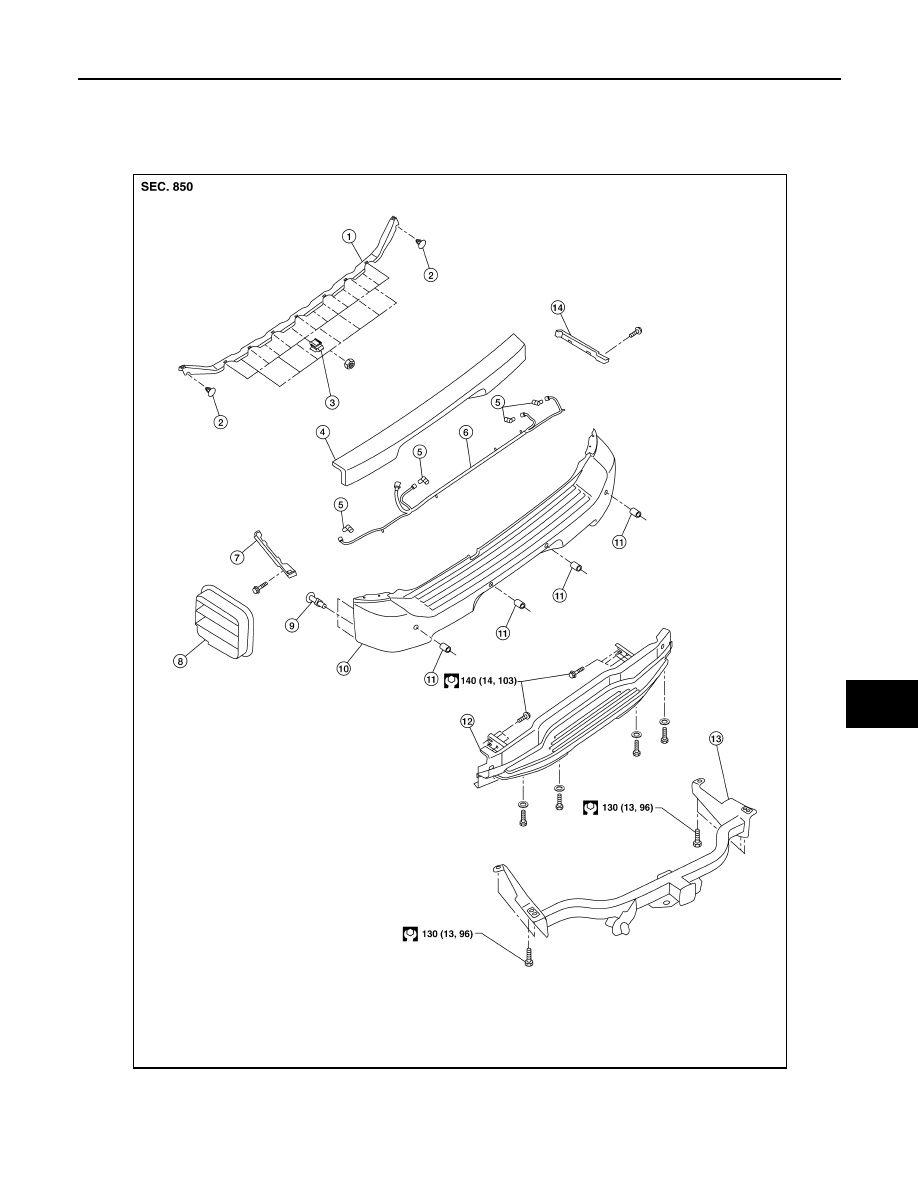

REAR BUMPER

Removal and Installation

INFOID:0000000005147319

1.

Retainer assembly

2.

Clip C103

3.

S clip

4.

Energy absorber

5.

Sonar sensors

6.

Sonar sensor harness

7.

Quarter panel trim cover LH

8.

Drafter duct

9.

Retainer clip

AWKIA1560ZZ

EXT-16

< SERVICE INFORMATION >

REAR BUMPER

REMOVAL

1. Remove the rear combination lamps LH and RH. Refer to

EXL-158, "Removal and Installation"

.

2. Remove the rear fascia assembly screws under the rear combination lamps LH and RH.
3. Remove the quarter panel trim covers LH and RH.
4. Disconnect the sonar sensor harness connector under the rear fascia assembly.
5. Release the retainer clips on both sides of the rear fascia assembly with a 1/4 turn and top S clips and

remove the fascia assembly.

6. Detach the I-key antenna from the energy absorber.
7. Remove the energy absorber.
8. Remove the reinforcement assembly.
9. Remove the nuts and remove the retainer assembly.

• Remove the S clips from the retainer assembly.

10. Disconnect the sonar sensors from the sonar sensor retainers.
11. Remove the sonar sensors and harness from the rear fascia assembly.

• Disconnect the sonar sensors from the harness.

• Remove the sonar sensor retainers from the rear fascia assembly.

12. Remove the bolts on each side of the tow hitch and remove the tow hitch.
13. Remove the drafter duct from under the LH quarter pane, if necessary.

INSTALLATION

Installation is in the reverse order of removal.

10. Rear fascia assembly

11. Sonar sensor retainer

12. Reinforcement assembly

13. Tow hitch

14. Quarter panel trim cover RH

FRONT GRILLE

EXT-17

< SERVICE INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

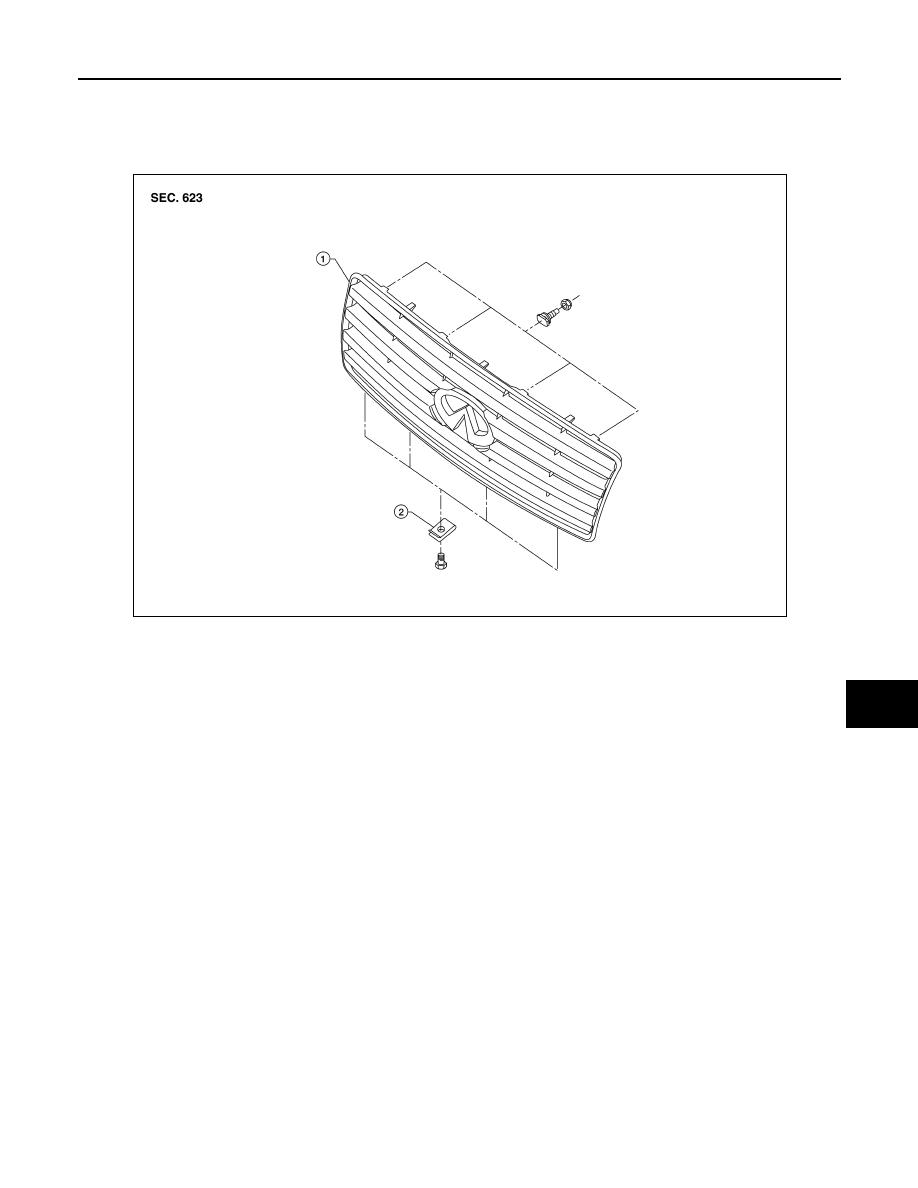

FRONT GRILLE

Removal and Installation

INFOID:0000000005147320

REMOVAL

1. Remove the bolts and nuts attaching grille.
2. Remove the front grille.

INSTALLATION

Installation is in the reverse order of removal.

1.

Front grille

2.

J-Clip

AWKIA0022ZZ
