TURN SIGNAL AND HAZARD WARNING LAMP SYSTEM

EXL-77

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

TURN SIGNAL AND HAZARD WARNING LAMP SYSTEM

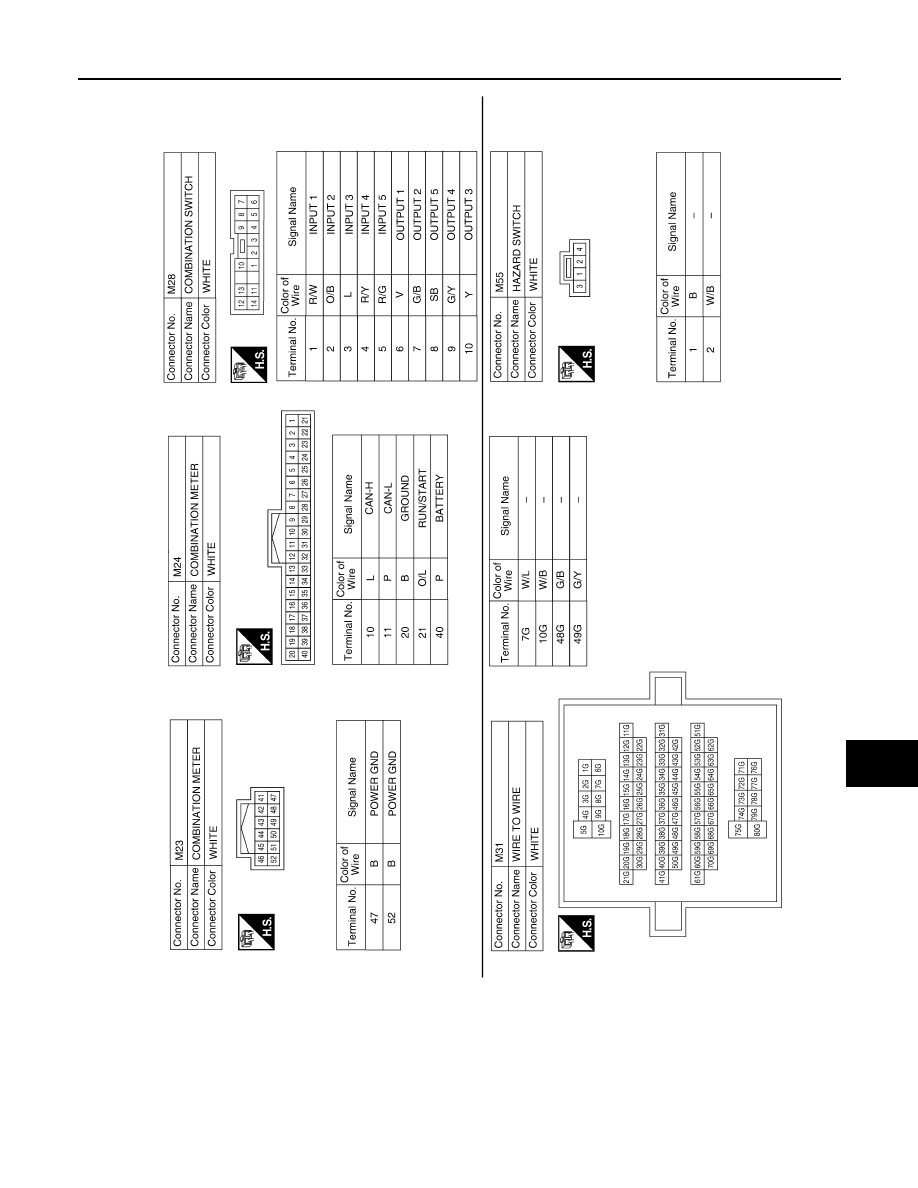

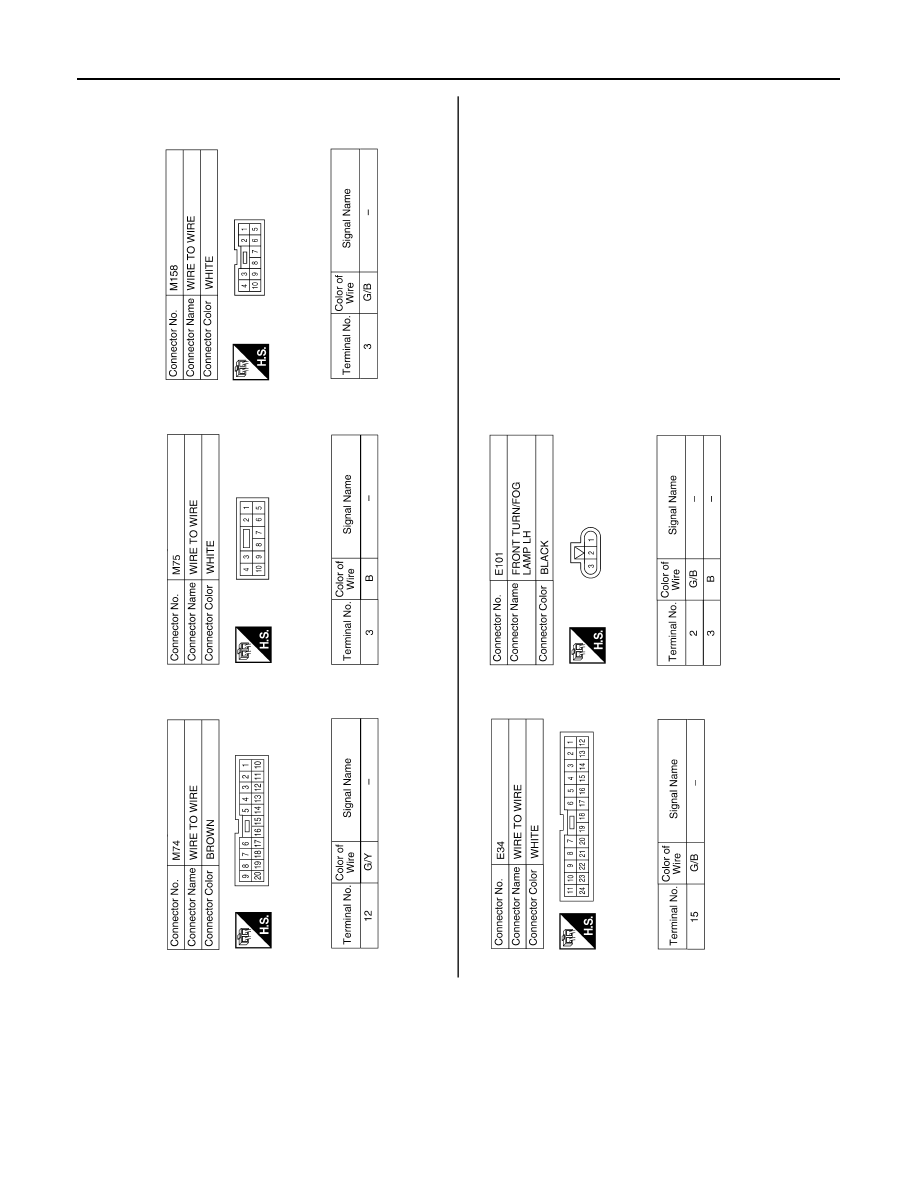

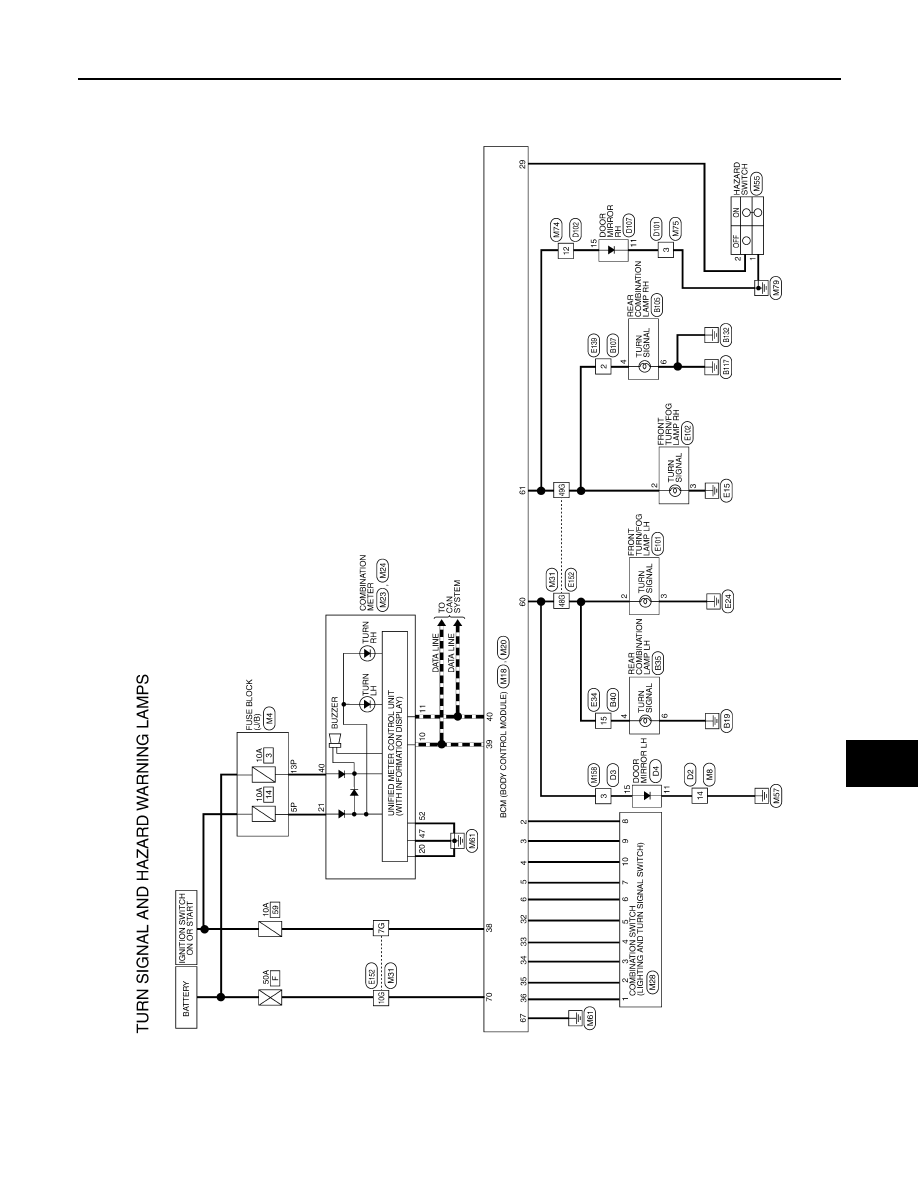

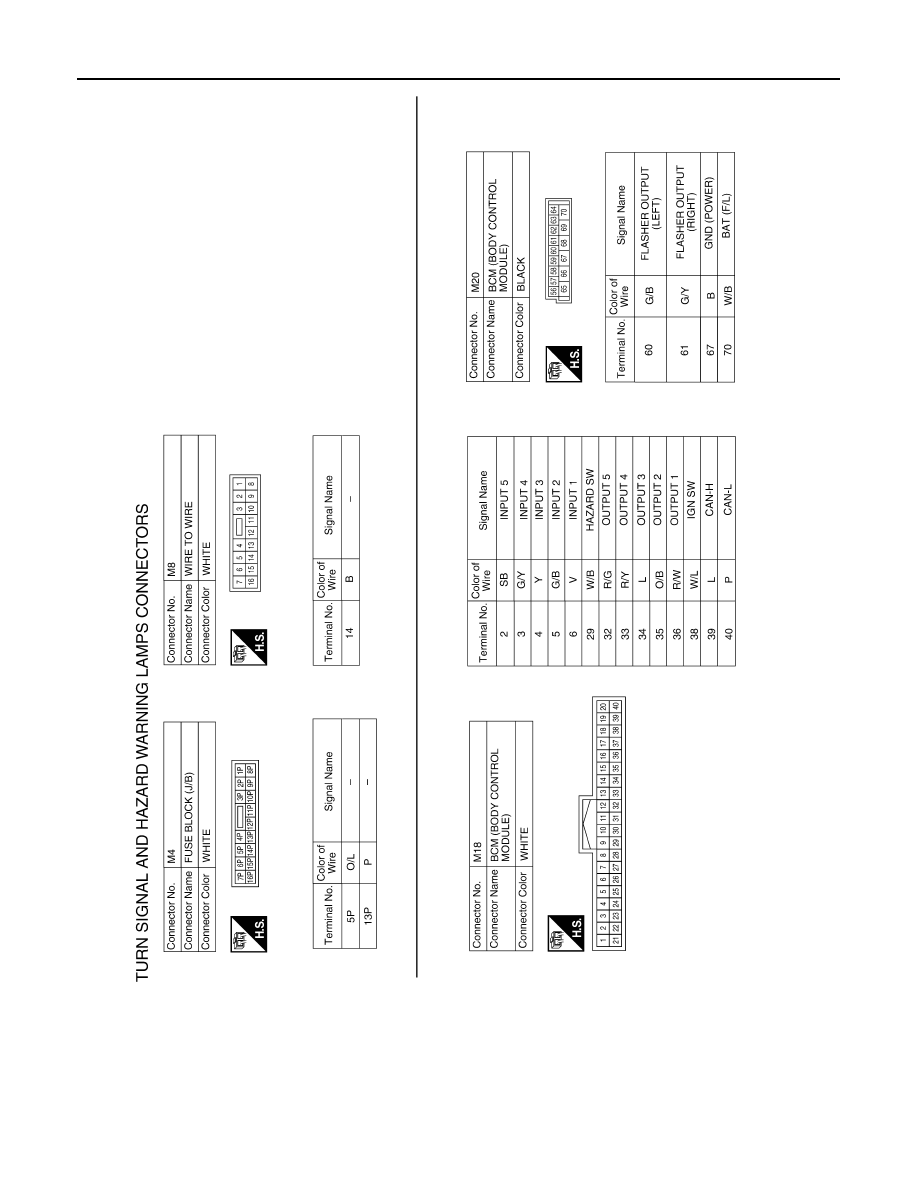

Wiring Diagram

INFOID:0000000005146668

ABLWA0421GB

EXL-78

< COMPONENT DIAGNOSIS >

TURN SIGNAL AND HAZARD WARNING LAMP SYSTEM

ABLIA1377GB

TURN SIGNAL AND HAZARD WARNING LAMP SYSTEM

EXL-79

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

ABLIA1609GB

EXL-80

< COMPONENT DIAGNOSIS >

TURN SIGNAL AND HAZARD WARNING LAMP SYSTEM

ABLIA1610GB
