FRONT FOG LAMP CIRCUIT

EXL-37

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

3.

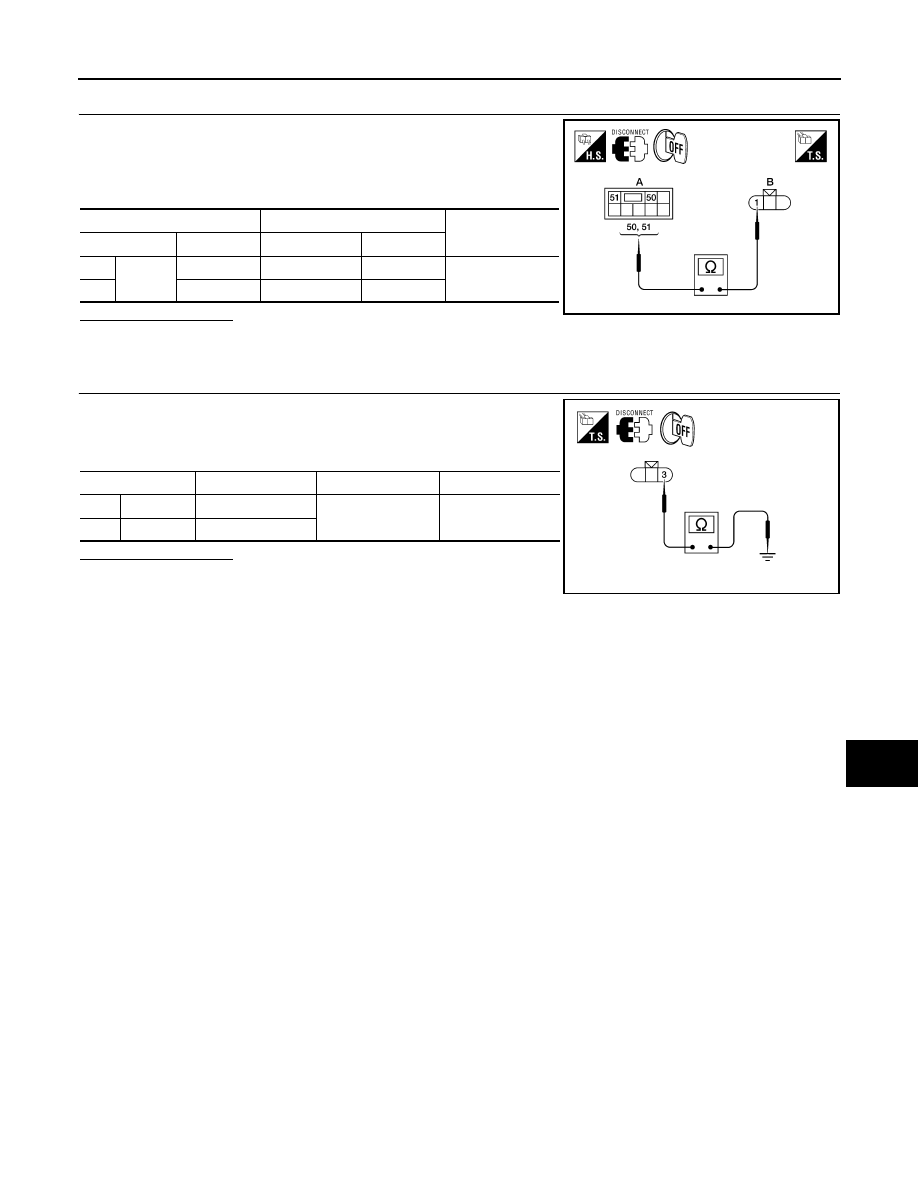

CHECK FRONT FOG LAMP OPEN CIRCUIT

1. Turn the ignition switch OFF.

2. Disconnect IPDM E/R connector.

3. Check continuity between the IPDM E/R harness connector and

the front fog/turn lamp harness connector.

Does continuity exist?

YES

>> GO TO 4.

NO

>> Repair the harnesses or connectors.

4.

CHECK FRONT FOG LAMP GROUND CIRCUIT

1. Disconnect the front fog lamp connector.

2. Check continuity between the front fog/turn lamp harness con-

nector terminal and ground.

Does continuity exist?

YES

>> Inspect the fog lamp bulb.

NO

>> Repair the harness.

A

B

Continuity

Connector

Terminal

Connector

Terminal

LH

E123

50

E101

1

Yes

RH

51

E102

1

ALLIA0720GB

Connector

Terminal

—

Continuity

LH

E101

3

Ground

Yes

RH

E102

3

ALLIA0721GB

EXL-38

< COMPONENT DIAGNOSIS >

PARKING LAMP CIRCUIT

PARKING LAMP CIRCUIT

Description

INFOID:0000000005146650

The IPDM E/R (intelligent power distribution module engine room) controls the tail lamp relay based on inputs

from the BCM via the CAN communication lines. When the tail lamp relay is energized, power flows through

fuse 37, located in the IPDM E/R. Power then flows to the front and rear combination lamps.

Component Function Check

INFOID:0000000005146651

1.

CHECK PARKING LAMP OPERATION

WITHOUT CONSULT-III

1. Activate IPDM E/R auto active test. Refer to

PCS-12, "Diagnosis Description"

.

2. Check that the parking lamp is turned ON.

CONSULT-III

1. Select "EXTERNAL LAMPS" of IPDM E/R active test item.

2. With operating the test items, check that the parking lamp is turned ON.

Is the parking lamp turned ON?

YES

>> Parking lamp circuit is normal.

NO

>> Refer to

EXL-38, "Diagnosis Procedure - Without Daytime Light System"

,

EXL-41, "Diagnosis

Procedure - With Daytime Light System"

.

Diagnosis Procedure - Without Daytime Light System

INFOID:0000000005146652

Regarding Wiring Diagram information, refer to

EXL-84, "Wiring Diagram"

.

1.

CHECK PARKING LAMP FUSES

1. Turn the ignition switch OFF.

2. Check that the following fuses are not open.

Is the fuse open?

YES

>> Repair the harness and replace the fuse.

NO

>> GO TO 2.

2.

CHECK TAIL LAMP RELAY OUTPUT (VOLTAGE)

1. Turn the ignition switch OFF.

2. Disconnect the front combination lamp connector, rear combination lamp connector and license plate

lamp connector.

3. Turn the ignition switch ON.

4. Turn the parking lamps ON.

TAIL

: Parking lamp ON

Off

: Parking lamp OFF

Unit

Location

Fuse No.

Capacity

Parking lamps

IPDM E/R

37

10A

PARKING LAMP CIRCUIT

EXL-39

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

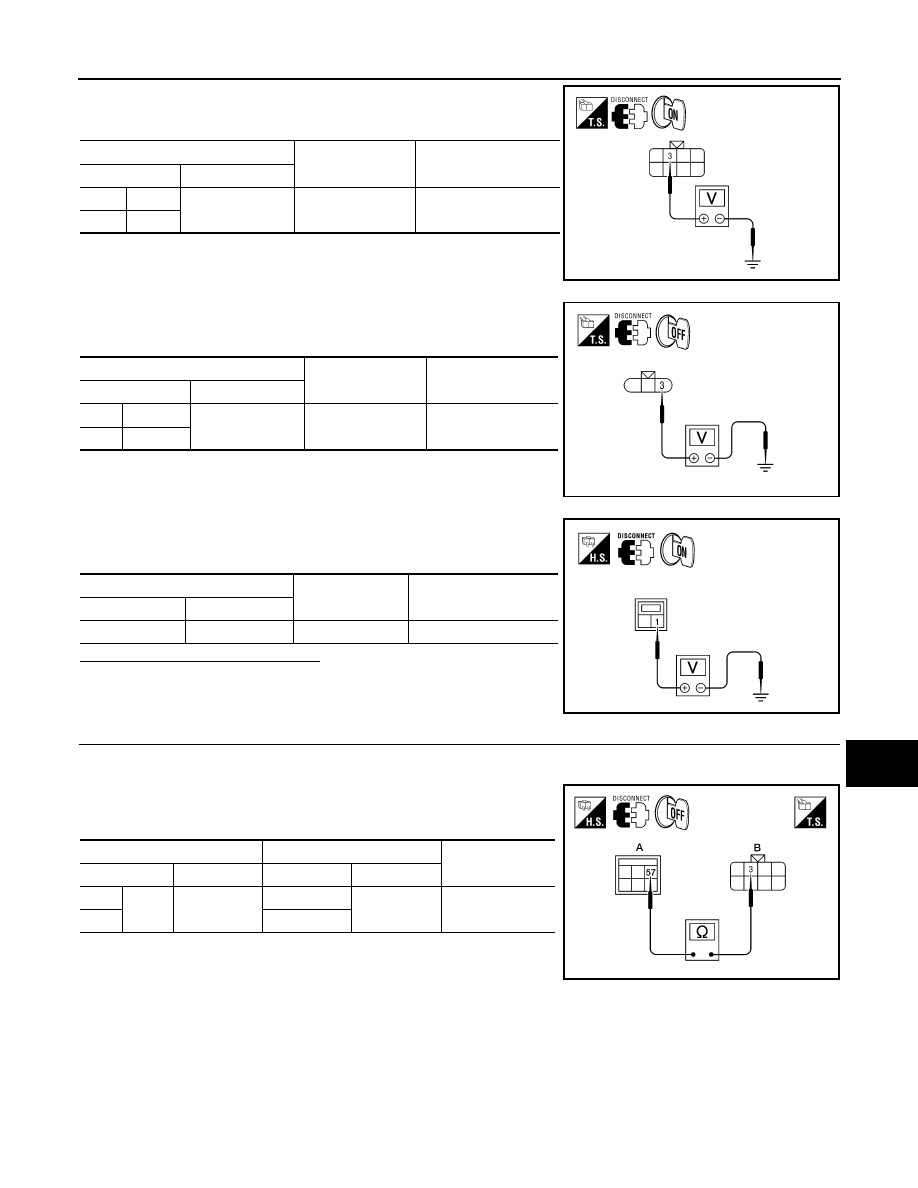

5. With the parking lamps ON, check voltage between the front

combination lamp connectors and ground.

6. With the parking lamps ON, check voltage between the rear

combination lamp connectors and ground.

7. With the parking lamps ON, check voltage between the license

plate lamp connector and ground

Are voltage readings as specified?

YES

>> GO TO 4.

NO

>> GO TO 3.

3.

CHECK PARKING, LICENSE PLATE AND TAIL LAMP CIRCUIT (OPEN)

1. Turn the ignition switch OFF.

2. Disconnect IPDM E/R connector.

3. Check continuity between the IPDM E/R harness connector (A)

and the front combination lamp harness connector (B).

(+)

(

−)

Voltage

Connector

Terminal

LH

E11

3

Ground

Battery voltage

RH

E107

ALLIA0857ZZ

(+)

(

−)

Voltage

Connector

Terminal

LH

B70

3

Ground

Battery voltage

RH

B130

AWLIA1622ZZ

(+)

(

−)

Voltage

Connector

Terminal

D703

1

Ground

Battery voltage

WKIA4613E

A

B

Continuity

Connector

Terminal

Connector

Terminal

LH

E124

57

E11

3

Yes

RH

E107

AWLIA1373ZZ

EXL-40

< COMPONENT DIAGNOSIS >

PARKING LAMP CIRCUIT

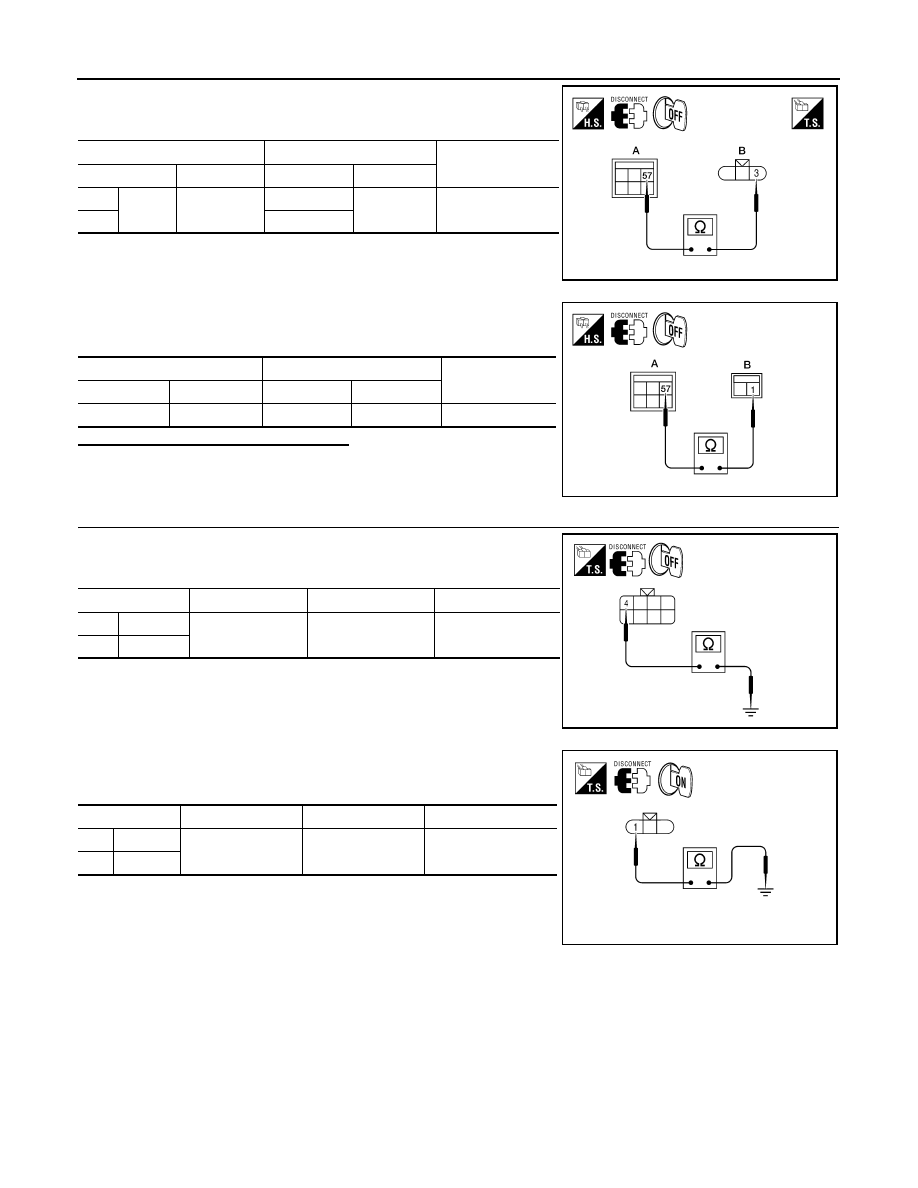

4. Check continuity between the IPDM E/R harness connector (A)

and the rear combination lamp harness connector (B).

5. Check continuity between the IPDM E/R harness connector (A)

and license plate lamp connector (B).

Are continuity test results as specified?

YES

>> GO TO 4.

NO

>> Repair the harnesses or connectors.

4.

CHECK PARKING, LICENSE AND TAIL LAMP GROUND CIRCUITS

1. Check continuity between the front combination lamp harness

connectors E11 and E107 terminal 4 and ground.

2. Check continuity between the rear combination lamp harness

connectors B70 and B130 terminal 1 and ground.

A

B

Continuity

Connector

Terminal

Connector

Terminal

LH

E124

57

B70

3

Yes

RH

B130

AWLIA1623ZZ

A

B

Continuity

Connector

Terminal

Connector

Terminal

E124

57

D703

1

Yes

WKIA4614E

Connector

Terminal

—

Continuity

LH

E11

4

Ground

Yes

RH

E107

AWLIA1619ZZ

Connector

Terminal

—

Continuity

LH

B70

1

Ground

Yes

RH

B130

AWLIA1624ZZ
