Infiniti QX56 (JA60). Manual - part 460





EC-492

< ON-VEHICLE MAINTENANCE >

[VK56DE]

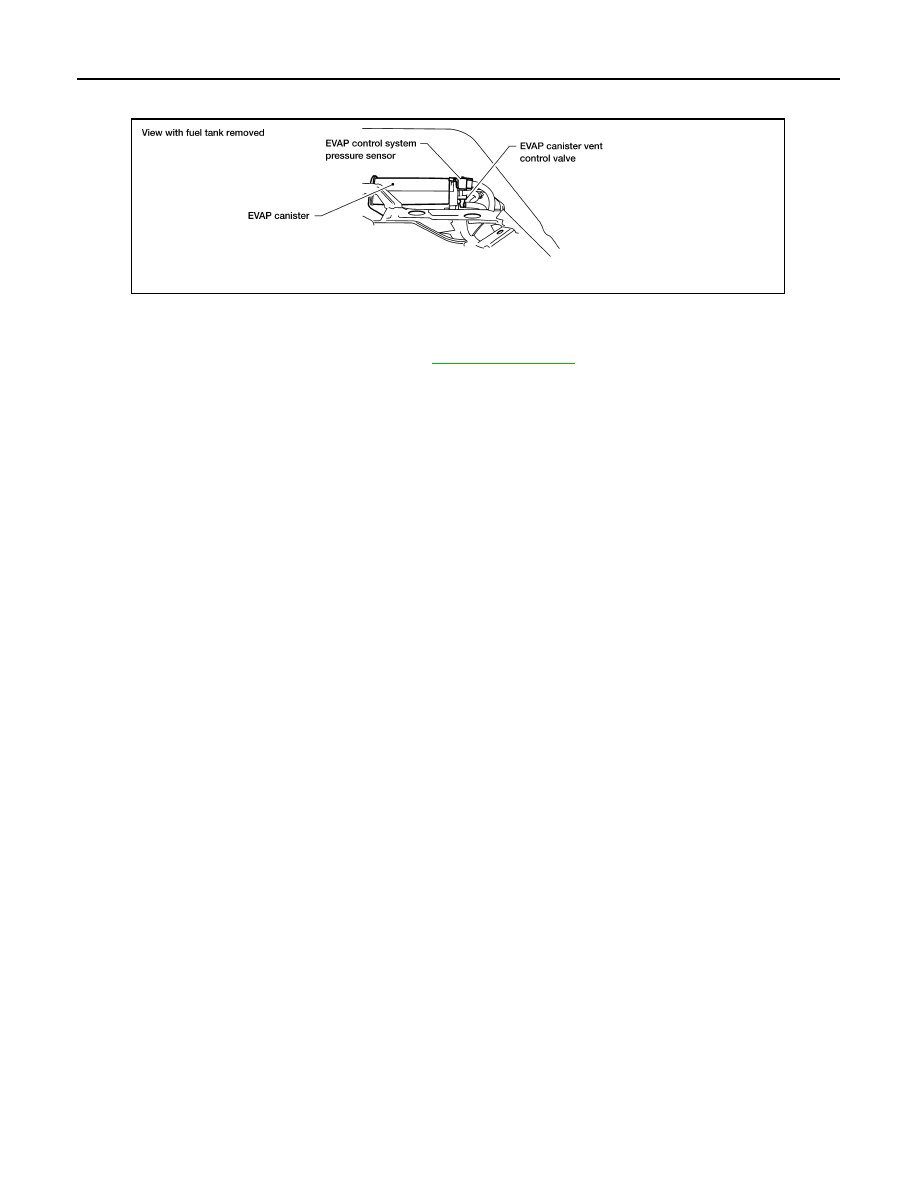

EVAP LEAK CHECK

3. Apply battery voltage between the terminals of EVAP canister vent control valve to make a closed EVAP

system.

4. To locate the leak, deliver positive pressure to the EVAP system until pressure gauge points reach 1.38 to

2.76 kPa (0.014 to 0.028 kg/cm

2

, 0.2 to 0.4 psi).

5. Remove EVAP service port adapter and hose with pressure pump.

6. Locate the leak using a leak detector. Refer to

EC-37, "Description"

.

BBIA0443E

EVAP CANISTER

EC-493

< ON-VEHICLE REPAIR >

[VK56DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

ON-VEHICLE REPAIR

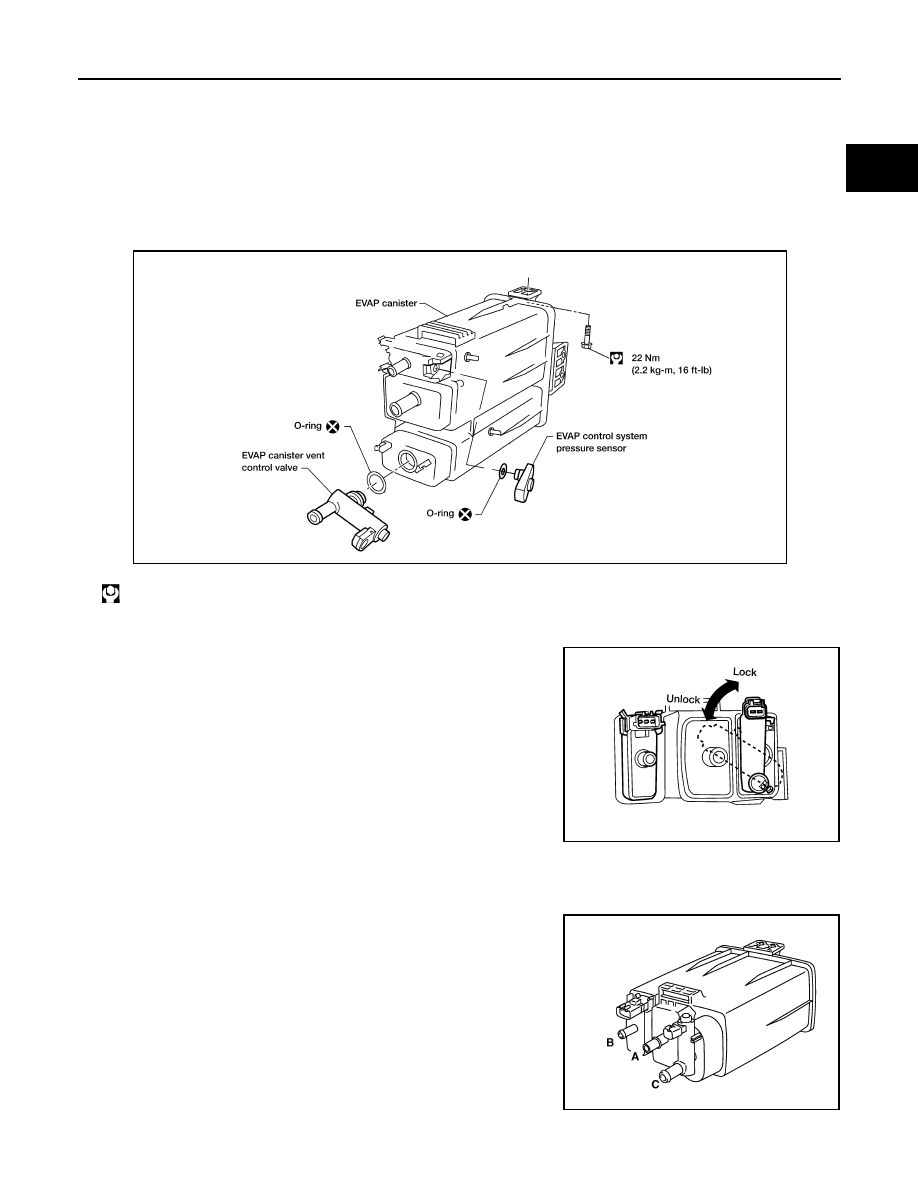

EVAP CANISTER

Removal and Installation

INFOID:0000000005149509

EVAP CANISTER

Tighten EVAP canister as shown in the figure.

EVAP CANISTER VENT CONTROL VALVE

1. Turn EVAP canister vent control valve counterclockwise.
2. Remove the EVAP canister vent control valve.
Always replace O-ring with a new one.

Component Inspection

INFOID:0000000005149510

EVAP CANISTER

Check EVAP canister as follows:
1. Block port B.
2. Blow air into port Aand check that it flows freely out of port C.
3. Release blocked port B.
4. Apply vacuum pressure to port and check that vacuum pres-

sure exists at the ports Aand C.

5. Block port Aand B.
6. Apply pressure to port and check that there is no leakage.

: N-·m (kg-m, in-lb)

BBIA0349E

BBIA0350E

PBIB1212E

EC-494

< ON-VEHICLE REPAIR >

[VK56DE]

INTAKE VALVE TIMING CONTROL

INTAKE VALVE TIMING CONTROL

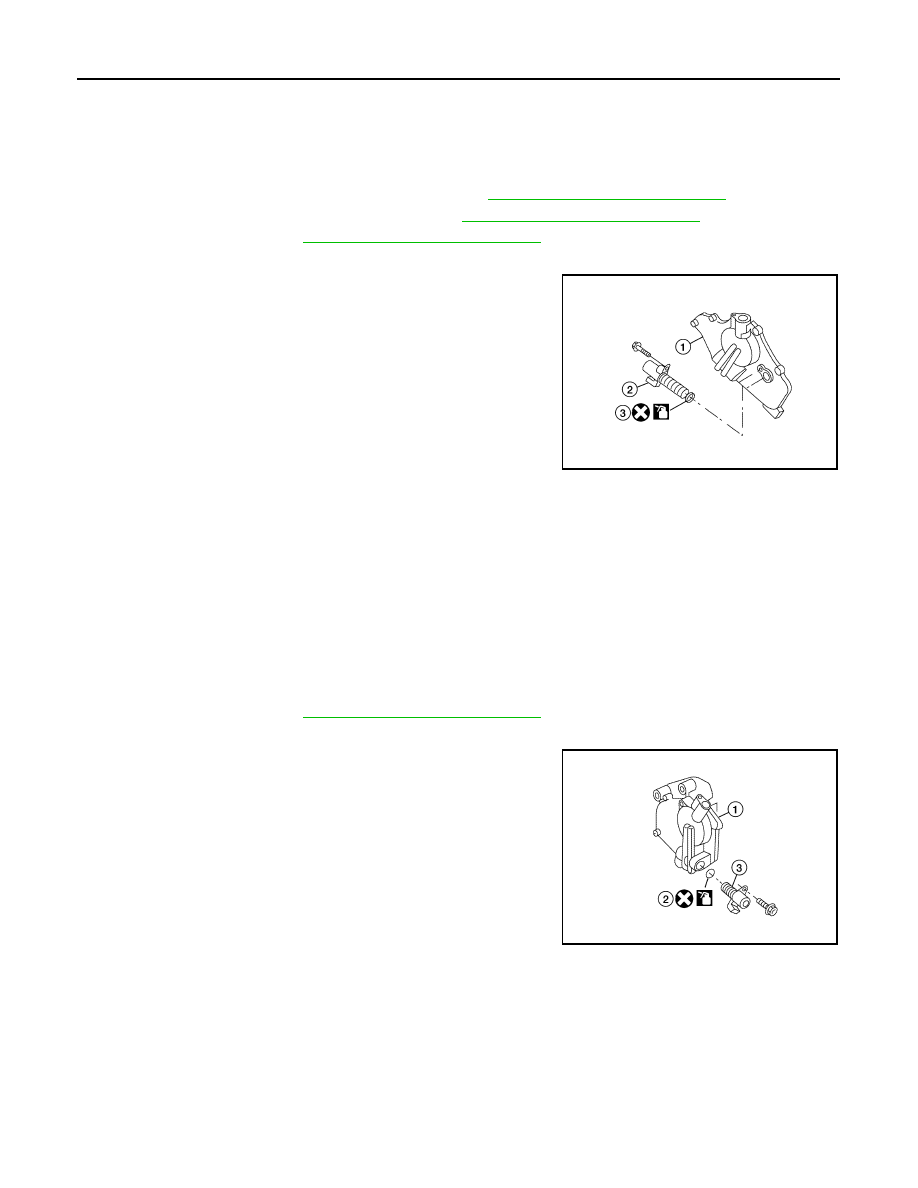

Intake Valve Timing Control Solenoid Valve (LH)

INFOID:0000000005149511

REMOVAL

1. Remove engine room cover using power tool. Refer to

EM-24, "Removal and Installation"

.

2. Remove air duct and resonator assembly. Refer to

EM-24, "Removal and Installation"

.

3. Remove drive belt. Refer to

EM-13, "Removal and Installation"

.

4. Disconnect Intake valve timing controlintake valve timing control solenoid valve connector (LH).
5. Remove Intake valve timing control solenoid valve (LH) (2) from

Intake valve timing control solenoid valve cover (LH) (1).

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Replace the O-ring (3) of the Intake valve timing control solenoid valve with a new one, then lubricate

O-ring with engine oil before installing.

Intake Valve Timing Control Solenoid Valve (RH)

INFOID:0000000005149512

REMOVAL

1. Remove drive belt. Refer to

EM-13, "Removal and Installation"

.

2. Disconnect Intake valve timing control solenoid valve connector (RH).
3. Remove Intake valve timing control solenoid valve (RH) (3) from

Intake valve timing control solenoid valve cover (RH) (1).

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Replace the O-ring (2) of the Intake valve timing control solenoid valve with a new one, then lubricate

O-ring with engine oil before installing.

AWBIA0145ZZ

Intake valve timing control sole-
noid valve bolt

: 9.6 N·m (0.98 kg-m, 85 in-lb)

AWBIA0144ZZ

Intake valve timing control sole-
noid valve bolt

: 9.6 N·m (0.98 kg-m, 85 in-lb)

INTAKE VALVE TIMING CONTROL

EC-495

< ON-VEHICLE REPAIR >

[VK56DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

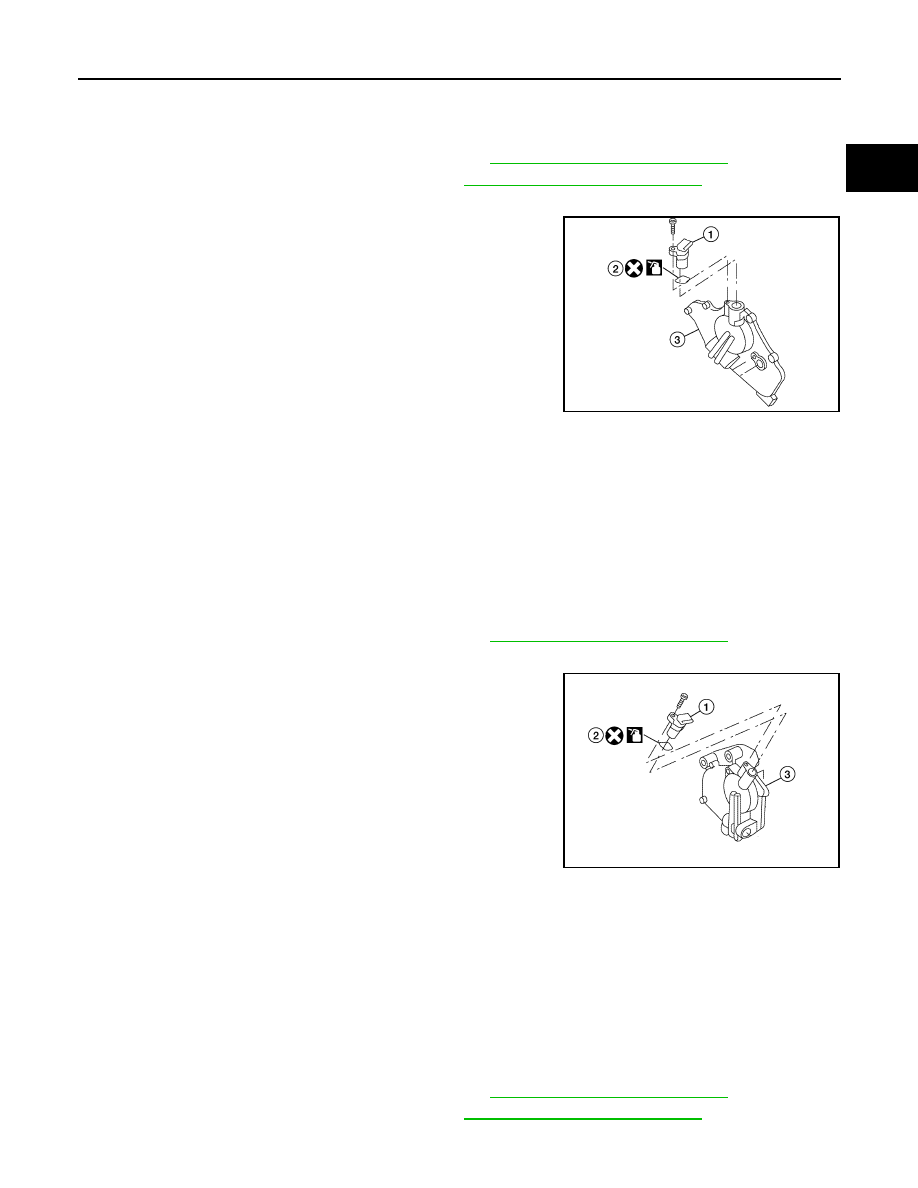

Intake Valve Timing Control Position Sensor (LH)

INFOID:0000000005149513

REMOVAL

1. Remove engine room cover using power tool. Refer to

EM-24, "Removal and Installation"

.

2. Remove air duct and resonator assembly. Refer to

EM-25, "Removal and Installation"

.

3. Disconnect intake valve timing control position sensor connector (LH).
4. Remove intake valve timing control position sensor (LH) (1) from

Intake valve timing control solenoid valve cover (LH) (3).

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Replace the O-ring (2) of the intake valve timing control position sensor with a new one, then lubricate

O-ring with engine oil before installing.

Intake Valve Timing Control Position Sensor (RH)

INFOID:0000000005149514

REMOVAL

1. Remove engine room cover using power tool. Refer to

EM-24, "Removal and Installation"

.

2. Disconnect intake valve timing control position sensor connector (RH).
3. Remove intake valve timing control position sensor (RH) (1)

from Intake valve timing control solenoid valve cover (RH) (3).

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Replace the O-ring (2) of the intake valve timing control position sensor with a new one, then lubricate

O-ring with engine oil before installing.

Camshaft Position Sensor (PHASE)

INFOID:0000000005149515

REMOVAL

1. Remove engine room cover using power tool. Refer to

EM-24, "Removal and Installation"

.

2. Remove air duct and resonator assembly. Refer to

EM-25, "Removal and Installation"

.

3. Disconnect camshaft position sensor connector.

AWBIA0141ZZ

Intake valve timing control position sensor bolt

: 9.6 N·m (0.98 kg-m, 85 in-lb)

AWBIA0143ZZ

Intake valve timing control position sensor bolt

: 9.6 N·m (0.98 kg-m, 85 in-lb)
