Infiniti QX56 (JA60). Manual - part 329

PREPARATION

DLN-239

< PREPARATION >

[REAR FINAL DRIVE: R230]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

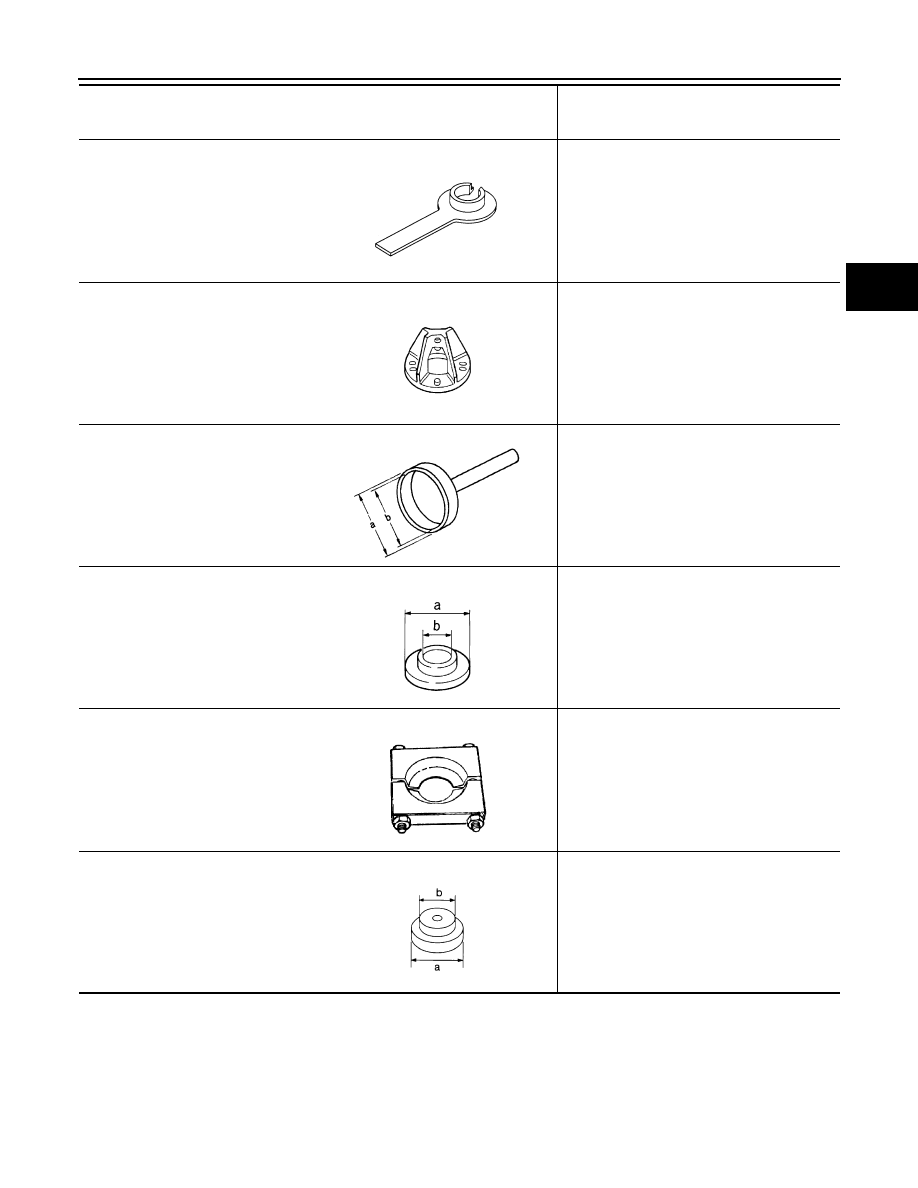

KV38107900
(J-39352)
Protector

Installing side flange

KV40104100
(

—

)

Attachment

Removing side flange

ST15310000
( — )
Oil seal drift

Installing front oil seal
a: 96 mm (3.78 in) dia.
b: 84 mm (3.31 in) dia.

ST30022000
( — )
Drift

Installing drive pinion bearing
a: 110 mm (4.33 in) dia.
b: 46 mm (1.81 in) dia.

ST30031000
(J-22912-01)
Puller

Removing drive pinion rear bearing inner race

ST30621000
( — )
Drift

Installing drive pinion front and rear bearing
races
a: 79 mm (3.11 in) dia.
b: 59 mm (2.32 in) dia.

Tool number
(Kent-Moore No.)

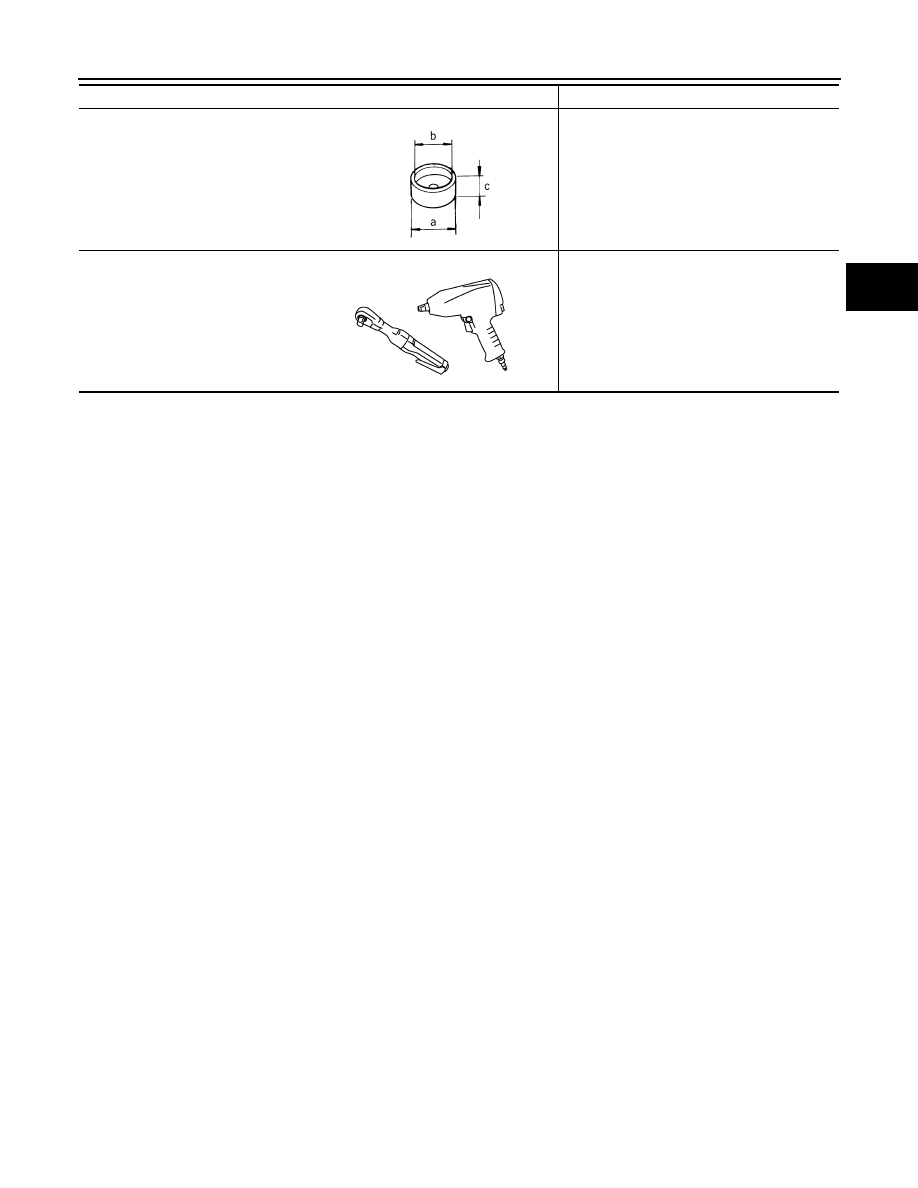

Tool name

Description

S-NT129

ZZA0804D

ZZA0908D

ZZA0920D

ZZA0700D

NT073

DLN-240

< PREPARATION >

[REAR FINAL DRIVE: R230]

PREPARATION

Commercial Service Tool

INFOID:0000000005148927

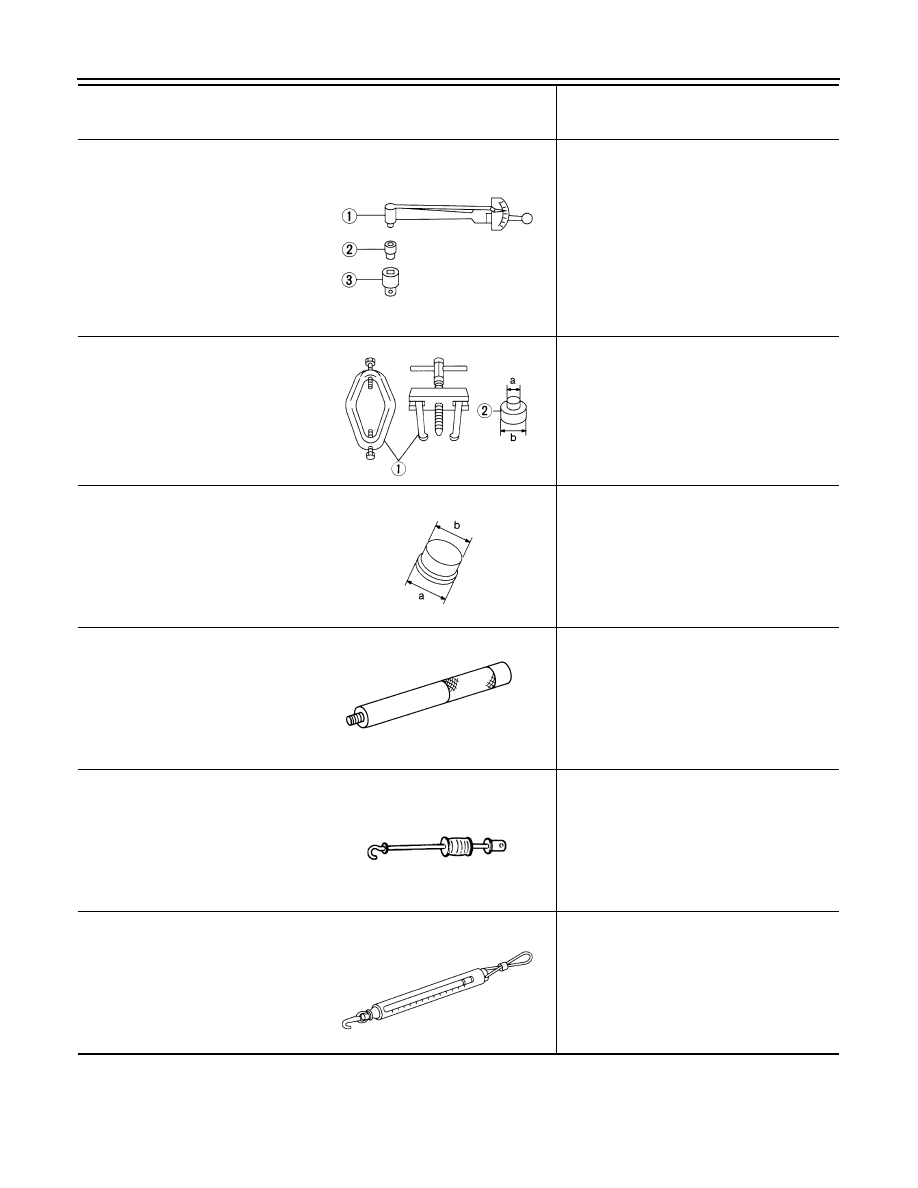

ST3127S000
(J-25765-A)
Preload gauge
1: GG91030000

(J-25765)
Torque wrench

2: HT62940000

(

—

)

Socket adapter (1/2

″)

3: HT62900000

(

—

)

Socket adapter (3/8

″)

Measuring drive pinion bearing preload torque
and total preload torque

ST3306S001
(

—

)

Differential side bearing puller set
1: ST33051001

(J-22888-20)
Puller

2: ST33061000

(J-8107-2)
Base

Removing and installing side bearing inner
race
a: 28.5 mm (1.122 in) dia.
b: 38 mm (1.50 in) dia.

ST33081000
( — )
Adapter

Install differential carrier side bearings
a: 43 mm (1.69 in) dia.
b: 33.5 mm (1.319 in) dia.

ST35325000
( — )
Drift bar

Installing drive pinion front and rear bearing
races

ST36230000
(J-25840-A)
Sliding hammer

Removing side flange

—

(J-8129)
Spring gauge

Measuring turning torque

Tool number
(Kent-Moore No.)
Tool name

Description

NT124

NT072

NT431

ZZA1140D

ZZA0803D

NT127

PREPARATION

DLN-241

< PREPARATION >

[REAR FINAL DRIVE: R230]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

Tool name

Description

Spacer

Installing drive pinion front bearing inner race
a: 60 mm (2.36 in) dia.
b: 36 mm (1.42 in) dia.
c: 30 mm (1.18 in)

Power tool

Loosening nuts and bolts

ZZA1133D

PBIC0190E

DLN-242

< SYMPTOM DIAGNOSIS >

[REAR FINAL DRIVE: R230]

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

SYMPTOM DIAGNOSIS

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

NVH Troubleshooting Chart

INFOID:0000000005148928

Use the chart below to help you find the cause of the symptom. If necessary, repair or replace these parts.
