Infiniti QX56 (JA60). Manual - part 327





FRONT FINAL DRIVE

DLN-231

< DISASSEMBLY AND ASSEMBLY >

[FRONT FINAL DRIVE: M205]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

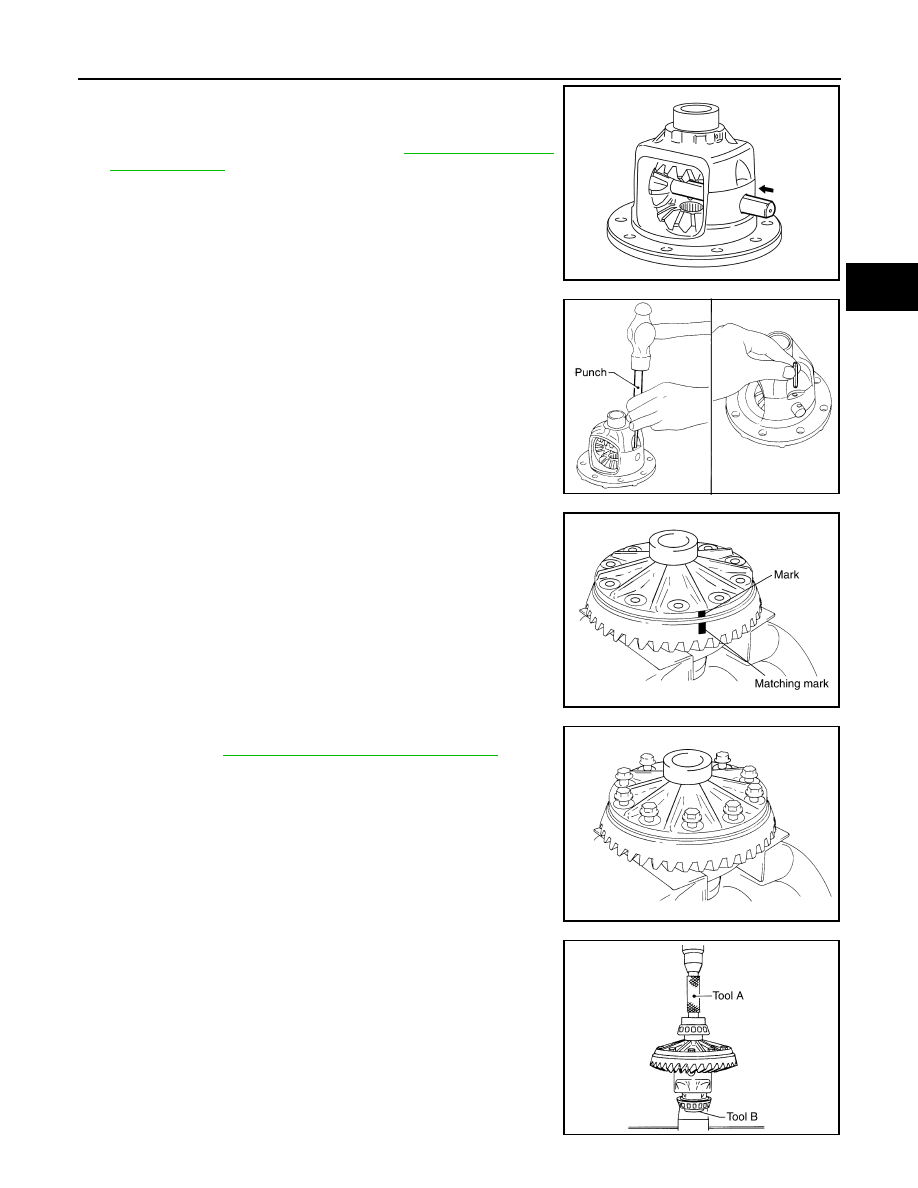

4. Install the pinion mate shaft and align the lock pin hole on the

pinion mate shaft with the lock pin hole on the differential case.

5. Measure the side gear end play. If necessary, select the appro-

priate side gear thrust washers. Refer to

DLN-234, "Inspection

and Adjustment"

.

6. Drive a new lock pin into the pinion mate shaft until it is flush

with the differential case using suitable tool.

CAUTION:

Do not reuse lock pin.

7. Align the matching mark of the differential case with the mark of

the drive gear, then place the drive gear onto the differential

case.

8. Install and tighten the new drive gear bolts to the specified

torque. Refer to

DLN-217, "Disassembly and Assembly"

.

CAUTION:

• Make sure the drive gear back and threaded holes are

clean.

• Do not reuse drive gear bolts.

• Tighten new drive gear bolts in a crisscross pattern.

9. Press the new side bearing inner races to the differential case

using Tools.

CAUTION:

Do not reuse side bearing inner races.

SDIA0195J

SPD030

SDIA2593E

SDIA2239E

Tool number

A: KV38100300 (J-25523)
B: ST33081000 ( — )

SPD353

DLN-232

< DISASSEMBLY AND ASSEMBLY >

[FRONT FINAL DRIVE: M205]

FRONT FINAL DRIVE

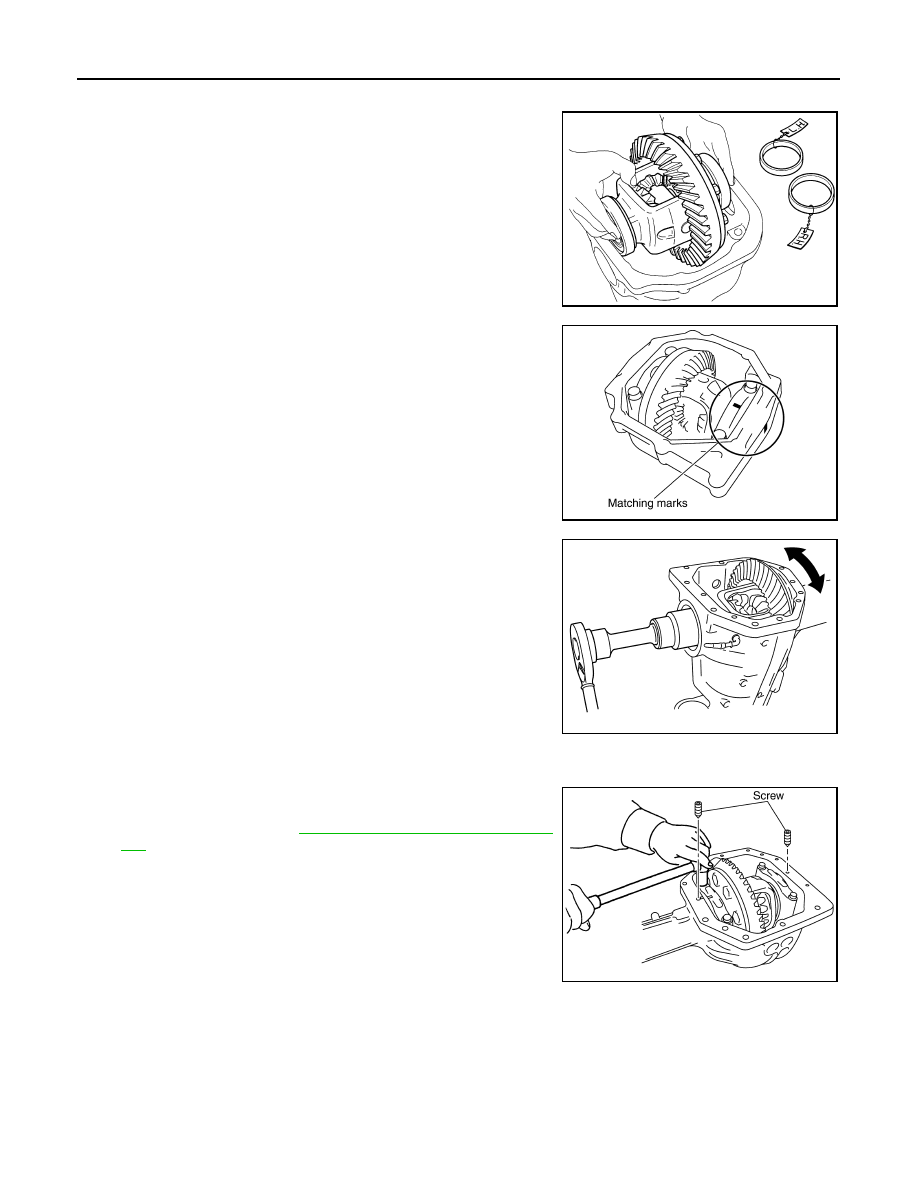

10. Install side bearing adjusters into gear carrier.
11. Apply differential gear oil to the side bearings, and install the dif-

ferential case assembly with the side bearing outer races into

the gear carrier.

CAUTION:

Do not reuse side bearing outer race when replacing side

bearing inner race (replace as a set).

12. Install the side bearing caps with the matching marks aligned.

NOTE:

Do not tighten at this step. This allows further tightening of side

bearing adjusters.

13. Tighten each side bearing adjuster alternately turning drive gear.

14. Check and adjust tooth contact, backlash, drive gear runout and total preload torque.

Recheck above items.

• After adjusting tooth contact and backlash secure side bearing

adjuster with screws and tighten side bearing cap bolt to the

specified torque. Refer to

DLN-217, "Disassembly and Assem-

bly"

.

15. Apply multi-purpose grease to the lips of the new side oil seal. Then drive the new side oil seal in evenly to

the gear carrier using suitable tool.

CAUTION:

• Do not reuse side oil seal.

• Do not incline the new side oil seal when installing.

• Apply multi-purpose grease to the lips of the new side oil seal.

SPD527

PDIA0700E

SDIA2265E

SDIA2263E

FRONT FINAL DRIVE

DLN-233

< DISASSEMBLY AND ASSEMBLY >

[FRONT FINAL DRIVE: M205]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

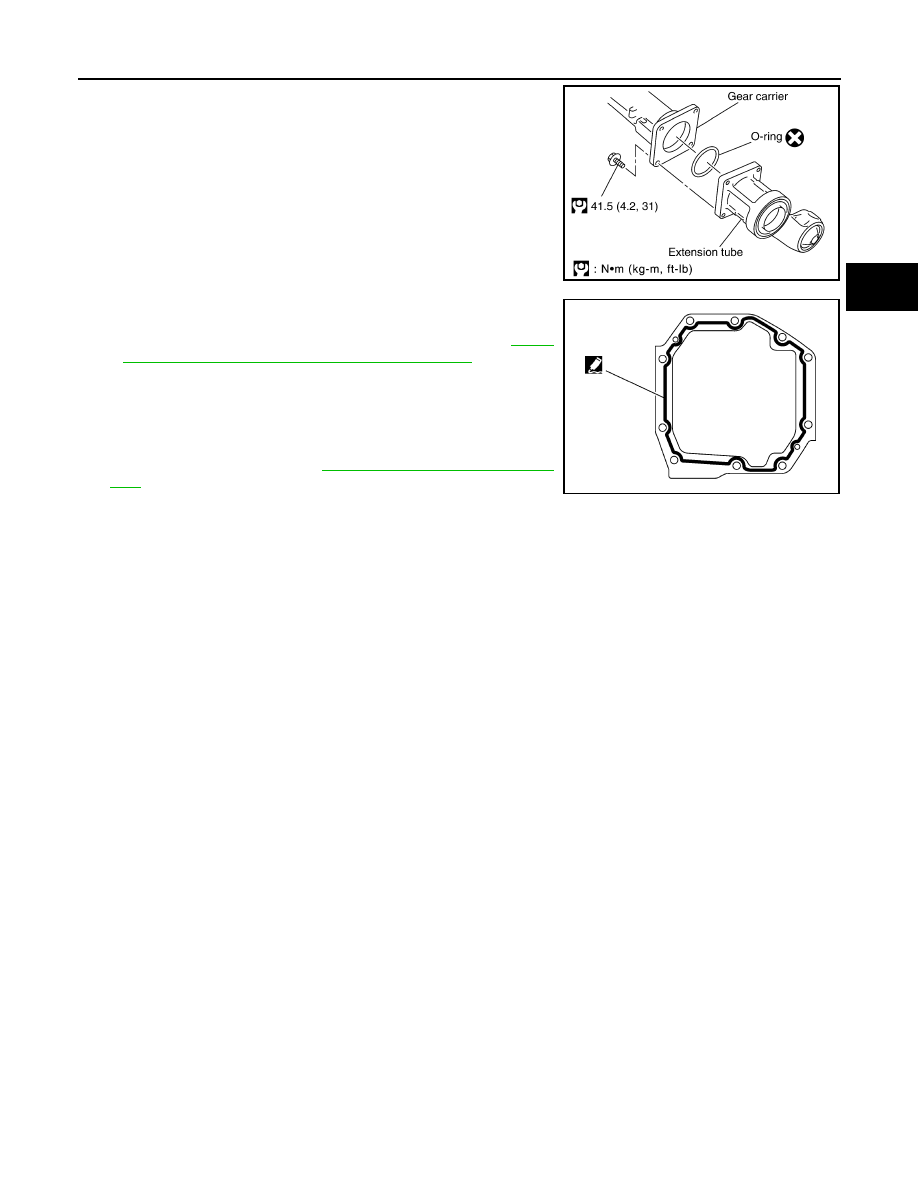

16. Install the extension tube with a new O-ring.

CAUTION:

• Do not reuse O-ring.

• If the extension tube is being replaced, install a new axle

shaft bearing.

17. Apply 3 mm (0.12 in) bead of sealant to the mating surface of

the carrier cover as shown.

• Use Genuine Silicone RTV or equivalent. Refer to

GI-15,

"Recommended Chemical Products and Sealants"

.

CAUTION:

Remove any old sealant adhering to the mating surfaces.

Also remove any moisture, oil, or foreign material adhering

to the application and mating surfaces.

18. Install the carrier cover to the gear carrier. Tighten the bolts to

the specified torque. Refer to

DLN-214, "Removal and Installa-

tion"

.

19. Install side shaft and side flange.

SDIA3205E

SDIA3204E

DLN-234

< SERVICE DATA AND SPECIFICATIONS (SDS)

[FRONT FINAL DRIVE: M205]

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

General Specification

INFOID:0000000005148923

Inspection and Adjustment

INFOID:0000000005148924

DRIVE GEAR RUNOUT

Unit: mm (in)

SIDE GEAR CLEARANCE

Unit: mm (in)

PRELOAD TORQUE

Unit: N·m (kg-m, in-lb)

BACKLASH

Unit: mm (in)

COMPANION FLANGE RUNOUT

Unit: mm (in)

SELECTIVE PARTS

Drive Pinion Height Adjusting Washer

Applied model

4WD

VK56DE

A/T

Final drive model

M205

Gear ratio

3.357

Number of teeth (Drive gear/Drive pinion)

47/14

Differential gear oil capacity (Approx.)

1.6   (3 3/8 US pt, 2 7/8 Imp pt)

Number of pinion gears

2

Drive pinion adjustment spacer type

Collapsible

Item

Limit

Drive gear back face

 0.08 (0.0031) or less

Item

Standard

Side gear back clearance (Clearance between side gear and dif-
ferential case for adjusting side gear backlash)

0.20 (0.0079) or less

(Each gear should rotate smoothly without excessive resistance

during differential motion.)

Item

Standard

Drive pinion bearing preload torque

2.3 - 3.4 (0.24 - 0.34, 21 - 30)

Total preload torque
(Total preload torque = drive pinion bearing preload torque + side
bearing preload torque).

2.98 - 4.76 (0.31 - 0.48, 27 - 42)

Item

Standard

Drive gear to drive pinion backlash

0.12 - 0.20 (0.0050 - 0.0078)

Item

Limit

Companion flange face

0.10 (0.0039) or less

Companion flange inner side

0.13 (0.0051) or less
