ON-VEHICLE REPAIR

PROPELLER SHAFT

On-Vehicle Service

INFOID:0000000005148907

APPEARANCE AND NOISE INSPECTION

• Check the propeller shaft tube surface for dents or cracks. If damaged, replace the propeller shaft assembly.

• Check the bearings for noise and damage. Repair or replace the bearings as necessary.

PROPELLER SHAFT VIBRATION

If a vibration is present at high speed, inspect the propeller shaft runout first.
1. Measure the runout of the propeller shaft tube at several points by rotating the final drive companion

flange with your hands.

2. If the runout exceeds specifications, disconnect the propeller

shaft at the final drive companion flange; then rotate the com-

panion flange 90

°, 180° and 270° and reconnect the propeller

shaft.

3. Check the runout again. If the runout still exceeds specifications,

replace the propeller shaft assembly.

4. After installation, check for vibration by driving vehicle.

Limit
Propeller shaft run out

: Refer to

DLN-201, "Gen-

eral Specification"

SDIA1781E

DLN-196

< REMOVAL AND INSTALLATION >

[PROPELLER SHAFT: 2S1410]

PROPELLER SHAFT

REMOVAL AND INSTALLATION

PROPELLER SHAFT

Removal and Installation

INFOID:0000000005148908

REMOVAL

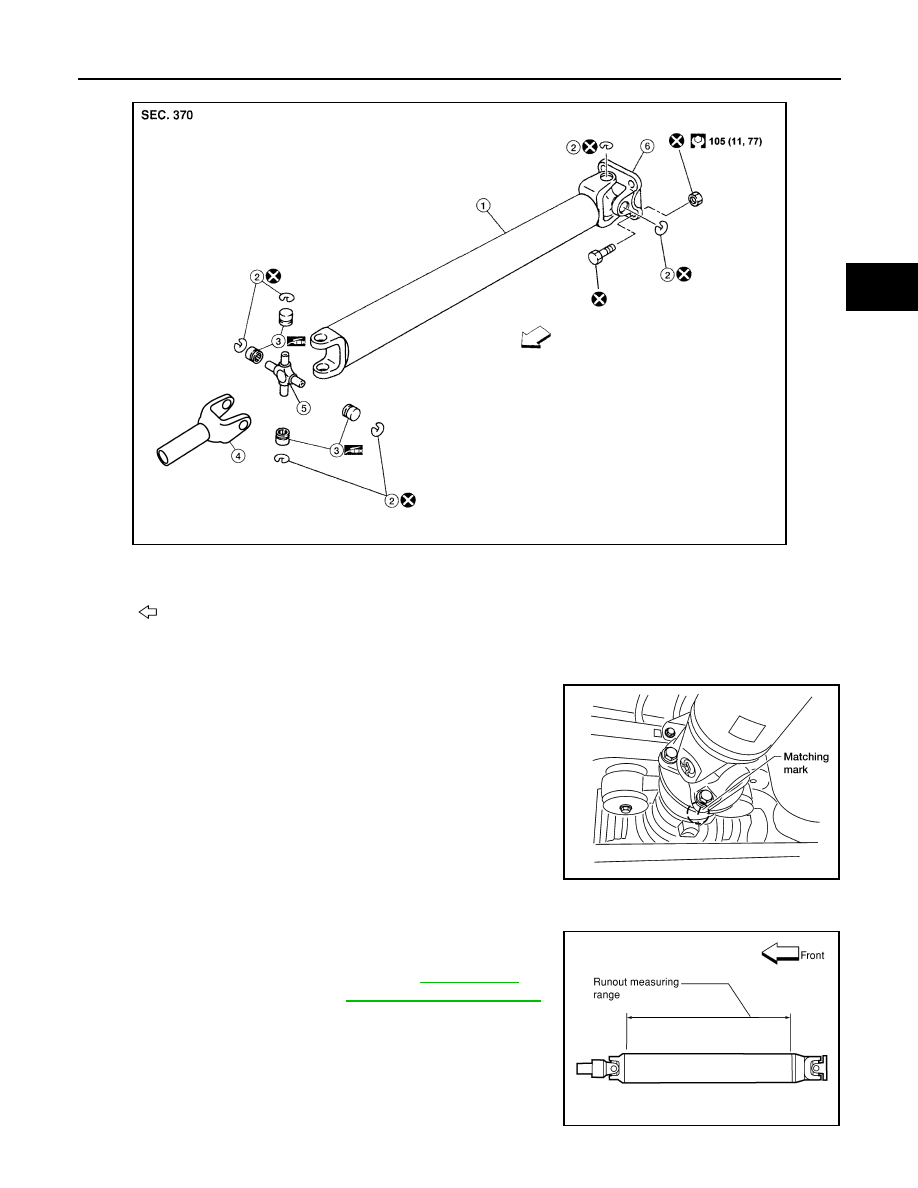

2WD

AWDIA0698GB

1.

Propeller shaft tube

2.

Snap ring

3.

Journal bearing

4.

Sleeve yoke

5.

Journal

6.

Flange yoke

Front

PROPELLER SHAFT

DLN-197

< REMOVAL AND INSTALLATION >

[PROPELLER SHAFT: 2S1410]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

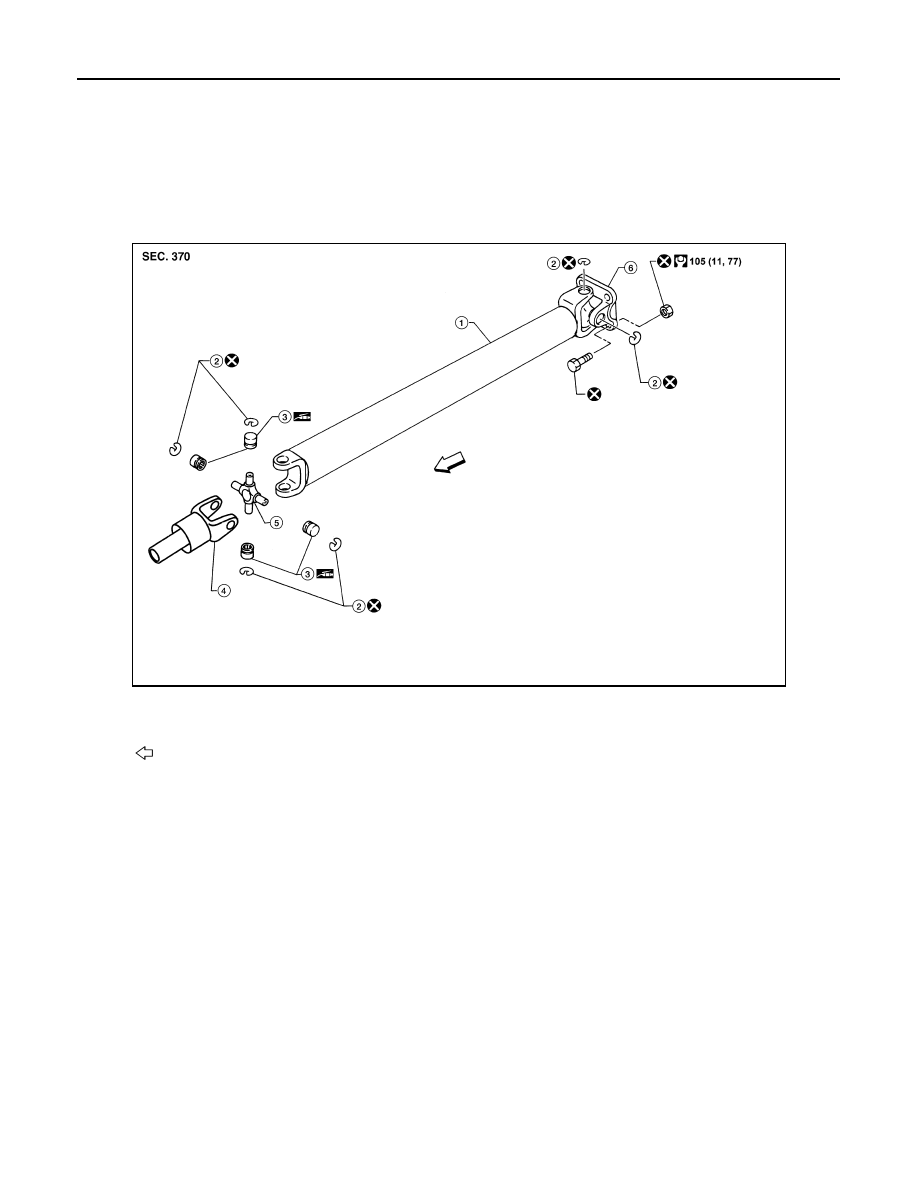

4WD

REMOVAL

1. Move the A/T select lever to the N position and release the parking brake.
2. Put matching marks on the rear propeller shaft flange yoke and

the rear final drive companion flange as shown.

CAUTION:

For matching marks, use paint. Never damage the rear pro-

peller shaft flange yoke or the companion flange.

3. Remove the bolts, then remove the propeller shaft from the rear

final drive and A/T or transfer.

INSPECTION

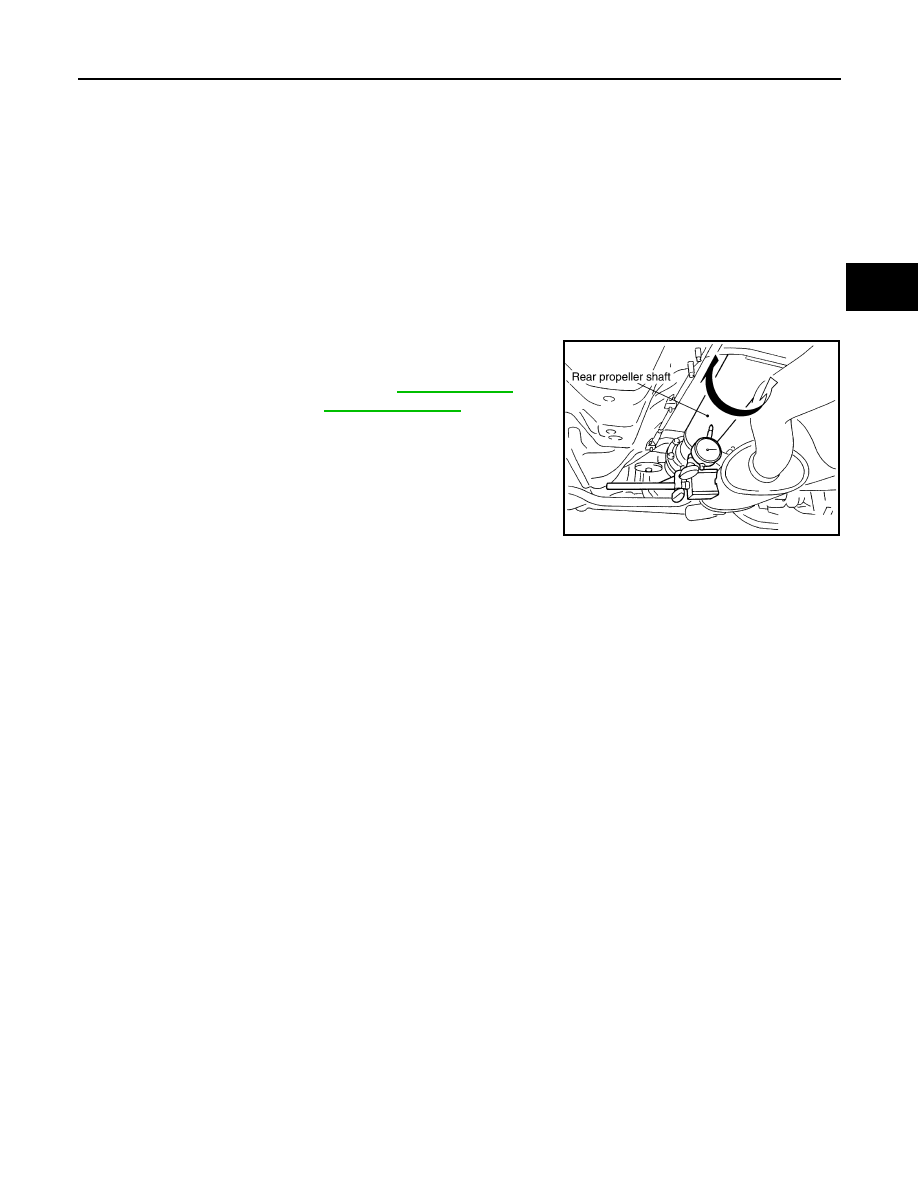

• Inspect the propeller shaft runout. If runout exceeds the limit, replace the propeller shaft assembly.

AWDIA0699GB

1.

Propeller shaft tube

2.

Snap ring

3.

Journal bearing

4.

Sleeve yoke

5.

Journal

6.

Flange yoke

Front

WDIA0049E

Limit
Propeller shaft run out

: Refer to

DLN-270, "In-

spection and Adjustment"

LDIA0121E

DLN-198

< REMOVAL AND INSTALLATION >

[PROPELLER SHAFT: 2S1410]

PROPELLER SHAFT

• While holding the flange yoke on one side, check axial play of the joint as shown. If the journal axial play

exceeds the specification, repair or replace the journal parts.

• Check the propeller shaft tube for dents or cracks. If damage is

detected, replace the propeller shaft assembly.

INSTALLATION

Installation is in the reverse order of removal.

• After installation, check for vibration by driving the vehicle. Refer to

DLN-194, "NVH Troubleshooting Chart"

.

• If propeller shaft assembly of final drive assembly has been

replaced, connect them as follows:

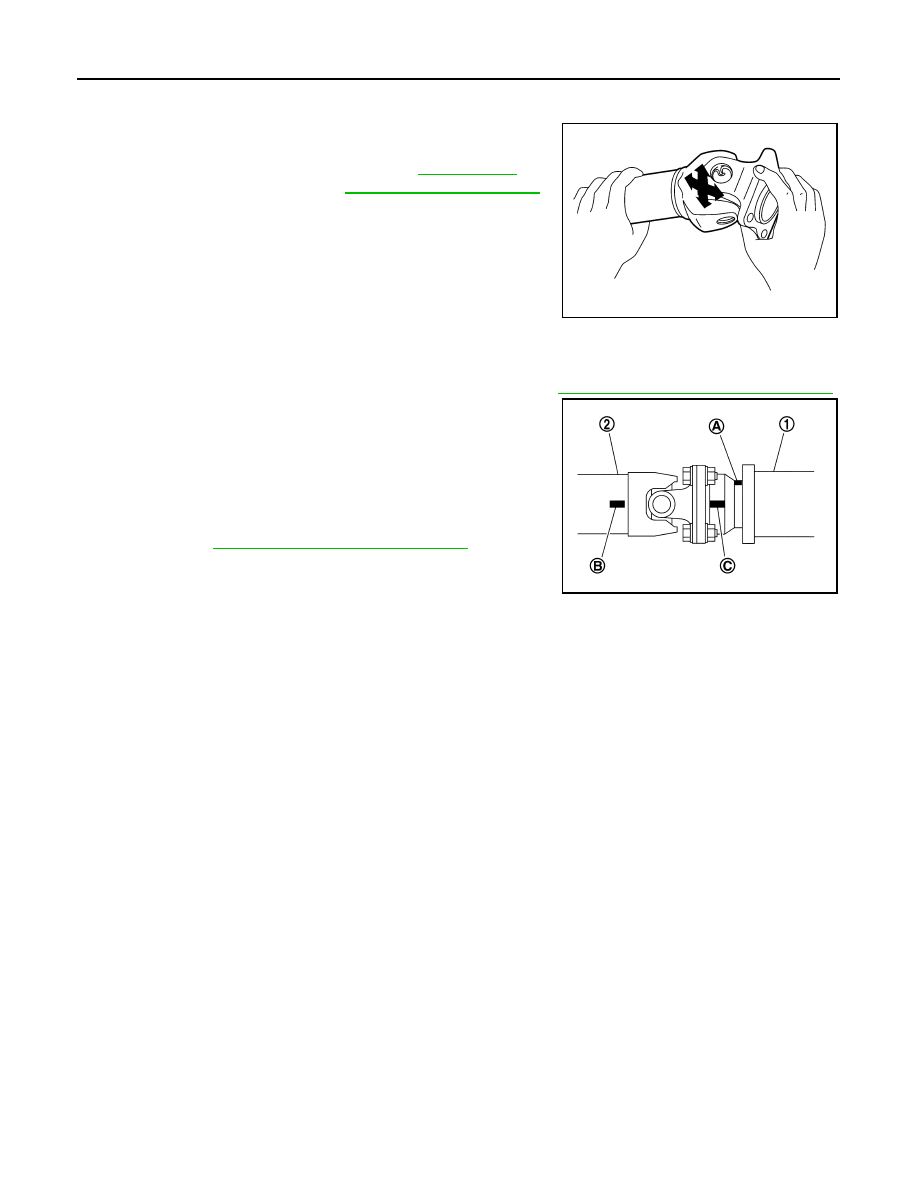

- Face companion flange mark (A) of the final drive (1) upward. With

the mark (A) faced upward, couple the propeller shaft and the final

drive so that the matching mark (B) of the propeller shaft (2) can be

positioned as close as possible with the matching mark (C) of the

final drive companion flange.

- Tighten propeller shaft and final drive bolts and nuts of the to spec-

ification. Refer to

DLN-196, "Removal and Installation"

.

CAUTION:

Do not reuse the bolts and nuts. Always install new ones.

Standard
Propeller shaft journal axi-
al play

: Refer to

DLN-270, "In-

spection and Adjustment"

LDIA0117E

PDIA0892J
