TRANSFER ASSEMBLY

DLN-175

< DISASSEMBLY AND ASSEMBLY >

[ATX14B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

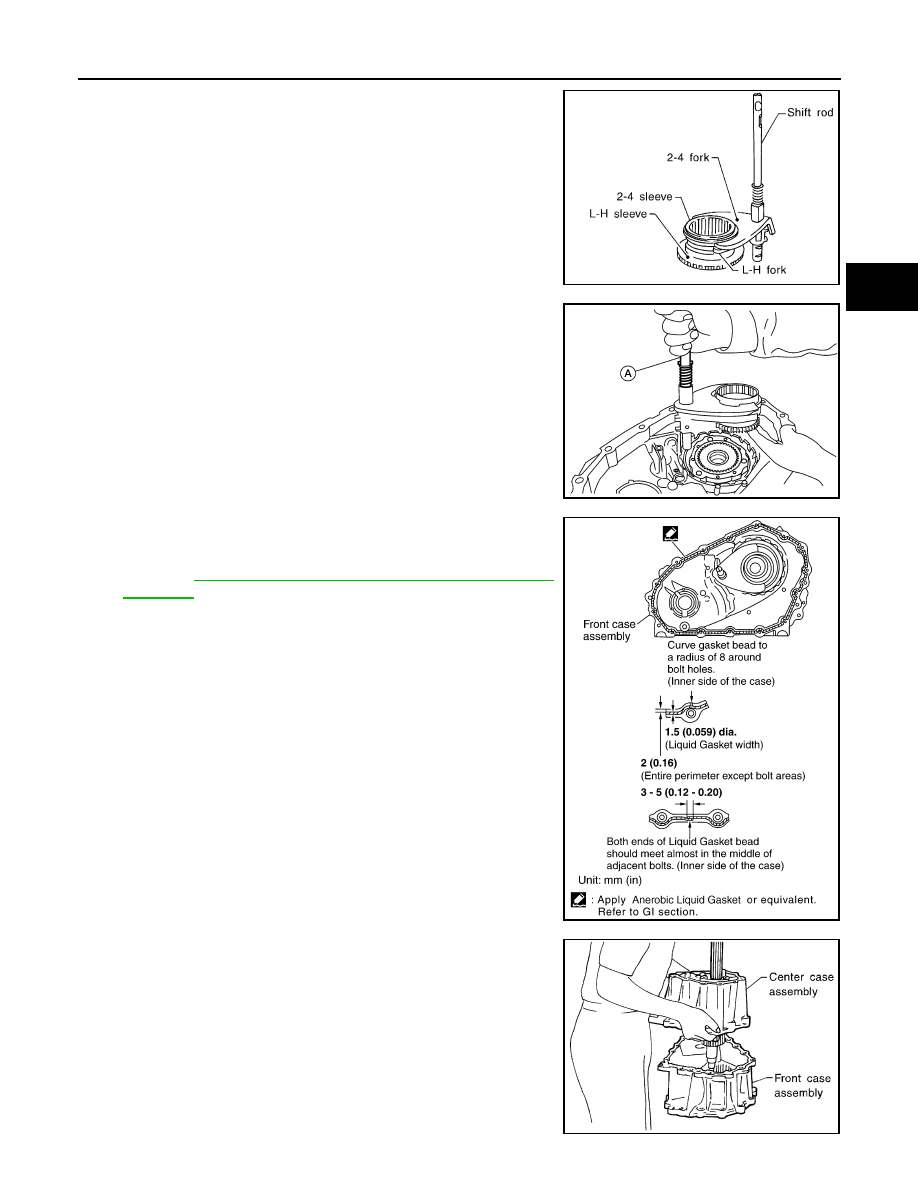

15. Install the 2-4 sleeve and L-H sleeve to each fork.
16. Install the shift cross to the front case.

17. While aligning the L-H sleeve with the planetary carrier, install

the shift rod assembly (A) to the front case.

18. Apply liquid gasket to the entire center case mating surface of

the front case assembly as shown.

• Use Genuine Anaerobic Liquid Gasket or equivalent.

Refer to

GI-15, "Recommended Chemical Products and

Sealants"

.

CAUTION:

Remove all foreign materials such as water, oil and grease

from center case and front case mating surfaces.

19. Install the center case assembly to the front case assembly.

CAUTION:

Do not damage mainshaft end.

20. Tap the center case lightly and press-fit the front drive shaft

bearing into the front case.

SMT992C

AWDIA0015ZZ

WDIA0157E

SDIA2138E

DLN-176

< DISASSEMBLY AND ASSEMBLY >

[ATX14B]

TRANSFER ASSEMBLY

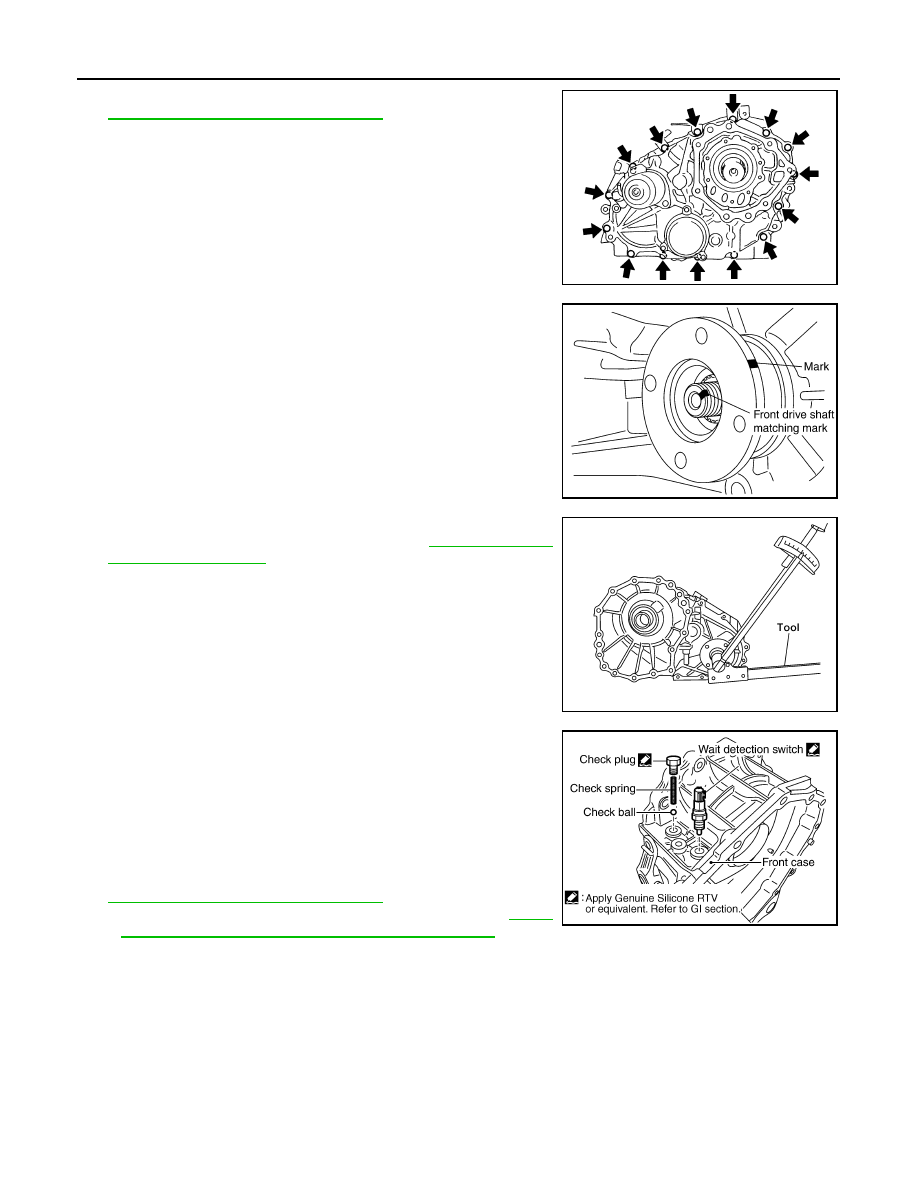

21. Tighten the front case bolts to the specified torque. Refer to

DLN-142, "Disassembly and Assembly"

.

CAUTION:

Be sure to install air breather hose clamp, connector

bracket and harness clip.

22. Install the drain plug with a new gasket.

CAUTION:

Do not reuse gasket.

23. Align the matching mark on the front drive shaft with the mark on

the companion flange, then install the companion flange.

24. Install a new companion flange self-lock nut. Tighten to the

specified torque using suitable tool. Refer to

DLN-142, "Disas-

sembly and Assembly"

.

CAUTION:

Do not reuse self-lock nut.

25. Remove all the sealant from the check plug, switch mounting

and front case.

CAUTION:

Remove old sealant adhering to mating surfaces. Also

remove any moisture, oil, or foreign material adhering to

application and mounting surfaces.

26. Install the check ball and check spring to the front case. Apply

sealant to the check plug and wait detection switch and install

them to the front case. Tighten to the specified torque. Refer to

DLN-142, "Disassembly and Assembly"

.

• Use Genuine Silicone RTV or equivalent. Refer to

GI-15,

"Recommended Chemical Products and Sealants"

.

NOTE:

Wait detection switch harness connector is black.

SDIA2100E

SDIA2779E

WDIA0219E

WDIA0158E

TRANSFER ASSEMBLY

DLN-177

< DISASSEMBLY AND ASSEMBLY >

[ATX14B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

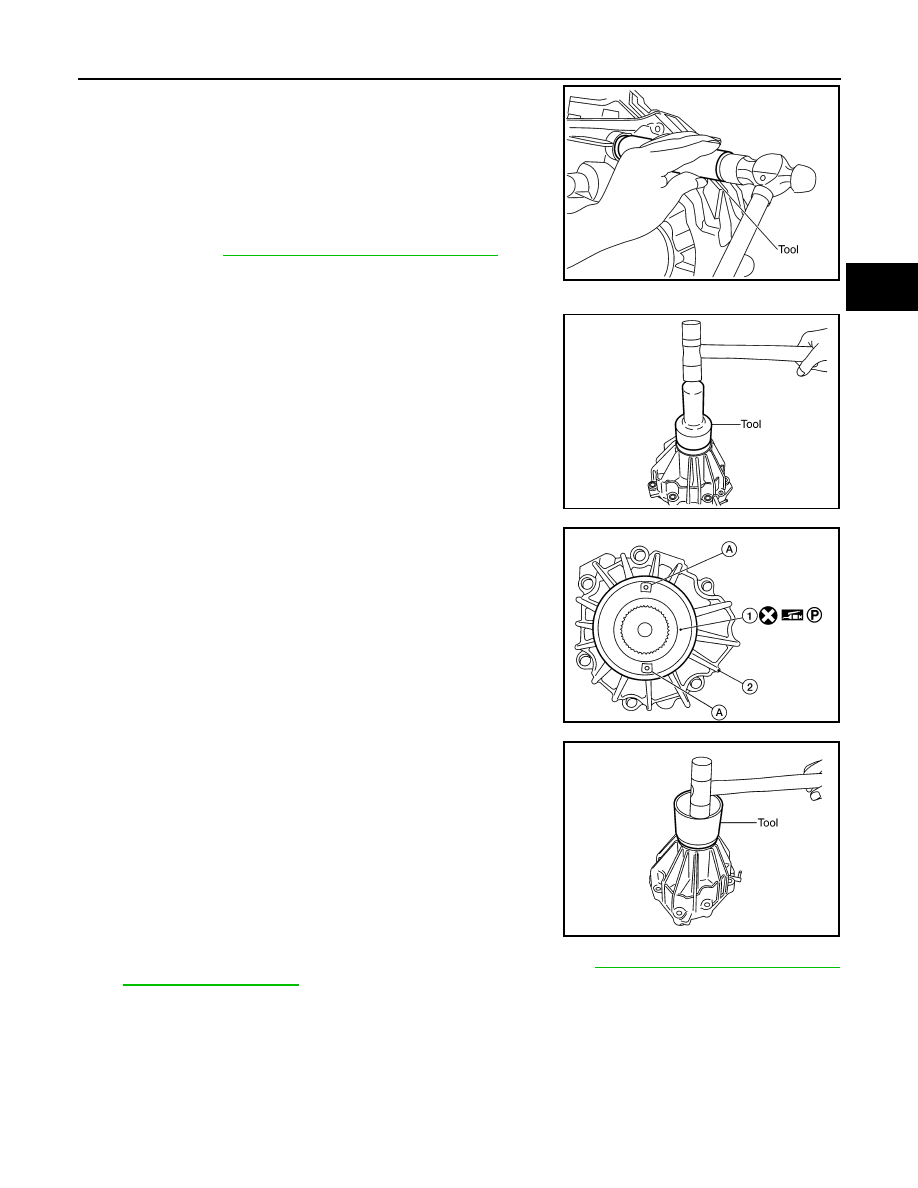

27. Install the new oil seal in the front case using Tool.

CAUTION:

• Do not reuse oil seal.

• Apply petroleum jelly to seal lip before installing.

28. Install the shift lever to the shift cross.
29. Install the lock pin and lock pin nut. Tighten to the specified

torque. Refer to

DLN-142, "Disassembly and Assembly"

.

Rear Case

1. Apply petroleum jelly to the circumference of the new rear oil

seal. Install the new rear oil seal so that it is flush with the case

tip face using Tool.

CAUTION:

• Do not reuse oil seal.

• Apply petroleum jelly to seal lip before installing.

2. Apply petroleum jelly to the circumference of the new dust cover

(1). Position the new dust cover with protrusions (A) as shown.

• Rear case (2)

CAUTION:

• Do not reuse dust cover.

• Position the projection in the position as shown.

3. Install the new dust cover using Tool.

4. Install the air breather into the rear case.
5. Remove all the sealant from the rear case to center case mating

surfaces.

CAUTION:

Remove all foreign materials such as water, oil, and grease

from center case and rear case mating surfaces.

6. Apply liquid gasket to the entire rear case mating surface of the

center case.

• Use Genuine Anaerobic Liquid Gasket or equivalent. Refer to

GI-15, "Recommended Chemical

Products and Sealants"

.

CAUTION:

Do not to allow Liquid Gasket to enter stem bleeder hole.

Tool number

: ST22360002 (J-25679-01)

SDIA2182E

Tool number

: ST30720000 (J-25405)

SDIA2204E

AWDIA0550GB

Tool number

: KV40105310 ( — )

SDIA2205E

DLN-178

< DISASSEMBLY AND ASSEMBLY >

[ATX14B]

TRANSFER ASSEMBLY

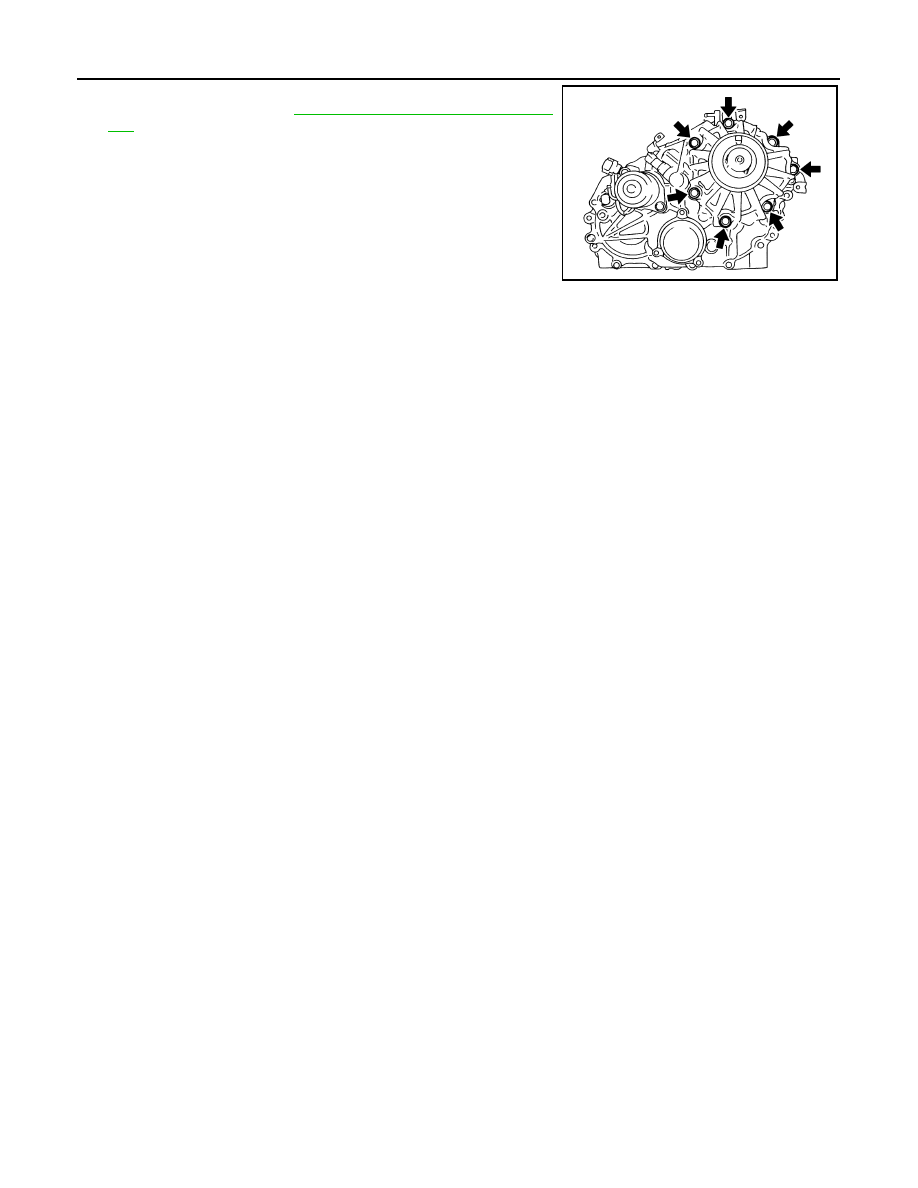

7. Install the rear case to the center case. Tighten the bolts to the

specified torque. Refer to

DLN-142, "Disassembly and Assem-

bly"

.

SDIA2092E
