Infiniti QX56 (JA60). Manual - part 311

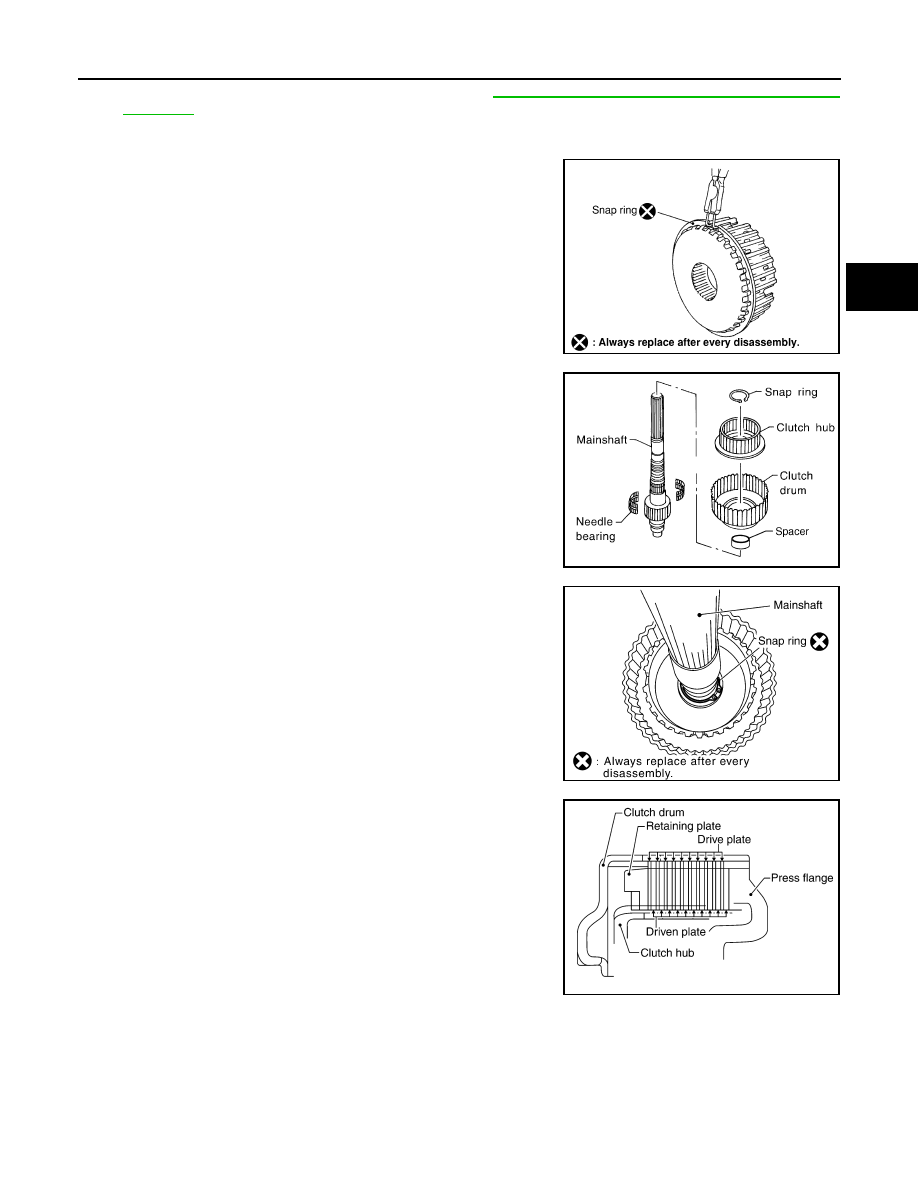

TRANSFER ASSEMBLY

DLN-167

< DISASSEMBLY AND ASSEMBLY >

[ATX14B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

• Use Genuine Silicone RTV or equivalent. Refer to

GI-15, "Recommended Chemical Products and

Sealants"

.

CAUTION:

Do not reuse oil pressure check plug.

20. Install the new snap ring to the clutch hub using suitable tool.

CAUTION:

Do not reuse snap ring.

21. Apply petroleum jelly to the needle bearing, and install the nee-

dle bearing, spacer, clutch drum and clutch hub to the main-

shaft.

22. Install the new snap ring to the mainshaft.

CAUTION:

Do not reuse snap rings.

23. Apply ATF each plate, then install them into the clutch drum as

shown.

WDIA0101E

WDIA0129E

SDIA2192E

SDIA2193E

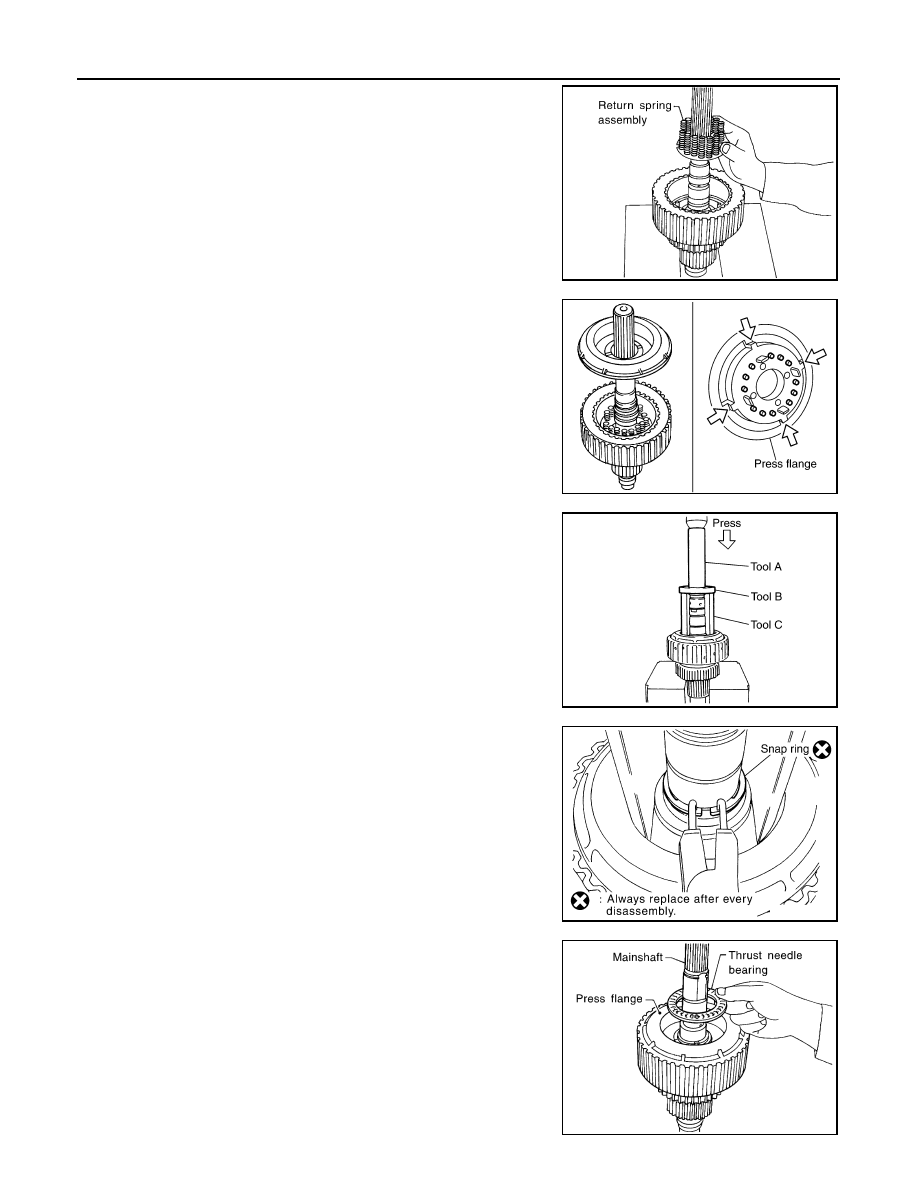

DLN-168

< DISASSEMBLY AND ASSEMBLY >

[ATX14B]

TRANSFER ASSEMBLY

24. Install the return spring assembly into the clutch hub.

25. Install the press flange by aligning the notches to the clutch hub

as shown.

26. Press the press flange to install the new snap ring into snap ring

groove on mainshaft using Tools.

CAUTION:

Do not reuse snap ring.

27. Install the new snap ring to the mainshaft using suitable tool.

CAUTION:

Do not reuse snap ring.

28. Apply ATF to the thrust needle bearing and install it on the press

flange.

SMT911C

SDIA2194E

Tool number

A: ST22452000 (J-34335)
B: ST30911000 ( — )
C: KV31103300 ( — )

SDIA2111E

SDIA2112E

SDIA2109E

TRANSFER ASSEMBLY

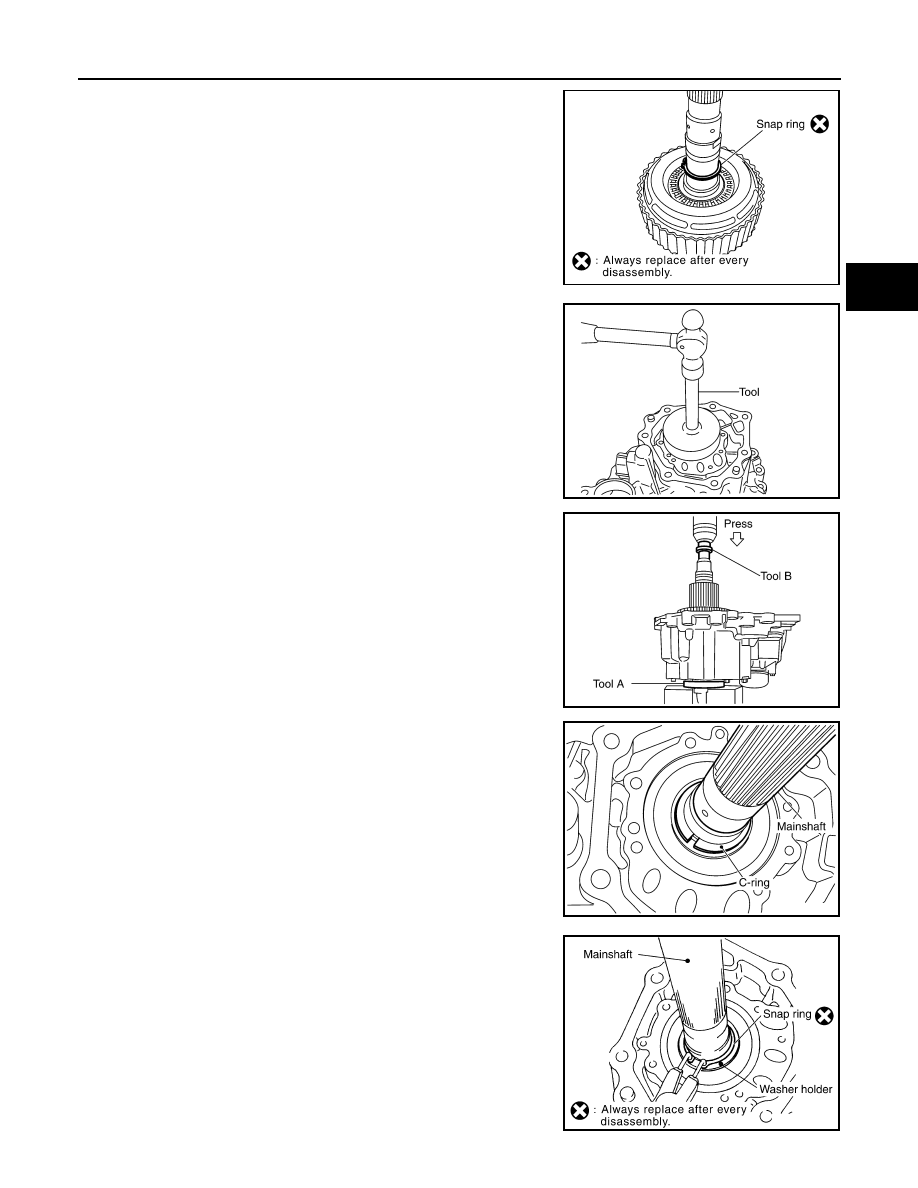

DLN-169

< DISASSEMBLY AND ASSEMBLY >

[ATX14B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

29. Install the new snap ring to the main shaft.

CAUTION:

Do not reuse snap ring.

30. Install the mainshaft rear bearing to the center case using Tool.

31. Install the mainshaft assembly using a press.

• Press the mainshaft into the center case using Tools.

32. Install the C-rings to the mainshaft.

33. Set the washer holder on the mainshaft, and secure it with a

new snap ring.

CAUTION:

Do not reuse snap ring.

SDIA2195E

Tool number

: ST15310000 (J-25640-B)

SDIA2196E

Tool number

A: ST30911000 ( — )
B: ST33052000 ( — )

SDIA2197E

SDIA2201E

SDIA2104E

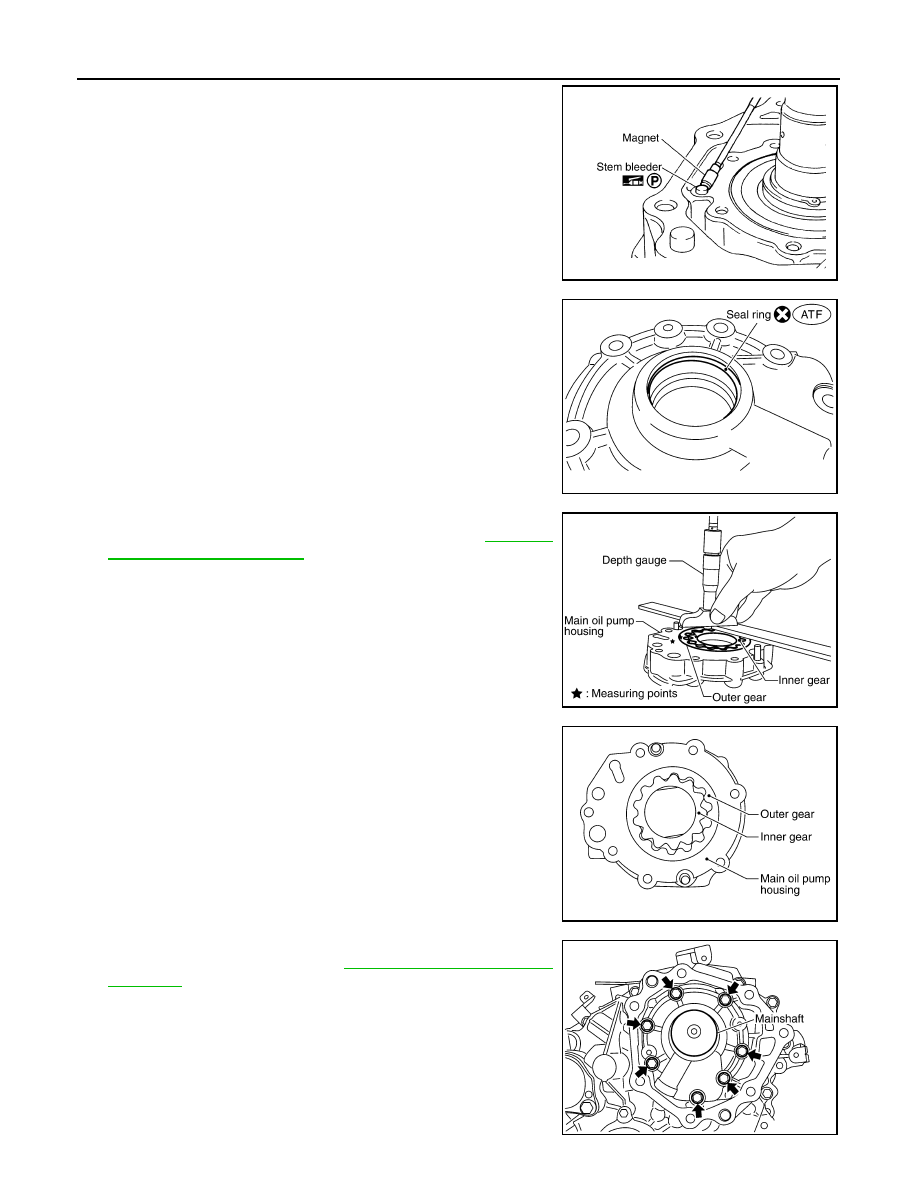

DLN-170

< DISASSEMBLY AND ASSEMBLY >

[ATX14B]

TRANSFER ASSEMBLY

34. Apply petroleum jelly to the stem bleeder and install it to the cen-

ter case.

35. Apply ATF to the new seal ring and install it to the main oil pump

cover.

CAUTION:

Do not reuse seal ring.

36. Install the inner gear and outer gear in the main oil pump hous-

ing. Then, measure the side clearance. Refer to

DLN-179,

"Inspection and Adjustment"

.

37. Install the main oil pump housing, outer gear and inner gear to

the center case.

38. Install the main oil pump cover to the center case, and tighten to

the specified torque. Refer to

DLN-142, "Disassembly and

Assembly"

.

SDIA2780E

SDIA2783E

SDIA2174E

SDIA2188E

SDIA2130E
