Infiniti QX56 (JA60). Manual - part 306

TRANSFER ASSEMBLY

DLN-147

< DISASSEMBLY AND ASSEMBLY >

[ATX14B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

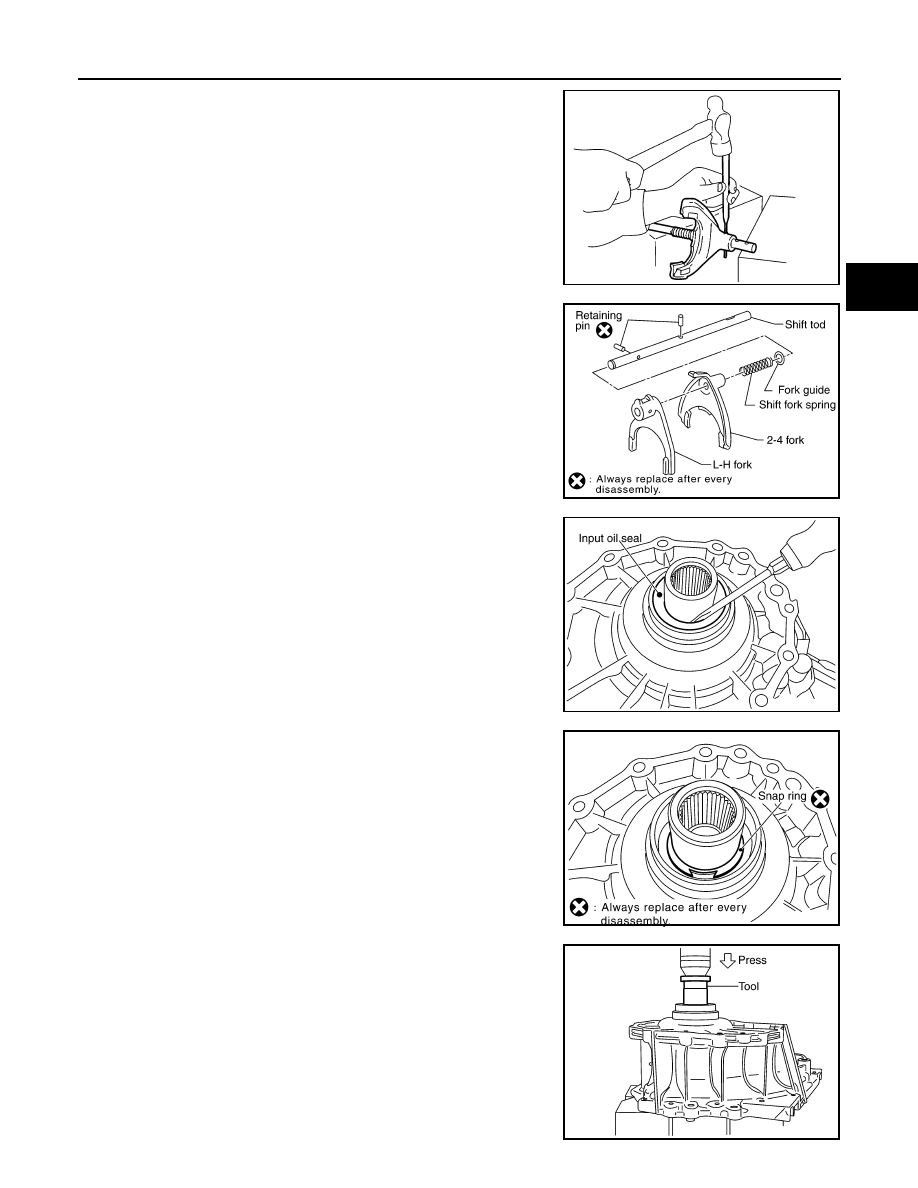

17. Drive out the retaining pin from the shift rod using suitable tool.

18. Remove the L-H fork, 2-4 fork, shift fork spring and fork guide

from the shift rod.

19. Remove the input oil seal from the front case using suitable tool.

CAUTION:

Do not damage front case or sun gear.

20. Remove the snap ring from the sun gear.

CAUTION:

Do not damage front case or sun gear.

21. Remove the sun gear assembly and planetary carrier assembly

from the front case using Tool.

WDIA0134E

SDIA2142E

SDIA3382E

SDIA2144E

Tool number

: ST35300000 ( — )

SDIA2145E

DLN-148

< DISASSEMBLY AND ASSEMBLY >

[ATX14B]

TRANSFER ASSEMBLY

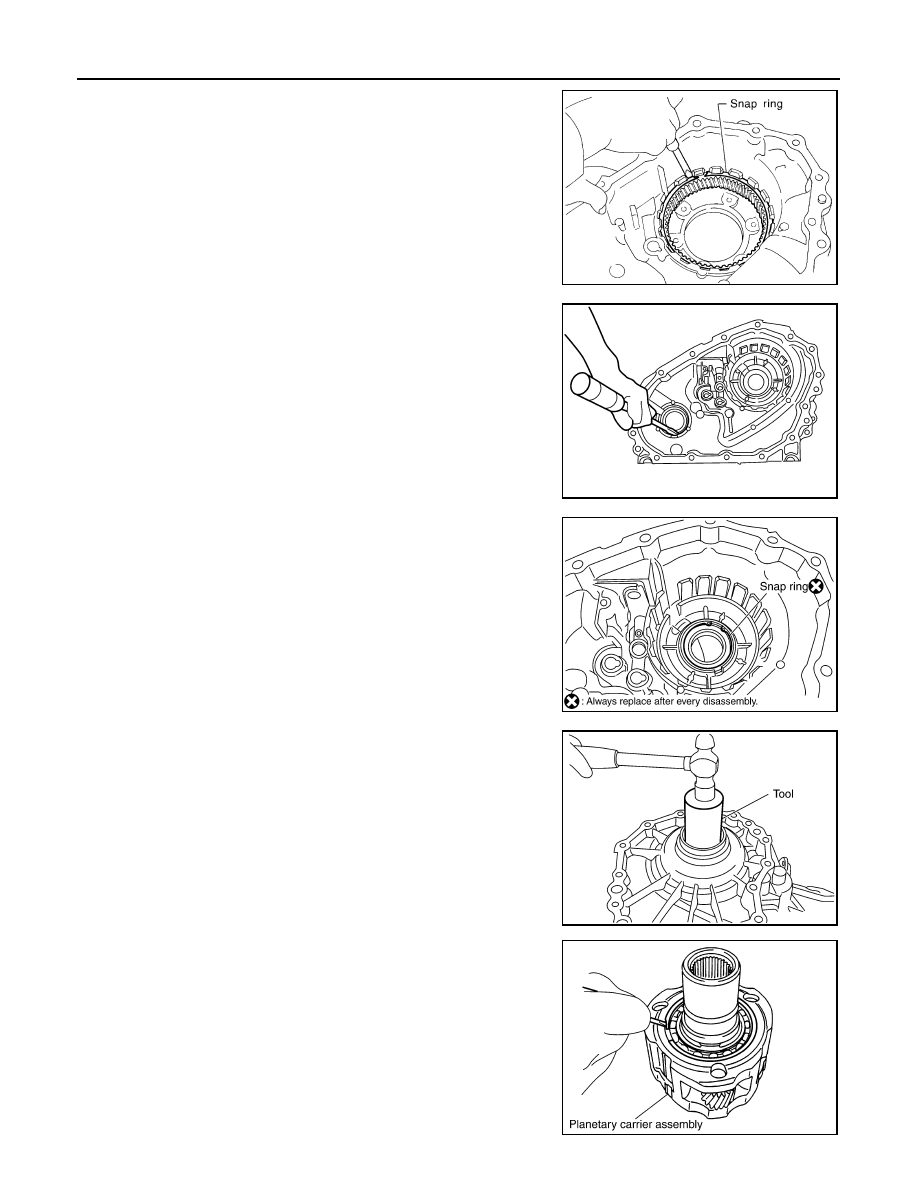

22. Remove the snap ring and internal gear using suitable tool.

23. Remove the front oil seal using suitable tool.

CAUTION:

Do not damage front case.

24. Remove the snap ring from the front case.

25. Remove the input bearing from the front case using Tool.

26. Remove the snap ring from the planetary carrier assembly using

suitable tool.

SMT004D

SDIA2170E

SDIA2171E

Tool number

: ST33200000 (J-26082)

SDIA2178E

SDIA2792E

TRANSFER ASSEMBLY

DLN-149

< DISASSEMBLY AND ASSEMBLY >

[ATX14B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

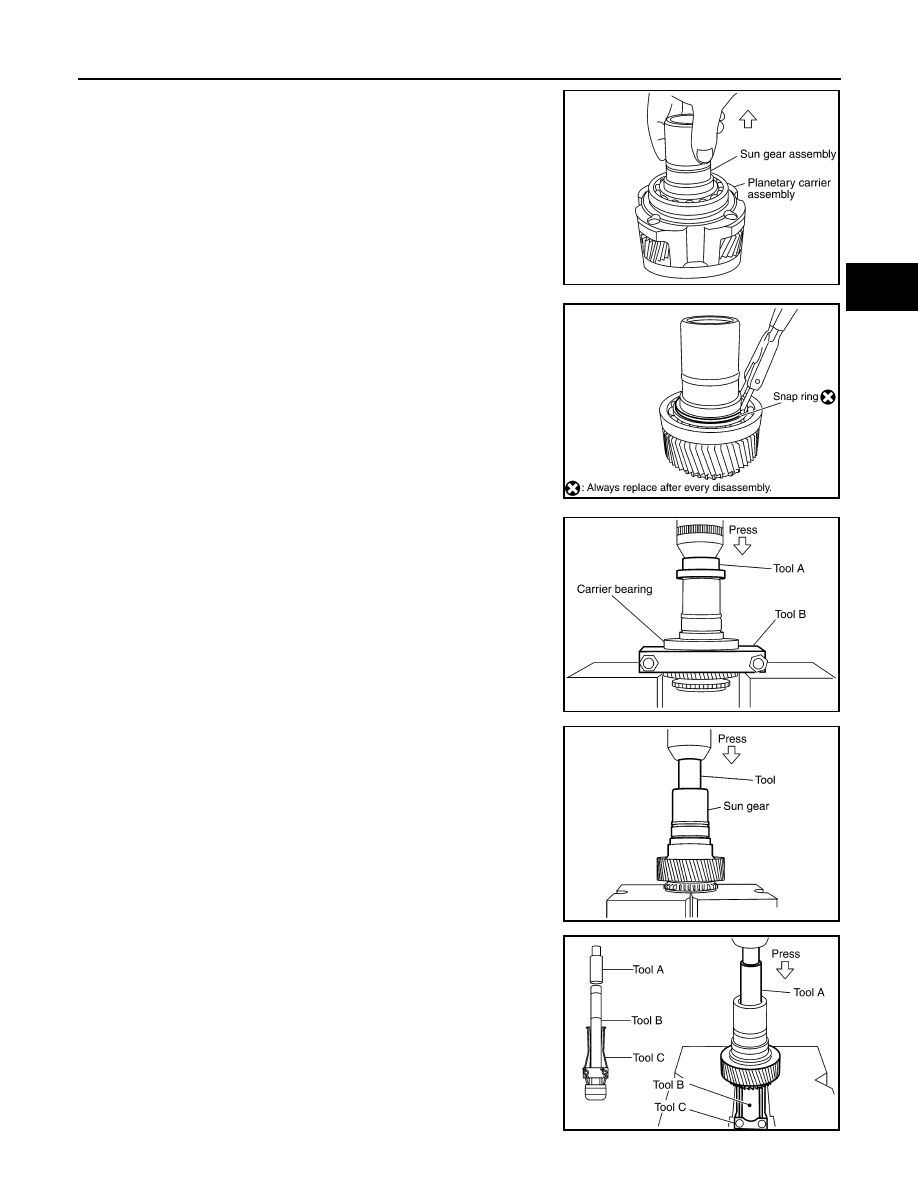

27. Remove the sun gear assembly from the planetary carrier

assembly.

28. Remove the snap ring from the sun gear assembly using suit-

able tool.

29. Remove the carrier bearing from the sun gear using Tools.

30. Remove the needle bearing from the sun gear using Tool.

31. Remove the metal bushing from the sun gear using Tools.

SDIA2147E

SDIA2148E

Tool number

A: ST35300000 ( — )
B: ST30031000 ( — )

SDIA2149E

Tool number

: ST33710000 ( — )

SDIA2354E

Tool number

A: ST33710000 ( — )
B: ST35325000 ( — )
C: KV381054S0 (J-34286)

SDIA2168E

DLN-150

< DISASSEMBLY AND ASSEMBLY >

[ATX14B]

TRANSFER ASSEMBLY

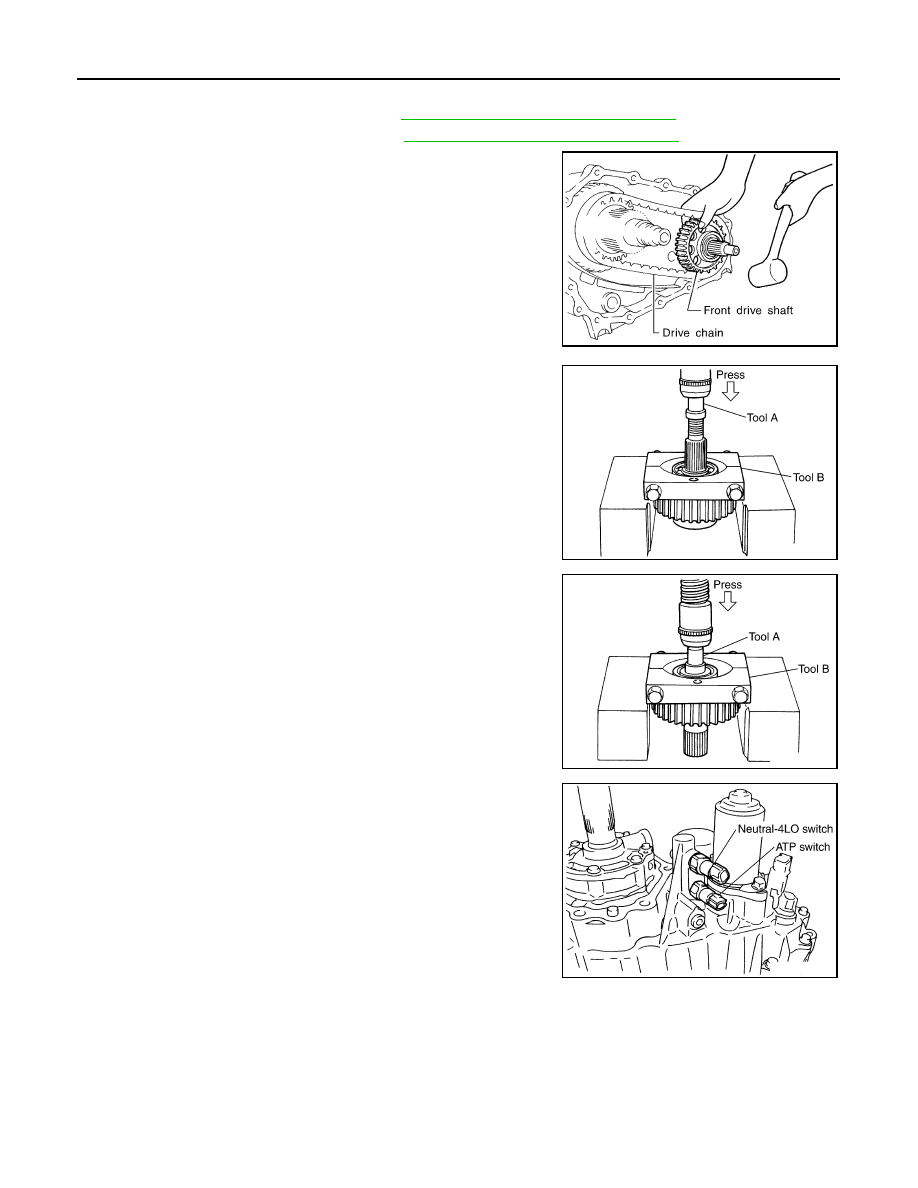

Center Case

1. Remove the rear case assembly. Refer to

DLN-142, "Disassembly and Assembly"

.

2. Remove the front case assembly. Refer to

DLN-142, "Disassembly and Assembly"

.

3. Hold the front drive shaft with one hand and tap to remove the

front drive shaft with the drive chain.

CAUTION:

Do not tap drive chain.

4. Remove the front drive shaft front bearing using Tools.

5. Remove the front drive shaft rear bearing using Tools.

6. Remove the neutral-4LO and ATP switches.

SMT900C

Tool number

A: ST33052000 ( — )
B: ST30031000 ( — )

SDIA2106E

Tool number

A: ST33052000 ( — )
B: ST30031000 ( — )

SDIA2107E

SDIA2096E
