TRANSFER OIL FILTER

DLN-127

< ON-VEHICLE MAINTENANCE >

[ATX14B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

ON-VEHICLE MAINTENANCE

TRANSFER OIL FILTER

Removal and Installation

INFOID:0000000005148884

REMOVAL

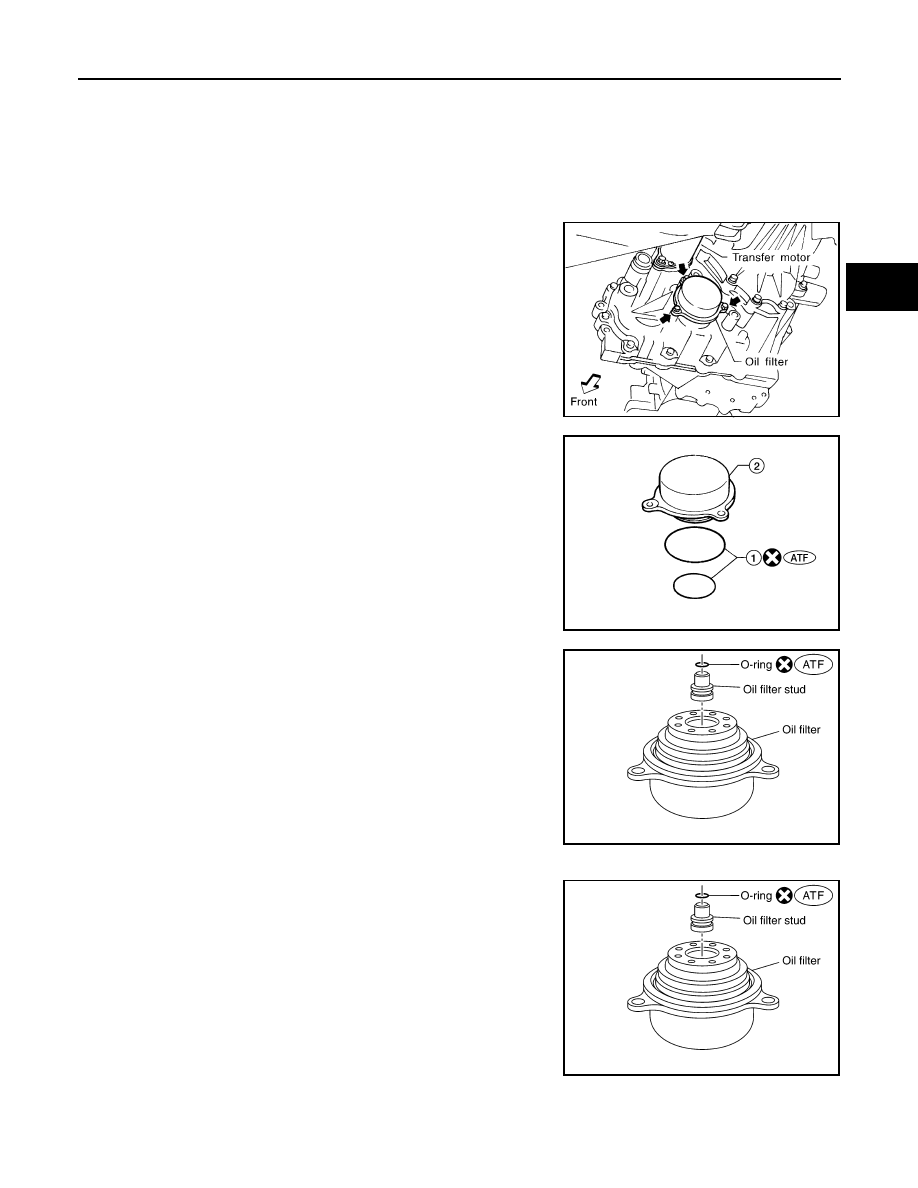

1. Remove the oil filter bolts and oil filter.

CAUTION:

• Do not damage center case or oil filter.

• Loosen bolts and detach oil filter evenly.

2. Remove the O-rings (1) from the oil filter (2).

3. Remove the oil filter stud from the oil filter.
4. Remove the O-ring from the oil filter stud.

INSTALLATION

1. Apply ATF to the new O-ring, and install it on the oil filter stud.

CAUTION:

Do not reuse O-ring.

2. Install the oil filter stud to the oil filter.

SMT875C

WDIA0285E

SDIA3180E

SDIA3180E

DLN-128

< ON-VEHICLE MAINTENANCE >

[ATX14B]

TRANSFER OIL FILTER

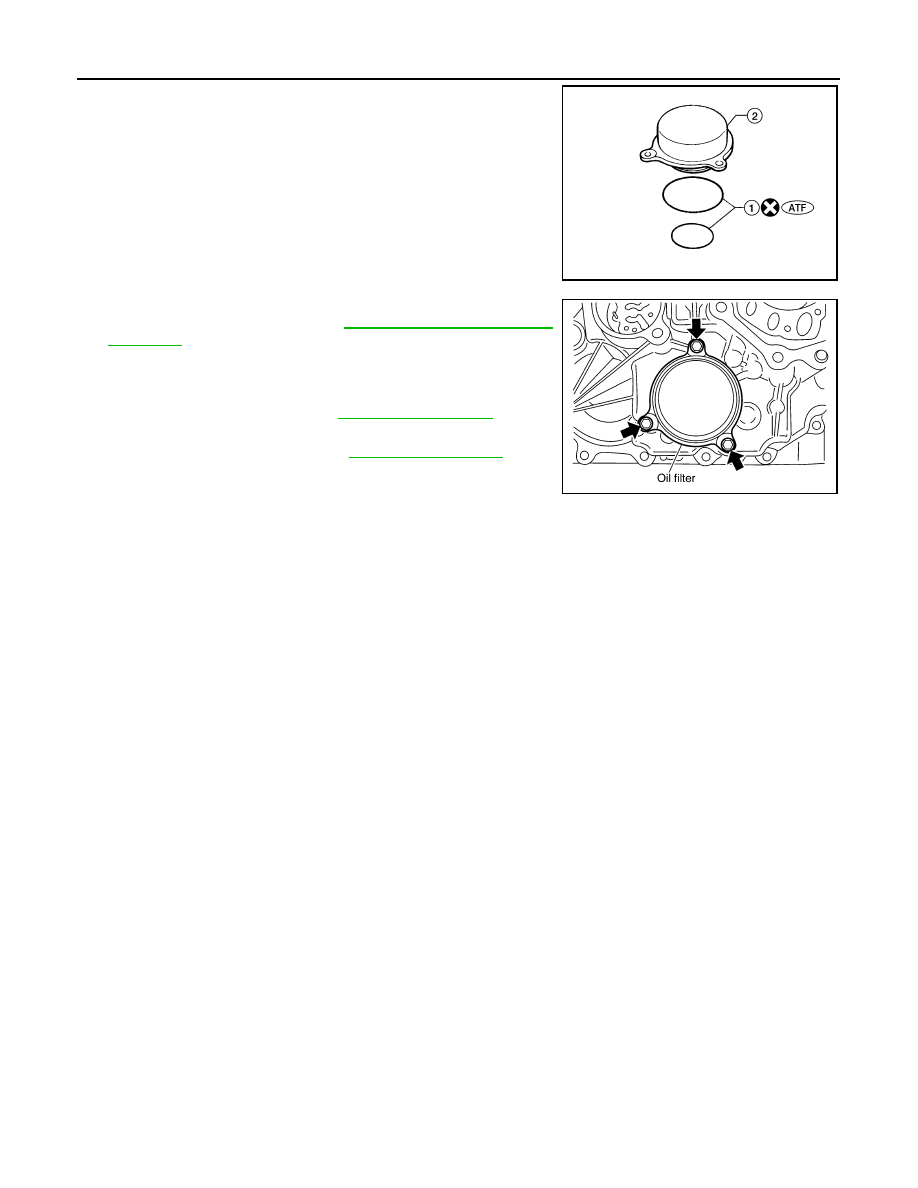

3. Apply ATF to the two new O-rings (1), and install them on the oil

filter (2).

CAUTION:

Do not reuse O-rings.

4. Install the oil filter to the transfer assembly. Tighten the bolts to

the specified torque. Refer to

DLN-142, "Disassembly and

Assembly"

.

CAUTION:

• Do not damage oil filter.

• Attach oil filter and tighten bolts evenly.

5. Check the transfer fluid. Refer to

DLN-129, "Inspection"

.

6. Start the engine for one minute. Then stop the engine and

recheck the transfer fluid. Refer to

DLN-129, "Inspection"

.

WDIA0285E

SDIA2136E

TRANSFER FLUID

DLN-129

< ON-VEHICLE MAINTENANCE >

[ATX14B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

TRANSFER FLUID

Replacement

INFOID:0000000005148885

CAUTION:

If using the vehicle for towing, the transfer fluid must be replaced as specified. Refer to

MA-9, "Intro-

duction of Periodic Maintenance"

.

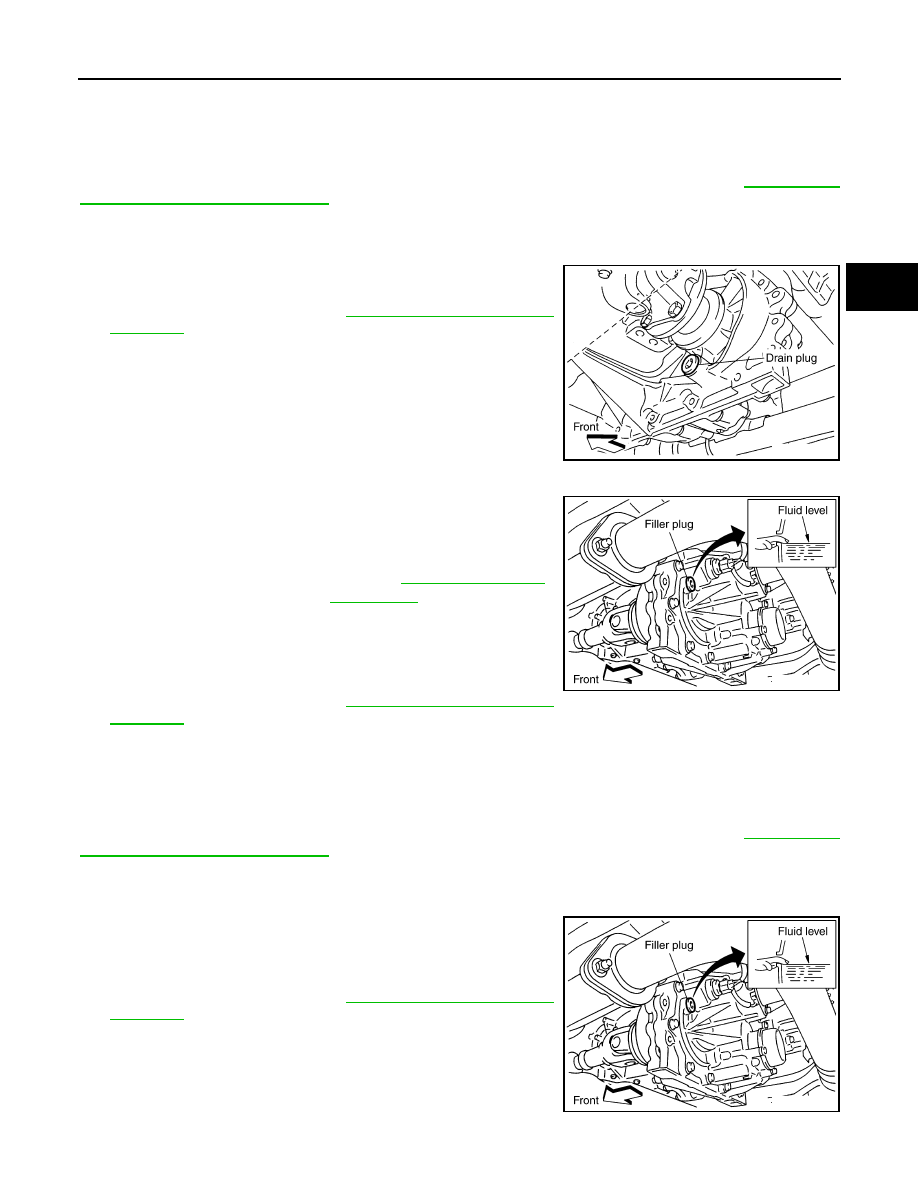

DRAINING

1. Stop engine.
2. Remove the drain plug and gasket and drain the fluid.
3. Install the drain plug with a new gasket to the transfer. Tighten to

the specified torque. Refer to

DLN-142, "Disassembly and

Assembly"

.

CAUTION:

Do not reuse gasket.

FILLING

1. Remove the filler plug and gasket.
2. Fill the transfer with new fluid until the fluid level reaches the

specified limit near the filler plug hole.

CAUTION:

Carefully fill fluid. (Fill up for approx. 3 minutes.)

3. Leave the vehicle for 3 minutes, and check fluid level again.
4. Install the filler plug with a new gasket to the transfer. Tighten to

the specified torque. Refer to

DLN-142, "Disassembly and

Assembly"

.

CAUTION:

Do not reuse gasket.

Inspection

INFOID:0000000005148886

CAUTION:

If using the vehicle for towing, the transfer fluid must be replaced as specified. Refer to

MA-9, "Intro-

duction of Periodic Maintenance"

.

FLUID LEAKAGE AND FLUID LEVEL

1. Make sure that fluid is not leaking from the transfer assembly or around it.
2. Check fluid level from the filler plug hole as shown.

CAUTION:

Do not start engine while checking fluid level.

3. Install the filler plug with a new gasket to the transfer. Tighten to

the specified torque. Refer to

DLN-142, "Disassembly and

Assembly"

.

CAUTION:

Do not reuse gasket.

SDIA3208E

Fluid grade and capacity : Refer to

MA-13, "Fluids and

Lubricants"

.

SDIA3209E

SDIA3209E

DLN-130

< ON-VEHICLE REPAIR >

[ATX14B]

TRANSFER CONTROL UNIT

ON-VEHICLE REPAIR

TRANSFER CONTROL UNIT

Removal and Installation

INFOID:0000000005148887

REMOVAL

1. Set transfer state as 2WD when 4WD shift switch is at 2WD, or as AUTO when 4WD shift switch is at

AUTO.

CAUTION:

When removing transfer control unit, transfer state must be at 2WD or AUTO.

2. Turn the ignition switch OFF and disconnect negative battery terminal.
3. Remove the lower instrument panel RH. Refer to

IP-17, "Exploded View"

.

4. Disconnect the two transfer control unit connectors.
5. Remove the transfer control unit bolts.
6. Remove the transfer control unit.

INSTALLATION

Installation is in the reverse order of removal.

• When installing the transfer control unit, tighten bolts to the specified torque.

CAUTION:

Do not connect harness connector to transfer control unit when 4WD shift switch is at 4LO.

• After the installation, check perform self-diagnosis. Refer to

DLN-6, "Work Flow"

. If NG, adjust position

between transfer assembly and transfer control unit. Refer to

DLN-121, "Precaution for Transfer Assembly

and Transfer Control Unit Replacement"

.

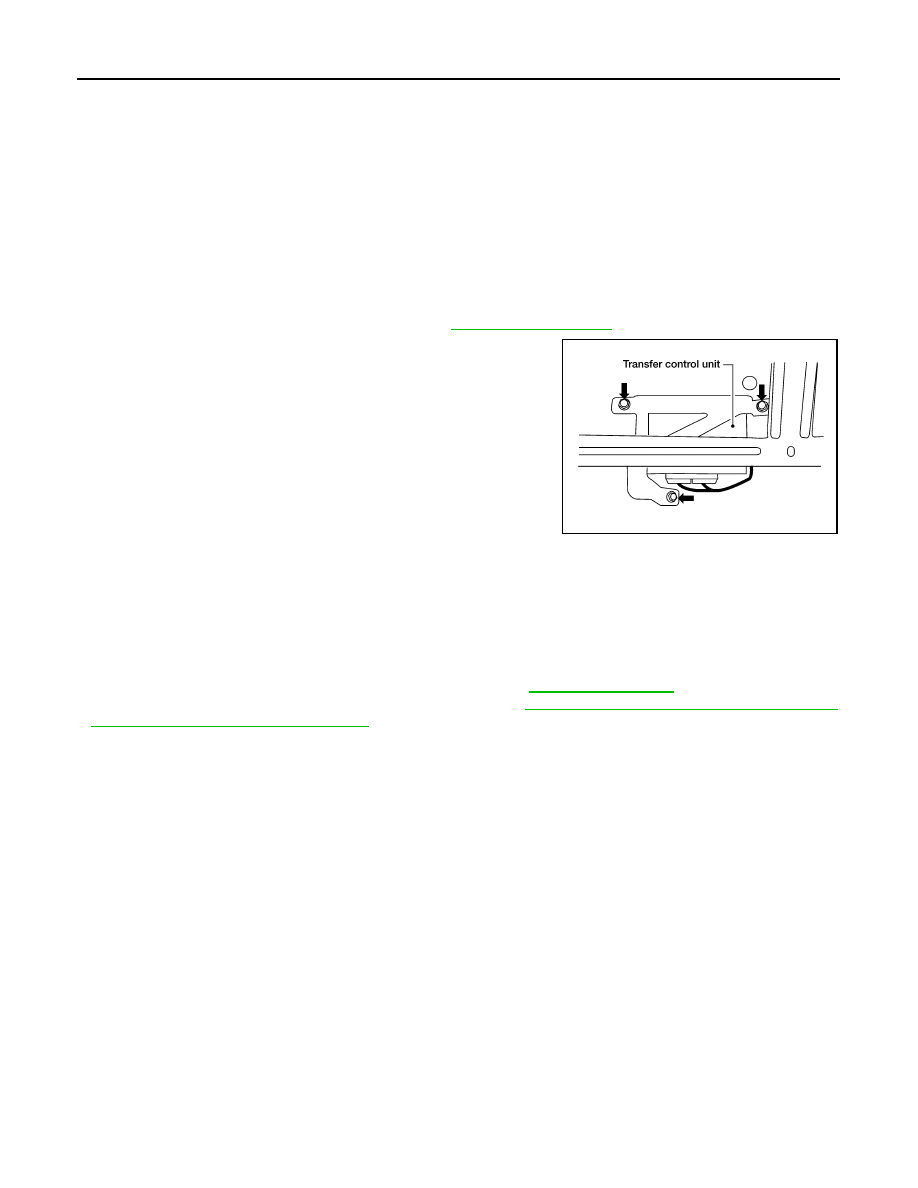

BDIA0014E

Transfer control unit bolts : 3.4 N·m (0.35 kg-m, 30 in-lb)
