PREPARATION

DLK-231

< PREPARATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

PREPARATION

PREPARATION

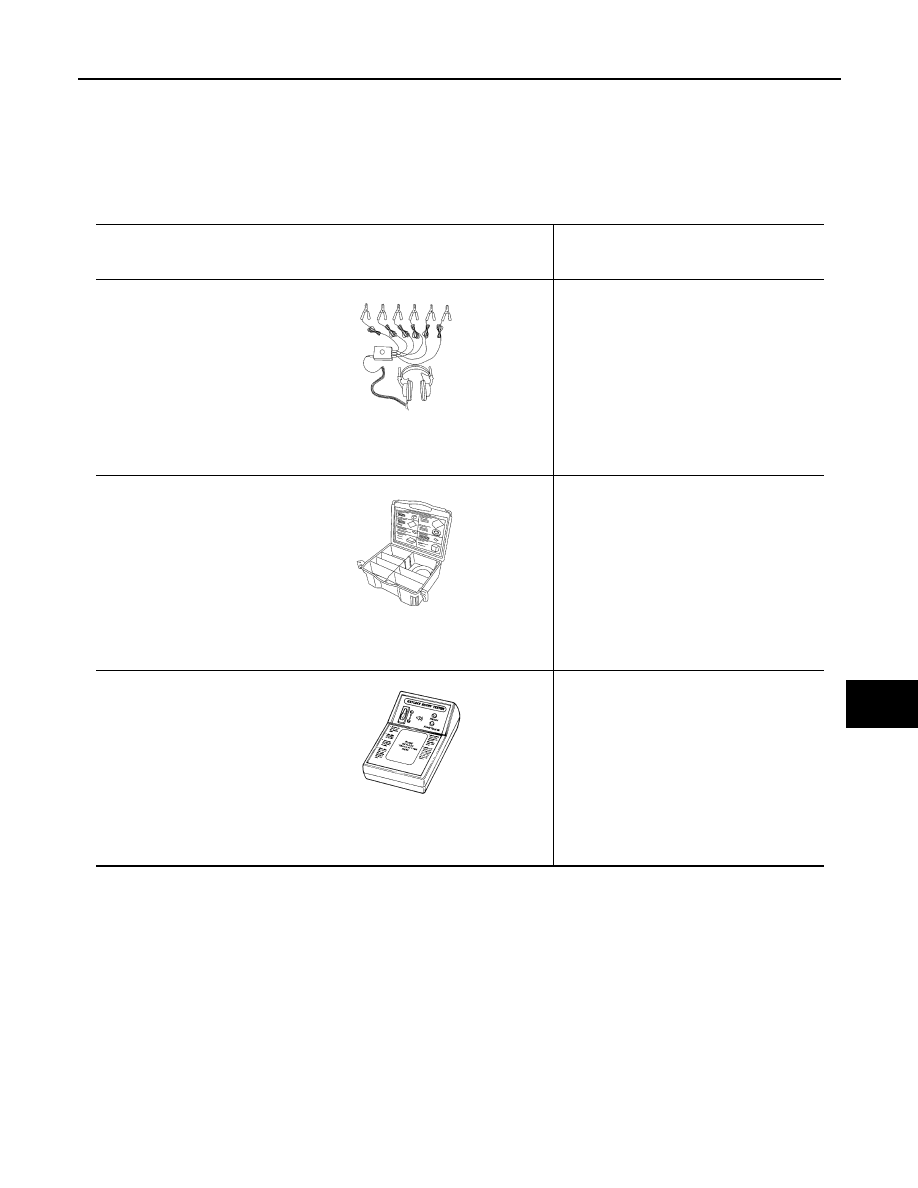

Special Service Tool

INFOID:0000000005147048

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Tool number
(Kent-Moore No.)
Tool name

Description

—

(J-39570)
Chassis ear

Locating the noise

—

(J-43980)
NISSAN Squeak  and Rat-
tle  Kit

Repairing the cause of noise

—

(J-43241)
Remote Keyless Entry
Tester

Used to test keyfobs

SIIA0993E

SIIA0994E

LEL946A

DLK-232

< PREPARATION >

[WITH INTELLIGENT KEY SYSTEM]

PREPARATION

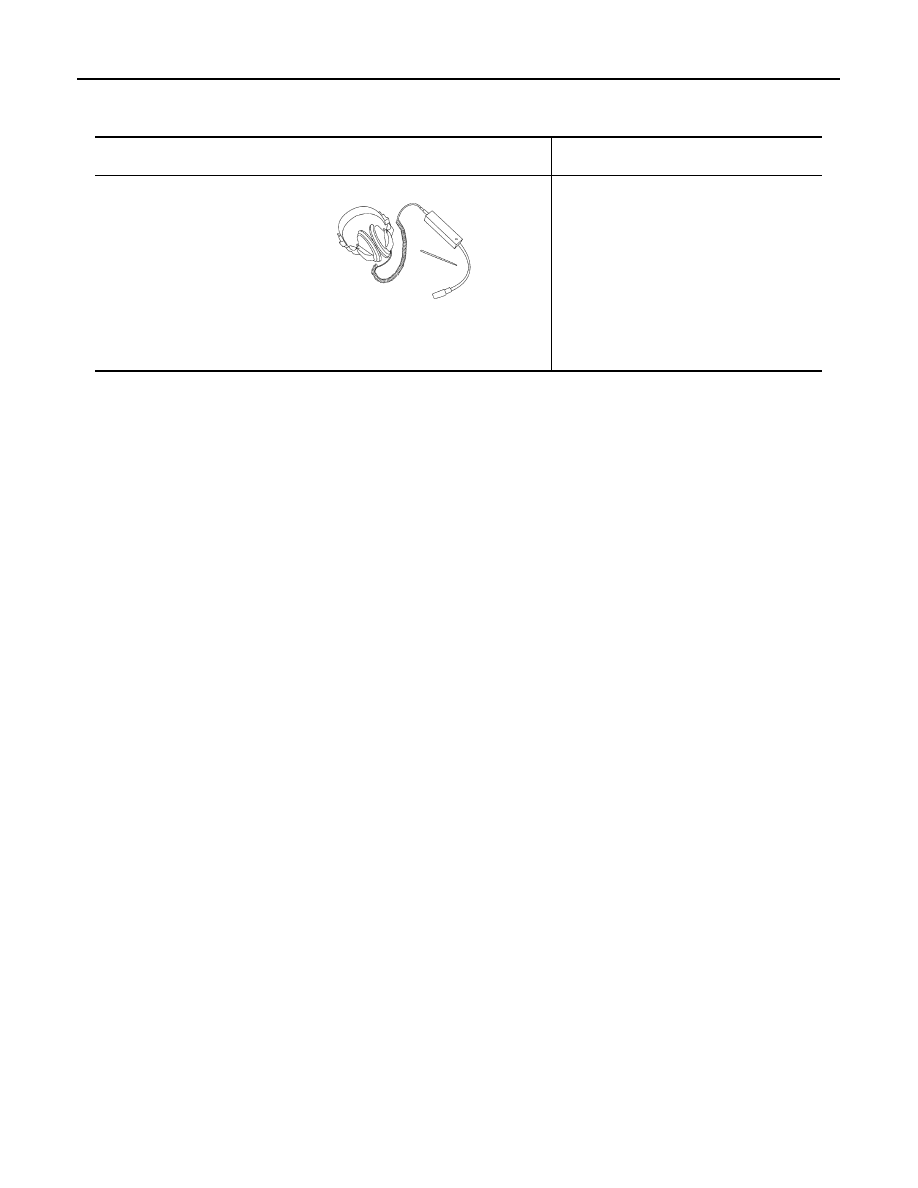

Commercial Service Tool

INFOID:0000000005147049

(Kent-Moore No.)
Tool name

Description

(J-39565)
Engine ear

Locating the noise

SIIA0995E

HOOD

DLK-233

< ON-VEHICLE REPAIR >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

ON-VEHICLE REPAIR

HOOD

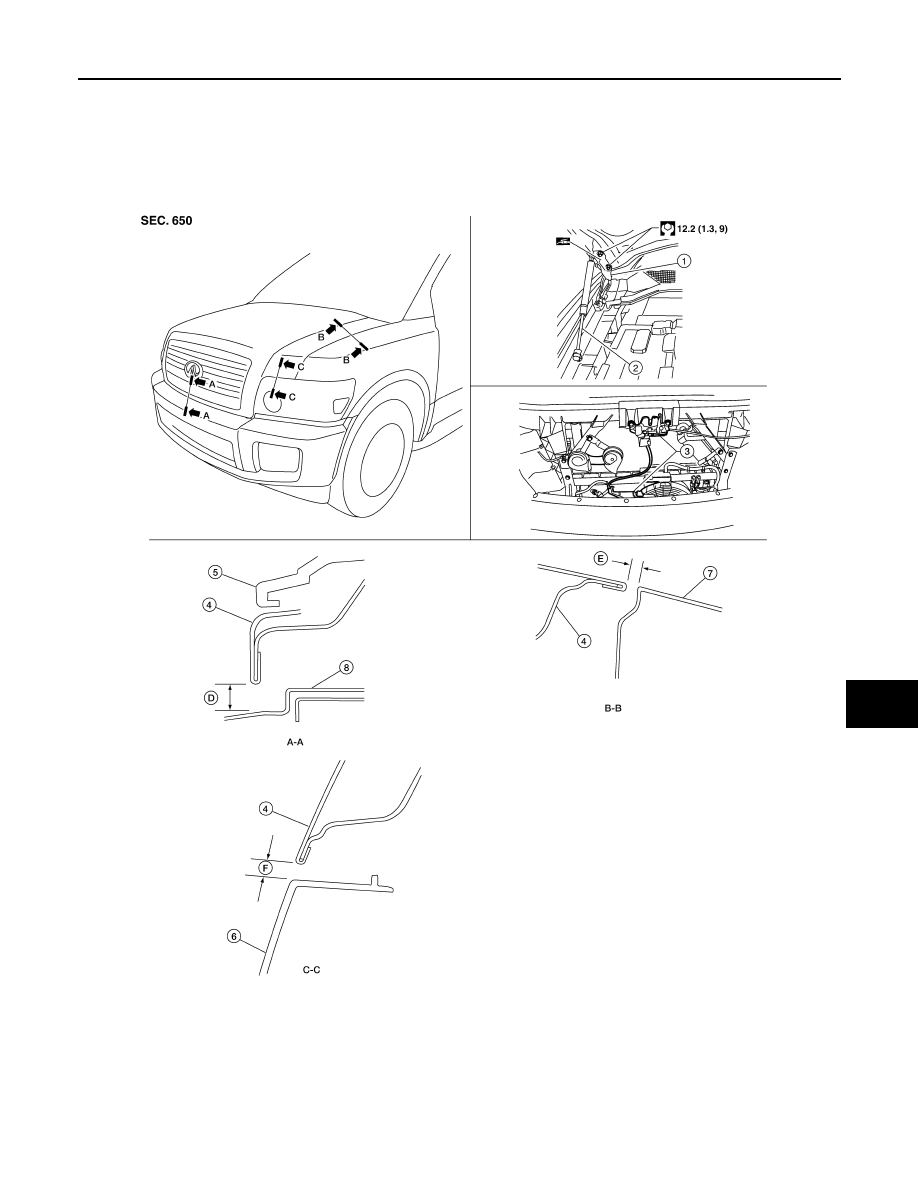

Fitting Adjustment

INFOID:0000000005147050

1.

Hood hinge

2.

Hood stay

3.

Hood lock assembly

4.

Hood assembly

5.

Front grille

6.

Headlamp

7.

Front fender

8.

Front bumper fascia

D.

8.0 mm (0.315 in)

E.

2.0 mm (0.079 in)

F.

8.0 mm (0.315 in)

AWKIA0674ZZ

DLK-234

< ON-VEHICLE REPAIR >

[WITH INTELLIGENT KEY SYSTEM]

HOOD

CLEARANCE AND SURFACE HEIGHT ADJUSTMENT

1. Remove the front grille. Refer to

EXT-17, "Removal and Installation"

.

2. Remove the hood lock assembly and adjust the height by rotating the bumper rubber until the hood clear-

ance of hood and fender becomes 1 mm (0.04 in) lower than fitting standard dimension.

3. Temporarily tighten the hood lock, and position it by engaging it with the hood striker. Check the lock and

striker for looseness, and tighten the lock mounting bolt to the specified torque.

4. Adjust the clearance and surface height of hood and fender according to the fitting standard dimension by

rotating right and left bumper rubbers.

CAUTION:

Adjust right/left gap between hood and each part to the following specification.

5. Install the front grille. Refer to

EXT-17, "Removal and Installation"

.

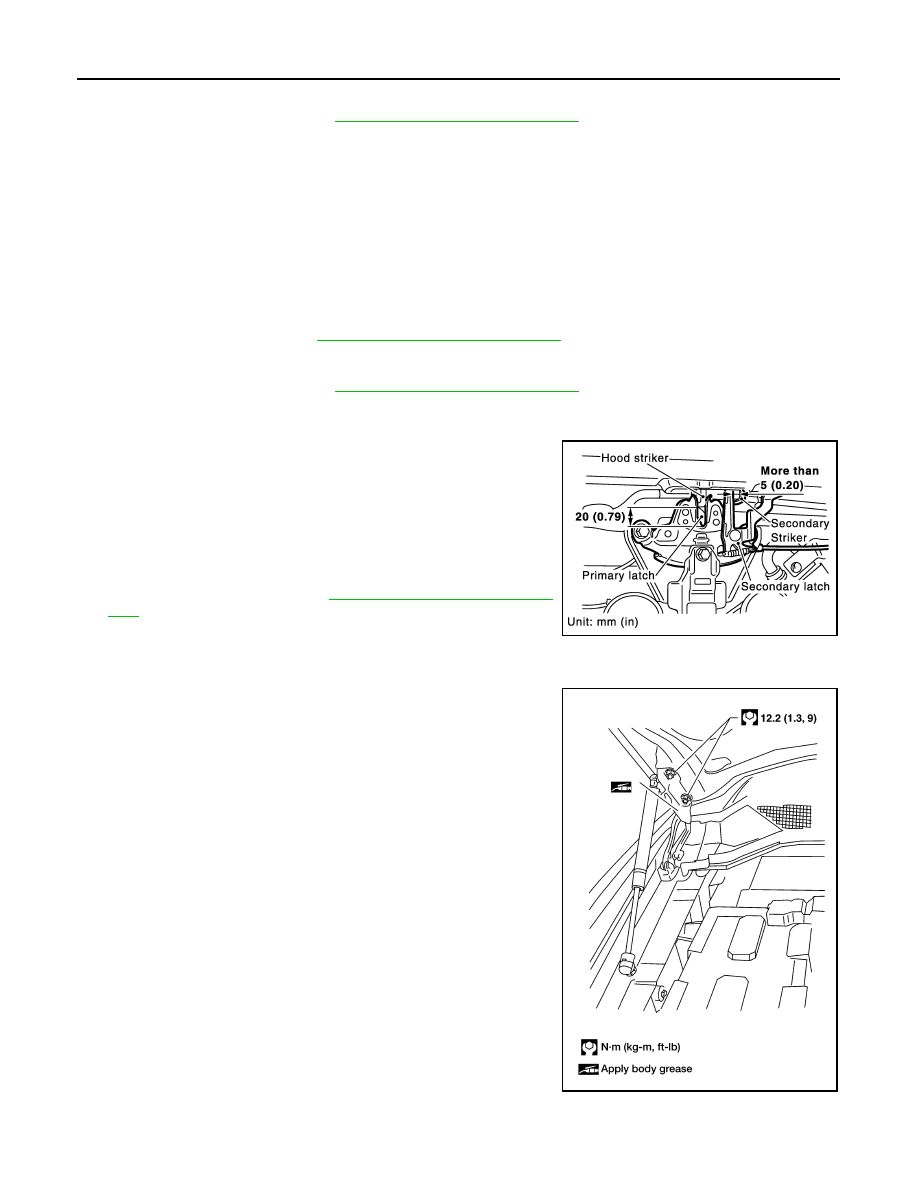

HOOD LOCK ADJUSTMENT

1. Remove the front grille. Refer to

EXT-17, "Removal and Installation"

.

2. Move the hood lock to the left or right so that striker center is vertically aligned with hood lock center

(when viewed from vehicle front).

3. Make sure the secondary latch is properly engaged with the sec-

ondary striker with hood's own weight by dropping it from

approx. 200 mm (7.87 in) height or by pressing it lightly approx.

3 kg (29 N, 7lb).

CAUTION:

Do not drop the hood from 300 mm (11.81 in) height or

higher.

4. After adjusting hood lock, tighten the lock bolts.
5. Install the front grille. Refer to

EXT-17, "Removal and Installa-

tion"

.

Removal and Installation of Hood Assembly

INFOID:0000000005147051

1. Support the hood striker with proper material to prevent it from

falling.

WARNING:

Body injury may occur if no supporting rod is holding the

hood open when removing the damper stay.

2. Remove the hinge nuts from the hood to remove the hood

assembly.

CAUTION:

Operate with two workers, because of its heavy weight.

Installation is in the reverse order of removal.

Hood and headlamp (B–B)

: 2.0 mm or less

PIIA3806E

LIIA1443E
