Infiniti QX56 (JA60). Manual - part 218





WARNING FUNCTION

DLK-43

< FUNCTION DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

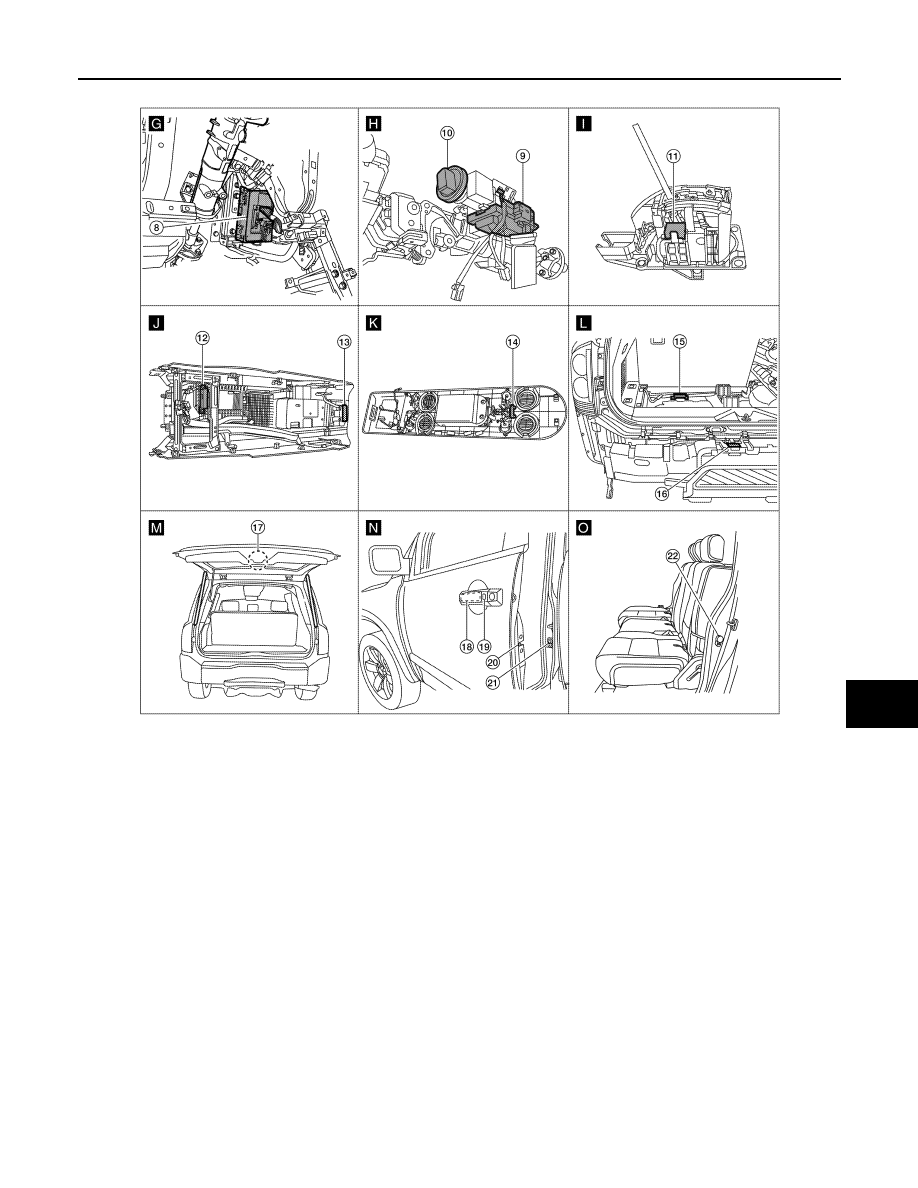

ALKIA0579ZZ

1.

Horn E3
(view with hood open)

2.

IPDM E/R E122, E124
(view with cover removed)

3.

Horn relay H-1

4.

Remote keyless entry receiver M25
(view with instrument panel RH removed)

5.

Intelligent key warning buzzer E25

6.

Combination meter M23, M24

7.

Intelligent Key unit M70
(view with instrument panel LH removed)

8.

BCM M18, M19, M20
(view with instrument panel LH removed)

9.

Steering lock solenoid M15
(view with steering column removed)

10. Key switch and ignition knob switch M12 11. A/T shift selector (park position switch)

M203
(view with center console removed)

12. Center console area antenna (front)

M210
(view with center console removed)

13. Center console area antenna (rear)

M209

14. Overhead console area antenna R210

(view with overhead console removed)

15. Luggage area antenna B76

(view with rear carpet removed)

16. Rear bumper antenna C7

(view with rear bumper removed)

17. Back door latch D503

18. Front outside antenna LH D15

Front outside antenna RH D115

19. Front door request switch LH D16

Front door request switch RH D116

20. Front door lock assembly LH (door un-

lock sensor) D14

21. Front door switch LH B8

RH B108

22. Rear door switch LH B18

RH B116

DLK-44

< FUNCTION DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

KEY REMINDER FUNCTION

KEY REMINDER FUNCTION

System Description

INFOID:0000000005146893

Key reminder is the function that prevents the key from being left in the vehicle.

Key reminder has the following 3 functions.

*:If the door closing impact shocks the door lock knob, or contacts against baggage with the door lock knob might activate the door locks
accidentally but unlock operation will be performed in these cases.

CAUTION:

• The above function operates when the Intelligent Key is inside the vehicle. However, there may be

times when the Intelligent Key cannot be detected, and this function will not operate when the Intelli-

gent Key is on the instrument panel, rear of vehicle, or in the glove box. Also, this system sometimes

does not operate if the Intelligent Key is in the door pocket for the open door.

• When the key reminder function is operated when the back door is open/closed and the buzzers

sound, if the following operations are performed, the key reminder function is cleared and buzzer

sounds are stopped.

- Remote controller door lock button operation of Intelligent Key

- Remote controller door unlock button operation of Intelligent Key

- When the liftgate is closed, the Intelligent Key is not inside the vehicle

- When any door is open

Key reminder function

Operation condition

Operation

Driver door closed*

Right after driver side door is closed under the following conditions
• Door lock operation is performed
• Driver side door is opened
• Driver side door is in unlock state

All doors unlock

Door is open or closed

Right after all doors are closed under the following conditions
• Intelligent Key is inside the vehicle
• Any door is opened
• All doors are locked by door lock and unlock switch or door lock knob

• All doors unlock
• Sounds Intelligent Key warning

buzzer

Back door is closed

Right after back door is closed under the following conditions
• Intelligent Key is inside luggage compartment
• All doors are closed
• All doors are locked

• Back door open
• Sounds Intelligent Key warning

buzzer

KEY REMINDER FUNCTION

DLK-45

< FUNCTION DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

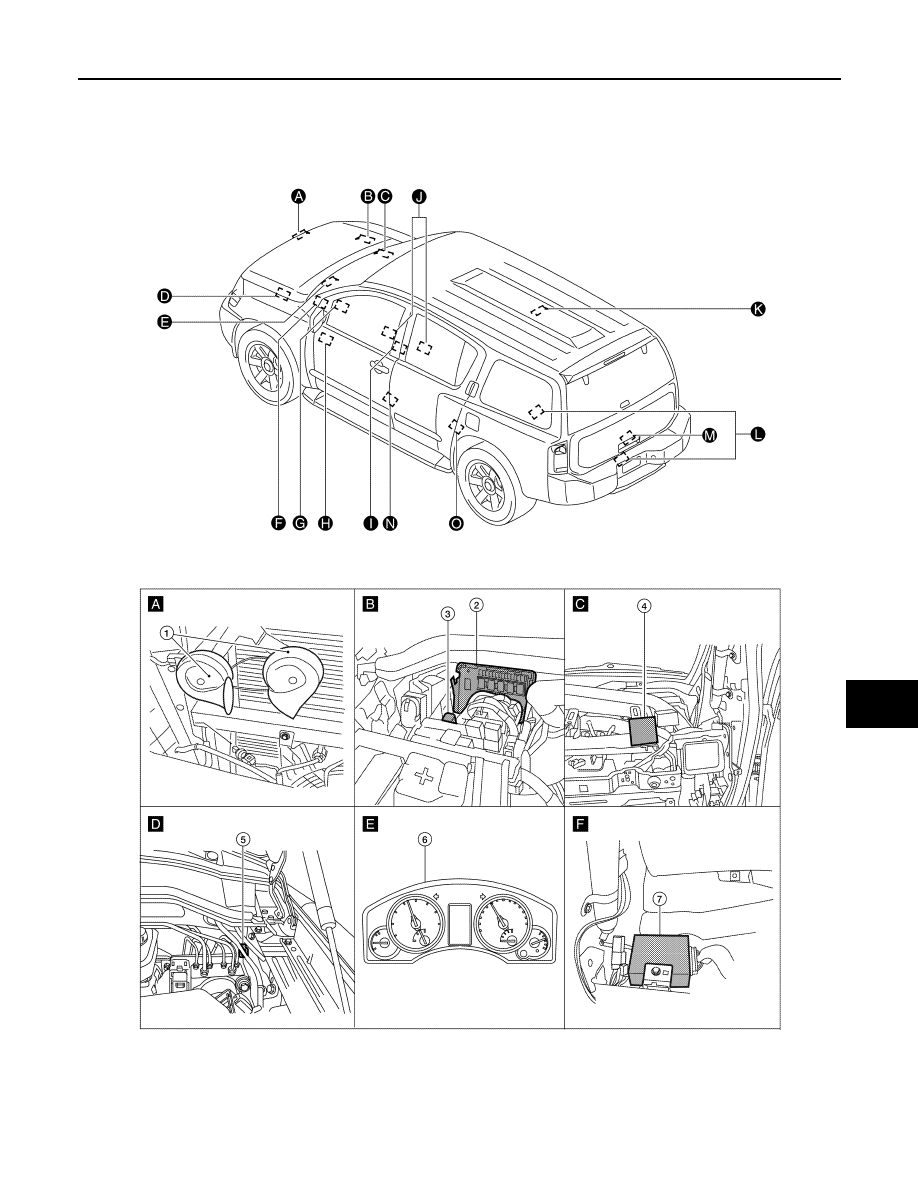

Component Parts Location

INFOID:0000000005380601

ALKIA0965ZZ

DLK-46

< FUNCTION DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

KEY REMINDER FUNCTION

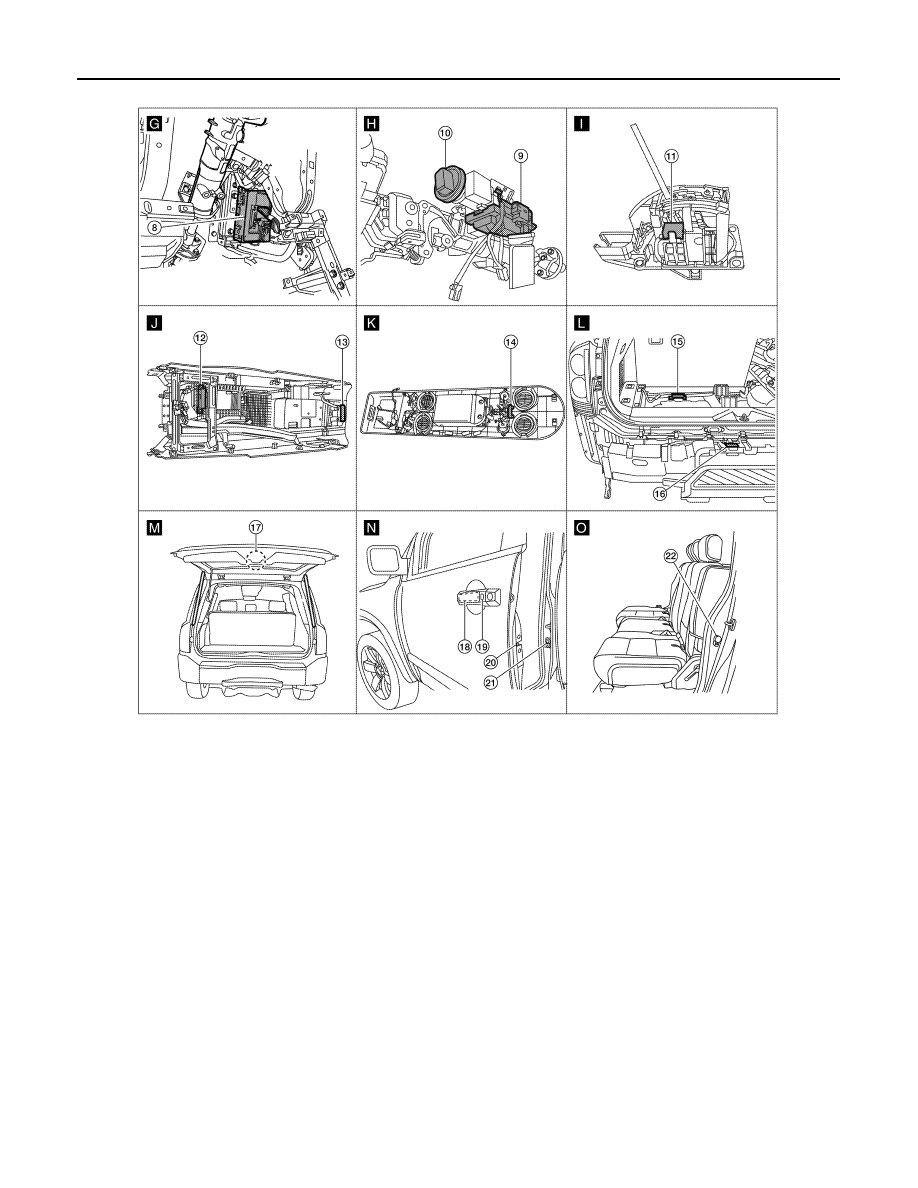

ALKIA0579ZZ

1.

Horn E3
(view with hood open)

2.

IPDM E/R E122, E124
(view with cover removed)

3.

Horn relay H-1

4.

Remote keyless entry receiver M25
(view with instrument panel RH removed)

5.

Intelligent key warning buzzer E25

6.

Combination meter M23, M24

7.

Intelligent Key unit M70
(view with instrument panel LH removed)

8.

BCM M18, M19, M20
(view with instrument panel LH removed)

9.

Steering lock solenoid M15
(view with steering column removed)

10. Key switch and ignition knob switch M12 11. A/T shift selector (park position switch)

M203
(view with center console removed)

12. Center console area antenna (front)

M210
(view with center console removed)

13. Center console area antenna (rear)

M209

14. Overhead console area antenna R210

(view with overhead console removed)

15. Luggage area antenna B76

(view with rear carpet removed)

16. Rear bumper antenna C7

(view with rear bumper removed)

17. Back door latch D503

18. Front outside antenna LH D15

Front outside antenna RH D115

19. Front door request switch LH D16

Front door request switch RH D116

20. Front door lock assembly LH (door un-

lock sensor) D14

21. Front door switch LH B8

RH B108

22. Rear door switch LH B18

RH B116
