BACK DOOR OPENER FUNCTION

DLK-31

< FUNCTION DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Warning Chime Active Conditions

The warning chime uses two types of audio warnings, a friendly chime and a warning chime. The friendly

chime consists of dings lasting 0.66 seconds each immediately followed by the next ding. The warning chime

consists of beeps lasting 0.33 seconds with a pause of 0.33 seconds between each beep.

Reverse Conditions

Operation status

Operation or conditions

Warning chime pattern

When auto operation starts

Power liftgate switch operation

Friendly chime

2 seconds, 3 dings

Remote keyless entry operation

Back door handle switch operation

Back door close switch operation

When reverse operation starts

When reverse request is detected from
power liftgate switch, remote keyless
entry or back door close switch

Friendly chime

1.3 seconds, 2 dings

When obstacle is detected

Warning chime

2 seconds, 3 beeps

Operating at low voltage

While opening or closing

Warning chime

2 seconds, 3 beeps

A/T selector lever not in P position

Back door close operation

Friendly chime

Continuously dings

Back door open operation

Warning chime

Continuously beeps

(until close operation is started)

Type

Overload reverse

Operation covered

Both directions

Detection method

Operation speed and motor current change direction

Pinch strips during back door close operation

Non-reversed area

• For about 0.5 seconds immediately after drive motor operation

starts

• Between full open and approx. 7

° from full open

• Closure operation area (half switch - close switch)

Number of times reverse allowed

One reversal is allowed (if a second obstacle is detected during a
power open or close operation, the door reverts to manual mode).

DLK-32

< FUNCTION DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

BACK DOOR OPENER FUNCTION

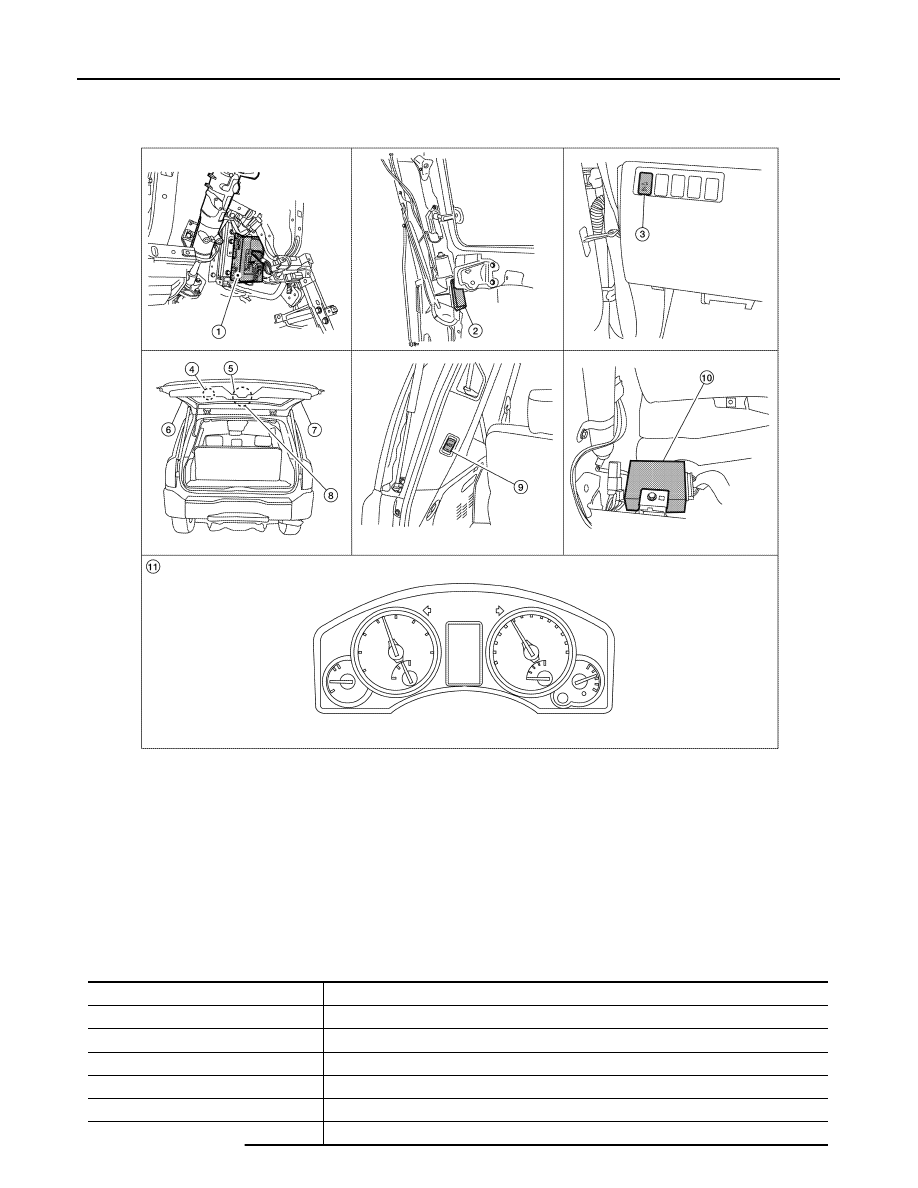

BACK DOOR OPENER SWITCH : Component Parts Location

INFOID:0000000005146885

BACK DOOR OPENER SWITCH : Component Description

INFOID:0000000005146886

1.

BCM M18, M19, M20
(view with instrument panel LH removed)

2.

Back door control unit B55
(view with right rear panel removed)

3. Power liftgate switch M92

4.

Back door warning chime D514

5.

Back door latch D503
Back door and glass hatch switch
assembly (back door switch) D706

6. Pinch strip LH D517

7.

Pinch strip RH D715

8.

Glass hatch ajar switch D707

9. Back door close switch B63

10. Intelligent Key unit M70

(view with instrument panel RH removed)

11. Combination meter M24

ALKIA0966ZZ

Item

Function

Power liftgate switch

Transmits liftgate open operation signal to back door control unit.

Back door control unit

Transmits liftgate open operation to liftgate motor.

Back door close switch

Transmits back door close signal to back door control unit.

Back door handle switch

Transmits back door open signal to back door control unit.

Pinch strip (LH, RH)

While closing, reverses door direction to full open position when an obstacle is in the way.

Back door warning chime

Announces opening and closing of back door.

BACK DOOR OPENER FUNCTION

DLK-33

< FUNCTION DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

INTELLIGENT KEY

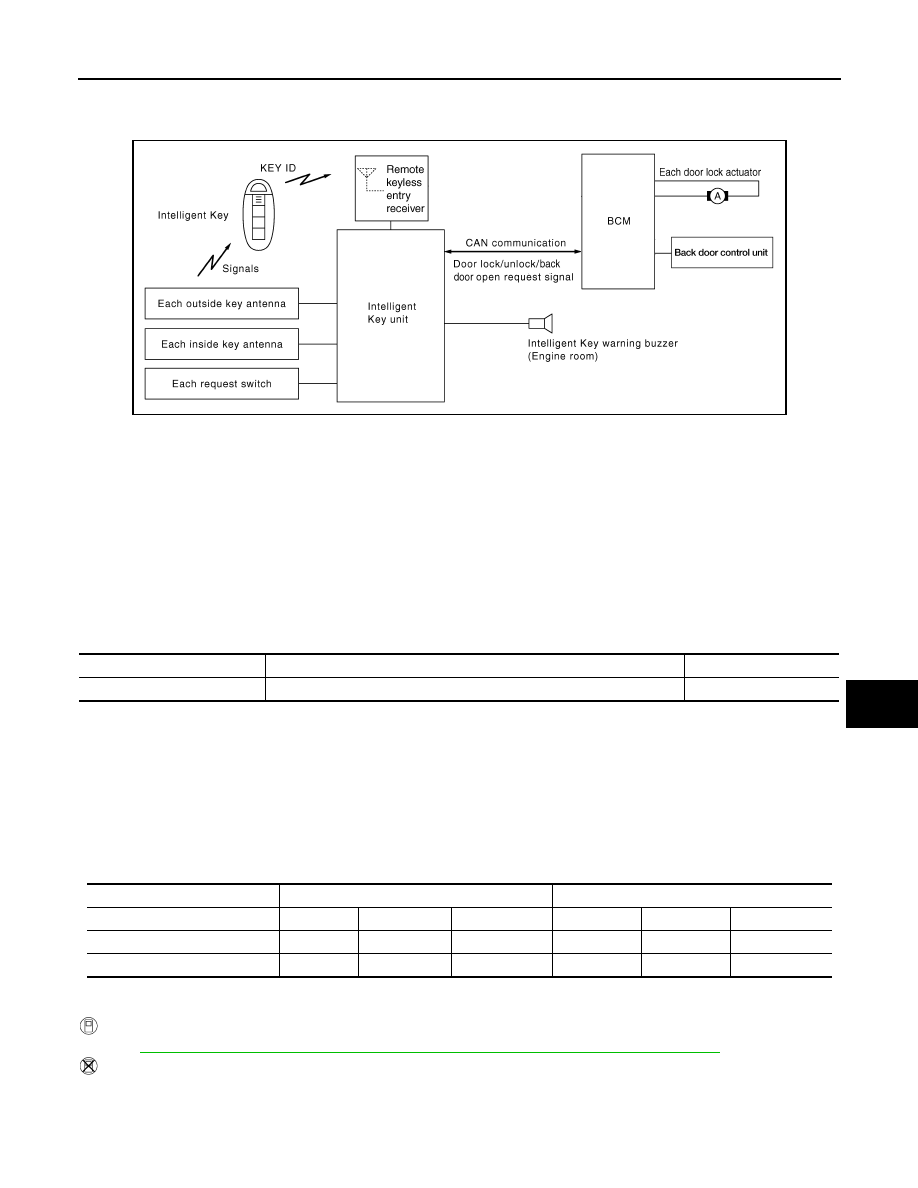

INTELLIGENT KEY : System Diagram

INFOID:0000000005146887

INTELLIGENT KEY : System Description

INFOID:0000000005146888

The Intelligent Key has the same functions as the remote control entry system. Therefore, it can be used in the

same manner as the remote controller by operating the back door open button.

OPERATION DESCRIPTION/BACK DOOR OPEN FUNCTION

• When back door button of the Intelligent Key is pressed, the back door open signal is transmitted from the

Intelligent Key to the back door control unit via remote keyless entry receiver and the Intelligent Key unit.

• When back door control unit receives the back door open request signal, it operates the back door motor

and opens the liftgate.

OPERATION CONDITION

OPERATION AREA

• Operating Range

• To ensure the Intelligent Key works effectively, use within 80 cm range of each door, however the operable

range may differ according to surroundings.

HAZARD AND HORN REMINDER FUNCTION

When doors are locked or unlocked by Intelligent Key. BCM flashes hazard warning lamps as a reminder and

transmits horn chirp signal to IPDM E/R. IPDM E/R sound horns as a reminder.

The hazard and horn reminder has a horn chirp mode (C mode) and a non-horn chirp mode (S mode).

Operating function of hazard and horn reminder

Hazard and horn reminders do not operate if any door switch is ON (any door is OPEN).

How to change hazard and horn reminder mode

With CONSULT-III

Refer to

DLK-55, "INTELLIGENT KEY : CONSULT-III Function (BCM - INTELLIGENT KEY)"

.

Without CONSULT-III

Refer to Owner's Manual for instructions.

LIST OF OPERATION RELATED PARTS

Parts marked with

× are the parts related to operation.

ALKIA0704GB

Remote controller operation

Operation condition

Operation

Back door open

• Press and hold the back door open button for 0.5 second or more

Back door opens

C mode

S mode

Intelligent Key operation

Lock

Unlock

Back door open

Lock

Unlock

Back door open

Hazard warning lamp flash

Twice

Once

Twice

Horn sound

Once

DLK-34

< FUNCTION DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

BACK DOOR OPENER FUNCTION

Remote keyless entry functions

In

te

lli

gen

t K

ey

Ig

ni

tio

n key

Bac

k do

or l

a

tc

h

Bac

k do

or wa

rni

ng ch

im

e

In

te

lli

gen

t K

ey warn

in

g b

uzze

r

CAN c

om

m

uni

ca

tio

sy

st

em

Bac

k do

or c

o

nt

ro

l u

n

it

Com

b

ina

tio

n me

ter

Hazard warning

lamp

s

Horns

IPDM

 E/

R

Back door open function by remote control button

×

×

×

×

×

×

Hazard and horn reminder function

×

×

×

×

×

×

×

×
