DOOR LOCK FUNCTION

DLK-23

< FUNCTION DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

While retained power operation activate, Keyless power window down (open) function cannot be operated.

Keyless power window down operation mode can be changed by PW DOWN SET mode in “WORK SUP-

PORT”. Refer to

DLK-55, "INTELLIGENT KEY : CONSULT-III Function (BCM - INTELLIGENT KEY)"

.

ROOM LAMP ILLUMINATION OPERATION

When the following conditions are met:

• Condition of interior lamp switch is in DOOR position

• Door switch OFF (all the doors are closed)

Intelligent Key system turns on interior lamp (for 30 seconds) by receiving UNLOCK signal from Intelligent

Key. For detailed description, refer to

DLK-21, "INTELLIGENT KEY : System Description"

.

LIST OF OPERATION RELATED PARTS

Parts marked with

× are the parts related to operation.

Remote keyless entry functions

Int

ell

ig

en

t Ke

y

Int

ell

ig

en

t Ke

y u

ni

t

Ke

y swi

tch

 an

d i

g

ni

tion

 k

n

ob

 s

w

itc

h

Do

or re

qu

es

sw

itc

h

 (Driver

, Passenger)

Doo

r swi

tch

Doo

r lo

ck actu

ato

r

Int

ell

ig

en

t Ke

y wa

rni

ng

 bu

zz

er

CAN c

o

m

m

un

ica

tio

n sy

st

em

BCM

Com

bin

at

ion

 m

ete

r

Hazard warning lamp

s

Horn

IPDM

 E/R

Head lamp

Door lock/unlock function by remote control button

×

×

×

×

×

×

×

Hazard and horn reminder function

×

×

×

×

×

×

×

×

×

Selective unlock function

×

×

×

×

×

×

Keyless power window down (open) function

×

×

×

×

×

Auto door lock function

×

×

×

×

×

×

Panic alarm function

×

×

×

×

×

×

×

×

DLK-24

< FUNCTION DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

DOOR LOCK FUNCTION

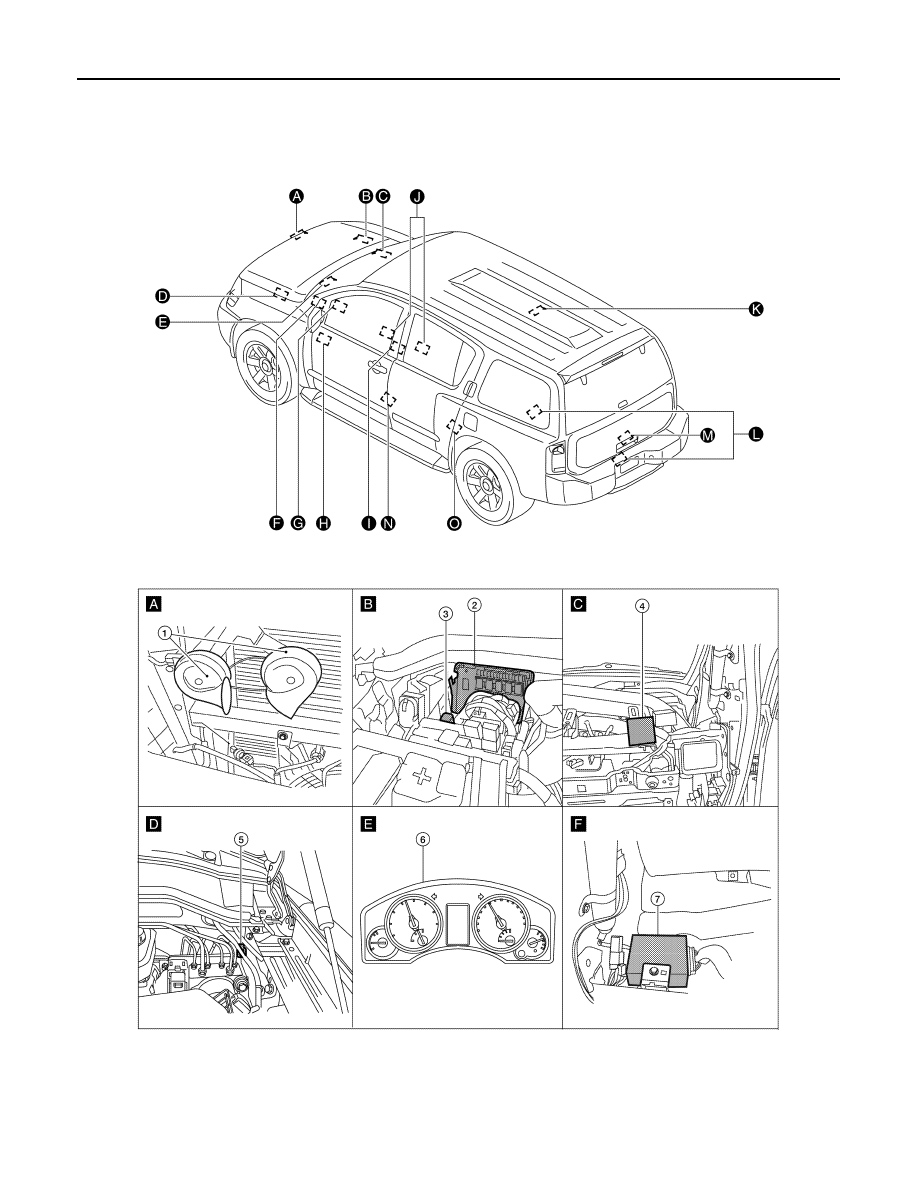

INTELLIGENT KEY : Component Parts Location

INFOID:0000000005380598

ALKIA0965ZZ

DOOR LOCK FUNCTION

DLK-25

< FUNCTION DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

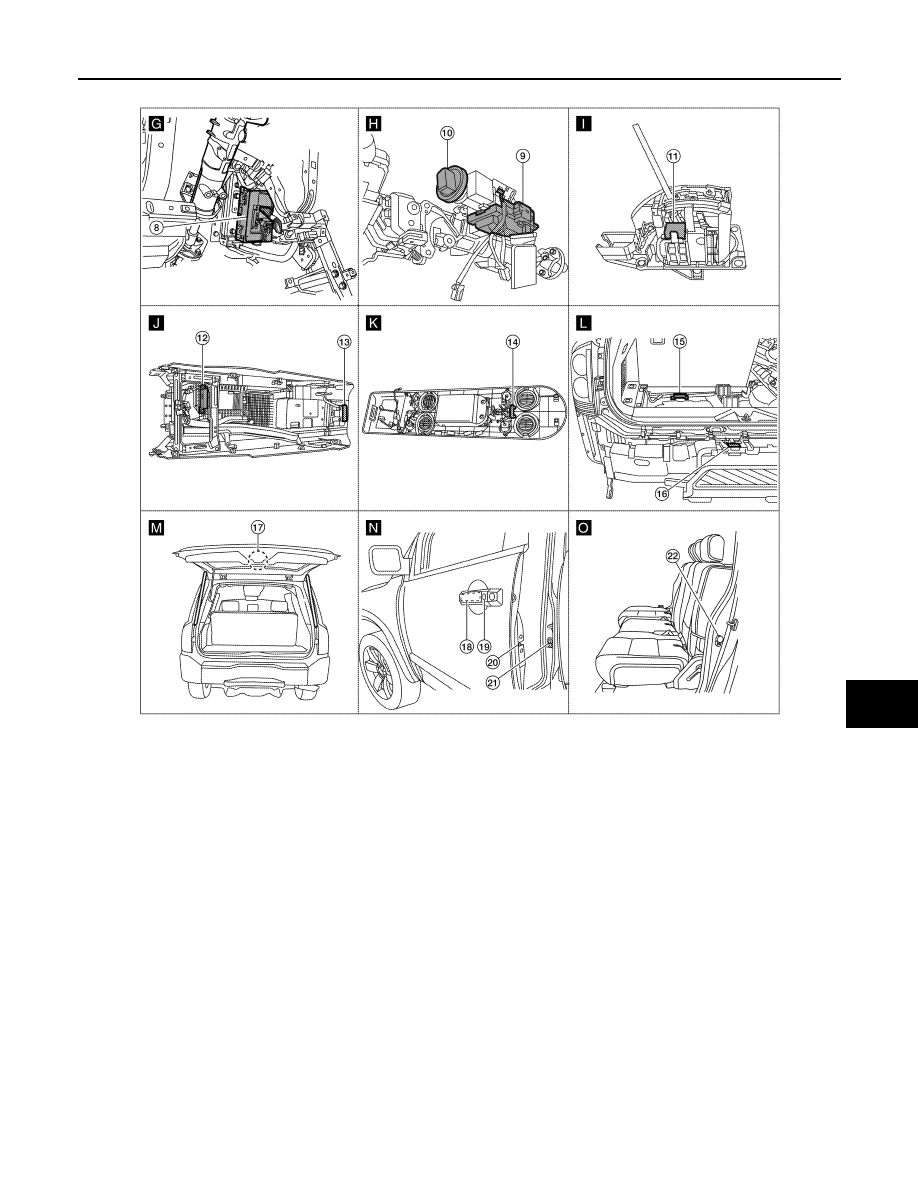

INTELLIGENT KEY : Component Description

INFOID:0000000005146882

ALKIA0579ZZ

1.

Horn E3
(view with hood open)

2.

IPDM E/R E122, E124
(view with cover removed)

3.

Horn relay H-1

4.

Remote keyless entry receiver M25
(view with instrument panel RH removed)

5.

Intelligent key warning buzzer E25

6.

Combination meter M23, M24

7.

Intelligent Key unit M70
(view with instrument panel LH removed)

8.

BCM M18, M19, M20
(view with instrument panel LH removed)

9.

Steering lock solenoid M15
(view with steering column removed)

10. Key switch and ignition knob switch M12 11. A/T shift selector (park position switch)

M203
(view with center console removed)

12. Center console area antenna (front)

M210
(view with center console removed)

13. Center console area antenna (rear)

M209

14. Overhead console area antenna R210

(view with overhead console removed)

15. Luggage area antenna B76

(view with rear carpet removed)

16. Rear bumper antenna C7

(view with rear bumper removed)

17. Back door latch D503

18. Front outside antenna LH D15

Front outside antenna RH D115

19. Front door request switch LH D16

Front door request switch RH D116

20. Front door lock assembly LH (door un-

lock sensor) D14

21. Front door switch LH B8

RH B108

22. Rear door switch LH B18

RH B116

DLK-26

< FUNCTION DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

DOOR LOCK FUNCTION

Item

Function

BCM

Controls the door lock function and room lamp function.

Door lock actuator

Receives lock/unlock signal from BCM and locks/unlocks each door.

Remote keyless entry receiver

Receives lock/unlock signal from the Intelligent Key, and then transmits to Intelligent Key unit.

Intelligent Key

Transmits button operation to remote keyless entry receiver.

Intelligent Key unit

Receives button operation from remote keyless entry receiver and transmits to BCM.

Intelligent key warning buzzer

Warns the user of the lock/unlock condition and inappropriate operations with the buzzer sound.
